6
x
Control unit
6
Control unit
6.1 Operating elements on the boiler control
panel
The ROTEX A1 is equipped with the ROTEX RoCon BF Regulation. The fitted digital control system serves to actuate a
direct heating circuit and a storage tank charging circuit.
It can be extended in many ways with accessory components.
A detailed description can be found in the documentation of the ROTEX RoCon BF Reglator.
1
Mains switch
2
Operating part RoCon B1
3
Clear text display
4
Rotary switch
5
Setting: Info

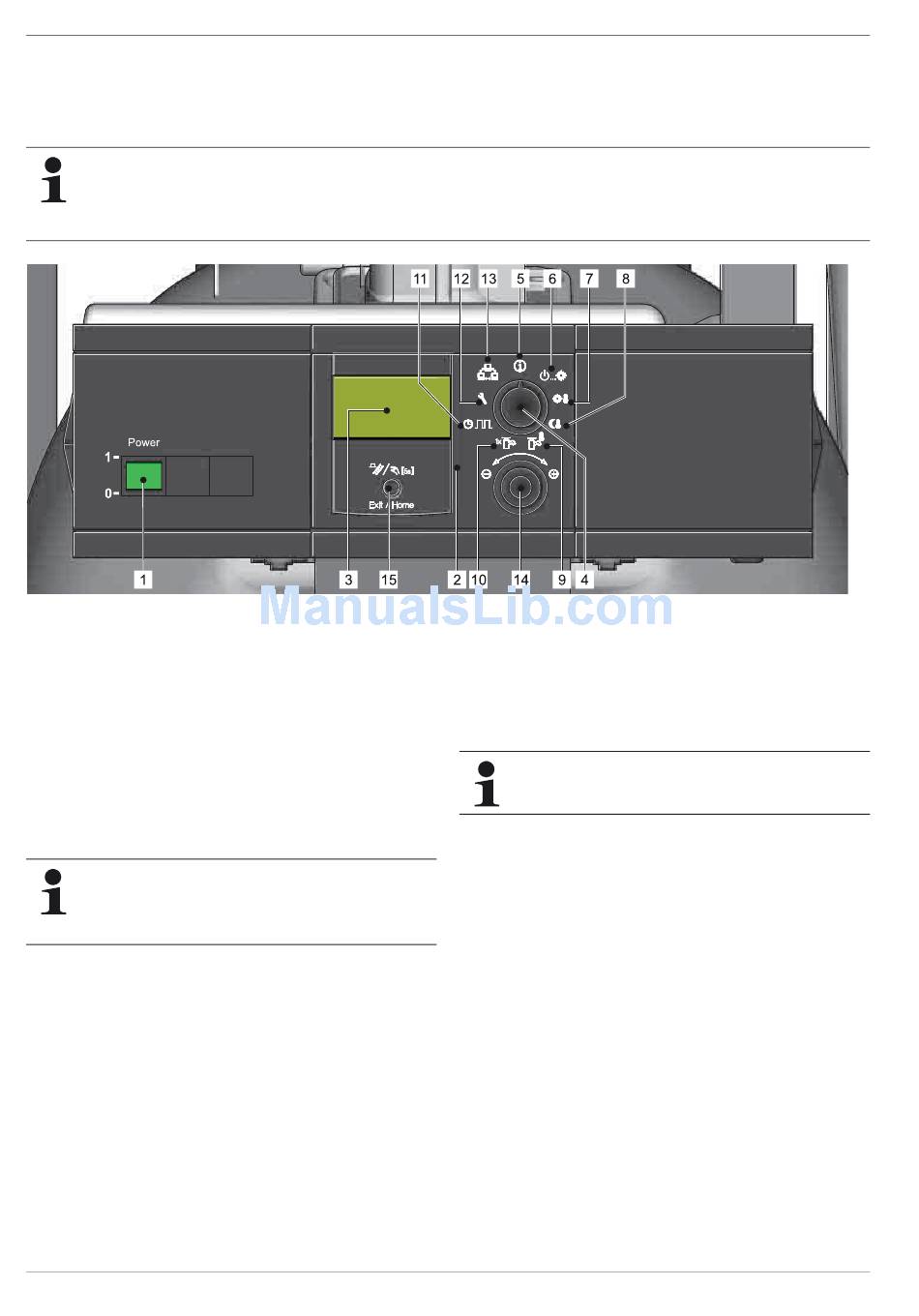

Fig. 6-1
Operating elements on the boiler control panel
Mains switch
Turn the ROTEX A1 on and off. When the heating system is on,
the mains switch is illuminated green.
RoCon BF Operating Part
The operating section is equipped with a coloured backlit clear
text.
Malfunctions are generally indicated by a fault code and
a clear text fault message on the display.
For troubleshooting instructions refer to chapter 10
"Faults and malfunctions".
The colour of the backlighting indicates the operational status
and the programming mode:
White:
Standard lighting, normal operational diaplay.
Red
Fault status, depending on the type of fault the boiler
continues to operate with restrictions.
Green:
Programming mode with operator authorisation.
Blue:
Programming mode with expert authorisation.
In normal system operation, the rotary switch should be in the po-
sition "Info".
In the display on the controller the most important system temper-
atures and operational conditions are displayed.
24
6
Setting: Operating Mode
7
Setting: Set Temp Day
8
Setting: Set Temp Night
9
Setting: DHW Set Temp
10
Setting: DHW Reheating
11
Setting: Time Program
12
Setting: Configuration
13
Setting: Remote Param
14
Rotary button
15
Exit button (jump back, Special Level, fault
rectification function)
Additional information and a detailed description can be
found in the documentation "ROTEX Regulator RoCon
BF". It is included in the A1 scope of supply.
FA ROTEX A1 BGe - 02/2014
