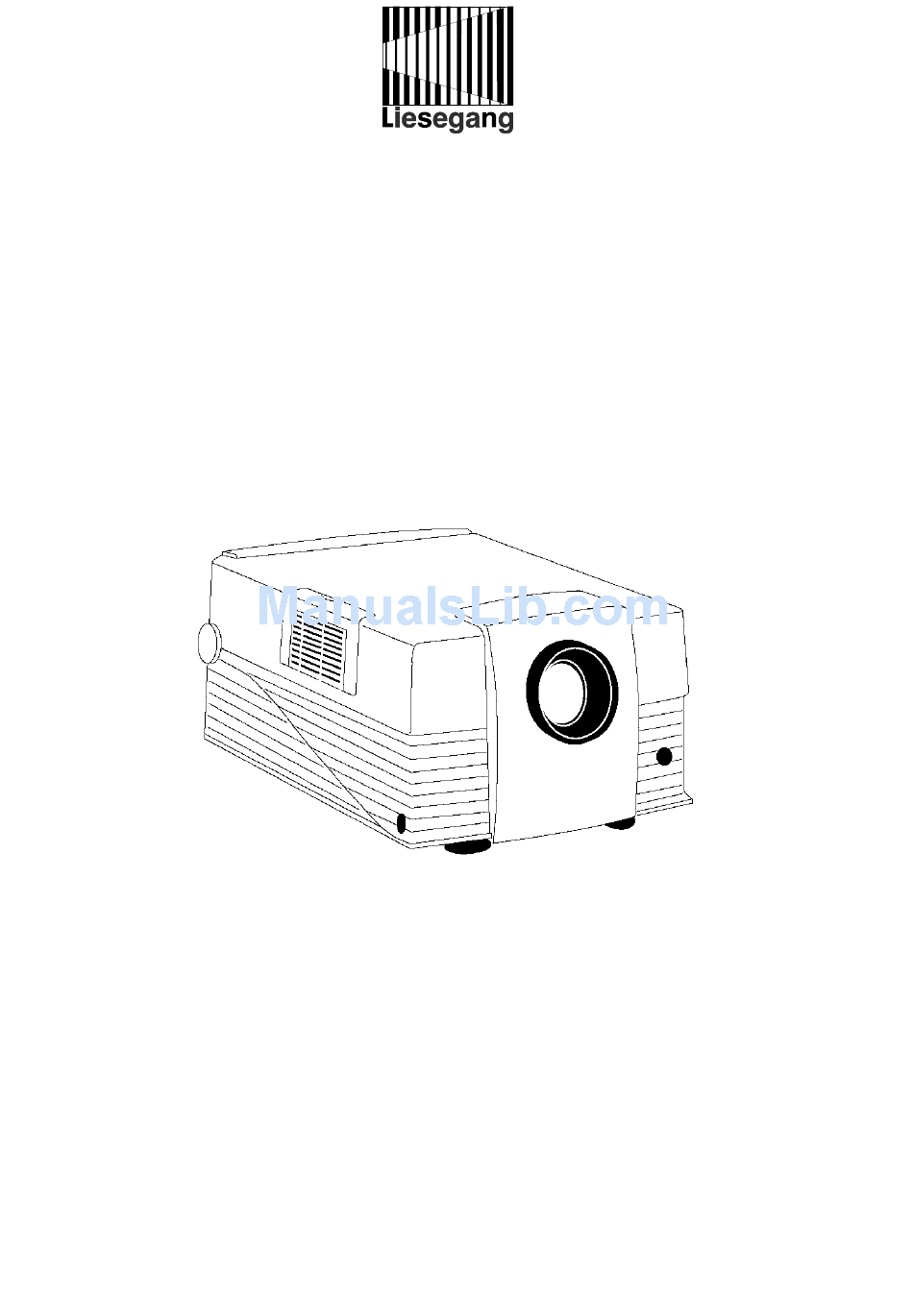

- Page 1 Liesegang dv 610 Bediener-Handbuch User Manual - Mode d'emploi - Istruzioni per l’uso Guía del operador - Manual do Usuário...
-
Page 2: Table Of Contents
User Manual for TFT 6.4“ Data Video Projector Preface 1. Scope of Delivery 2. Quick Setting Up 2.1 Setting Up the Projector 2.2 Projector Terminal Connections 2.3 Control Panel Keypad 2.4 Mouse Connection 2.5 Image Size 3. Starting Up the Projector 3.1 First Steps 3.2 Standby Mode 3.3 Projector Switch Off... -
Page 3: Preface
User Manual for TFT 6.4“ Data Video Projector Preface The manual describes the Liesegang 6.4“ TFT Data Video Projector. Please read through this operator manual carefully before starting your projector. Your projector is easy to use and enables computer data to be projected in natural colours at conferences, seminars or anywhere where pictures, graphics and texts are to be made accessible to a wider audience. -
Page 4: Quick Setting Up
User Manual for TFT 6.4“ Data Video Projector Quick Setting Up Setting Up the Projector These instruction are intended to get you going fast. If you have any problems, refer to Appendix 3. avoid damage equipment, power projector input sources must be turned off during cable hook up. 1. -
Page 5: Control Panel Keypad
User Manual for TFT 6.4“ Data Video Projector Control Panel Keypad The control panel keypad is located on the back of the projector. It has the following buttons: 1. Green indicator lamp 2. Red indicator lamp 3. Standby button 4. Menu button 5. -
Page 6: Starting Up The Projector
User Manual for TFT 6.4“ Data Video Projector Starting Up the Projector First steps After all cable connections have been completed, the projector can be switched on. For best results, please observe the following start up sequence: 1. Press the power switch (1) to ON to apply power to the projector (I = ON, O = OFF). -
Page 7: Projector Switch Off
User Manual for TFT 6.4“ Data Video Projector Projector Sw itch Off Press the standby button to place the projector in the standby mode. The cooling fan motor will continue to run. 1. Wait until the cooling fan motor cycles off then press the main power switch to OFF. -
Page 8: Menu Adjustments/Settings
User Manual for TFT 6.4“ Data Video Projector 4. Press the up/down ARROW KEYS or move diskpad to select a menu item in the sub-menu. 5. Press the left/right ARROW KEYS or move the diskpad left/right to change the value of a menu item. 6. - Page 9 User Manual for TFT 6.4“ Data Video Projector Lamp Mode Change lamp power: standard (=std.) or eco. (= low) ( Default = eco.) Remote Turn remote control feature On/Off. Contr. (Default=On) Auto Mode* Turn automatic mode detection On/Off. (Default=On) On = Standard video input (VCR). interlacing** Off = Motion video input (camera).
- Page 10 User Manual for TFT 6.4“ Data Video Projector Audio-In 2: Video Data Video Submenu <Video Mode> Arrow keys Select video source: Data, Video or S-VHS left/right or diskpad...
-
Page 11: Remote Control
User Manual for TFT 6.4“ Data Video Projector Remote Control How to Operate the Remote Control The remote control keypad controls basic projector functions. To use the remote control, aim the remote toward the projection screen and press the desired button. The remote signal will bounce off of the projection screen and back to the sensor on the front of the projector. - Page 12 User Manual for TFT 6.4“ Data Video Projector Description Button Press to switch the projector between Standby mode and operation mode. Stores (freezes) the projected image. Press FREEZE again to FREEZE return the projection of the current image. MAGNIFY Press MAGNIFY to double the image size in horizontal and vertical direction.
-
Page 13: Replacing The Batteries
User Manual for TFT 6.4“ Data Video Projector PAUSE Clears screen image (switches to a blank image). DISKPAD Mouse emulation ON, diskpad controls the movement of the mouse. Emulation OFF, diskpad centers image on screen. Pointer ON, controls movement of pointer Replacing the Batteries 1. -
Page 14: Replacing The Lamp
User Manual for TFT 6.4“ Data Video Projector To reset the lamp life indicator: 1. Select the menu item Lamp in the Function menu and press SELECT/ENTER. 2. Follow the instructions in the help window 3. Press SELECT/ENTER and the arrow of the projector control panel for confirmation. - Page 15 User Manual for TFT 6.4“ Data Video Projector 11. Install the new lamp by pushing down on the ends of the lamp (8) with equal pressure. Take care to correctly align the lamp with the bubble (8a) facing upward. Important Note: Do not touch lamp glass with fingers. Hold lamp by the metal ends only.
-
Page 16: Maintenance
User Manual for TFT 6.4“ Data Video Projector Maintenance Replacing the Air Filter It is recommended to clean the dust filter after every 150 hrs of operation. For best performance, replace the air filter each time the projection lamp is changed. 1. -
Page 17: Cleaning The Projector
User Manual for TFT 6.4“ Data Video Projector Use a soft cloth to remove dust from the projector housing. Use a soft cleaner to remove surface dirt and smudges from the projection lens. Caution: Always unplug the projector when cleaning. Take care that no liquids get inside the projector. - Page 18 User Manual for TFT 6.4“ Data Video Projector Cannot get Wrong Tracking If vertical interference stripes occur, change the entire image value. Tracking value in the Setup menu for optimum on the screen. Compatibility performance. problem. Refer to the documentation of your graphic card. The projector supports the resolutions that can be found under Pixel in the Setup menu .
-
Page 19: Appendix
User Manual for TFT 6.4“ Data Video Projector Appendix Technical Specification Power supply: 100-130 V /200-240 V ~ , 50-60 Hz Connections: RGB-Data input : 15 pin HD Serial interface/mouse: 9 pin. Sub (separate user manual available) Video: Coax (Cinch) SVHS: S-Video Audio In (Stereo):... -
Page 20: Projector-To-Screen Distance
User Manual for TFT 6.4“ Data Video Projector Freeze function for momentarily saving the displayed image. Digital multi-standard video decoder. Connection for two video sources (one with S-VHS input). Supported video standards: 625 lines, 50 Hz, SECAM 625 lines, 50 Hz NTSC 525 l i nes , 60 Hz Two integrated 10 W stereo speakers. - Page 21 User Manual for TFT 6.4“ Data Video Projector Adjust the projector to optimum display quality, as described below, by using the menu control (see section 3.5). All steps described can be carried out via the keyboard or the remote control: 1.
- Page 22 User Manual for TFT 6.4“ Data Video Projector 10. An automatic setting of the synchronization can be called up by using the SELECT/ENTER key. 11. Minor interference, where one colour meets another, can be corrected by manually adjusting the Brightness and Contrast. Normally, the contrast should be set to approximately the medium value.
-
Page 23: Tips For Data Projection
Use a projection screen with a high degree of reflection. Service Hotline In case of technical problems please feel free to call Liesegang at +49 211 39 01 444. For information about Liesegang products and if you have problems with operation of Liesegang products please do not hesitate to call Liesegang at +49 211 39 01 245. - Page 24 User Manual for TFT 6.4“ Data Video Projector This equipment complies with the requirements of the EU guidelines 89/336/EWG for electromagnetic compatibility and therefore bears the CE sign. The equipment satisfies the following standards: EN 55022 Interference voltage and perturbing radiation EN 50082-1 Immunity to interference EN 61000-4-2...
