00dv410  04.7.12 4:39 PM  ページ 2

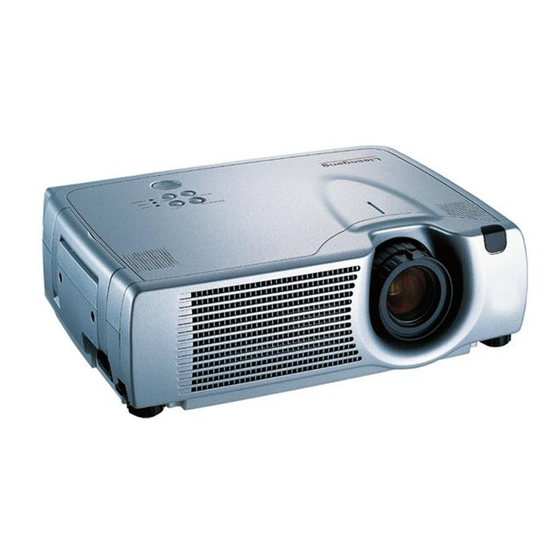

Liquid Crystal Projector
dv410
Model No.217
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le
fonctionnement de l'appareil.
MANUALE D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJZING
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do
usuário.
TECHNICAL

REGULATORY NOTICES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the dv410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Liesegang dv410

Summary of Contents for Liesegang dv410

  • Page 1: Regulatory Notices

    00dv410  04.7.12 4:39 PM  ページ 2 Liquid Crystal Projector dv410 Model No.217 USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.

  • Page 2: Table Of Contents

    01dv410  04.7.12 4:38 PM  ページ 1 Liquid Crystal Projector USER'S MANUAL USER'S MANUAL Thank you for purchasing this liquid crystal projector. WARNING • Please read the accompanying manual “Safety Guide” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference.

  • Page 3: Features

    Keep the original packing material for future reshipment. RGB Cable Power Cord (UK,Europe Type) Projector Liquid Crystal Projector dv410 Model No.217 USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam.

  • Page 4: Part Names

    01dv410  04.7.12 4:38 PM  ページ 3 Part Names Speaker Zoom Knob Focus Ring Carrying Handle Remote Control Sensor Lens Foot Adjuster AC Inlet (to the Power Cord) Lens Cap Power Switch Foot Adjuster Ventilation Openings FRONT/LEFT VIEW OF (Intake) THE PROJECTOR Control Panel (Refer to P.9 "OPERATIONS") INPUT Button STANDBY/ON Button LAMP Indicator...
  • Page 5 01dv410  04.7.12 4:38 PM  ページ 4 Part Names (continued) BLANK Button STANDBY/ON Button LASER Button VIDEO Button RGB Button Disk Pad MOUSE / RIGHT Button Used to operate the Used to click the right mouse shift function and mouse button. left click function. KEYSTONE Button AUTO Button RESET Button MENU Button...

  • Page 6: Loading The Batteries

    01dv410  04.7.12 4:38 PM  ページ 5 Loading the Batteries Install the AA batteries into the remote control transmitter. 1. Remove the battery cover. Push the knob while lifting up the battery cover. 2. Load the batteries. Make sure the plus and minus poles are correctly oriented.

  • Page 7: Installation

    01dv410  04.7.12 4:38 PM  ページ 6 INSTALLATION INSTALLATION Installation of the Projector and Screen Refer to the drawing and table below for determining of the screen size and projection distance. The projection distances shown in the table below are for full size (1024 x 768 pixels). a: Distance from the projector to the screen.

  • Page 8: Cabling

    01dv410  04.7.12 4:38 PM  ページ 7 Cabling Refer to the table below for connecting each terminal of the projector to each device. Table 2. Cabling Function Terminal Cable RGB IN 1 Accessory or optional RGB cable with D- RGB input RGB IN 2 sub 15-pin shrink jack and inch thread screws RGB output RGB OUT...

  • Page 9: Power Connection

    01dv410  04.7.12 4:38 PM  ページ 8 Power Connection Use the correct one of the enclosed power cords depending on the power outlet to be used. Connect the AC inlet of the projector to the power outlet firmly by the power cord. CAUTION • Be carful in handling the power Power cord according to instructions of the outlet...

  • Page 10: Operations

    01dv410  04.7.12 4:38 PM  ページ 9 OPERATIONS OPERATIONS STANDBY/ BLANK STANDBY/ON LASER STANDBY/ON Button ON Button VIDEO POWER Indicator Zoom Knob AUTO Focus Ring MENU KEYSTONE MENU SELECT RESET POSITION FREEZE PinP MAGNIFY MUTE Lens Cap Power Switch VOLUME Power ON 1. Check that the power cord is connected correctly. 2.

  • Page 11: Basic Operation

    01dv410  04.7.12 4:38 PM  ページ 10 Basic Operation The basic operations shown in Table 3 is performed from the supplied remote control transmitter or the projector control panel. Items indicated by (*) may be used from the control panel. Table 3 . Basic Operation Item Description Select Input Signal ( : Press the INPUT button.
  • Page 12 01dv410  04.7.12 4:38 PM  ページ 11 Items indicated by (*) may be used from the control panel. Table 3. Basic Operation (continued) Item Description VOLUME Volume Adjustment : Press the VOLUME button. Set/Clear Mute Mode : Press the MUTE button. No sound is heard in the MUTE MUTE mode.

  • Page 13: Setup Menu

    01dv410  04.7.12 4:38 PM  ページ 12 Setup Menu SETUP INPUT IMAGE OPT. SETUP INPUT IMAGE OPT. BRIGHT BRIGHT The following adjustments and settings are possible CONTRAST CONTRAST SHARPNESS V POSIT when SETUP is selected at the top of the menu. Part COLOR H POSIT TINT H PHASE of the Setup menu differs between RGB input and H PHASE...

  • Page 14: Input Menu

    01dv410  04.7.12 4:38 PM  ページ 13 Input Menu SETUP INPUT IMAGE OPT. The following functions are available when INPUT is selected on the EXECUTE AUTO menu. Select an item with the buttons, and start or stop CANCEL VIDEO operation with the buttons. The function indicated (**) are HDTV effective on video input mode only, not on RGB input mode, except in the P.IN P.

  • Page 15: Image Menu

    01dv410  04.7.12 4:38 PM  ページ 14 Image Menu SETUP INPUT IMAGE OPT. The following adjustments and settings are available when IMAGE is BLANK Desk Top ORIGINAL START UP selected on the menu. Select an item with the buttons, and Desk Top MIRROR P. IN P. POSIT start or stop operation with the buttons.

  • Page 16: Options Menu

    01dv410  04.7.12 4:38 PM  ページ 15 Options Menu SETUP INPUT IMAGE OPT. The following adjustments and settings are available when OPT. is VOLUME MENU COLOR selected on the menu. Select an item with the buttons, and LANGUAGE AUTO OFF start or stop operation with the buttons.

  • Page 17: No Signal Menu

    01dv410  04.7.12 4:38 PM  ページ 16 No Signal Menu VOLUME BLANK The same adjustments and settings are available as with the Image and START UP Options menus when the MENU button is pressed during display of the MIRROR MENU COLOR “NO INPUT IS DETECTED ON ***” or “SYNC IS OUT OF RANGE LANGUAGE AUTO OFF ON ***”...

  • Page 18: Maintenance

    01dv410  04.7.12 4:38 PM  ページ 17 MAINTENANCE MAINTENANCE Lamp HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE Contact your dealer before replacing the lamp. For the optional lamp, see the item “Optional Parts” of the Table 12. Before replacing the lamp, switch power OFF, remove the power cord from the power outlet, and wait approximately 45 minutes until the lamp has cooled.
  • Page 19 01dv410  04.7.12 4:38 PM  ページ 18 Replacing the Lamp 1. Switch the projector OFF, remove the power cord from the power outlet, and wait at least 45 minutes for the unit to cool. 2. Prepare a new lamp. 3. Check that the projector has cooled sufficiently, and gently turn it upside down.

  • Page 20: Air Filter

    01dv410  04.7.12 4:38 PM  ページ 19 Air Filter Cleaning the air Filter The air filter should be cleaned as described below at intervals of approximately 100 hours. 1. Switch the projector power supply OFF, and remove the power cord from the power outlet. 2. Clean the air filter with a vacuum cleaner. Replacing the Air Filter Replace the air filter if contamination cannot be removed, or if it is damaged.

  • Page 21: Troubleshooting

    01dv410  04.7.12 4:38 PM  ページ 20 TROUBLESHOOTING TROUBLESHOOTING OSD Message The messages as described below may appear on the screen at power ON. Take the appropriate measures when such messages appears. Table 9. OSD Messages Message Contents The usage time of lamp will be reaching 2000 hr CHANGE THE LAMP shortly.(*2) AFTER REPLACING LAMP,...

  • Page 22: Indicators Message

    01dv410  04.7.12 4:38 PM  ページ 21 Indicators Message The POWER indicator, LAMP indicator, and TEMP indicator are lit and blank as follows. Take the appropriate measures. Table 10. Indicators Message POWER LAMP TEMP Contents indicator indicator indicator Lights Turns off Turns off The Standby mode has been set. orange Blinks Turns off Turns off...

  • Page 23: Symptom

    01dv410  04.7.12 4:38 PM  ページ 22 Symptom Before requesting repair, check in accordance with the following chart. If the situation cannot be corrected, then contact your dealer. Table 11. Symptom Symptom Possible cause Remedy Page The main power switch is not Turn on the main power switch. turned on.

  • Page 24: Specifications

    01dv410  04.7.12 4:38 PM  ページ 23 SPECIFICATIONS SPECIFICATIONS Table 12. Specifications Item Specification Product name Liquid crystal projector Panel size 2.3 cm (0.9 type) Liquid crystal Drive system TFT active matrix panel Pixels 786,432 pixels (1024 horizontal x 768 vertical) Lens Zoom lens F=1.7 ~ 2.1 f=36.8 ~ 47.8 mm Lamp 250 W UHB Speaker...

  • Page 25: Warranty And After-Service

    01dv410  04.7.12 4:38 PM  ページ 24 WARRANTY AND AFTER-SERVICE WARRANTY AND AFTER-SERVICE If a problem occurs with the equipment, first refer to the P.20 “TROUBLESHOOTING” section and run through the suggested checks. If this does not resolve the problem contact your dealer or service company. They will tell you what warranty condition is applied. ENGLISH-24 ENGLISH-24...
  • Page 26 00dv410  04.7.12 4:39 PM  ページ 1 Liesegang Optoelectronics GmbH - Kaistrasse 5 - D-40221 Düsseldorf • Postfach 10 35 53 • D-40026 Düsseldorf Telefon (0211) 3901-1 • Telfax (0211) 39 01-227 Internet http://www.liesegang.de • e-mail info@liesegang.de Printed in China QR62041...
