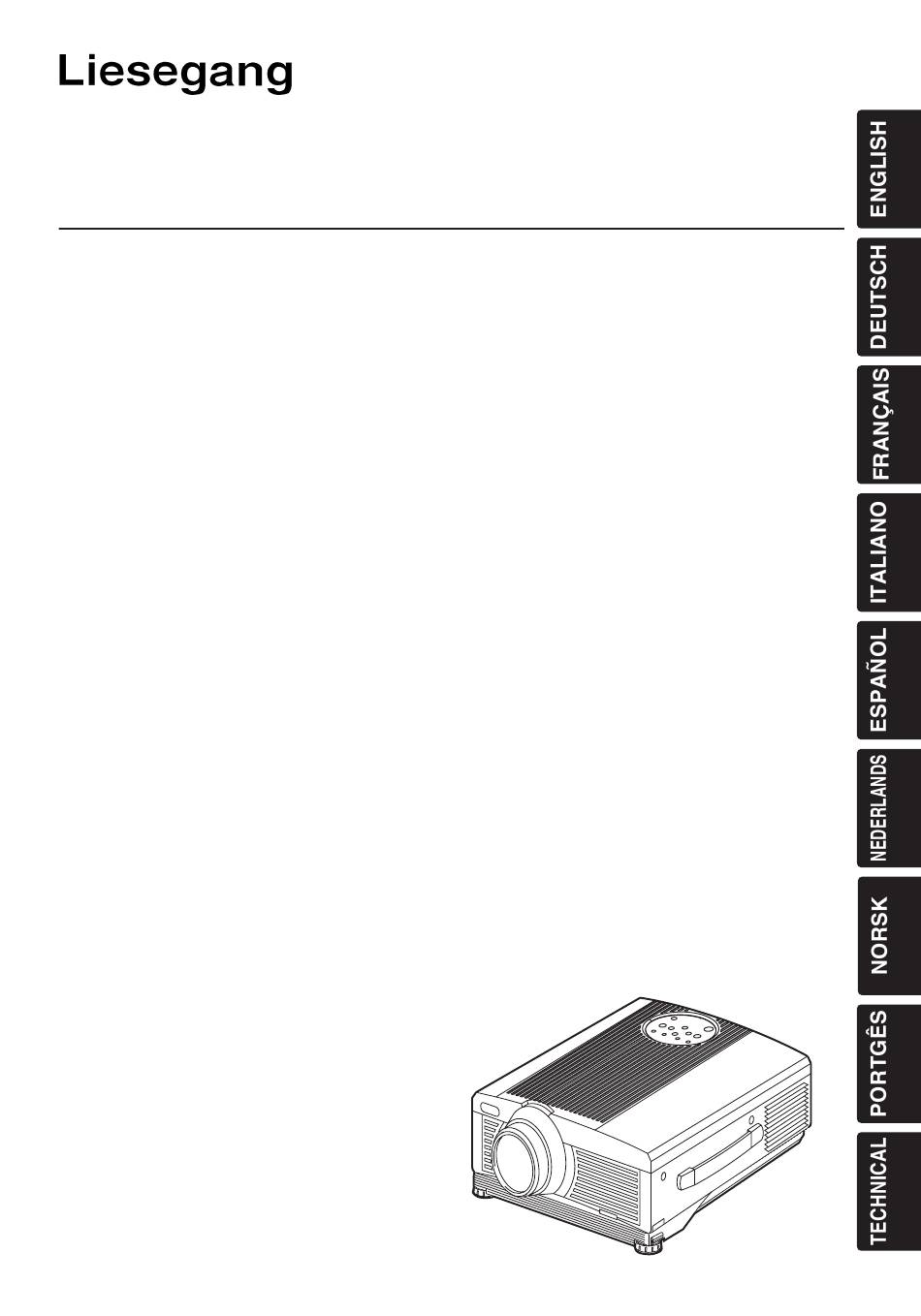

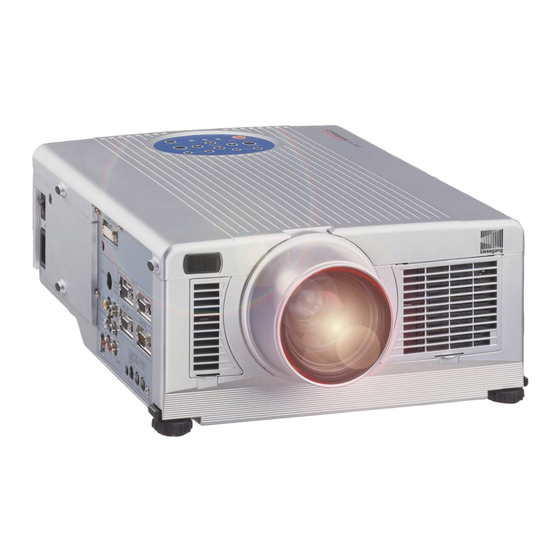

Liquid Crystal Projector
Model No.287
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le
fonctionnement de l'appareil.
MANUALE D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJZING
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do
usuário.
TECHNICAL
REGULATORY NOTICES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV 390 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Liesegang DV 390

  • Page 1 Liquid Crystal Projector Model No.287 USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.
  • Page 2: Table Of Contents

    Liquid Crystal Projector USER'S MANUAL USER'S MANUAL Thank you for purchasing this liquid crystal projector. WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference.
  • Page 3: Features

    FEATURES FEATURES This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. Outstanding Brightness The UHB lamp and high-efficiency optical system assure a high level of brightness.
  • Page 4: Part Names

    Part Names ZOOM Button FOCUS Button KEYSTONE Button INPUT Button STANDBY/ON Button MENU Button LAMP Indicator RESET Button POWER Indicator TEMP Indicator Control Panel (Refer to P.9 "OPERATIONS") Remote Control Sensor Control Panel Lens Ventilation Openings (exhaust) Filter Cover ( Air Filter ) Carrying Handle Foot Adjuster Filter cover...
  • Page 5 Part Names (continued) BLANK Button STANDBY/ON Button LASER Button VIDEO Button RGB Button Disk Pad MOUSE / RIGHT Button Used to operate the Used to click the right mouse shift function and mouse button. left click function. KEYSTONE Button AUTO Button RESET Button MENU Button Used to click the right...
  • Page 6: Loading The Batteries

    Loading the Batteries Install the AA batteries into the remote control transmitter. 1. Remove the battery cover. Push the knob while lifting up the battery cover. 2. Load the batteries. Make sure the plus and minus poles are correctly oriented. 3.
  • Page 7: Installation

    INSTALLATION INSTALLATION Installation of the Projector and Screen Refer to the drawing and table below for determining of the screen size and projection distance. The projection distances shown in the table below Screen are for full size (1024 x 768 dots). a: Distance from the projector to the screen.
  • Page 8: Cabling

    Cabling Refer to the table below for connecting each terminal of the projector to each device. Table 2. Cabling Function Terminal Cable RGB IN 1 Accessory or optional RGB cable with D- Analog RGB input RGB IN 2 sub 15-pin shrink jack and inch thread screws Analog RGB output RGB OUT...
  • Page 9: Power Connection

    Power Connection Use the correct one of the enclosed power cords depending on the power outlet to be used. Connect the AC inlet of the projector to the power outlet firmly by the power cord. CAUTION • Be carful in handling the power Power outlet cord according to instructions of the accompanying manual "SAFETY INSTRUCTIONS"...
  • Page 10: Operations

    OPERATIONS OPERATIONS STANDBY/ BLANK STANDBY/ON LASER ON Button POWER Indicator STANDBY/ON Button VIDEO ZOOM button FOCUS button AUTO MENU KEYSTONE MENU SELECT RESET POSITION Power Switch FREEZE PinP MAGNIFY MUTE FOCUS button FOCUS ZOOM VOLUME Lens cap ZOOM button Power ON 1.
  • Page 11: Basic Operation

    Basic Operation The basic operations shown in Table 3 is performed from the supplied remote control transmitter or the projector control panel. Items indicated by (*) may be used from the control panel. Table 3 . Basic Operation Item Description Select Input Signal ( : Press the INPUT button.
  • Page 12 Items indicated by (*) may be used from the control panel. Table 3. Basic Operation (continued) Item Description VOLUME Volume Adjustment : Press the VOLUME button. Set/Clear Mute Mode : Press the MUTE button. No sound is heard in the MUTE MUTE mode.
  • Page 13: Setup Menu

    Setup Menu SETUP INPUT IMAGE OPT. SETUP INPUT IMAGE OPT. BRIGHT BRIGHT The following adjustments and settings are possible CONTRAST CONTRAST V POSIT SHARPNESS when SETUP is selected at the top of the menu. Part H POSIT COLOR H PHASE TINT of the Setup menu differs between RGB input and H PHASE...
  • Page 14: Input Menu

    Input Menu SETUP INPUT IMAGE OPT. The following functions are available when INPUT is selected on the EXECUTE AUTO menu. Select an item with the buttons, and start or stop CANCEL VIDEO operation with the buttons. The function indicated (**) are VIDEO NR Progressive effective on video input mode only, not on RGB input mode, except in...
  • Page 15: Image Menu

    Image Menu SETUP INPUT IMAGE OPT. The following adjustments and settings are available when IMAGE is Desk Top BLANK START UP ORIGINAL Desk Top selected on the menu. Select an item with the buttons, and MIRROR P.IN P. POSIT start or stop operation with the buttons.
  • Page 16: Options Menu

    Options Menu SETUP INPUT IMAGE OPT. The following adjustments and settings are available when OPT. is VOLUME MENU COLOR selected on the menu. Select an item with the buttons, and LANGUAGE AUTO OFF start operation. SYNC ON G WHISPER Table 7. Options Menu Item Description ↔...
  • Page 17: No Signal Menu

    No Signal Menu VOLUME BLANK The same adjustments and settings are available as with the Image and START UP MIRROR Options menus when the MENU button is pressed during display of the MENU COLOR LANGUAGE “NO INPUT IS DETECTED ON ***” or “SYNC IS OUT OF RANGE AUTO OFF SYNC ON G ON ***”...
  • Page 18: Maintenance

    MAINTENANCE MAINTENANCE Lamp HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE Contact your dealer before replacing the lamp. For the optional lamp, see the item “Option Parts” of the Table 12. Before replacing the lamp, switch power OFF, remove the power cord from the power outlet, and wait approximately 45 minutes until the lamp has cooled.
  • Page 19 Replacing the Lamp 1. Switch the projector OFF, remove the power cord from the power outlet, and wait at least 45 minutes for the unit to cool. 2. Prepare a new lamp. 3. Check that the projector has cooled sufficiently, and gently turn it upside down.
  • Page 20: Air Filters

    Air Filters filter cover Cleaning Air Filters This projector uses 2 air filters. These air filters should be cleaned as described below at intervals of approximately 100 hours. 1. Switch the projector power supply OFF, and remove the power cord from the power outlet. 2.
  • Page 21: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING OSD Message The messages as described below may appear on the screen at power ON. Take the appropriate measures when such messages appears. Table 9. OSD Messages Message Contents The usage time of lamp will be reaching 2000 hr CHANGE THE LAMP shortly.(*2) AFTER REPLACING LAMP,...
  • Page 22: Indicators Message

    Indicators Message The POWER indicator, LAMP indicator, and TEMP indicator are lit and blank as follows. Take the appropriate measures. Table 10. Indicators Message POWER LAMP TEMP Contents indicator indicator indicator Lights Turns off Turns off The Standby mode has been set. orange Blinks Turns off Turns off Warming up.
  • Page 23: Symptom

    Symptom Before requesting repair, check in accordance with the following chart. If the situation cannot be corrected, then contact your dealer. Table 11. Symptom Symptom Possible cause Remedy Page The main power switch is not Turn on the main power switch. turned on.
  • Page 24: Specifications

    SPECIFICATIONS SPECIFICATIONS Table 12. Specifications Item Specification Product name Liquid crystal projector 3.3 cm (1.3 type) Panel size Liquid crystal Drive system TFT active matrix panel Pixels 786,432 pixels (1024 horizontal x 768 vertical) Zoom lens F=1.7 ~ 2.3 f=49.0 ~ 64.0 mm Lens Lamp 275 W UHB...
  • Page 25: Warranty And After-Service

    WARRANTY AND AFTER-SERVICE WARRANTY AND AFTER-SERVICE If a problem occurs with the equipment, first refer to the P.20 “TROUBLESHOOTING” section and run through the suggested checks. If this does not resolve the problem contact your dealer or service company. They will tell you what warranty condition is applied. ENGLISH-24 ENGLISH-24...
  • Page 26 Ed. Liesegang • Volmerswerther Straße 21 • D-40221 Düsseldorf • Postfach 10 35 53 • D-40026 Düsseldorf Telefon (0211) 3901-1 • Telfax (0211) 39 01-227 Internet http://www.liesegang.de • e-mail info@liesegang.de Printed in Japan *QR52051*...
