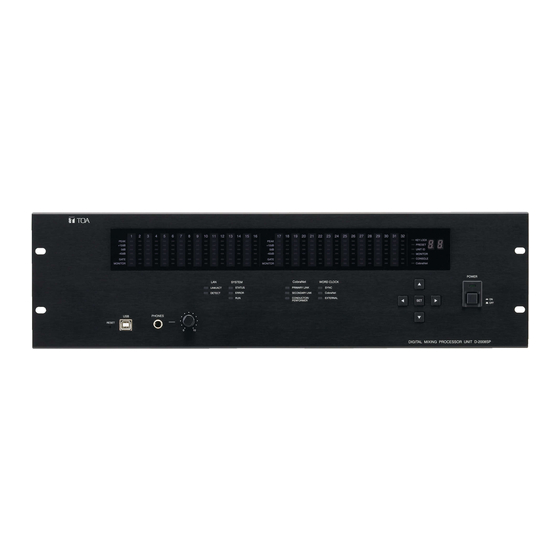

Toa D-2008SP Operation Manual

Digital mixer D-2000 Series
External Control Protocol – Serial (RS-232C), TCP/IP
■
Summary
The External Control protocol described in this document is designed for use of controlling the D-2008SP
from a personal computer or remote controller.
This spec sheet applies to the D-2008SP firmware of version 4.0.0 or later.
Settings that can be controlled are as follows:
Channel fader gain
Channel fader Fine gain
Channel ON/OFF
Line(Stereo) Select
Bus assignment
Input Matrix Crosspoint Gain
Output assignment
Output Matrix Crosspoint Gain
Fader Group
Fader Group Fine Trim
Channel Mute ON/OFF
Preset memory recall
Fader Layer recall
External Control Switch LED Indication
Auto Status Notification Start/Stop
Gate Status Notification Start/Stop
If necessary, the D-2008SP's activation can be checked or setting values read by using the following
commands:
Status request (reading of the D-2008SP's setting value)
Status Information
D-2008SP connection establishment status (output from the D-2008SP at the time of
connection establishment)
Gate Status (output from the D-2008SP at the time of gate status changed)
External Control Switch Press Status (output from the D-2008SP at the time of
D-2012C's External Control Switch press status changed)
Digital Mixer D-2008SP
Ver.4.01 July.16 /2010
TOA Corporation TOA Corporation TOA Corporation TOA Corporation
1/37
