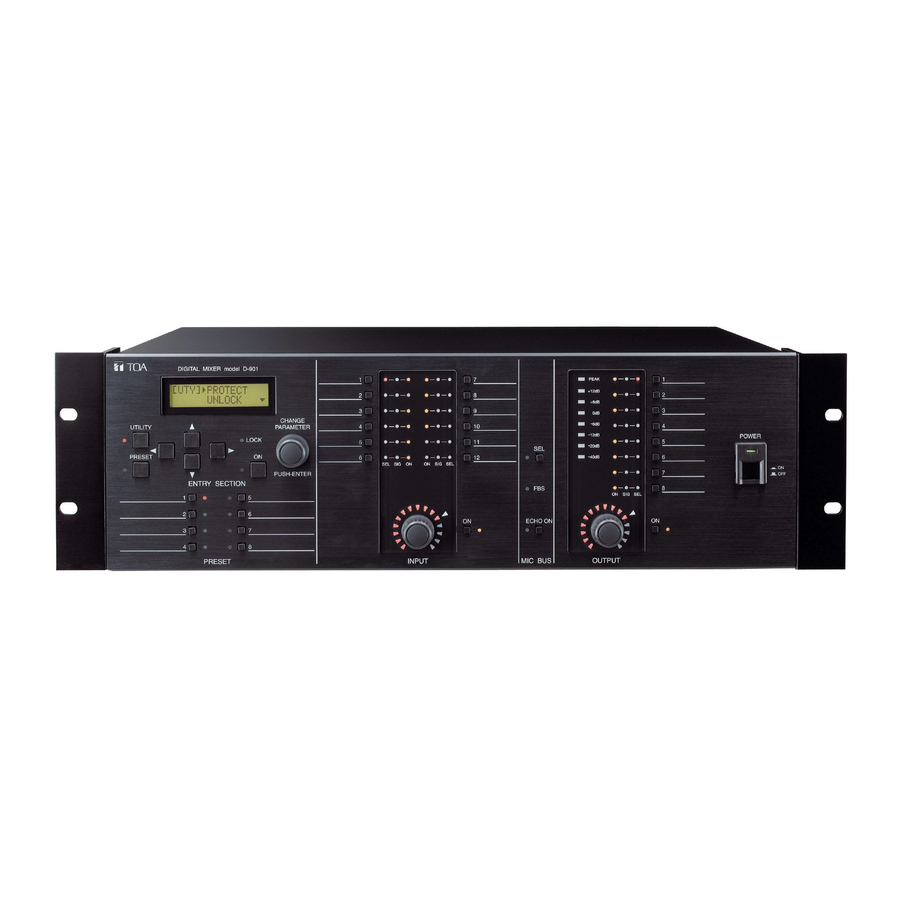

Digital Mixer
D - 901
Perfect to take the important audio role in AV-based presentation systems,
the D-901 Digital Mixer features a compact,
modular design with a 12 in/ 8 out configuration for
a variety of source equipment, with automixing,
feedback suppression, equalization, 16 memory presets and
full remote control capability.

Advertisement

loading
Need help?

Need help?

Do you have a question about the D-901 and is the answer not in the manual?

Questions and answers

Related Manuals for Toa D-901

Summary of Contents for Toa D-901

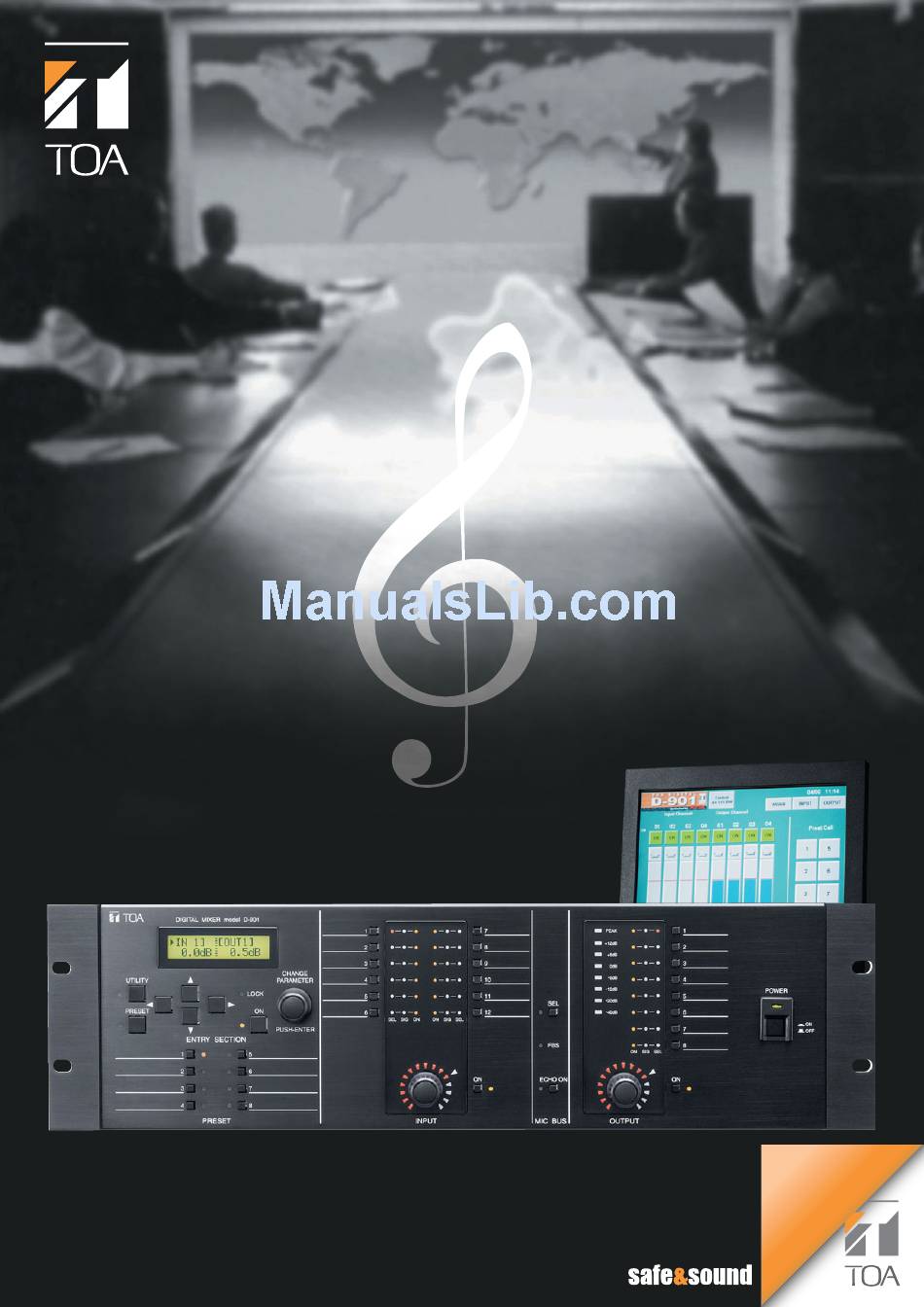

  • Page 1 Digital Mixer D - 901 Perfect to take the important audio role in AV-based presentation systems, the D-901 Digital Mixer features a compact, modular design with a 12 in/ 8 out configuration for a variety of source equipment, with automixing, feedback suppression, equalization, 16 memory presets and full remote control capability.
  • Page 2 RS-232C port on the back panel which enables the D-901 to easily interface with external equipment. Note: The D-901's heatsinks and aircooling are located at the bottom of the unit, requiring a perforated ventilation panel to placed directly below the unit...
  • Page 3 Presets can configured and stored for immediate recall when desired. In addition, the software allows determining user level as well as preparing the D-901 for remote control. Lastly, a full assortment of protection functions can be utilized. * Download installation program from TOA's homepage (http://www.toa-products.com/international/) and save it...
  • Page 4 The D-901's modular design allows you to configure the most The D-901's modular design allows you to configure the most cost-effective design for each application. TOA offers a range cost-effective design for each application. TOA offers a range of modules to suit a variety of input and output requirements.

  • Page 5: Output Modules

    A dedicated VCA fader unit that significantly expands the operational scope of the D-901 Digital Mixer. It adds useful control capabilities when connected to the D-984VC. In such a connection setup, full VCA operation becomes possible, allowing all the D-901's 12 inputs and 8 outputs channel gain levels and 8 contact controls.
  • Page 6 Examples of common system configurations Presentations DVD Player Projector CD Player Microphones Feedback suppressor function Power Amplifiers Ceiling Speakers Delay function Main Speaker R Microphones Ceiling Speakers Microphones Main Speaker L Zoned areas Cassette Deck For Room A CD Player Power Amplifiers Ceiling Speaker...
  • Page 7 D-901 Main Unit (Installation rackmount only) 100 – 120V, 230V AC, 50/60Hz Power Source Power Consumption Operating Temperature +5° C to +40 °C Frequency Response 20 – 20,000Hz, ±1dB (±4dB* Input Max. 12 channels, modular construction (modules optional) Output Max. 8 channels, modular construction (modules optional)
  • Page 8 24V DC, 100mA RJ45 connector x 2 Finish Panel: Pre-coated steel plate, black, 30% gloss Dimensions 35 (W) x 119.5 (H) x 178.4 (D)mm Weight 170g TOA Corporation URL: www.toa.jp/ Specifications are subject to change without notice. Printed in Japan (0501) 833-52-301-3B u 0dB = 0.775V...
