Connections

1. Ethernet port (Internet port)
2. DC connection (Power supply)
3. Reset opening

Camera Installation

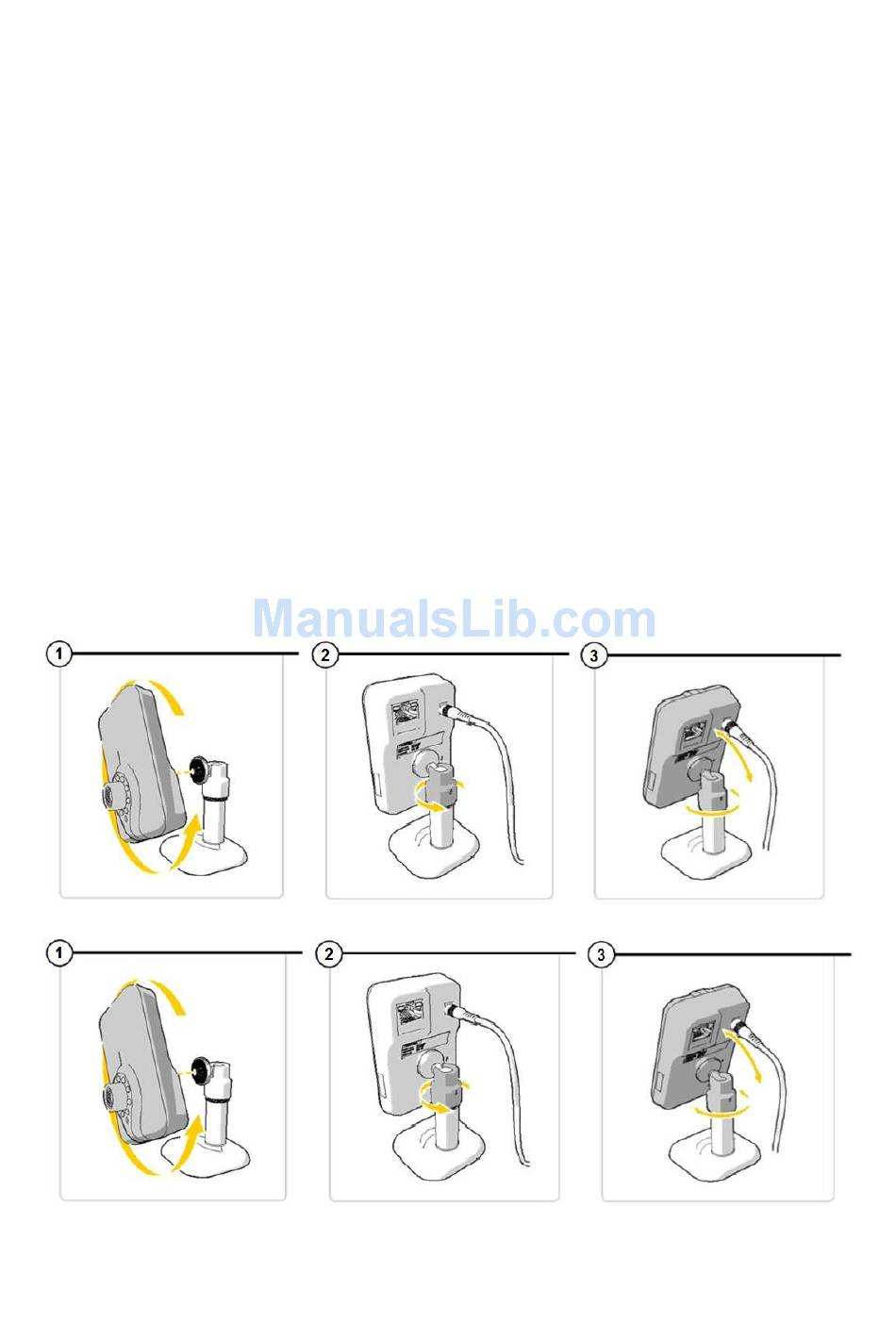

1. To mount the camera on the stand, twist the camera into the
screw on the stand. (See image 1)
Please note: You can choose to place the camera on a flat
surface or mount the camera onto the location of your choice
with screws.
2. Use the screw-plate on the back of the camera to tighten the
grip and hold the camera in place.
3. In order to change the camera angle, twist the casing
around the ball-joint. (See image 2)
This will enable you to position the camera horizontally or
vertically.
4. Tighten the casing around the ball joint to hold the
camera securely in place. (See image 3)
