Time2 MIP11 User Manual

Hide thumbs Also See for MIP11:
Table of Contents

Advertisement

Quick Links

IP Camera User Manual
-
1
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIP11 and is the answer not in the manual?

Questions and answers

Related Manuals for Time2 MIP11

Summary of Contents for Time2 MIP11

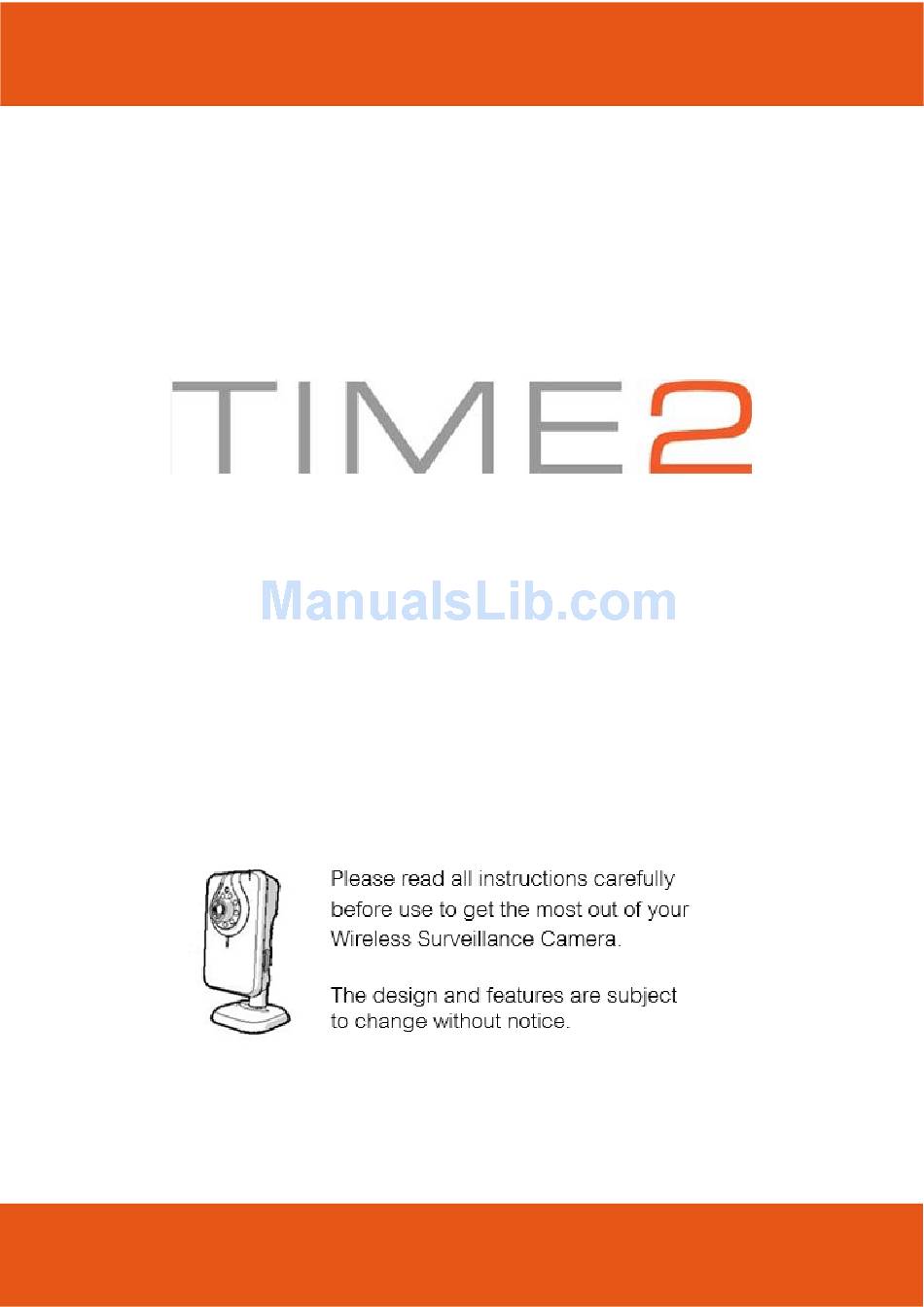

  • Page 1 IP Camera User Manual...

  • Page 2: Table Of Contents

    Thank you for purchasing the Time2 MIP11 Surveillance Camera – this device is a great way monitor any part of your office, home or warehouse making sure all your valuables are safe and secure Please keep this manual for future reference and ensure all safety instructions have been read carefully before using.
  • Page 3 Important Safety Information WARNING  Do not install the product outdoors or in any place where it may become wet.  Do not install the product in any place that might be exposed to extreme heat or cold – the camera should be kept out of direct sunlight.

  • Page 4: Main Components

    Main Components (What comes in the box?)  MIP11 Camera with base  2 Assembly screws and plugs  Ethernet (internet) cable  DC supply (Power lead)  User’s manual Connections 1. Ethernet port (Internet port) 2. DC connection (Power supply) 3.
  • Page 5 1. To mount the camera on the stand, twist the camera into the screw on the stand. (See image 1). 2. Use the screw-plate on the back of the camera to tighten the grip and hold the camera in place. 3.
  • Page 6 To mount the camera to a surface using the screws such as a wall, please see below: Mounting the camera to the wall  Remove the rubber case at the bottom of the stand to expose two holes. (See image 1) ...

  • Page 7: Downloading The Software

    Before you can start the set-up of your camera, you will require:  A computer  Internet access  Power supply  Time2 MIP11 Camera Go to www.time2technology.com on your internet browser to get the software required from an online download.
  • Page 8 1. Visit www.time2direct.com and find the downloads available for the MIP11 Wireless surveillance camera 2. You will need to choose the appropriate file to download (PC client is a version of the software which runs on windows laptops or computers) 3.

  • Page 9: Connecting To The Software

    Connecting to the software Open the ‘SYSM Monitor’ program. The desktop icon is called SYSM Monitor. When the camera is connected to the router, open the LAN tab and the camera will automatically appear as shown below: PLEASE NOTE: Please do all the other settings (e.g. Motion detection) before running the camera on WiFi as these options will not be available when the Ethernet cable is disconnected.
  • Page 10 When the camera appears Blue, it means the camera is connected to the software. When the camera appears in Red, it means the camera is currently being viewed. When the camera appears in Grey, it means that the camera is offline or fails to connect to a network. By logging into WAN, the camera can be viewed using the Ethernet (internet) cable or wirelessly.
  • Page 11 Click on ‘Start WiFi Setting. Click on Scan to look for local WiFi Networks. Select your home WiFi network from the list. Enter the Password for your internet router. Leave the DHCP selected, this automatically enters your IP Address into the settings. Upon completion.
  • Page 12 Important: Motion detection can only be set up with Hotmail, Yahoo and Gmail email addresses. Please see below for following details required: Gmail Yahoo Receiver email Your email Receiver email Your email Sender email Your email @gmail.com Sender email Your email @Yahoo.com SMTP Server Smtp.gmail.com SMTP Server...
  • Page 13 1. Visit www.time2direct.com and find the downloads available for the MIP11 Wireless surveillance camera 2. You will need to choose the appropriate file to download (PC client is a version of the software which runs on windows laptops or computers) 3.

  • Page 14: Connecting To The Software

    5. Drag and drop the file to install the software. PLEASE NOTE: You can also download the software in the Apple App Store, Please search “p2pCamViewer (MAC)” to install it. Connecting to the software Open the ‘SYSM Monitor’ program. The desktop icon is called SYSM Monitor.
  • Page 15 By logging into WAN, the camera can be viewed using the Ethernet (internet) cable or wirelessly. If the camera fails to show in LAN, please log into the WAN section using the details on the back of the camera. These will show the status of the camera.

  • Page 16: Functions Of The Control Panel

    Upon completion. Press Ok and the following window will appear. After WIFI connections succeeded, the wireless device may be found offline after refreshing, please unplug the network cable to restart the device. It may take a few minutes for the camera to connect to your WiFi and may also make a slight noise.

  • Page 17: Managing Your Camera Settings

    Please see link below for the options available: Capture – take a snapshot of Mirror – Flip the image what the camera is seeing. vertically Record – click to start recording. Alarm Log – This will let you see a Click again to stop recording.
  • Page 18 Hue – This is the balance of the red, green and blue colour. Changing this will make one of these colours stand out more. (See image 1) Brightness – This will alter the brightness of the image (See image 2) Saturation –...

  • Page 19: Main Menu Features

    Main menu features Help Full Screen Capture image Change password Settings Search Full screen - Live video will become full screen. To exit the Full screen please click the button in the screen top right hand corner or “Esc” in the keyboard.

  • Page 20: How To Save Your Recordings

    How to save your recordings/images. To view the camera recordings, click on the magnifying glass on the main menu This will allow you to search for all recent recordings. (Search within specific dates or view all recordings.) To save the camera recordings, right click on the video/image you wish to save.
  • Page 21 Go to the Apple App Store or Google Playstore to download the P2Pcamviewer application (See image below) Connecting to your Apple/Android device To view and control the camera from your Apple/Android device, you will require a strong WiFi connection on your phone and the application mentioned above.
  • Page 22 Manage Camera Settings from your Apple/Android device. The Camera list allows you to see all connected cameras. You can also see the status of the camera to show if the camera is offline or online. Change your log in password for the camera or add another camera.
  • Page 23 Click the icon to bring up the Camera settings. Video settings – Edit the main settings of the viewing frame e.g. quality, resolution, frame scale and brightness etc SD-Card settings – Change the recording settings to save on SD card. Please note: this is only applicable to the HD version of the camera SD-Card Query –...
