Summary of Contents for SEI MS0714A0TX

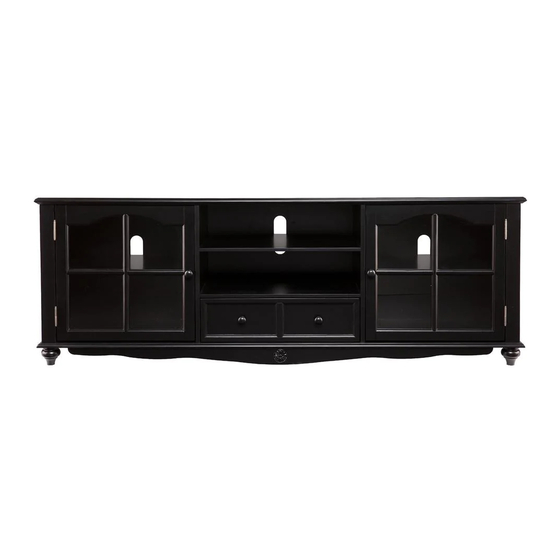

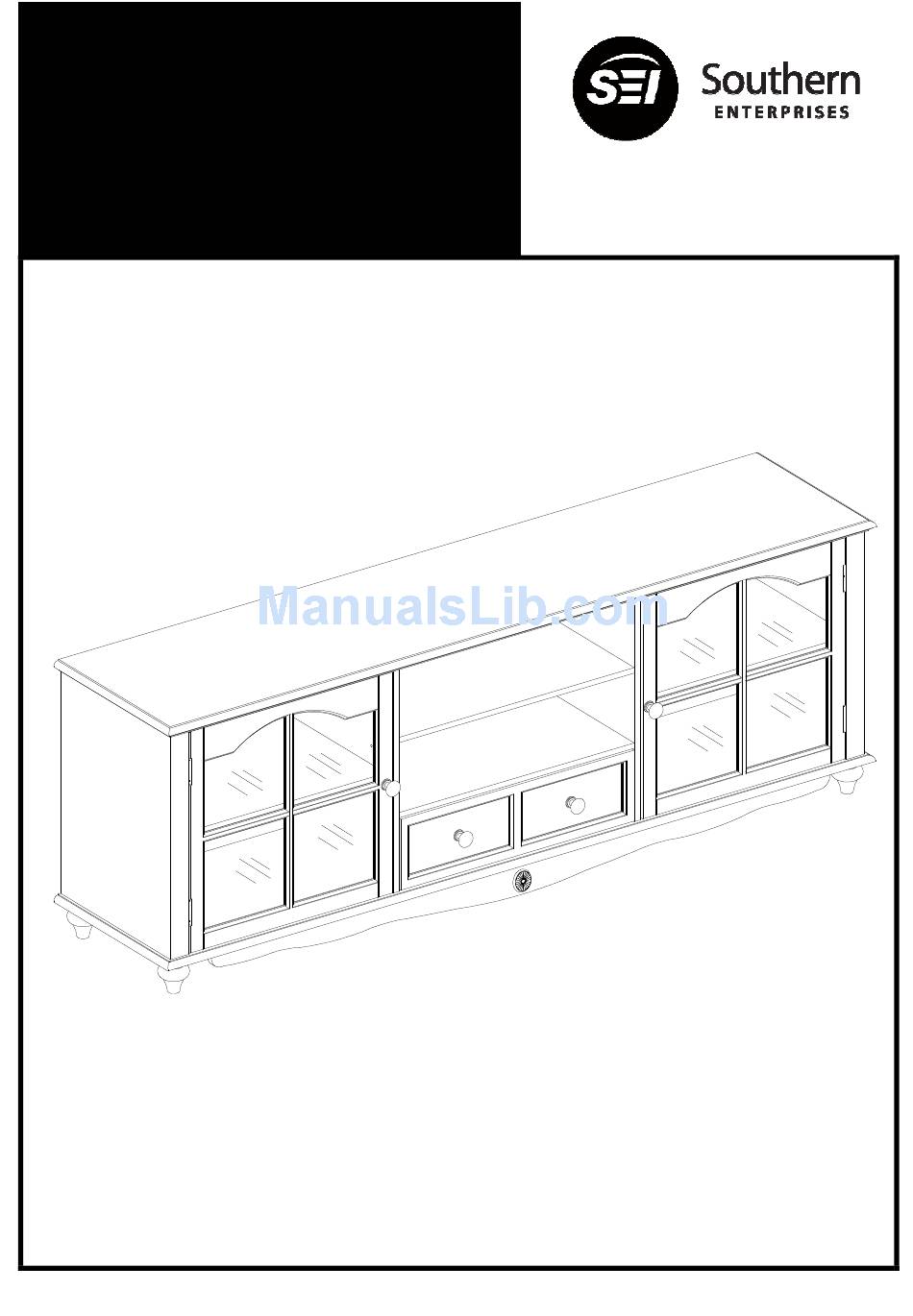

- Page 1 MS0714A0TX MS0714B0TX 69"W Coventry Antique Black TV Console For assistance with assembly, contact: Assembly Instructions Southern Enterprises Inc. Customer Service: 1-800-633-5096 service@seidal.com www.seidal.com PO#: Page | 1...
-
Page 2: Parts List
69"W Coventry Antique Black TV Console Parts List Please review all parts and hardware before disposing of any packaging. Before beginning assembly, separate each type of hardware. Carefully study the diagrams below and check that you have all parts indicated. Call Customer Service if missing hardware. - Page 3 Lower Back Panel Page | 3...
- Page 4 Ф1/8”x1/2”L Ф5/16” x1-3/16”L Ф1/4”x1-1/4”L Screw for Back Panel Wood Dowels Bolt Ф3/16”x3/8”L Ф3/16” x 1-1/2”L Barrel Nut Bolt for Drawer Wood Knob Ф5/32” x 7/8”L Ф5/32” x 7/8”L Bolt for Knob Magnet Metal Pin Ф1/8” x 5/8”L Screw For Magnet Care and Cleaning Instructions: Before using, wipe with a clean, dry cloth.
- Page 5 69"W Coventry Antique Black TV Console Assembly Instructions Unpack and lay parts on clean, padded surface like carpet or blanket. Insert two Wood Dowels (A) into the corresponding holes on the bottom of Side Panels (2/3) and two Wood Dowels (A) into the bottom of Right Middle Panel (4).
- Page 6 Attach Left Middle Panel (5) to Bottom Panel (1) and Fixed Shelves (6) with Wood Dowels (A). Secure Left Middle Panel (5) with Bolts (B) by inserting Bolts through Bottom Panel (1). Tighten Bolts with screwdriver. Screw Feet (8) and Center Foot (18) into Bottom Panel (1) and tighten by hand.
- Page 7 Attach Magnets (I) to Top Panel (11) with Screws for Magnets (J). Figure 5 Insert Wood Dowels (A) into corresponding holes on the top of Side Panels (2/3) and Middle Panels (4/5). Attach Top Panel (11) onto Panels (2/3/4/5) with Bolts (B) and tighten. Figure 6 Page | 7...
- Page 8 Insert Top Back Panel and Lower Back Panel (12/19) into grooves of Side Panels with Screws for Back (C) and tighten. Figure 7 Insert Nut (D) into corresponding holes on Drawer Face Panel (13). Attach Drawer Right Panel and Drawer Left Panel (14/15) to Drawer Face Panel (13) with Bolts for Drawer (E) as shown on Figure 8.
- Page 9 Insert Drawer Bottom Panel (17) into inner grooves of Drawer Right Side, Drawer Left Side Panels (14/15) and Drawer Face Panel (13). Insert Nuts (D) into corresponding holes on Drawer Back Panel (16), then, attach Drawer Back Panel (16) to the drawer assembly and fasten with Bolts for Drawer (E) and tighten.
- Page 10 Insert Metal Pins (H) into desired holes on Side Panels (2/3/4/5). Place the Adjustable Shelves (20) on the Metal Pins (H). Attach Wood Knobs (F) onto Doors (9/10) with Bolts For Wood Knobs (G) and tighten. Insert the drawer into the bottom space.
-
Page 11: Parts Replacement Form
Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product. - Page 12 This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Do not allow children under 16 years to move the cart. Model: MS0714A0TX & MS0714B0TX 69"W COVENTRY ANTIQUE BLACK TV CONSOLE Southern Enterprises, Inc...
