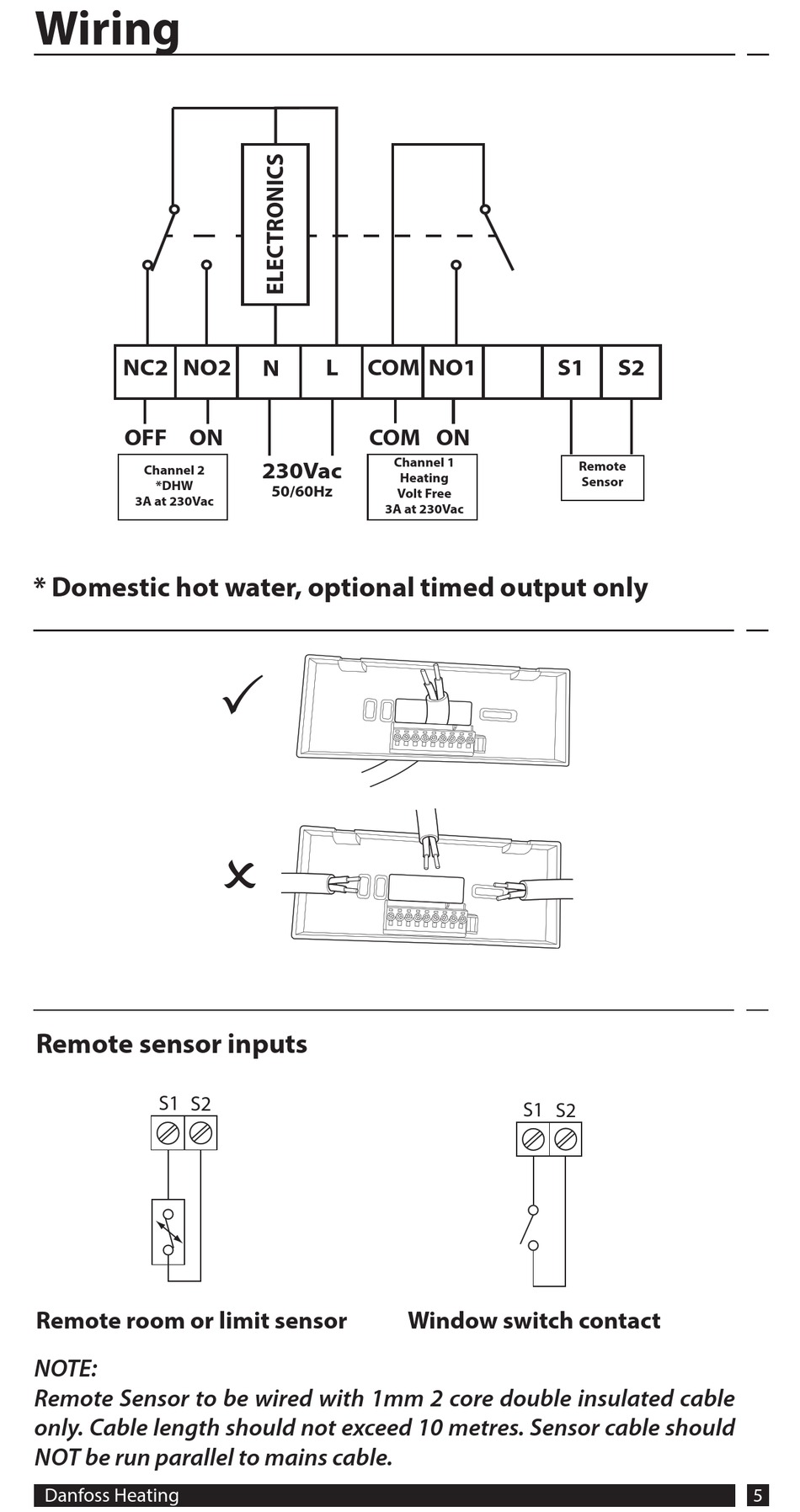

Wiring
NC2 NO2
OFF
Channel 2
*DHW
3A at 230Vac
* Domestic hot water, optional timed output only
Remote sensor inputs
S1 S2
Remote room or limit sensor
NOTE:
Remote Sensor to be wired with 1mm 2 core double insulated cable
only. Cable length should not exceed 10 metres. Sensor cable should
NOT be run parallel to mains cable.
Danfoss Heating
N
L
ON
230Vac
50/60Hz
P
O
COM
NO1
COM ON
Channel 1
Heating
Volt Free
3A at 230Vac
Window switch contact
S1
S2
Remote
Sensor
S1 S2
5
