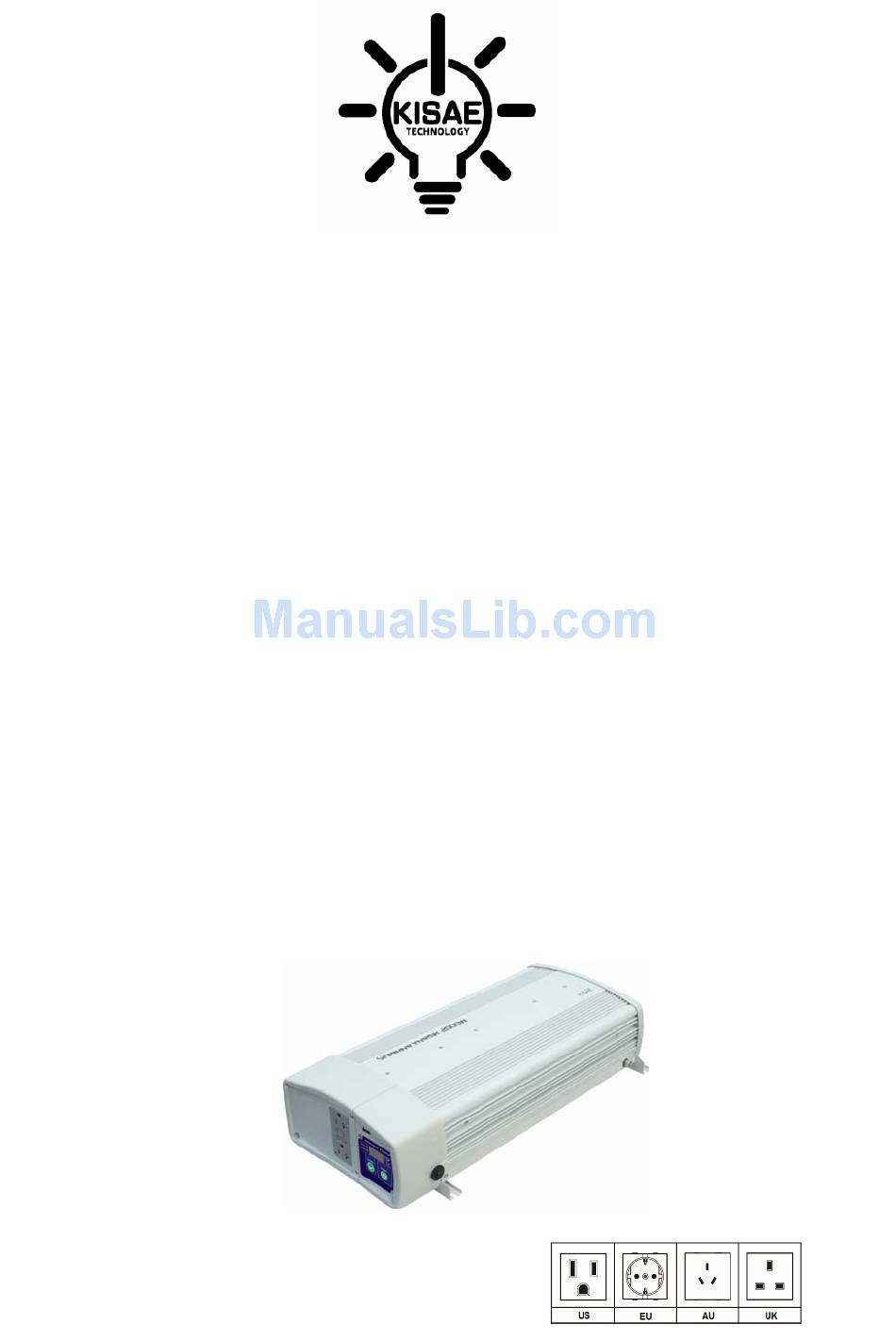

- Page 1 Sinewave Inverter with Transfer Switch 120V Model 1000W (SWXFR1210) 2000W (SWXFR1220) 3000W (SWXFR1230) 230V Model 1000W (SWXFR1210i) 2000W (SWXFR1220i) 3000W (SWXFR1230i) Owner’s Manual...
- Page 2 PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE Disclaimer While every precaution has been taken to ensure the accuracy of the contents of this guide, KISAE Technology assumes no responsibility for errors or omissions. Note as well that specifications and product functionality may change without notice.
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION....................4 PRODUCT DESCRIPTION ................5 INSTALLATION ....................5 UNIT OPERATION................... 11 FEATURE SETTING..................13 TROUBLESHOOTING ..................15 SPECIFICATIONS ................... 18 WARRANTY..................... -
Page 4: Introduction
1. INTRODUCTION Thank you for purchasing the KISAE Sinewave Inverter with Transfer Switch unit. With our state of the art, easy-to-use design, this product will offer you reliable service by providing AC power and 5V USB power for your home, cabin, boat, RV, Caravan or Trailer using battery power. -
Page 5: Product Description
AC Output strain relief 15A thermal breaker for the GFCI AC Input strain relief Socket & AC Output L2 (Port 2) Common (Input/Output) AC Select button Ground AC Output GFCI Socket AC Input port Model SWXFR1210 Page 5 ... -
Page 6: Preparing For Installation
Ground AC Output Socket AC Input port Model SWXFR1210i-EU, SWXFR1220i-EU, SWXFR1230i-EU DC Input Rear Panel DC Input Terminals opening Model SWXFR1210/1220/1210i/1220i Preparing for Installation Typical Wiring block diagram of the Power Inverter: DC Disconnect DC Fuse or AC Output Switch... - Page 7 1000W model 2000W model 3000W model Fuse/Circuit Breaker Rating 150Adc 300Adc 350Adc • Based on the size of your 12V Battery Bank, determine the overall short circuit current rating of the battery bank from the battery manufacturer. The fuse or circuit breaker chosen has to be able to withstand the short circuit current that may be generated by the battery bank •...
- Page 8 Installing the Inverter System WARNING : Electrical Shock Hazard The unit ‘On/Off’ switch does not disconnect the DC power from the battery. Use the DC Disconnect Switch or disconnect the DC input cables to disconnect the DC power from the battery before working on any circuits connected to the unit. Failure to follow these instructions can result in death or serious injury.
- Page 9 Installation: • Choose an appropriate mounting location. • For indoor use, the unit can be mounted in any direction except with the DC Input panel facing downwards. • Use the mounting template below to mark the positions of the mounting screws. •...
- Page 10 the AC Input Port of the unit.. Model AC Input Branch Breaker AC Input wire 120VAC unit 30A (maximum) #10 AWG (minimum)* 230VAC unit 16A (maximum) #14 AWG (minimum)* • Remove the AC compartment cover by unscrewing the four screws located at the front of the AC compartment cover.
-
Page 11: Unit Operation
compartment. Note: During Battery Power Mode, AC output is limited to a total of 4.3A for 1000W model or 8.7A for 2000W model or 13A for 3000W model. Remote Display Connection: • The Remote Display on the unit is detachable. To install the remote in a different location, the provided 6 pin standard RJ12 “rollover”... - Page 12 Status LED Display LED Display Function/Status Green (solid) Green ’12.5’ By-Pass Mode. Display shows battery voltage in DC volts Amber (solid) Green ‘12.5’ Battery/Inverter Mode. Inverter is running. Display shows battery voltage in DC volts Amber ‘0.80’ Battery/Inverter Mode. Inverter is running, Display shows output power in kW (800W as shown) Amber (flashing)
-
Page 13: Feature Setting
Input battery voltage is low and Recharge battery as unit will shutdown shortly warning occurs At Battery Mode, AC output load Reduce load connected has been sensed high and is close to shutdown limit Internal temperature is high and Reduce load and check if any ventilation of the is close to shutdown limit unit is blocked E08-11... - Page 14 Inverter is disabled, AC Output is getting the power from utility (AC Input) only. But when utility power is not available, the unit will not provide AC backup function from the inverter, the display automatically turns off in about 10 seconds.
-
Page 15: Troubleshooting
Charge and/or connect the battery bank or By-Pass (pass-through) alarms indicate the battery disable all the audible alarms with the “AL0” mode (SWXFR1210 voltage is low or the setting when AC backup is not required. /1220/1210i /1220i only) battery is not connected. - Page 16 GFCI Outlet and SWXFR1230 unit that the AC-Output Port 2: 15A/20A/20A for the rating can be exceeded in SWXFR1210/1220/1230 models respectively. Battery (Inverter) mode as In the 230V model: for maximum capacity use well. the AC-Output Port 1 which is out of the tripping influence of the unit’s thermal breaker.
- Page 17 Battery bank with high Too much battery voltage drop due to excessive internal resistance, drawing current in relation to the battery bank resulting in a voltage drop capacity. Increase the battery bank capacity (i.e. proportional to the DC adding more batteries in parallel) and/or reduce current draw from the unit.
-
Page 18: Specifications
6. SPECIFICATIONS Note: The specifications are subject to change without notices. 120V model 230V model SWXFR SWXFR SWXFR SWXFR SWXFR SWXFR 1210 1220 1230 1210i 1220i 1230i Specification (1000W) (2000W) (3000W) Series Series Series (1000W) (2000W) (3000W) Inverter AC Output Power 1000W 2000W 3000W... -
Page 19: Warranty
The limited warranty program is the only one that applies to this unit, and it sets forth all the responsibilities of KISAE Technology. There is no other warranty, other than those described herein. Any implied warranty of merchantability of fitness for a particular purpose on this unit is limited in duration to the duration of this warranty. -
Page 20: Appendix I
APPENDIX I Setting Mode Flo Chart: APPENDIX II Detachable Display Panel Cable: The display panel is detachable and can be installed away from the unit, using the provided 25’ RJ12 cable. You would need to remove the two screws indicated below. Even though the unit can operate with the cable plugged in whatever direction, we suggest plugging the end with the ferrite bead EMI/RFI filter into the main unit.
