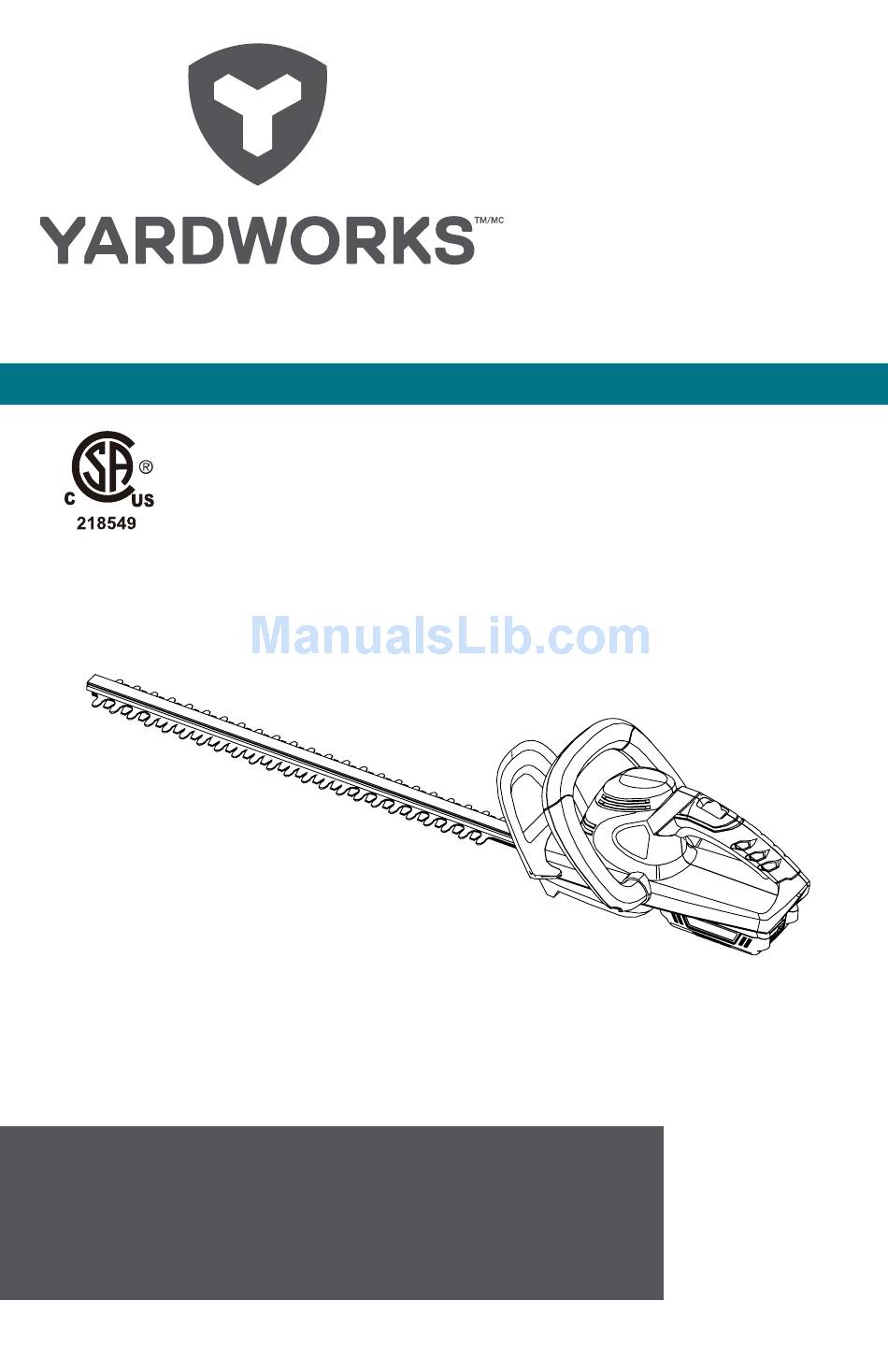

    Hedge Trimmer model number 060-2359-2 | contact us: 1.866.523.5218 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.

  • Page 2: Safety Information

    060-2359-2 | contact us: 1.866.523.5218 SPeCifiCAtionS KnoW YoUR tRiMMeR SYMBolS SAfetY infoRMAtion exPloded VieW PARtS liSt ASSeMBlY oPeRAtion MAintenAnCe tRoUBleShooting WARRAntY Motor: 20 V Speed: 2400 SPM Battery: 20 V, 2.0 Ah lithium-ion Battery run-time: 20 minutes (approximately)

  • Page 3: Know Your Hedge Trimmer

    060-2359-2 | contact us: 1.866.523.5218 1. Blade 2. Blade support rod 3. Battery pack 4. Battery pack latch 5. trigger switch 6. lock-out button 7. Auxiliary handle 8. guard KNOW YOUR Hedge TRIMMeR the safe use of this product requires an understanding of the information in this operator’s manual as well as a knowledge of the project you are attempting.
  • Page 4 060-2359-2 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
  • Page 5 060-2359-2 | contact us: 1.866.523.5218 the following signal words and meanings are intended to explain the levels of risk associated with this product. Symbol Signal Meaning indicates an imminently hazardous situation, which, if dAngeR not avoided, could result in death or serious injury.
  • Page 6 060-2359-2 | contact us: 1.866.523.5218 Save all warnings and instructions for future reference. the term “power tool” in all of the warnings listed below refers to your corded or cordless power tool. 1. Work area safety A. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  • Page 7 060-2359-2 | contact us: 1.866.523.5218 e. do not overreach. Keep proper footing and balance at all times. this enables better control of the power tool in unexpected situations. f. dress properly. do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  • Page 8 060-2359-2 | contact us: 1.866.523.5218 Hedge TRIMMeR SAFeTY WARNINgS • Use both hands when operating the hedge trimmer. Using one hand could cause loss of control and result in serious personal injury. • Keep all parts of the body away from the cutter blade. do not remove cut material or hold material to be cut when blades are moving.
  • Page 9 060-2359-2 | contact us: 1.866.523.5218...
  • Page 10 060-2359-2 | contact us: 1.866.523.5218 item description drawing Motor cover assembly 31102729-2 20V 2Ah Battery assembly 31109905 lock-off button 34109453-11 Screw 3220313 Screw M4*25 3220186 Spring washer 3290675 Washer 3290305 Micro swtich 36301454-3 terminal 4.8*0.8 36503163A Sleeve 4.8...
  • Page 11 060-2359-2 | contact us: 1.866.523.5218 BATTeRY To remove the battery: Slide the latch button on the battery pack down (3) and hold. grasp the trigger handle (2) firmly. Pull the battery pack out of the handle. To install the battery: Align the tongue (1) of the battery pack with the cavity in the handle housing.
  • Page 12 060-2359-2 | contact us: 1.866.523.5218 UNPACKINg • this product requires no assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • inspect the product carefully to make sure no breakage or damage occurred during shipping.
  • Page 13 060-2359-2 | contact us: 1.866.523.5218 On/Off Switches the hedge trimmer has one switch control and a lock-off button used together to prevent accidental start-ups or injury. Place one hand on the trigger handle (1). Place the other hand on the auxiliary handle (4).
  • Page 14 060-2359-2 | contact us: 1.866.523.5218 Cleaning Wipe the outside of the hedge trimmer with a dry, soft cloth. do not hose down or wash with water. Scrape the guard to remove dry clippings and mud. Brush or blow dust, debris, and grass clippings out of the air vents. Keep them free of obstruction.
  • Page 15 060-2359-2 | contact us: 1.866.523.5218 PRoBleM PoSSiBle CAUSe SolUtion to secure the battery pack, make sure the latches on the Battery is not secure. Motor fails top of the battery pack snap into to start when place. switch trigger is Charge the battery pack depressed.
  • Page 16 These parts are warranted to the original arising from the sale of its products. purchaser to be free from defects in material and workmanship for a period of one Yardworks CANADA will not be liable for incidental or consequential loss or damage.
