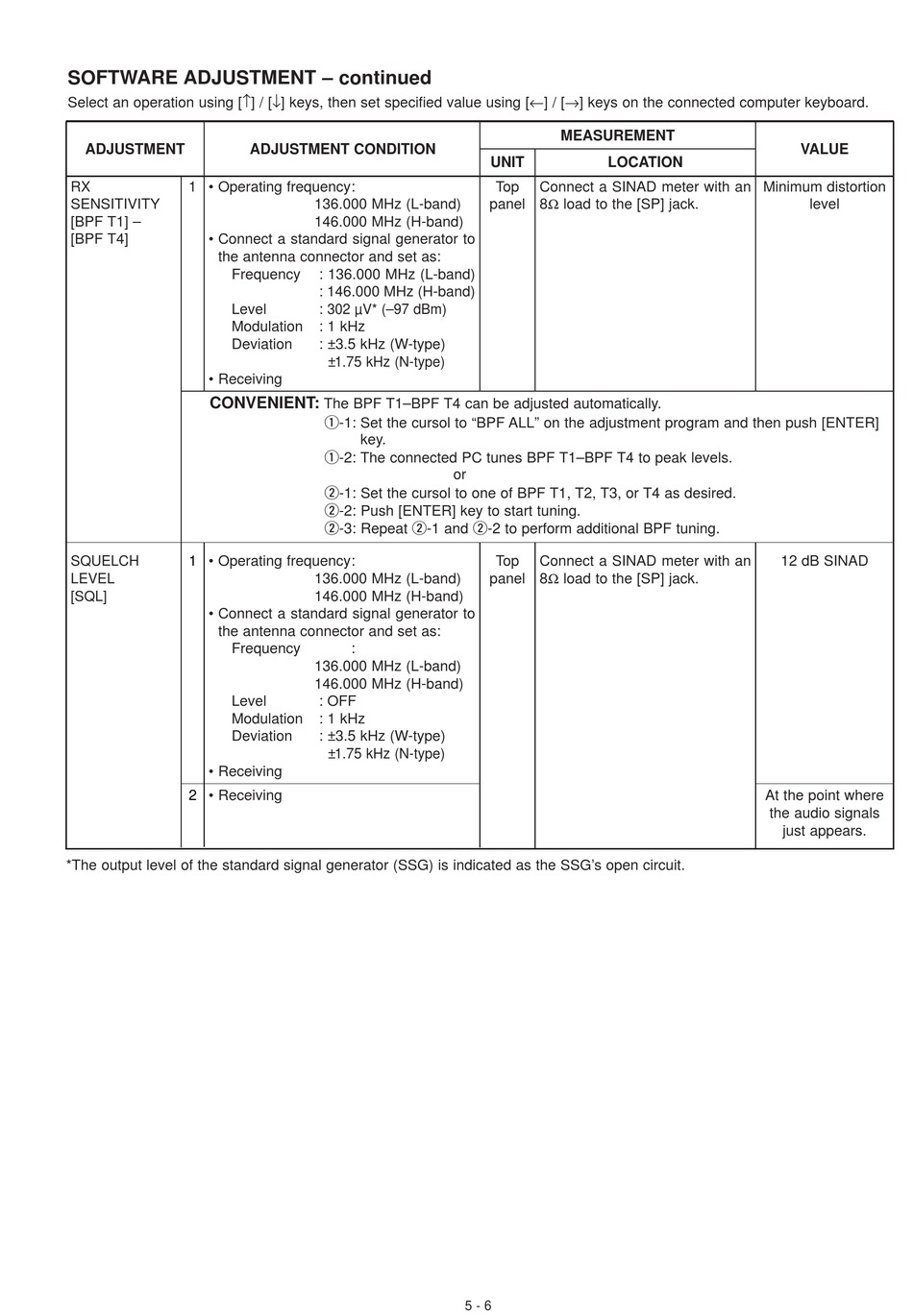

SOFTWARE ADJUSTMENT – continued
Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard.
ADJUSTMENT
RX 1 • Operating frequency:
SENSITIVITY
[BPF T1] –
[BPF T4] • Connect a standard signal generator to
the antenna connector and set as:
Frequency
Level
Modulation
Deviation
• Receiving
CONVENIENT:
SQUELCH 1 • Operating frequency:
LEVEL
[SQL]
• Connect a standard signal generator to
the antenna connector and set as:
Frequency
Level
Modulation
Deviation
• Receiving
2
• Receiving
*The output level of the standard signal generator (SSG) is indicated as the SSG's open circuit.
ADJUSTMENT CONDITION
136.000 MHz (L-band)
146.000 MHz (H-band)
: 136.000 MHz (L-band)
: 146.000 MHz (H-band)
: 302 µV* (–97 dBm)
: 1 kHz
: ±3.5 kHz (W-type)
±1.75 kHz (N-type)
The BPF T1–BPF T4 can be adjusted automatically.
q-1: Set the cursol to "BPF ALL" on the adjustment program and then push [ENTER]
key.
q-2: The connected PC tunes BPF T1–BPF T4 to peak levels.
w-1: Set the cursol to one of BPF T1, T2, T3, or T4 as desired.
w-2: Push [ENTER] key to start tuning.
w-3: Repeat w-1 and w-2 to perform additional BPF tuning.
136.000 MHz (L-band)
146.000 MHz (H-band)
:
136.000 MHz (L-band)
146.000 MHz (H-band)
: OFF
: 1 kHz
: ±3.5 kHz (W-type)
±1.75 kHz (N-type)
MEASUREMENT
UNIT LOCATION
Top Connect a SINAD meter with an
panel 8Ω load to the [SP] jack.
or
Top Connect a SINAD meter with an
panel 8Ω load to the [SP] jack.
5 - 6
VALUE
Minimum distortion
level
12 dB SINAD
At the point where
the audio signals
just appears.
