LED indicators

The NF15ACV router uses 12 LEDs to display the current system and connection status.
LED ICON NAME
Power
DSL
Internet
Ethernet 1-4 Ethernet 1-4
WAN
WiFi
WPS
Telephone 1-2 Telephone 1-2
NetComm Wireless VDSL/ADSL Dual Band AC1200 WiFi Gigabit Modem Router with VoIP
10
COLOUR / STATE
Off Powered off.
Green Powered on.
Flashing Green Device booting up.
Green Connected to DSLAM.
Flashing green Connecting to DSLAM
Off No internet connection present.
Green Internet is connected
Flashing green Transmitting/receiving data to/from the Internet.
Off No device is connected to the Ethernet LAN port.
Green A device is connected to the Ethernet LAN port.
Flashing green Data is being sent or received via the Ethernet LAN port.
Off No device is connected to the Ethernet WAN port.
Green A device is connected to the Ethernet WAN port.
Flashing green Transmitting/receiving data to/from the WAN interface.
Off WiFi is disabled.
Green 2.4GHz WLAN access point operational
Red 5GHz WLAN access point operational
Amber 2.4GHz and 5GHz WLAN access points operational
Flashing green Transmitting/receiving data to/from the WLAN interface.
Flashing red Transmitting/receiving data to/from the WLAN interface
Flashing amber Transmitting/receiving data to/from the WLAN interface
Green WPS is enabled
Flashing green WPS function triggered. Trigger the WPS function on another with 2 minutes device to connect them.
Off No VoIP service is configured.
Green VoIP registration successful.
Flashing green A telephone is in use.

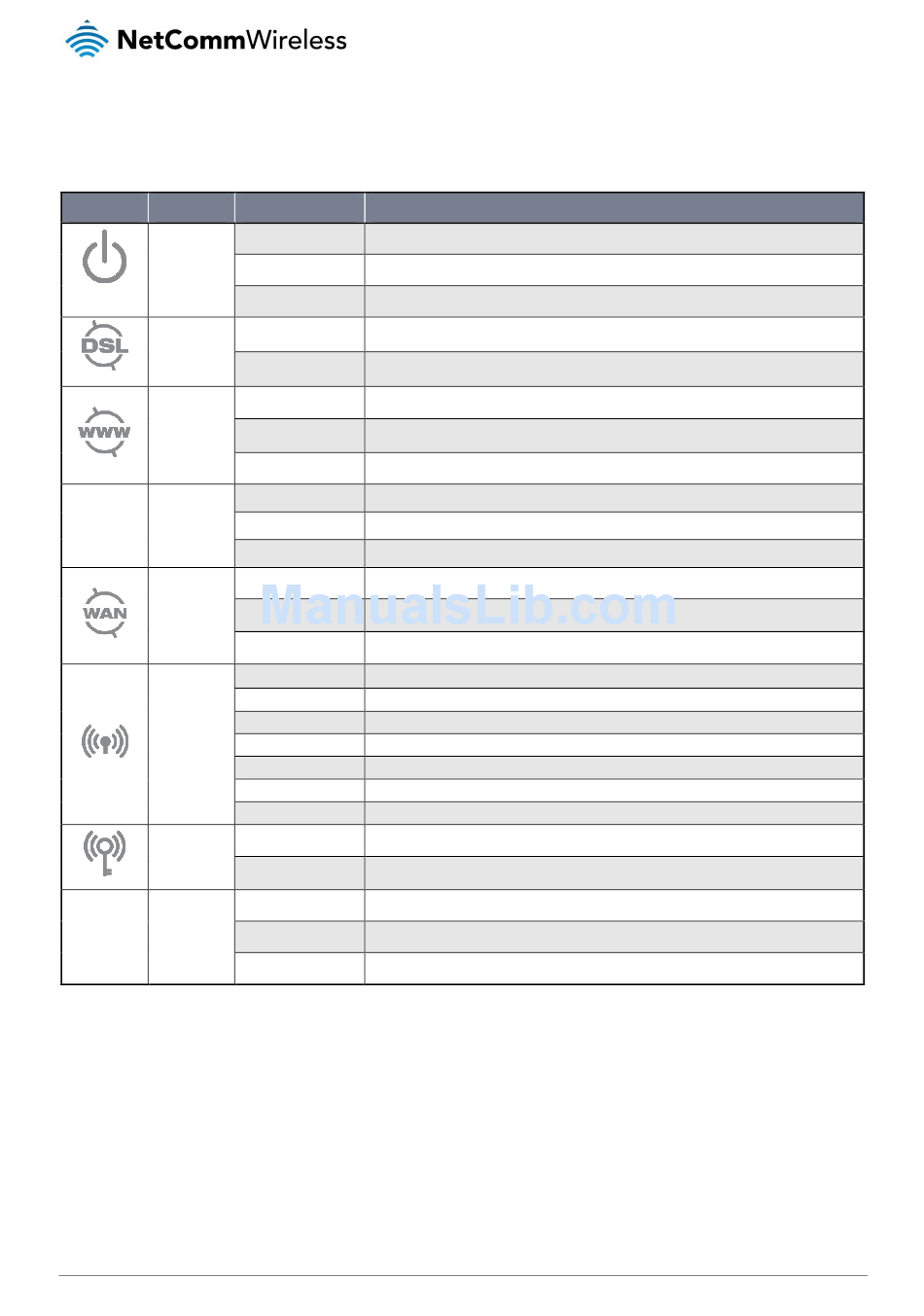

Table 3 - LED Indicators
DESCRIPTION
