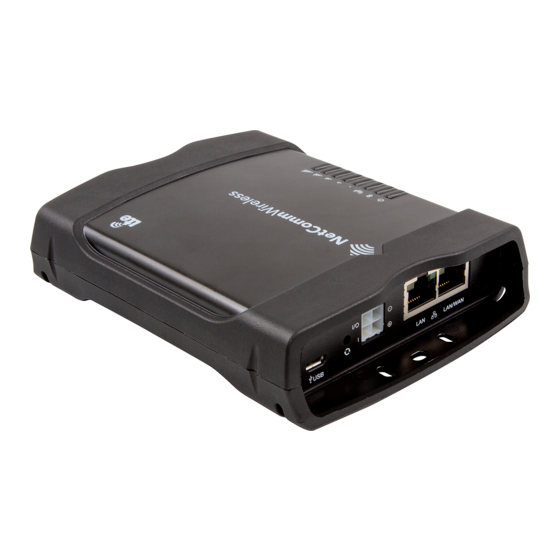

NetComm Wireless NTC-140-01 User Manual

4g m2m router
Hide thumbs Also See for NTC-140-01:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
NTC-140-01 – 4G M2M Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NTC-140-01 and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm Wireless NTC-140-01

Summary of Contents for NetComm Wireless NTC-140-01

  • Page 1 User Guide NTC-140-01 – 4G M2M Router...
  • Page 2 NetComm Wireless accepts no responsibility for any loss or damage resulting from errors or delays in transmission or reception, or the failure of the NetComm Wireless NTC-140-01 to transmit or receive such data.
  • Page 3 Copyright© 2017 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.

  • Page 4: Table Of Contents

    Desk mount ......................................... 15 Via vertical DIN rail mounting bracket and metal bracket ..........................16 Via horizontal DIN rail mounting bracket ................................ 16 Installation and configuration of the NTC-140-01 router ......................18 Powering the router ..................................... 18 Installing the router ...................................... 18 Advanced configuration ................................
  • Page 5 Appendix H: Obtaining a list of RDB variables ......................... 147 Appendix I: Using USB devices and MicroSD™ cards ......................148 Accessing USB/SD card storage devices ..............................148 Host and Device mode ....................................148 Safety and product care ................................149 Product Warranty..................................154 www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 6: Overview

    Overview Introduction This document provides you all the information you need to set up, configure and use the NetComm Wireless NTC-140-01 router. Target audience This document is intended for system integrators or experienced hardware installers who understand telecommunications terminology and concepts.

  • Page 7: Product Introduction

    1 x DIN mounting bracket 2 x DIN clips 4 x ¼ inch screws If any of these items are missing or damaged, please contact NetComm Wireless Support immediately. The NetComm Wireless Support website can be found at: http://support.netcommwireless.com. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 8: Physical Dimensions And Indicators

    Physical dimensions and indicators Physical dimensions Below is a list of the physical dimensions of the NTC-140-01 router. Figure 1 – NTC-140-01 router Dimensions NTC-140-01 ROUTER (WITHOUT EXTERNAL ANTENNAS ATTACHED) Length 143 mm Depth 107 mm Height 34 mm Weight...

  • Page 9: Led Indicators

    LED indicators The NTC-140-01 router uses 8 LEDs to display the current system and connection status. Figure 2 - NTC-140-01 router LED Indicators LED ICON NAME COLOUR STATE DESCRIPTION Power off Double flash Powering up Power on Power Power on in recovery mode...
  • Page 10 The signal strength LEDs update within a few seconds with a rolling average signal strength reading. When selecting a location for the router or connected or positioning an external antenna, please allow up to 20 seconds for the signal strength LEDs to update before repositioning. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 11: Ethernet Port Led Indicators

    Ethernet port LED indicators Each of the Ethernet ports of the NTC-140-01 router have two LED indicators on them. Figure 3 - Ethernet port LED indicators The table below describes the statuses of each light and their meanings. STATUS DESCRIPTION There is a valid network link.

  • Page 12: Interfaces

    (i) ignition input detection terminal. LAN port LAN port for wired Ethernet clients. LAN/WAN port LAN or WAN port for wired Ethernet clients or to bridge another network connection. Table 6 – Interfaces www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 13: Placement Of The Router

    The NTC-140-01 router can be quickly and easily mounted in a variety of locations. Mounted flat against the wall When mounted flat against the wall, the NTC-140-01 router has a slimline form factor. Use appropriately sized screws in the mounting holes provided on the base of the unit.

  • Page 14: Wall Mounted Via Din Rail Bracket

    Wall mounted via DIN rail bracket Figure 7 - Wall mounted via DIN rail bracket DIN rail mount Figure 8 – DIN rail mount www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 15: Pole Mount Using Din Rail Bracket

    Pole mount using DIN rail bracket Figure 9 - Pole mount using DIN rail bracket Desk mount Figure 10 – Desk mount www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 16: Via Vertical Din Rail Mounting Bracket And Metal Bracket

    Put four screws through the vertical DIN rail mounting bracket and line them up with the four holes on the metal bracket. Tighten them to affix the vertical DIN rail bracket to the metal bracket. The NTC-140-01 router may then be snapped into the vertical DIN rail bracket.
  • Page 17 Attach the vertical DIN rail mounting bracket to the NTC-140-01 by snapping it on to the back of the router, then slide the NTC- 140-01 router on to the horizontal mounting bracket. The NTC-140-01 router is successfully mounted in a horizontal orientation.

  • Page 18: Installation And Configuration Of The Ntc-140-01 Router

    Powering the router The NTC-140-01 router may be powered using the included power supply cable with 8-40V to the Molex connector. A suitable power supply (PSU-0067) is available as an accessory. The output of the DC power supply shall comply with the Limited Power Source requirements (LPS) of the IEC 60950-1 safety standard.

  • Page 19: Advanced Configuration

    Advanced configuration The NTC-140-01 router comes with pre-configured settings that should suit most customers. For advanced configuration, log in to the web-based user interface of the router. To log in to the web-based user interface: Open a web browser (e.g. Internet Explorer, Firefox, Google Chrome), type http://192.168.0.1...

  • Page 20: Status

    Status The status page of the web interface provides system related information and is displayed when you log in to the NTC-140-01 router management console. The status page shows System information, LAN details, Cellular connection status, Packet data connection status, Wireless LAN status and Advanced status details. You can toggle the sections from view by clicking the buttons to show or hide them.
  • Page 21 SIM ICCID The Integrated Circuit Card Identifier of the SIM card used with the router, a unique number up to 19 digits in length. Power input mode Displays the power source being used. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 22 Displays whether the packet service is attached or detached. When APN or username/password is changed, the device Packet service status detaches and reattaches to the network. Table 10 - Status page item details www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 23: Networking

    The data connection page allows you to configure and enable/disable the connection profile. To access this page, click on the Networking menu, and under the Wireless WAN menu, select the Data connection item. Figure 14 – Data connection settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 24 To manually configure a connection profile: Click the Edit button corresponding to the Profile that you wish to modify. The data connection profile settings page is displayed. Figure 15 - Data connection profile settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 25 NAT IP address. This may be disabled if a framed route configuration is required and local devices require WAN IP addresses. Click the Save button when you have finished entering the profile details. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 26 Status page. When there is a mobile broadband connection, the WWAN section is expanded showing the details of the connection and the Status field displays Connected. To see details on the connected session, you can click the Show data usage button. Figure 17 - WWAN connection status section www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 27 On the Connect on demand page, click the Connect on demand toggle key so that it is ON. Extra options appear. See the following sub-sections for further instructions. Figure 18 - Connect on demand configuration options www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 28 When you check the box for these options, it tells the router to ignore the request from that application type and will not dial a connection when this data type is received. Figure 22 - Connect on demand - Excluding application types www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 29 To enable the logging of the Connect on demand feature, click the Enable verbose mode toggle key to switch it ON. See the System log section for more information. Figure 24 – Connect on demand - Verbose logging configuration www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 30 SMS. See the Diagnostics section for details on using the SMS Wake up function. SIM management The SIM management page displays the status of the SIM card. Figure 26 – SIM Management www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 31 To scan for available networks, set the Select operator mode from automatic to Manual then click the scan button. This operation can take a few minutes and requires that the packet data session be disconnected prior to scanning. Figure 28 - Operator settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 32 If the SIM card is locked, you will receive a notice when you access the Status page after which you will be directed to the PIN settings page to enter the PIN. The PIN settings page lists the status of the SIM at the top of the page. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 33 Note: Select Remember PIN if you do not want to enter the PIN code each time the SIM is inserted. Click the Save button. If successful, the router displays the following screen: Figure 31 - SIM security settings - SIM unlock successful www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 34 PIN fields, then enter the desired PIN into the New PIN and Confirm new PIN fields and click the Save button. Figure 33 - PIN settings - Change PIN When the PIN has been changed successfully, the following screen is displayed: www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 35 You will be issued a PUK to enable you to unlock the SIM and enter a new PIN. Enter the new PIN and PUK codes. Click the Save button when you have finished entering the new PIN and PUK codes. Figure 35 - SIM security - SIM PUK locked www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 36: Lan

    With DNS masquerading ON, the DHCP server embedded in the NTC-140-01 router hands out its own IP address (e.g. 192.168.0.1) as the DNS server address to LAN clients. The downstream clients then send DNS requests to the NTC-140-01 router which proxies them to the upstream DNS servers.
  • Page 37 In advanced networks configurations where the NTC-140-01 router should not be responsible for DHCP assignment, but instead an existing DHCP server is located on the Wireless WAN or LAN connections, the clients behind the NTC-140-01 router are able to communicate with the DHCP server when DHCP relay is enabled. This enables the NTC-140-01 router to accept client broadcast messages and to forward them onto another subnet.
  • Page 38 In the IP Address fields, enter the IP address that you wish to reserve for the device. If the Enable toggle key is not set to ON, click it to switch it to the ON position. Click the Save button to save the settings. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 39 Clone button and the details will be copied to the address reservation list fields. Remember to click the Save button under the Address reservation list section to confirm the configuration. Figure 40 - Dynamic DHCP client list www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 40: Ethernet Lan/Wan

    Displays whether the interface is inserted The MAC address of the interface. Port The type of port. Configuration Select whether the port operates as a LAN or WAN port. Table 13 - Ethernet group configuration items www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 41 The second DNS server for the WAN interface. Metric The metric value is used to define the priority of the interface. Lower metric values indicate higher priority. Table 14 - Ethernet WAN configuration options www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 42: Pppoe

    Data connection profile settings before connecting. See the Manually configuring a connection profile section for more detail. Use your downstream device to initiate a network connection using a PPPoE client. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 43 This works in a similar manner to the Watchdogs feature but with different ranges on the timers. Please refer to the Watchdogs section of this user guide for a more detailed description of this function. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 44 Like the Failover fail count field, this field specifies the number of ping successes that must be Failback success count registered on a higher priority interface with respect to the Monitor total count before the router fails back to that interface. Table 16 - Failover configuration - Ping monitoring www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 45: Routing

    In the Metric field enter the metric for the route. The metric value is used by the router to prioritise routes. The lower the value, the higher the priority. To give the route the highest priority, set it to 0. Click the Save button to save your settings. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 46 Figure 50 - Active routing list Deleting static routes From the static routing list, click the icon to the right of the entry you wish to delete. Figure 51 - Deleting a static route www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 47 Using the Version drop down list, select the version of RIP that you would like to use. Select the interface for which you want RIP to apply. You can choose the LAN interface, the WWAN interface or BOTH. Click the Save button to confirm your settings. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 48 Note: Configuring VRRP changes the MAC address of the Ethernet port and therefore if you want to resume with the web configuration you must use the new IP address (VRRP IP) or on a command prompt type: arp –d <ip address> (i.e. arp –d 192.168.1.1) to clear the arp cache.(old MAC address). www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 49 Click the Save button to confirm your settings. Figure 55 - Port forwarding settings To delete a port forwarding rule, click the button on the Port forwarding list for the corresponding rule that you would like to delete. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 50 Click the DMZ toggle key to turn the DMZ function ON. Enter the IP Address of the device to be the DMZ host into the DMZ IP Address field. Click the Save button to save your settings. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 51 To access the DMZ page, click on the Networking menu at the top of the screen, click on the Routing failover menu on the left, then click on the Router firewall menu item. Figure 57 - Router firewall toggle key www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 52 Click the Save button to confirm the default rule. In the Current MAC / IP / Port filtering rules in system section, click the +Add button. Figure 59 - Current MAC / IP/ Port filtering rules in effect www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 53 The new rule is displayed in the filtering rules list. You can edit the rule by clicking the Edit button or delete the rule by clicking the button. Figure 61 - Completed filtering rule www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 54: Vpn

    IPSec operates on Layer 3 of the OSI model and as such can protect higher layered protocols. IPSec is used for both site to site VPN and Remote Access VPN. The NTC-140-01 router supports IPsec end points and can be configured with Site to Site VPN tunnels with third party VPN routers.
  • Page 55 Figure 63 – IPSec profile edit www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 56 Select the IPSec encryption type to use with the VPN connection. Select the IPSec hash type to use for the VPN connection. The hash is used for authentication of packets for the VPN IPSec hash connection. Table 18 - IPSec Configuration Items www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 57 In the VPN network address and VPN network subnet mask fields, enter the IP address and network subnet mask to assign to your VPN. This is ideally an internal IP address which differs from your existing address scheme. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 58 NetComm Wireless 4G M2M Router v1.0...
  • Page 59 Figure 66 – OpenVPN server profile settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 60 If it is not selected, the OpenVPN connection allows for secure communication links between this router and the remote OpenVPN server only. Use the Authentication type options to select the Authentication type that you would like to use for the OpenVPN client. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 61 In the Profile name field, type a name for the OpenVPN P2P profile you are creating. On the router designated as the server, leave the Server IP address field empty. On the router designated as the client, enter the WAN IP address/host domain name of the server. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 62 Upload button to send it to the slave. Perform the same for the other router, uploading the slave’s secret key file to master. When they are uploaded click the Save button to complete the peer-to-peer OpenVPN configuration. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 63 PPTP client. The PPTP client list is displayed. Figure 71 - PPTP client list Click the +Add button to begin configuring a new PPTP client profile. The PPTP client edit screen is displayed. Figure 72 - VPN PPTP client edit www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 64 Click the Save button to save the changes. The VPN will attempt to connect after your click Save. Click the Status button at the top left of the interface to return to the status window and monitor the VPN’s connection state. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 65 GRE. The GRE client list is displayed. Figure 73 - GRE client list Click the +Add button to begin configuring a new GRE tunnelling client profile. The GRE Client Edit screen is displayed. Figure 74 – GRE client edit www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 66 Click the Save button to save the changes. The VPN will attempt to connect after your click Save. Click the Status button at the top left of the interface to return to the status window and monitor the VPN’s connection state. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 67: Services

    In the Username and Password fields, enter the logon credentials for your DDNS account. Enter the password for the account again in the Verify password field. Click the Save button to save the DDNS configuration settings. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 68: Network Time (Ntp)

    Network time (NTP) The NTP (Network Time Protocol) settings page allows you to configure the NTC-140-01 router to synchronize its internal clock with a global Internet Time server and specify the time zone for the location of the router. This provides an accurate timekeeping function for features such as System Log entries and Firewall settings where the current system time is displayed and recorded.

  • Page 69: Data Stream Manager

    In each case, the logical flow of the stream is from Endpoint A to Endpoint B. Customers interested in developing their own applications to create custom endpoints and streams can contact NetComm Wireless about our Software Development Kit.
  • Page 70 Note: Using a custom host port name is not recommended for normal use as the device path can change between power cycles of the router. TCP server This creates a TCP server endpoint with the following options available. Figure 79 - TCP server endpoint configuration www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 71 This creates a UDP client endpoint with the following options available. The retry timeout period specifies the number of seconds to wait between attempts to re-establish a connection in the event that it is lost. The client will attempt re-connection indefinitely every Retry timeout interval. Figure 82 - UDP client endpoint configuration www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 72 Off. The other available options are from 1 to 12. Advanced status Enables echo on the serial side. All commands are echoes. This can be turned on/off via ATE1 and ATE0 Echo enable commands. Recommended setting for this option is ON. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 73 The CSD (Circuit Switched Data) endpoint is designed for use when CSD connectivity is required between equipment connected through NetComm Wireless routers. A typical application of CSD is a dial-up connection to an ISDN service. CSD calls use the functionality of the GSM networking and switching subsystem to carry data via GSM or later cellular networks.
  • Page 74 ‘keep alive’ packets to keep the socket open and create an overhead when the TCP data connection is not in use. Figure 85 – TCP connect-on-demand endpoint configuration www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 75 Click the Save button. The Endpoints list is displayed with the newly created endpoint listed and a summary of the settings your configured. Figure 87 - Endpoints list www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 76 TCP server running on the router. Use the Mode drop down list to select the mode of operation of the endpoint. The mode can be thought of as a transformation of the data as it arrives at this endpoint. Figure 89 - Edit data stream www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 77 1 (Serial), 8 (RS232), 9 15 (TCP Client Raw/Raw dsm_data_mover which is initiated ONLY when data (RS485), 10 (RS422) Connect on Demand) is seen on serial port Table 22 - Data stream applications www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 78: Padd

    PADD server mode and PADD client mode can be run at the same time. To access the PADD configuration page, click on the Services menu at the top of the screen then click on the PADD menu item on the left. Figure 91 - PADD www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 79: Remote Management

    The Download button displays the Management Information Base (MIB) of the router. The MIB displays all the objects of the router that can have their values set or report their status. The MIB is formatted in the SNMP-related standard RFC1155. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 80 To send a manual SNMP Heartbeat, click the Send heartbeat button. When you have finished configuring the SNMP traps, click the Save button to save the settings. Note: When a factory reset is performed via SNMP, the SNMP settings are preserved. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 81 You must have your own compatible ACS infrastructure to use TR-069. In order to access and configure the TR- 069 settings you must be logged into the router as the root user. • When a factory reset of the router is performed via TR-069, the TR-069 settings are preserved. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 82 The NetComm Wireless router sends “inform” messages periodically to alert the ACS server that it is ready. These inform messages can also be configured to accept a connection request from the ACS server. When a connection is established, any tasks queued on the ACS server are executed.
  • Page 83 M2M devices. It is less taxing on the system and network than OMA-DM and TR-069. OMA-LWM2M runs over UDP and supports asynchronous notifications when a resource changes. It provides: Firmware upgrades Device monitoring and configuration Server provisioning Figure 95 - OMA Lightweight M2M configuration www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 84 Supported objects The objects and instances used by NetComm Wireless routers are all part of the Open Mobile Alliance and IPSO Alliance approved list. At this time, there are no NetComm-specific objects or instances. For more information on the Lightweight M2M specifications, please visit the Open Mobile Alliance Specifications for Public Comment website: http://technical.openmobilealliance.org/Technical/technical-information/specifications-for-public-comment...

  • Page 85: Io Configuration

    IO configuration The NTC-140-01 Router is equipped with a 2 x 2 Molex connector providing Power (+), Ground (−), a multipurpose input and output pin and an ignition detection input. The multipurpose input/output pin may be independently configured for various functions,...
  • Page 86 Note: Please refer to the SDK Developer Guide for hardware information about the Input/Output pins, wiring examples and configuration of the pins via the command line interface. There are also wiring examples in Appendix G of this User Guide. Contact NetComm Wireless Technical Support for access to the Software Development Kit. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 87: Event Notification

    To access the Event notification configuration page, click the Services menu item, select the Event configuration menu item on the left, then select the Notification configuration menu item. Figure - Event notification configuration www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 88 Email address, TCP address and port, UDP address and port and/or SMS number. Click the Save button when you have entered the required details. From the Event notification menu on the left of the screen, select the Notification configuration menu item. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 89 In this case, you must go to the Notification configuration screen and remove the check marks from all the notification types for each event for which the destination profile is configured. When you have done that, return to the Event destination list and select the delete button. Click the Save button. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 90: Email Settings

    Enter the password of the account to be used for sending emails once more for confirmation. Email test recipient Enter an email address to send a test message to, then click the Send test email button. Table 28 - Email client settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 91: Sms Messaging

    Ability to trigger the NTC-140-01 router to download and apply a configuration file To access the SMS messaging functions of the NTC-140-01 router, click on the Services menu item from the top menu bar, and then select one of the options under the SMS messaging section on the left hand menu.
  • Page 92 “192.168.20.3” on port “2002” at the same time. To disable redirection to a TCP or UDP address, clear the TCP server address and UDP server address fields and click the Save button. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 93 When you have finished typing your message and you are ready to send it, click the Send button. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 94 Add to White list. Click this button to add the sender’s mobile number to the white list on the router. Delete button. Click this button to delete the corresponding message. Refresh button. Click this button to refresh the inbox or outbox to see new messages. Table 30 - Inbox/Outbox icons www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 95 We highly recommended that you use the white list and a password when utilising this feature to prevent unauthorised access. See the White list description for more information. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 96 This is enabled by default and it is strongly advised that you leave this feature enabled to maintain security. Send Set command acknowledgement replies execute The NTC-140-01 router will automatically reply to certain types of commands received, such as commands, or Wakeup commands.
  • Page 97 Destination number field and optionally define a password in the Password field. When you have finished adding numbers click the Save button to save the entries. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 98 Send Set command acknowledgement replies toggle key is set to ON. If the Send command error replies toggle key is set to ON, the router will send a reply if the command is correct but a variable or value is incorrect, for example, due to misspelling. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 99 VARIABLE=VALUE1 ; set VARIABLE2=VALUE2 PASSWORD set VARIABLE1=VALUE1; set VARIABLE2=VALUE2; set VARIABLE3=VALUE3 If required, values can also be bound by an apostrophe, double apostrophe or back tick. For Example: “set VARIABLE=’VALUE’” “set VARIABLE=”VALUE”” “set VARIABLE=`VALUE`” “get VARIABLE” www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 100 Instructs the router to generate new public SSH keys. ssh.clearkeys Instructs the router to clear the client public SSH key files. Table 32 - List of basic SMS diagnostic commands www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 101 Returns the PPPoE status, currently configured dial string and service name set pppoe set pppoe=1, telstra.internet, test Sets the PPPoE status on, APN to telstra.internet, and service name to test. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 102 1 days 02:30:12 or 0 days 00:00:00 when statistics.usage_current wanuptime cellular broadband wwan down session /proc/uptime deviceuptime Device up time 1 days 02:30:12 wwan.0.system_network_status.current_band band Current band WCDMA850 Table 34 - List of basic SMS diagnostics RDB variables www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 103 The router can be instructed by SMS to connect to one of the networks returned by the get plmnscan command. The set forceplmn command forces the router to connect to a specified operator network (if available) while the get forceplmn command retrieves the currently configured network on the router. Command format: set forceplmn=0|MCC,MNC| MCC,MNC,Network Type www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 104 Not required execute pdpcycle connected) and reconnect the data Required PASSWORD execute pdpcycle connection Not required execute pdpdown Send SMS to disconnect the data connection Required PASSWORD execute pdpdown Not required execute pdpup www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 105 PASSWORD set ssh.proto=1 Not required get ssh.passauth Retrieve password authentication status Required PASSWORD get.ssh.passauth Not required set ssh.passauth=1 or set ssh.passauth=0 Enable/disable password authentication on host Required PASSWORD set ssh.passauth=1 or PASSWORD set ssh.passauth=0 www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 106 Generate set of public/private keys on the host Required PASSWORD execute ssh.genkeys Not required execute ssh.clearkeys Clear client public keys stored on host Required PASSWORD execute ssh.clearkeys Table 37 - SMS diagnostics example commands www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 107: System

    The Log pages are used to display or download the System log and IPSec logs on the router. System log The System Log enables you to troubleshoot any issues you may be experiencing with your NTC-140-01 router. To access the System Log page, click on the System menu. The System Log is displayed.
  • Page 108 IPSec VPN tunnels will be disconnected as a change in logging level requires the IPSec service to be restarted. To download the IPSec log, click the Download IPSec log button and you will be prompted to save the file. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 109 System menu item then select the Log menu on the left and finally select Event notification log beneath it. Figure 109 - Event notification log Use the Download event notification history button to download the log file. The Update event notification history button forces a refresh of the log display. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 110 To configure the NTC-140-01 router to output log data to a remote syslog server: Click on the System menu from the top menu bar. The System log item is displayed.
  • Page 111 Show extended system log messages with full debugging level details. Info Show informational messages only. Notice Show normal system logging information. Error Show error condition messages only. Table 38 - System log detail levels www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 112: System Configuration

    From the Restore saved settings section, click on Browse or Choose a file and select the backup configuration file on your computer. Click Restore to copy the settings to the new NTC-140-01 router. The router will apply these settings and inform you it will reboot - click on OK.
  • Page 113 To access the Upload page, click on the System menu, then System Configuration and then Upload. The Upload page allows you to upload firmware files, HTTPS certificates or user created application packages to the NTC-140-01 router. When firmware files have been uploaded, they can also be installed from this page. PDF files, such as this user guide may also be uploaded for access on the router’s help page.
  • Page 114 The recovery firmware image is flashed and when it is complete, the router displays “The firmware update was successful” and returns to the main Upload screen. Figure 116 - Recovery firmware flash process www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 115 The Package Manager page is used to provide details of any user installed packages on the router and allow them to be uninstalled. For more information on application development, contact NetComm Wireless about our Software Development Kit. To access the Package manager page, click on the System menu, System Configuration and then Package manager.

  • Page 116: Administration

    The Administration settings page is used to enable or disable protocols used for remote access and configure the passwords for the user accounts used to log in to the router. Figure 119 - Administration page www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 117 WARNING: Using an insecure password will result in your device being compromised. Any resulting damage may not be covered under warranty. It is strongly advised that the password not be a dictionary word, nor should the same password be used across fleets of devices. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 118 The private key is used to decrypt information and must be secret by its owner. Each NTC-140-01 router contains a self-signed digital certificate which is identical on all NTC-140-01 routers. For a greater level of security, the router also supports generating your own unique key. Additionally, you may use third party software to generate your own self-signed digital certificate or purchase a signed certificate from a trusted certificate authority and then upload those certificates to the router.
  • Page 119 Dominican Republic Cayman Islands Qatar International Algeria Kazakhstan Reunion US Military Ecuador Laos Romania Network Estonia Saint Lucia Serbia Non-Profit Organization Egypt Liechtenstein Russian Federation ARPA Old style Arpanet Western Sahara Sri Lanka Rwanda www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 120 The web server on the router restarts and you are logged out of the router. Click OK to be taken back to the login screen. Figure 121 - New certificate successfully generated message www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 121 Select the types of authentication you want to use by clicking the Enable password authentication and Enable key authentication toggle keys on or off. Note that you may have both authentication methods on but you may not turn them both off. Click the Save button to confirm your settings. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 122 -t rsa -f ssh_host_rsa_key -N "" ssh-keygen -t ecdsa -f ssh_host_ecdsa_key -N "" zip -e -P "PASSWORDHERE" -j keys.zip * Click the Upload keys button then locate the generated keys to upload them to the router. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 123 The wait period begins from the time the Save button is clicked. When the wait period expires, the LEDs will turn off. If the router is rebooted, the LED power off timer is reset. The router will boot up and wait for the configured time before turning off again. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 124: Watchdogs

    Connect-on-demand session is idle, or the PDP context is disabled by the user. Therefore, we recommended that you disable this feature if Connect-on-demand is configured or if the PDP context is intentionally disconnected on occasion. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 125 Note: The Periodic Ping timer should not be set to a value of less than 300 seconds to allow the router time to reconnect to the cellular network following a reboot. To disable the periodic ping reset monitor, set Fail count to 0. Figure 125 – Ping watchdog settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 126 Click the Save button to save the settings. Note: The randomise reboot time is not persistent across reboots; each time the router is due to reboot, it randomly selects a time less than or equal to the Randomise reboot time. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 127: Power Management

    Figure 126 - Power management To edit a power profile, click the Edit icon of the appropriate profile. Figure 127 - Power management - Power profile settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 128 Use the Sleep when ignition pin goes setting to select Low or High. By default, this is set to Low. Additionally, the router will stay on for the number of minutes specified in the Remain awake after ignition off field. The minimum value for this field is 2 minutes with the maximum being 255 minutes. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 129 Enter the time in seconds to wait before returning from sleep state in the Always wake up after field. A setting of 0 means that the router will automatically wake from sleep state immediately. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 130: Usb-Otg

    Automatic mode and set Host or Device mode yourself. To access the USB OTG page, click the System menu item, then select the USB OTG menu item on the left. Figure 133 - USB-OTG configuration www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 131: Storage

    When turned on, this provides read-only access to the files on the connected storage device(s) for guest users. If the authenticated Read-only account has Read-only enabled then this option is not available and read-only access is automatically granted to guest users. Table 40 - Network Samba storage settings www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 132: Reboot

    Note: It can take up to 2 minutes for the router to reboot. Logging out To log out of the router, click the icon at the top right corner of the web user interface. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 133: Appendix A: Tables

    Table 41 - LAN Management Default Settings ..........................134 Table 42 - Web Interface Default Settings ............................ 134 Table 43 - Telnet Access ................................134 Table 44 - RJ-45 connector pin outs ............................141 www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 134: Appendix B: Default Settings

    Appendix B: Default Settings The following tables list the default settings for the NTC-140-01 router. LAN (MANAGEMENT) Static IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1 Table 41 - LAN Management Default Settings ADMIN MANAGER ROOT MANAGER ACCOUNT ACCOUNT...

  • Page 135: Restoring Factory Default Settings

    Use a pen to depress the Reset button on the device for 15-20 seconds. The router will restore the factory default settings and reboot. When you have reset your NTC-140-01 router to its default settings you will be able to access the device’s configuration web interface using http://192.168.1.1...

  • Page 136: Appendix C: Recovery Mode

    Accessing recovery mode Both systems have web interfaces that can be used to manipulate the other inactive system. The NTC-140-01 Router starts up by default in the Main system mode, however the router may be triggered to start in recovery mode if desired.

  • Page 137: Status

    The log page displays the system log which is useful in troubleshooting problems which may have led to the router booting up in recovery mode. The only functionality provided here is the ability to clear the system log, filter by log level and downloading of the log file. Figure 139 - Recovery mode – Log www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 138: Application Installer

    Click the Reboot button to reboot the router to the main firmware image. Figure 142 - Recovery mode - Reboot www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 139: Appendix D: Https - Uploading A Self-Signed Certificate

    Uploading a self-signed certificate If you have your own self-signed certificate or one purchased elsewhere and signed by a Certificate Authority, you can upload it to the NTC-140-01 router using the Upload page. Note: Your key and certificate files must be named server.key and server.crt respectively otherwise they will not work.
  • Page 140 Click the Install link next to the server.crt file then click OK on the prompt that is displayed. The certificate file is installed. Repeat this for the key file. When each file is installed it is removed from the list of stored files. Figure 146 - Installing the server.crt file www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 141: Appendix E: Rj-45 Connectors

    Tx + DC - +BI_DB Blue solid unused +BI_DC White/Blue stripe unused -BI_DC Green solid Tx - DC - -BI_DB White/Brown stripe unused +BI_DD Brown solid unused -BI_DD Table 44 - RJ-45 connector pin outs www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 142: Appendix G: Input/Output

    Appendix G: Input/Output Overview The NTC-140-01 router is equipped with a 2 x 2 Molex connector providing a multipurpose input and output terminal as well as a dedicated ignition input. The I/O terminal may be independently configured for various functions, including:...
  • Page 143 Note: NetComm Wireless does not offer any further advice on the external wiring requirements or wiring to particular sensors, and will not be responsible for any damage to the unit or any other device used in conjunction with it. Using outputs to control high voltage equipment can be dangerous.
  • Page 144 A NAMUR sensor is a range of sensors which conform to the EN 60947-5-6 / IEC 60947-5-6 standards. They basically have two states which are reflected by the amount of current running through a sense resistor. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 145 An example below shows the internal pull-up voltage and 1K resistor activated. The voltage received depends on the combination of resistors and the value of the resistance of the sensor itself. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 146 The previous examples of wiring can be used to come up with a system. The following test case is an example of how the I/O’s can be used to enhance a simple router setup. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 147: Appendix H: Obtaining A List Of Rdb Variables

    Note: Omitting the | more parameter will dump a complete list without pagination. For easier access, some terminal clients such as PuTTY have the ability to log all telnet output to a text file. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 148: Appendix I: Using Usb Devices And Microsd™ Cards

    MicroSD™ cards The NTC-140-01 router features a Micro USB 2.0 OTG port capable of supplying 0.5A to connected devices and a microSD™ card slot allowing additional storage. The Micro USB port supports both USB storage devices as well as certain USB accessories, including USB-to-Ethernet adapters and USB-to-Serial cables.

  • Page 149: Safety And Product Care

    Any external antenna gain must meet RF exposure and maximum radiated output power limits of the applicable rule section. The maximum antenna gain for this device is: NTC-140-01 WWAN: 3.03 dBi (1710-1855MHz) WLAN: 2dBi WLAN antenna type: Dipole antenna www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 150 European market. The wireless device is approved to be used in the member states of the EU. NetComm Wireless declares that the wireless device is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive 1999/5/EC (R&TTE Directive).
  • Page 151 Seek professional advice when connecting a device interface to the vehicle electrical system. Distraction Operating machinery Full attention must be given to operating the machinery in order to reduce the risk of an accident. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 152 Only qualified personnel must service or repair the device or its accessories. If your device or its accessories have been submerged in water punctured or subjected to a severe fall, do not use until they have been checked at an authorised service centre. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
  • Page 153 Blasting caps and areas Turn off your device or wireless device when in a blasting area or in areas posted turn off “two-way radios” or “electronic devices” to avoid interfering with blasting operations. www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...

  • Page 154: Product Warranty

    Product Warranty For warranty information please visit http://www.netcommwireless.com/product/m2m/ntc-140 www.netcommwireless.com NetComm Wireless 4G M2M Router v1.0...
