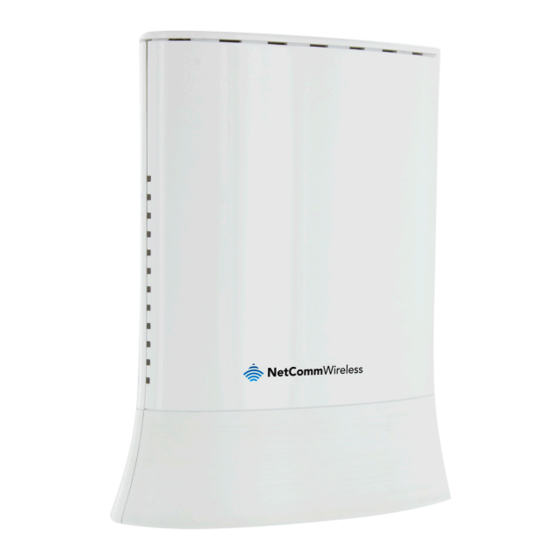

NetComm Wireless NF10W Quick Start Manual

Vdsl / adsl wifi modem router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NF10W - QUICK START GUIDE
VDSL / ADSL WiFi
Modem Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF10W and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm Wireless NF10W

Summary of Contents for NetComm Wireless NF10W

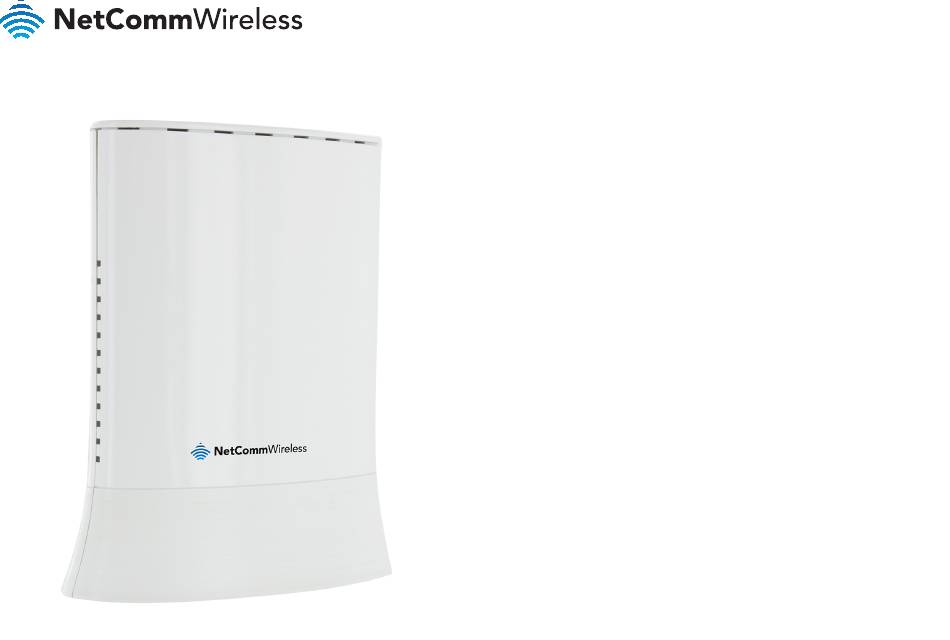

  • Page 1 NF10W - QUICK START GUIDE VDSL / ADSL WiFi Modem Router...
  • Page 2 WELCOME This quick start guide is designed to get you up and running quickly with your new router. More advanced set up instructions can be found in the user manual which can be downloaded from www.netcommwireless.com...

  • Page 3: Table Of Contents

    PACKAGE CONTENTS PRE-REQUISITES SETTING UP YOUR ROUTER ADSL Connections TABLE OF VDSL Connections Ethernet Connections CONTENTS LOGGING INTO THE WEB INTERFACE CONFIGURING THE DEVICE FOR USE WITH AN INTERNET SERVICE ADSL VDSL Ethernet WAN CONNECTING WIRELESS DEVICES CHANGING THE WIRELESS PASSWORD CHANGING THE ADMINISTRATOR PASSWORD 22...

  • Page 4: Package Contents

    PACKAGE VDSL / ADSL WiFi Modem Router (NF10W) RJ45 Ethernet cable CONTENTS RJ11 Telephone cable Power supply (12V/1.5A) WiFi Security card Warranty card Quick Start Guide...

  • Page 6: Pre-Requisites

    NF10W. Connect the DSL line filter (not included) to the wall socket and then connect your handset to the “phone” port of the filter. Connect the supplied RJ45 Ethernet cable from one of the yellow Ethernet ports (1-4) on the back of the NF10W to your computer.
  • Page 7 = Optional Elements...

  • Page 8: Vdsl Connections

    NF10W and then plug it into an available wall socket. Press the ON/OFF button to power the router on. The Power light illuminates in red. When the NF10W has finished booting up, the Power light turns green.
  • Page 9 = Optional Elements...

  • Page 10: Ethernet Connections

    Connect a straight-through Ethernet cable to the blue port on the back of the NF10W and then connect the other end to your upstream gateway device, e.g. an FTTP gateway or HFC cable modem. Connect the supplied RJ45 Ethernet cable from one of the yellow Ethernet ports (1-4) on the back of the NF10W to your computer.

  • Page 12: Logging Into The Web Interface

    LOGGING Open a web browser (such as Internet Explorer® / Microsoft Edge, Mozilla Firefox® or Google INTO THE Chrome™), type http://192.168.20.1 into the address bar and press Enter. WEB INTERFACE At the login screen, type admin into both the Username and the Password fields, then click the button.

  • Page 13: Configuring The Device For Use With An Internet Service

    CONFIGURING Click on the Basic Setup menu item on the left side of the screen. THE DEVICE FOR Follow the instructions for your connection type. USE WITH AN INTERNET SERVICE...

  • Page 14: Adsl

    ADSL Select ADSL and click the Next button. Select either the PPPoE or PPPoA for your internet connection as specified by your Internet Service Provider (ISP). Click the Next button.
  • Page 15 User ID Password In the fields, enter the Username and Password assigned to you by your Finish Internet Service Provider (ISP). Click the button. The account settings are saved and the NF10W connects to the internet.

  • Page 16: Vdsl

    VDSL Select VDSL and click the Next button. Select the WAN mode for your internet connection as specified by your Internet Service Provider (ISP). Click the Next button. Select the correct VLAN option for your connection. New Zealand customers, the requirement for VDSL is VLAN tag 10.
  • Page 17 User ID Password In the fields, enter the Username and Password assigned to you by your Internet Service Provider (ISP). Click the Finish button when you have entered the required details.

  • Page 18: Ethernet Wan

    Ethernet WAN Connect an RJ45 Ethernet cable to the port on the NF10W. Connect the other end of the cable to your WAN service. Select Ethernet WAN then click the Next button. Select the WAN mode for your internet connection as specified by your Internet Service Provider (ISP).
  • Page 19 4. PPP over Ethernet (PPPoE): User ID In the Password fields, enter the username and password assigned to you by your Internet Service Provider (ISP). Click the Finish button when you have entered the required details. 5. IP over Ethernet (IPoE): If your ISP has supplied a Use the following Static static IP address, select...
  • Page 20 The settings are displayed in a summary. Click Apply/Save to save them.

  • Page 21: Connecting Wireless Devices

    CONNECTING WIRELESS DEVICES The default settings of the router have the wireless function enabled so there is no configuration necessary to use the wireless function, simply connect to the SSID (network name) listed on the WiFi security card or on the label located under your router.

  • Page 22: Changing The Wireless Password

    CHANGING If you would like to change the wireless password to something easier to remember, follow these steps. THE WIRELESS Select the Wireless menu from the left side of the PASSWORD Security screen, then select the option below it. The Wireless Security page is displayed.
  • Page 23 In the WPA/WAPI passphrase field, enter the desired password to use for the wireless network. When choosing a password, try to ensure that it • is unique; • is sufficiently long (at least 8 characters in length); • uses a mix of letters, numbers and symbols; •...

  • Page 24: Changing The Administrator Password

    CHANGING THE We strongly recommend that you change the administrator password used to access the web ADMINISTRATOR interface to a more secure password. To change the administrator password: PASSWORD From the menu on the left side of the screen, select Management->...
  • Page 25 In the New Password Confirm Password fields, enter a new password. When choosing a password, try to ensure that it: • is unique; • is sufficiently long (at least 8 characters in length); • uses a mix of letters, numbers and symbols; •...
  • Page 26 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 27 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 28 SUPPORT.NETCOMMWIRELESS.COM Trademarks and registered trademarks are the property of NetComm Wireless Limited or their respective owners. Specifications are subject to change without notice. Images shown may vary slightly from the actual product.
