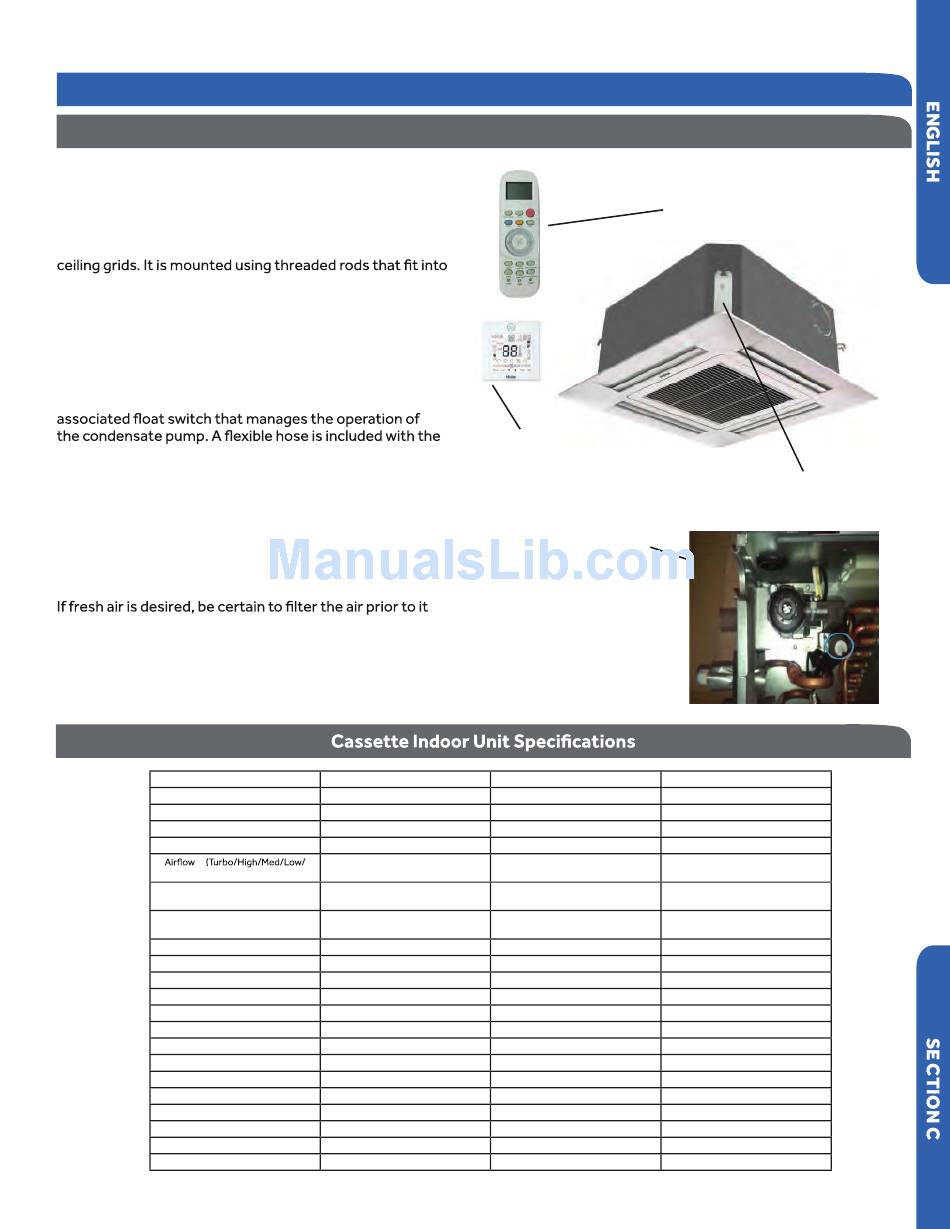

Section C - Indoor Unit Installation - Cassette

The Cassette Indoor Air Handler ships consists of a cassette
assembly and operational louver. The Cassette Indoor Unit
is operated via a factory supplied remote control. Wired
controller is optional.
The Cassette unit will install between standard dropped
brackets that are located at all four corners of the cassette
assembly.
The Cassette unit receives 230 volt line voltage from a
connection at the outdoor condensing unit. There is no
requirement for independent line voltage connections.
The cassette unit has a built in condensate pump and
Cassette unit. This hose connects the cassette condensate
drain outlet to the buildings condensate drain system.
The motorized louver is contr olled via the remote control.
The louver has indicat or lights that communicate function
and diagnostic information to the user and service technician.
Optional fresh air can be piped into the cassette assembly.
The knock out is located on the side of the cassette assembly.
entering the cassette. A 4" galvanized pipe should be used to
pipe in the fresh air .
Included with the cassette unit is factory provided insulating
tape. This tape should be placed over the refrigerant piping
connections at the indoor unit to prevent sweating.
Indoor
R ated C ooling Capacit y Btu/hr
R ated Heating Capacit y Btu/hr
Voltage, C ycle, P hase V /Hz/-
Fan S peed S tages
Quiet) CF M
Motor S peed ( Turbo/High/ Med/Low/
Quiet) RP M
Indoor S ound Le vel dB ( Turbo/High/
Med/Low/Quiet)
Grill M odel
Chassis Dimension: Height in (mm)
Chassis Dimension: Width in (mm)
Chassis Dimension: Depth in (mm)
Grill Dimension: Height in (mm)
Grill Dimension: Width in (mm)
Grill Dimension: Depth in (mm)
Weight ( Ship/Net)- lbs (kg)
Connections
Liquid O.D. in
Suction O.D. in
Drainpipe Size O .D. in
Internal C ondensate P ump
Max. Dr ain-Lift height in(mm)
Introduction - Overview
Cassette Product Information
Wired Controller is
Optional
Built-in Condensate
Pump and Float Switch
AB09SC2VH*
9,000
10,000
208-230/60/1
5+Auto
410/365/305/265/205
410/365/305/265/205
750/690/620/560/500
750/690/620/560/500
42/40/36/32/25
PB-700IB
10 1/4 (260)
22 7/16(570)
22 7/16(570)
2 3/8 (60)
27 9/16 (700)
27 9/16 (700)
46.3/37.5 (21/17)
48.5/40.8 (22/18.5)
Flare
1/4
3/8
1 1/4
Standard
47 3/16(1,200)
INSTALLATION
Factory Supplied Remote
See Section F for more information
AB12SC2VH*
AB18SC2VH*
12,000
13,000
208-230/60/1
208-230/60/1
5+Auto
470/410/365/295/252
830/750/690/610/550
42/40/36/32/25
45/42/40/36/32
PB-700IB
10 1/4 (260)
22 7/16(570)
22 7/16(570)
22 7/16(570)
22 7/16(570)
2 3/8 (60)
27 9/16 (700)
27 9/16 (700)
27 9/16 (700)
27 9/16 (700)
48.5/40.8 (22/18.5)
Flare
1/4
3/8
1 1/4
Standard
47 3/16(1,200)
47 3/16(1,200)
Outside Air
Mounting Hangers
18,000
19,000
5+Auto
PB-700IB
10 1/4 (260)
2 3/8 (60)
Flare
1/4
1/2
1 1/4
Standard
PAGE 17
