1 . 1 . 2 F o r V i g o r 2 1
1 . 1 . 2 F o r V i g o r 2 1
1 0 n
1 0 n

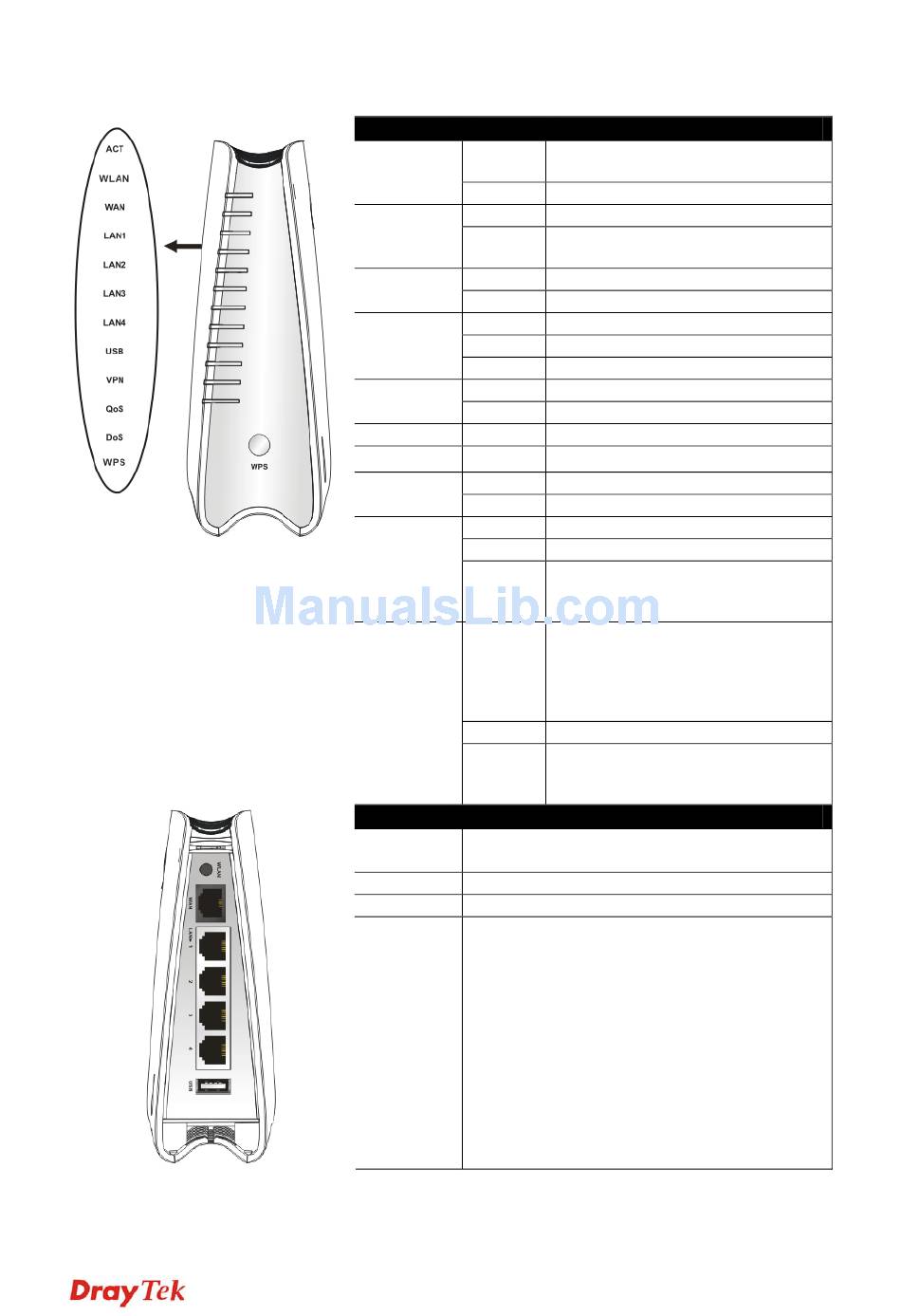

LED
ACT
(Activity)
WLAN
WAN
LAN 1/2/3/4
USB
VPN
QoS
DoS
WPS
WPS Button
Interface
WLAN
WAN
LAN (1-4)
USB
4
Status Explanation
Blinking The router is powered on and running
normally.
Off The router is powered off.
On Wireless access point is ready.
Blinking It will blink while wireless traffic goes
through.
On The WAN port is connected.
Blinking It will blink while transmitting data.
On The port is connected.
Off The port is disconnected.
Blinking The data is transmitting.
On A USB device is connected and active.
Blinking The data is transmitting.
On The VPN tunnel is active.
On The QoS function is active.
On The DoS/DDoS function is active.
Blinking It will blink while detecting an attack.
On The WPS is on.
Off The WPS is off.
Blinking Waiting for wireless client sending
requests for connection about two
minutes.
On Press this button for 2 seconds to wait
for client device making network
connection through WPS. When the
LED lights up, the WPS connection
will be on.
Off The WPS is off.
Blinking Waiting for wireless client sending
requests for connection about two
minutes.
Description
Press the button once to enable (WLAN LED on) or
disable (WLAN LED off) wireless connection.
Connector for accessing the Internet.
Connectors for local networked devices.
Connector for USB storage (Pen Driver /Mobile
HD) or printer.
Vigor2110 Series Quick Start Guide
