CSB200 Class B AIS
•

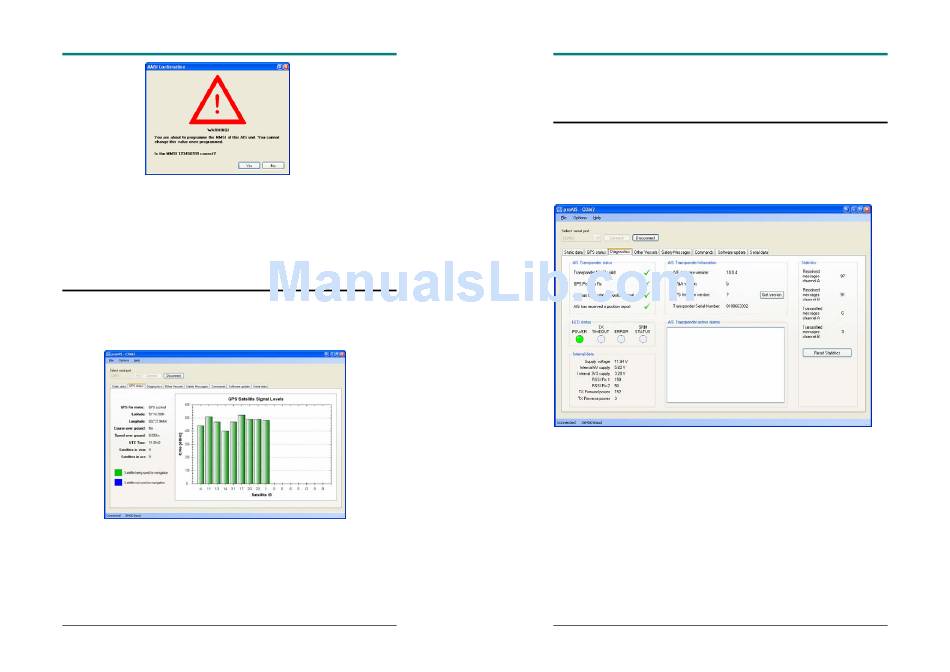

Click the 'Yes' button if the MMSI is correct
•
The static data tab will be updated to show the newly
programmed vessel information. The MMSI number will be
displayed with a grey background to indicate that it has been
programmed and cannot be changed.

GPS Status

This tab shows the status of the internal GPS receiver. If the GPS
receiver has position fix then the current position, speed and course are
shown. A bar chart of satellite signal strength is also provided.
Satellite signal strength bars are shown in green for satellites that are
currently being used for navigation. Blue signal strength bars are used to
show satellites not currently being used for navigation. It is normal for the
graph to display a combination of green and blue bars.
R2.0 19
www.busse-yachtshop.de | info@busse-yachtshop.de
CSB200 Class B AIS
The information on this tab is intended for use during installation of the
AIS transponder in order to verify connection of the GPS antenna.

Diagnostics

The diagnostics tab shows key status information from the AIS
transponder. This information can be used to quickly verify that the
transponder has been installed correctly and is operational.
AIS Transponder Status
•
A tick next to the items in this area indicates correct operation.
•
If a red cross is shown then some action may be required:
o Transponder MMSI valid has a red cross - check the
MMSI of the unit is configured by selecting the 'Static
Data' tab and verifying that a valid MMSI has been
entered. If the MMSI is 000000000 then it has not been
programmed.
R2.0 20
