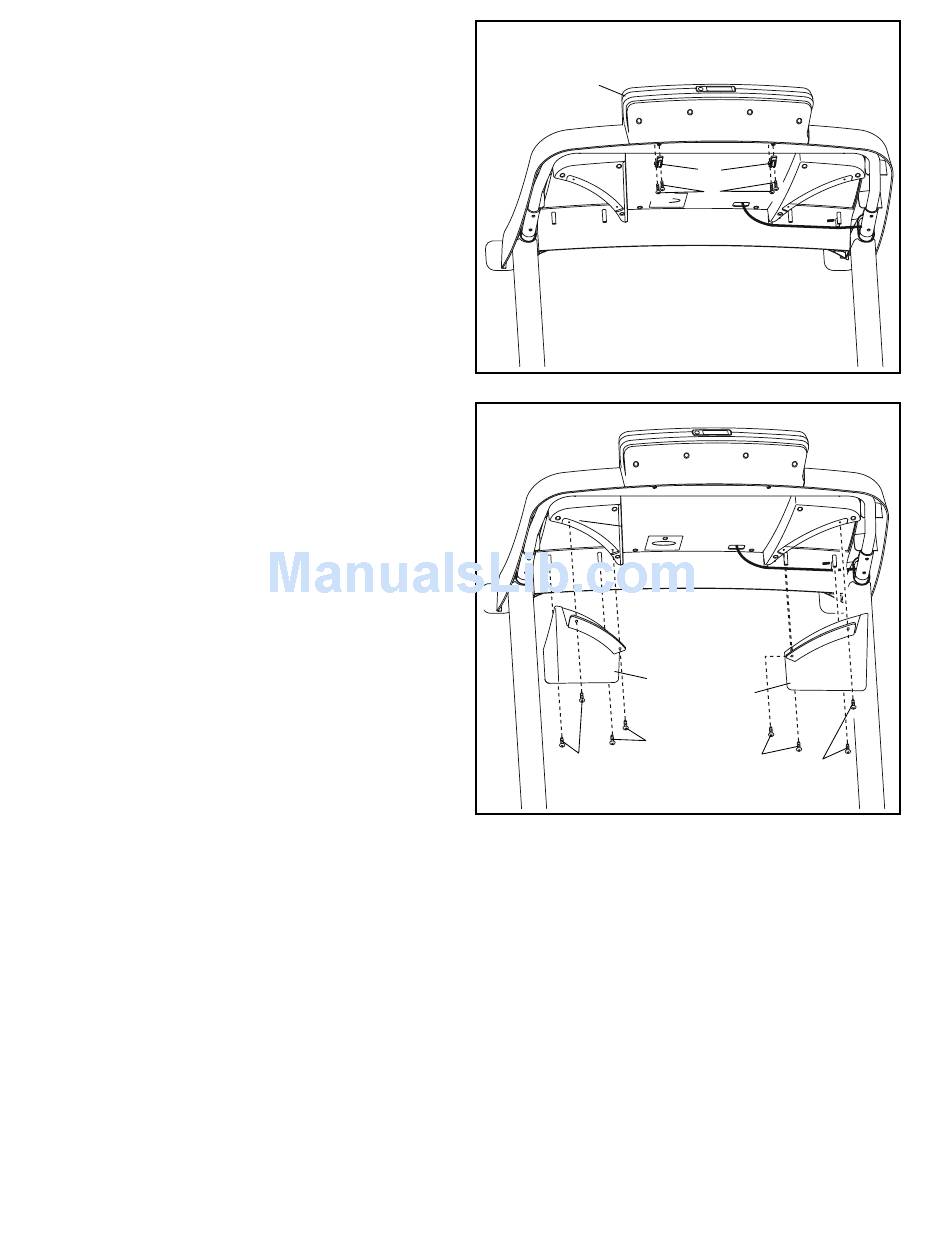

11. Attach two Console Clamps (96) to the console
assembly with four #8 x 3/4" Screws (6).
See step 4. Tighten all six 3/8" x 4" Screws (4).
12. Identify the Left and Right Trays (97, 85). Orient
the Trays as shown, and attach each Tray
with four #8 x 3/4" Screws (6). Start all of the
Screws, and then tighten them. Be careful not
to overtighten the Screws.
11
Console
Assembly
12
6
12
96
6
85
97
6
6
6
