Installation

WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord is
stored or secured to avoid tripping
or snagging to reduce the risk
of fire, electric shock or injury to
persons.
WARNING: Construction
and electrical outlet wiring must
comply with local building codes
and other applicable regulations
to reduce the risk of fire, electric
shock and injury to persons.
WARNING: Do not attempt
to wire your own new outlets or
circuits. To reduce the risk of fire,
electric shock or injury to persons,
always use a licensed electrician.
WARNING: To reduce the risk
of fire, do not store or use gaso-
line or other flammable vapors or
liquids in the vicinity of the heater.
!
NOTE:
A 15 Amp, 120 Volt cir-
cuit is required. A dedicated circuit
is preferred but not essential in all
cases. A dedicated circuit will be
required if, after installation, the
circuit breaker trips or the fuse
blows on a regular basis when the
heater is operating. Additional ap-
pliances on the same circuit may
exceed the current rating of the
circuit breaker.
6
CAUTION: A minimum of
24.6in. (625mm) from a corner, is
recommended for optimum airflow
and flame production.

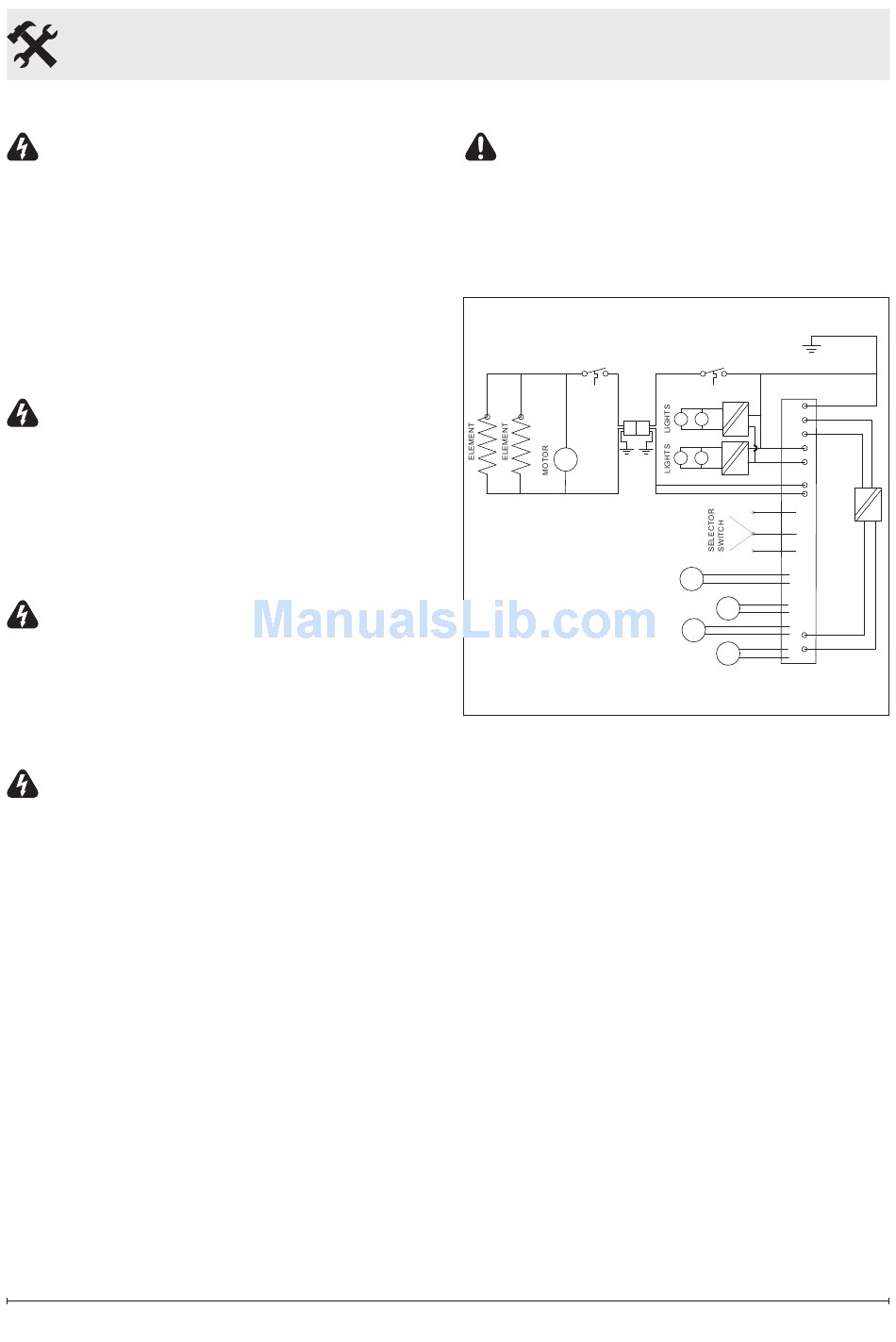

Wiring
THERMAL
CUTOUT
GROUND
THERMOSTAT
PCB
TRANSFORMER
NEUTRAL
N1
N2
3
4
5
TRANSFORMER
6
POTENTOMETER
IR SENSOR
TRANSDUCER
FAN MOTOR
www.dimplex.com
LINE IN
POWER
BOARD
