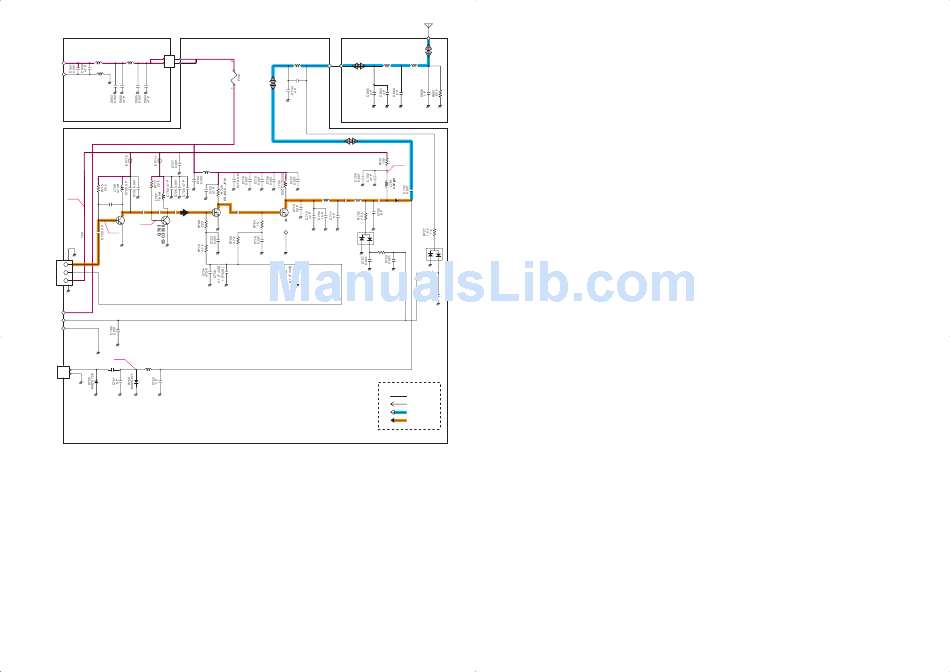

Icom IC-F43GT Service Manual page 54

FUSE J901
9230B-1_02Z141-T
(FUSE UNIT)
L901 L903 VCC1
23.2 nH 23.2 nH 2
VCC
VCC 1
GND
L902
23.2 nH
VCC
T5V
L706
18 nH
T: 5.0
R: 0.0
C761
0.5 P
C731 C762 C729
3 P 0.5 P 3 P
T: 0.7
R: 0.0
Q704
T: 0.7
2SC5006
R: 0.0
J701
IMSA–6176S–03A
4
1 TX
APC
2
3
5
APC
VCC
P_DET P_DET
PDET
GND
GND
T: 0.9
R: 0.0
J702
L712
C752
9230B–1–02Z140–T
LQW1608A18NG00
0.001
RX
1
GND
2
PA ANT
LPF
L709
14 nH
TX
L802
C745 21.0 nH
2.5 P
T5V
T: 1.7
R: 0.0
L704
C708 C701
0.4–0.9–2TL 0.001 0.001
Q701 L703
C720 D701
0.4–0.9–2TL
RD07MVS1
39 P 1SV307
Q702
RD01MUS1
MP701
D702
RB706F–40
R703
1 k
APC
P_DET
NOTES :
11 - 3
J1(CHASSIS)
L801
15.0 nH
D703
RB706F–40
R726
1 k
Voltage line
Contorol line
Common line
TX line
