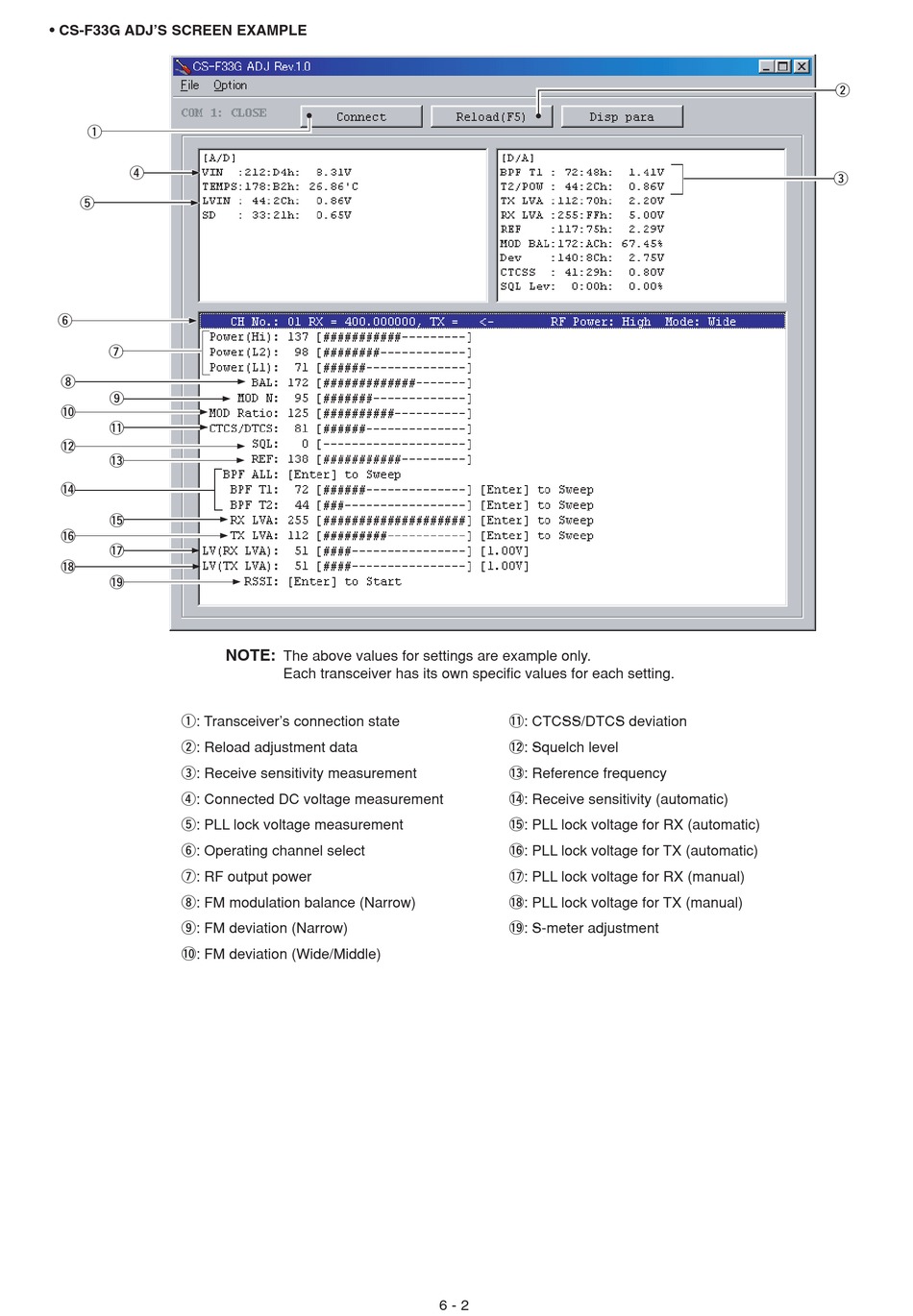

• CS-F33G ADJ'S SCREEN EXAMPLE
q
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
q: Transceiver's connection state
w: Reload adjustment data
e: Receive sensitivity measurement
r: Connected DC voltage measurement
t: PLL lock voltage measurement
y: Operating channel select
u: RF output power
i: FM modulation balance (Narrow)
o: FM deviation (Narrow)
!0 : FM deviation (Wide/Middle)
NOTE:
The above values for settings are example only.
Each transceiver has its own specific values for each setting.
!1 : CTCSS/DTCS deviation
!2 : Squelch level
!3 : Reference frequency
!4 : Receive sensitivity (automatic)
!5 : PLL lock voltage for RX (automatic)
!6 : PLL lock voltage for TX (automatic)
!7 : PLL lock voltage for RX (manual)
!8 : PLL lock voltage for TX (manual)
!9 : S-meter adjustment
