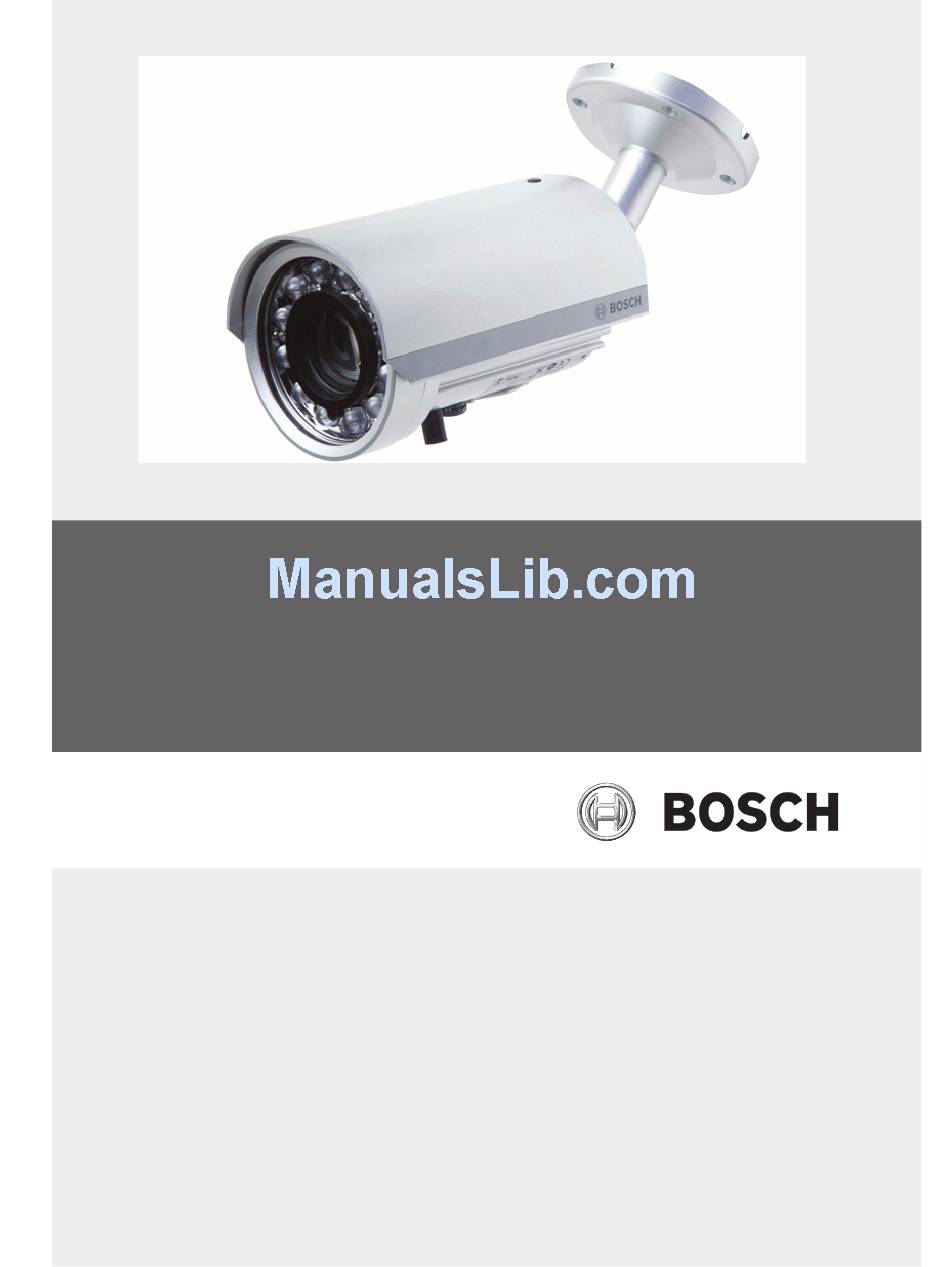

- Page 1 Integrated IR Bullet Camera WZ20 Installation Manual...
-
Page 3: Table Of Contents
Warranty / Limitation of Liability Contact Information Introduction Description Parts List Installation Configuration Configuration Overview 4.1.1 Adjusting Pan, Tilt, Rotate 4.1.2 Adjusting Focus 4.1.3 Adjusting Zoom 4.1.4 Configuring Settings with the Dip Switch Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... - Page 4 OSD Menu 5.1.1 Exposure Submenu 5.1.2 Color Submenu 5.1.3 Day/Night Submenu 5.1.4 Function Submenu 5.1.5 Motion Submenu 5.1.6 Privacy Submenu 5.1.7 Setup Submenu 5.1.8 Exit Submenu Troubleshooting Troubleshooting Tips Technical Specifications | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc.
-
Page 5: Safety
If not avoided, this could result in minor or moderate bodily injury. CAUTION! Low risk: Indicates a potentially hazardous situation. If not avoided, this could result in property damage or risk of damage to the unit. Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... -
Page 6: Important Safety Instructions
When servicing, power shall be disconnected. | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc. -
Page 7: Important Notices
Disconnect the unit's input connectors from outdoor equipment before disconnecting the grounding plug or grounding terminal. – Follow proper safety precautions such as grounding for any outdoor device connected to this unit. Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... - Page 8 Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic...
- Page 9 CCTV system. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
-
Page 10: Fcc & Ices Compliance
– Consult the dealer, an experienced radio/TV technician, or Bosch Security Systems for support. Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made. Any such modifications could void the user's authority to operate the equipment. - Page 11 Brancher l'appareil sur une prise située sur un circuit différent de celui du récepteur. – Consulter le revendeur, un technicien qualifié en radio/ télévision, ou Bosch Security Systems pour obtenir de l'aide. Toute modification apportée au produit, non expressément approuvée par la partie responsable de l'appareil, est strictement interdite.
-
Page 12: Warranty / Limitation Of Liability
Warranty / Limitation of Liability The WZ20 Integrated IR Day/Night Bullet Camera has a three- year warranty. BOSCH Security Systems warrants that its products, at the... - Page 13 Product which is returned by Buyer during the applicable warranty period, or services for which timely notice of defect has been given by Buyer, and which are found by BOSCH Security Systems to be subject to adjustment under this warranty.
-
Page 14: Contact Information
5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 Fax: +31 40 2577 330 emea.securitysystems@bosch.com www.boschsecurity.com Asia-Pacific Robert Bosch (SEA) Pte Ltd, Security Systems 11 Bishan Street 21 Singapore 573943 Phone: +65 6258 5511 Fax: +65 6571 2698 apr.securitysystems@bosch.com www.boschsecurity.asia... -
Page 15: Introduction
Integrated IR Bullet Camera Introduction | en Introduction Description The WZ20 Integrated IR Bullet camera is a night vision DSP color CCD camera with 1/3 in. LXR CCD with dual-window mechanical filter. The camera can be installed easily in most indoor locations. -
Page 16: Installation
Tighten the four (4) mounting screws of the bracket. CAUTION! To ensure reliable operation in wet or moist conditions, the cable leads should be sealed once connected. Figure 3.1 Connection | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc. -
Page 17: Configuration
The figure below displays the controls on the bottom of the camera or on the mounting bracket that are available for camera adjustment. The tables below each figure identify each control. Figure 4.1 WZ20 Configuration Number Description 2nd Video Output Joystick... -
Page 18: Adjusting Pan, Tilt, Rotate
Do not pan or rotate beyond 360˚ as shown in the figure below. Do not tilt beyond 90˚ as shown. Do not apply excessive force when adjusting the camera positioning. | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc. -
Page 19: Adjusting Focus
Adjusting Zoom Remove the cap covering the bottom of the camera. Adjust the zoom knob as necessary (see Figure 4.1 above). Replace the cap over the bottom of the camera. Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... -
Page 20: Configuring Settings With The Dip Switch
Configuring Settings with the Dip Switch The figure below displays the numbers on the dip switch on the bottom of the WZ20 camera. The table below the figure identifies the function of each switch, and the setting of each function with the dip switch on or off. -
Page 21: On-Screen Menu
(for example, a person in a sunlit doorway). – AGC: Automatic Gain Control - A function for regulating the gain or amplification as the light level decreases and the lens opens fully. Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... -
Page 22: Color Submenu
MANUAL: A function that allows manual adjustment of the white balance. – PUSH LOCK: A function that enables you to set up automatically, readjusted only at the request of the user. | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc. -
Page 23: Day/Night Submenu
SET LEVEL SET LEVEL – MIRROR: A function that enables you to set up reversed LEFT and RIGHT images. – SHARPNESS: A function that enables you to set up sharpness control. Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... -
Page 24: Motion Submenu
64 different areas of the screen, and trigger an alarm that appears on the screen. ALARM SET WINDOW ALL SET ALL CLEAR SENSITI. SHOW INDI. DELAY OUT | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc. -
Page 25: Privacy Submenu
This menu allows you to set and adjust the privacy functions that prevent the camera from viewing parts of the scene. MASK 1 SET WINDOW MASK 2 SET WINDOW MASK 3 SET WINDOW MASK 4 SET WINDOW COLOR SET Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... -
Page 26: Setup Submenu
This menu allows you to set miscellaneous parameters for the OSD such as camera ID, language, etc. CAMERA ID TITLE EDIT TITLE RESET TITLE POSITION DPC SET WHITE THR. BLACK THR. DPC LEVEL LANGUAGE ENG/CHA PC CONT. | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc. -
Page 27: Exit Submenu
– FACTORY SET: Restore the factory defaults of the OSD menu. NOTICE! The settings for Lens, Day & Night, and ID/Title stay the same even after a FACTORY SET. Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... -
Page 28: Troubleshooting
Gently wipe any dirt or fingerprints off the lens with a soft cloth or lens cleaning paper and cleaning fluid (available commercially). – The monitor is adjusted correctly. | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc. -
Page 29: Technical Specifications
Ratio Sensitivity/ 0.1 Lux (F1.2, 30 IRE) (Color) Min. Illumination 0.001 Lux (F1.2, 30 IRE) (TDN/B&W) 0 Lux (with infrared on) Gamma 0.45 Sync System Internal/External IR wavelength 850 nm Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02... - Page 30 IP66 Operating Temperature -30 °C to +55 °C (-22 °F to 131 °F) Storage Temperature -20 °C to +70 °C (-4 °F to 158 °F) Operating Humidity under 90% (non-condensing) | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc.
- Page 31 Integrated IR Bullet Camera Technical Specifications | en Dimensions Below are several dimensional drawings of the camera. Unit of measure is mm. Figure 7.1 Front view Figure 7.2 Top view Bosch Security Systems, Inc. Installation Manual | 1.0 | 2011.02...
- Page 32 | Technical Specifications Integrated IR Bullet Camera | 1.0 | 2011.02 Installation Manual Bosch Security Systems, Inc.
- Page 36 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 U.S.A. www.boschsecurity.com © Bosch Security Systems, Inc., 2011...
