Bosch WZ14 Installation Manual

Wz14 integrated ir bullet camera
Hide thumbs Also See for WZ14:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
WZ14 Integrated IR Bullet
Camera
WZ14
Installation Manual
en

Advertisement

Table of Contents
loading

Related Manuals for Bosch WZ14

Summary of Contents for Bosch WZ14

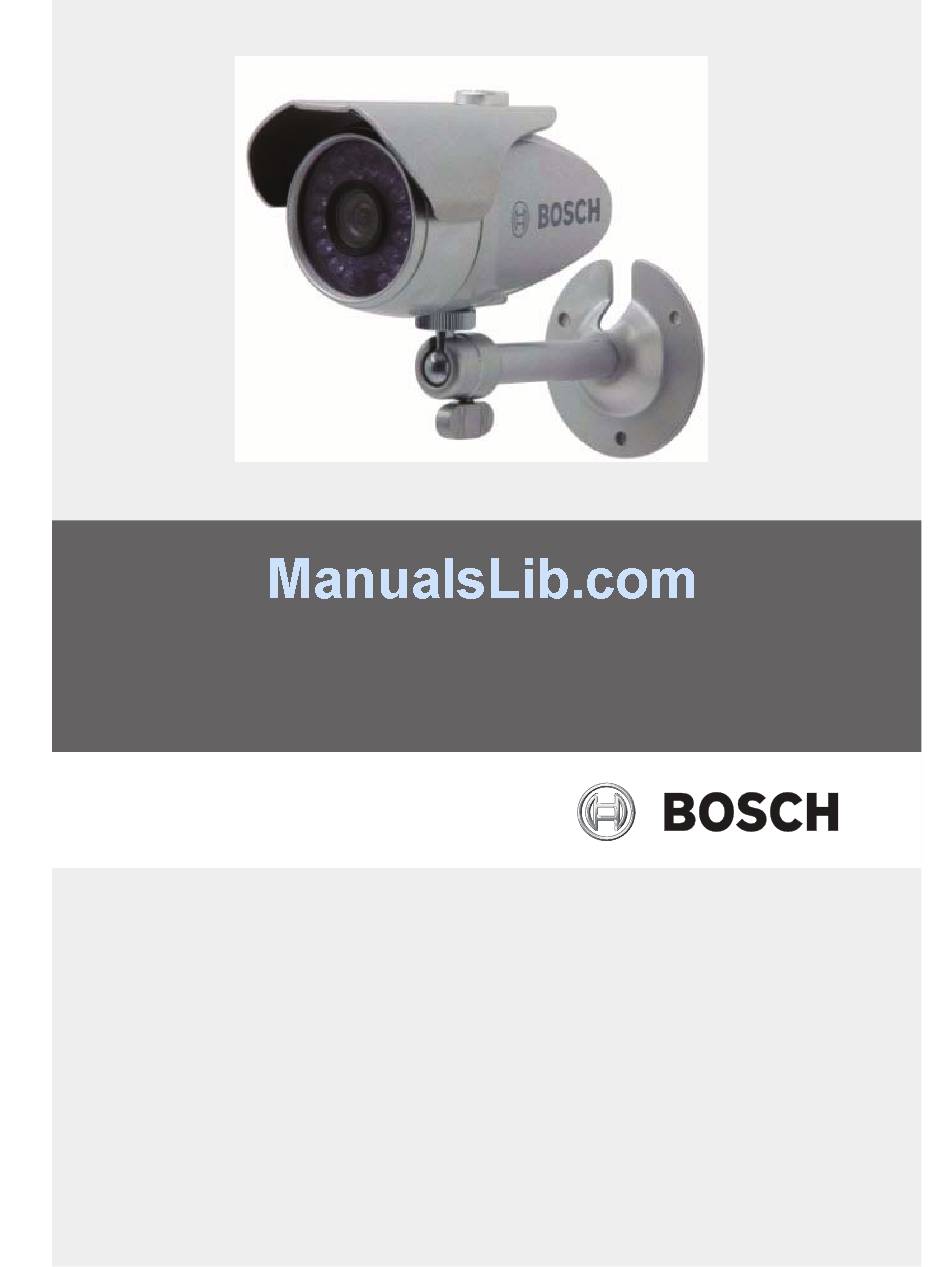

  • Page 1 WZ14 Integrated IR Bullet Camera WZ14 Installation Manual...

  • Page 3: Table Of Contents

    WZ14 Integrated IR Bullet Camera Table of Contents | en Table of Contents Safety Safety Precautions Important Safety Instructions Important Notices FCC & ICES compliance CSA certification Warranty / Limitation of Liability Introduction Parts Included Installation Connection Connection Technical Specifications Bosch Security Systems, Inc.

  • Page 4: Safety

    | Safety WZ14 Integrated IR Bullet Camera Safety Safety Precautions DANGER! High risk: This symbol indicates an imminently hazardous situation such as “Dangerous Voltage” inside the product. If not avoided, this will result in an electrical shock, serious bodily injury, or death.
  • Page 5 WZ14 Integrated IR Bullet Camera Safety | en Do not put objects inside the camera. Make sure that no metal objects or flammable substances enter the camera. This may cause fire, short-circuits and other damages. 10. Be careful when handling the camera. To prevent damage, do not drop the camera or subject it to strong shock or vibration.

  • Page 6: Important Notices

    | Safety WZ14 Integrated IR Bullet Camera Important Notices Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may fall, causing serious injury and/or serious damage to the unit. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer.
  • Page 7 Disposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic...
  • Page 8 Safety (power) ground is indicated by the symbol The system ground is only used to comply with safety standards or installation practices in certain countries. Bosch does not recommend connecting system ground to safety ground unless it is explicitly required. However, if the system ground and | 2.0 | 2010.12...

  • Page 9: Fcc & Ices Compliance

    CCTV system. Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
  • Page 10 | Safety WZ14 Integrated IR Bullet Camera made. Any such modifications could void the user's authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems.

  • Page 11: Csa Certification

    The Night Vision B&W & DSP Color CCD Camera has a three- year warranty. BOSCH Security Systems warrants that its products, at the time of shipment by BOSCH Security Systems, are free from defect in material or workmanship under normal use and service for the respective warranty periods specified in the applicable Price Schedule or as otherwise published.
  • Page 12 Product which is returned by Buyer during the applicable warranty period, or services for which timely notice of defect has been given by Buyer, and which are found by BOSCH Security Systems to be subject to adjustment under this warranty.
  • Page 13 BOSCH Security Systems’ warranty shall not be enlarged, diminished, or affected by, and no obligation or liability shall arise or grow out of BOSCH Security Systems’ rendering or technical advice, facilities, or services in connection with Buyer’s order to the products furnished hereunder.

  • Page 14: Introduction

    | Introduction WZ14 Integrated IR Bullet Camera Introduction The WZ14 Integrated IR Bullet Camera is a night vision DSP color CCD camera that uses a 1/3 in. CCD solid-state imaging device providing superior performance. The camera can be installed easily in most indoor and outdoor locations.

  • Page 15: Installation

    WZ14 Integrated IR Bullet Camera Installation | en Installation WARNING! To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the following installation instructions. Assemble the coin hole bolt as shown in Figure 3.1. (See Figure 3.2 for the position of the bolt on the camera.)
  • Page 16 | Installation WZ14 Integrated IR Bullet Camera Below are graphics depicting the two ways to mount the camera. Figure 3.2 Camera mounted from bottom Figure 3.3 Camera mounted from top | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.

  • Page 17: Connection

    12 VDC Male Video in 12 VDC regulated power supply Connect the camera to the video monitor. Bosch recommends using a monitor with a CCTV quality 75 video impedance level. If your monitor is switched to high impedance, please adjust the monitor accordingly.

  • Page 18: Technical Specifications

    | Technical Specifications WZ14 Integrated IR Bullet Camera Technical Specifications Electrical Model No. Rated Voltage Rated Frequency 12 VDC (±10%) 50 Hz (PAL) 12 VDC (±10%) 60 Hz (NTSC) Power Consumption 12 VDC / W (250 - 420 mA) CCD Type 1/3 in.
  • Page 19 WZ14 Integrated IR Bullet Camera Technical Specifications | en Environmental Operating Temperature –30 °C to +50 °C (-22 °F to +122 °F) Storage Temperature –20 °C to +60 °C (-4 °F to +140 °F) Operating Humidity 10% to 80% (non-condensing)
  • Page 20 | Technical Specifications WZ14 Integrated IR Bullet Camera Dimensions Below are several dimensional drawings of the camera. Unit of measure is mm. Figure 5.1 Front view Number Description Photocell 30 LED Figure 5.2 Bottom view | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
  • Page 21 WZ14 Integrated IR Bullet Camera Technical Specifications | en Figure 5.3 Side view Bosch Security Systems, Inc. Installation Manual | 2.0 | 2010.12...
  • Page 22 | Technical Specifications WZ14 Integrated IR Bullet Camera Figure 5.4 Mounting bracket | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
  • Page 24 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 U.S.A. www.boschsecurity.com © Bosch Security Systems, Inc., 2011...
