Summary of Contents for Bosch WZ45

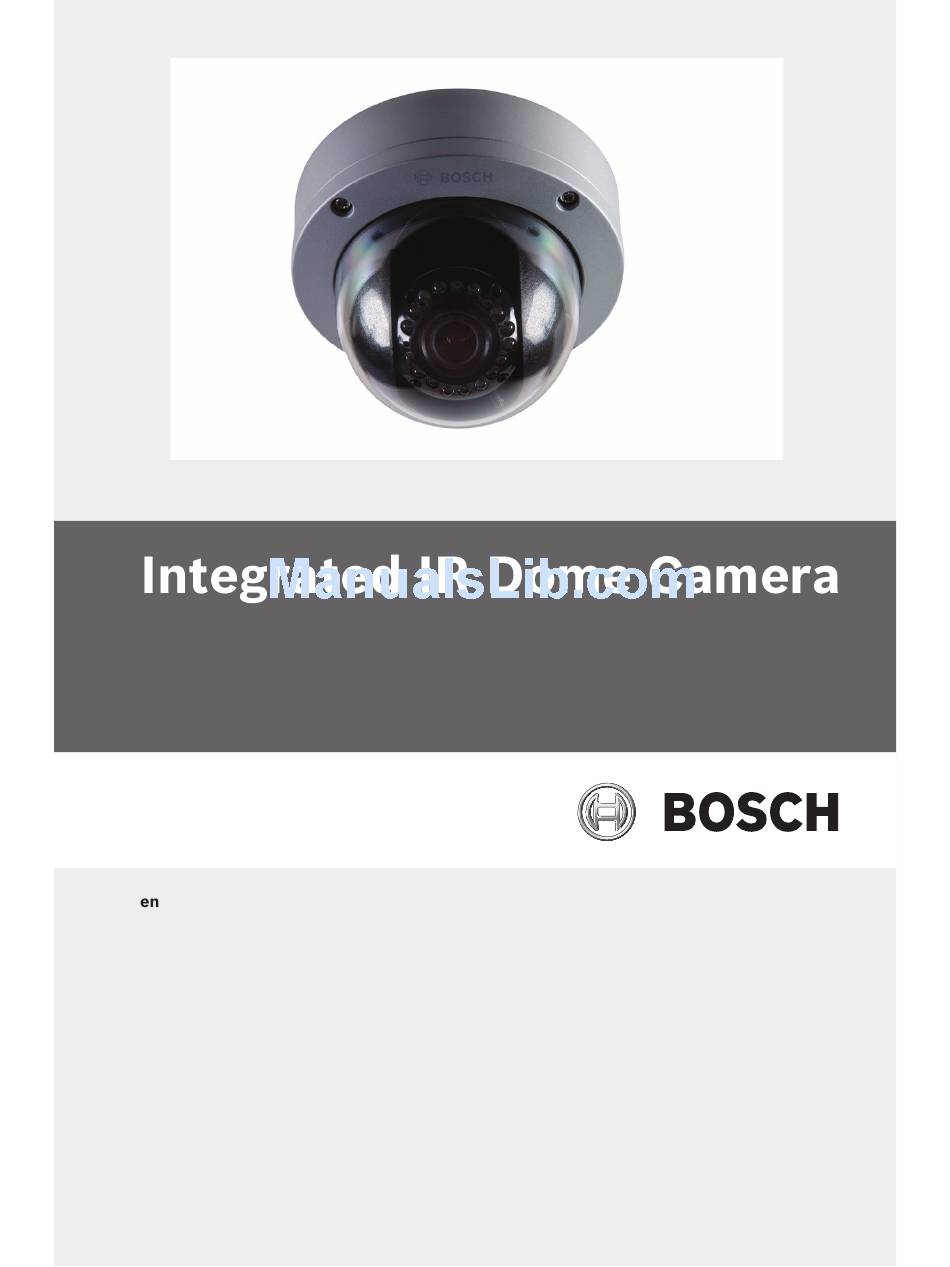

- Page 1 WZ45 Installation Manual...
- Page 3 Adjusting the pan, tilt, and focus/zoom settings OSD Menu 5.1.1 Exposure Submenu 5.1.2 Color Submenu 5.1.3 Day/Night Submenu 5.1.4 Function Submenu 5.1.5 Motion Submenu 5.1.6 Privacy Submenu 5.1.7 Setup Submenu 5.1.8 Exit Submenu Troubleshooting Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 4 | Table of Contents Integrated IR Dome Camera TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 5 Read these instructions. Keep this instruction. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean inside only with dry cloth. Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 6 Incorporate an all-pole power switch, with a contact separation of at least 3 mm in each pole, into the electrical installation of the building. If it is needed to open the TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 7 Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic...
- Page 8 This device is intended for use in public areas only. U.S. federal law strictly prohibits surreptitious recording of oral communications. Bosch has a strong commitment towards the environment. This unit has been designed to respect the environment as much as possible.
- Page 9 CCTV system. Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of lost digital information, Bosch Security Systems recommends multiple, redundant recording systems, and a procedure to back up all analog and digital information.
- Page 10 PSU box. – Consult a Bosch Service Center for further advice. Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made.
- Page 11 Do not modify. – Do not put objects inside the unit. Make sure that no metal objects or flammable substances enter the camera. This may cause fire, short-circuits and other damages. Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 12 This is a class B product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. The WZ45 Integrated IR Day/Night Dome Camera has a three- year warranty. BOSCH Security Systems warrants that its products, at the...
- Page 13 Product which is returned by Buyer during the applicable warranty period, or services for which timely notice of defect has been given by Buyer, and which are found by BOSCH Security Systems to be subject to adjustment under this warranty.
- Page 14 5600 JB Eindhoven, The Netherlands Phone: + 31 40 2577 284 Fax: +31 40 2577 330 emea.securitysystems@bosch.com www.boschsecurity.com Robert Bosch (SEA) Pte Ltd, Security Systems 11 Bishan Street 21 Singapore 573943 Phone: +65 6258 5511 Fax: +65 6571 2698 apr.securitysystems@bosch.com www.boschsecurity.asia...

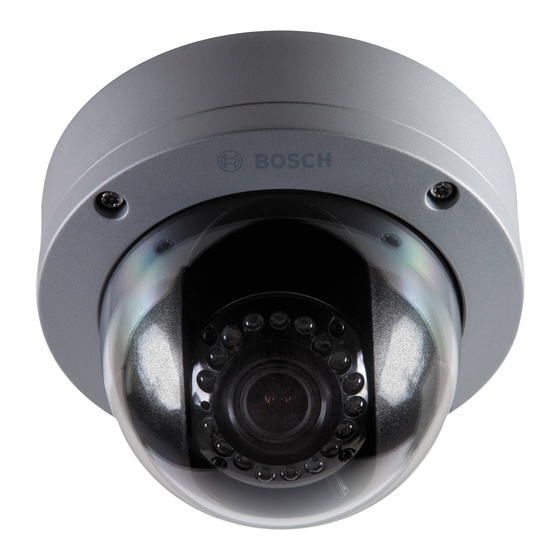

- Page 15 Integrated IR Dome Camera Introduction | en The WZ45 Integrated IR Dome camera is a night vision DSP color CCD camera with 1/3 in. LXR CCD with mechanical filter. The camera can be installed easily in most indoor and outdoor locations.
- Page 16 To prevent humidity problems, the camera must be installed in dry conditions. Removing the dome in a wet or humid environment may result in condensation on the dome. In USA and Canada, use Class 2 power supply only. TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 17 Installation and Connections | en Dome ring Dome Mounting screws Camera base Power cable Video cable / UTP cable Select a mounting surface that is strong enough to support the camera. Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 18 To ensure reliable operation in wet or moist conditions, the cable leads should be sealed once connected. TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 19 Integrated IR Dome Camera Installation and Connections | en Connections with video cable Connections with UTP cable When using a 12 VDC power supply, check for polarity. NOTICE Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 20 | Camera Adjustments Integrated IR Dome Camera Pan adjustment Tilt adjustment TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 21 Integrated IR Dome Camera Camera Adjustments | en Maximum pan adjustment of 360 degrees Maximum tilt angle of 70 degrees Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 22 Do not pan or rotate beyond 360˚and do not tilt beyond 70˚ as shown in Figure 4.3, Figure 4.4, and Figure 4.5 above. Do not apply excessive force when adjusting the camera positioning. TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 23 (for example, a person in a sunlit doorway). – AGC: Automatic Gain Control - A function for regulating the gain or amplification as the light level decreases and the lens opens fully. Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 24 This menu allows you to set the day/night mode in order to adjust the output image depending on the light levels. D&N MODE AUTO COLOR TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 25 As the level of HME is increased, the masking area increases. – DRC: Dynamic Range Compensation - This function is to compensate darker images when different exposures are in one scene. Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 26 – SENSITI.: Sensitivity level - As the sensitivity level increases, smaller movements are detected. – SHOW INDI.: The motion detected indicator can be selected as icon, trace or off. TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
-
Page 27: Color Set
Once you have selected the desired privacy mask area, press the joystick in until the mask area is black, and then move the joystick any direction to return to the previous screen. Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12... - Page 28 – PC CONT.: This function enables you to set PC communication (by selecting ON). This menu allows you to exit the OSD menu with or without saving your settings. TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 29 – FACTORY SET: Restore the factory defaults of the OSD menu. The settings for Lens, Day & Night, and ID/Title stay the same even after a FACTORY SET. Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 30 Gently wipe any dirt or fingerprints off the lens with a soft cloth or lens cleaning paper and cleaning fluid (available commercially). – The monitor is adjusted correctly. TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 31 0.45 Sync System Internal/External Dimension Φ 98mm x 202mm (L) Weight 1.7kg (3.8lbs) Construction Robust aluminum extrusion Finish Anodized silver Camera Pan/Tilt Range Pan: 360° total Tilt: 90° total Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 32 Operating Temperature -10 °C to +55 °C (14 °F to 131 °F) Storage Temperature -20 °C to +70 °C (-4 °F to 158 °F) Operating Humidity under 90% (non-condensing) TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 33 Integrated IR Dome Camera Technical Specifications | en Below are several dimensional drawings of the camera. Unit of measure is mm. Bottom view Bosch Security Systems, Inc. Installation Manual TBD | 2.0 | 2010.12...
- Page 34 | Technical Specifications Integrated IR Dome Camera Side view TBD | 2.0 | 2010.12 Installation Manual Bosch Security Systems, Inc.
- Page 36 850 Greenfield Road Lancaster, PA 17601 U.S.A. © Bosch Security Systems, Inc., 2011...
