Outercase - Baxi System 100 HE Plus Installation & Servicing Instructions Manual

Lower Door Panel
Outercase Fixing
Screws
30
Fig. 38
Fig. 39
11.0

Outercase

11.1 Fitting The Outer Case

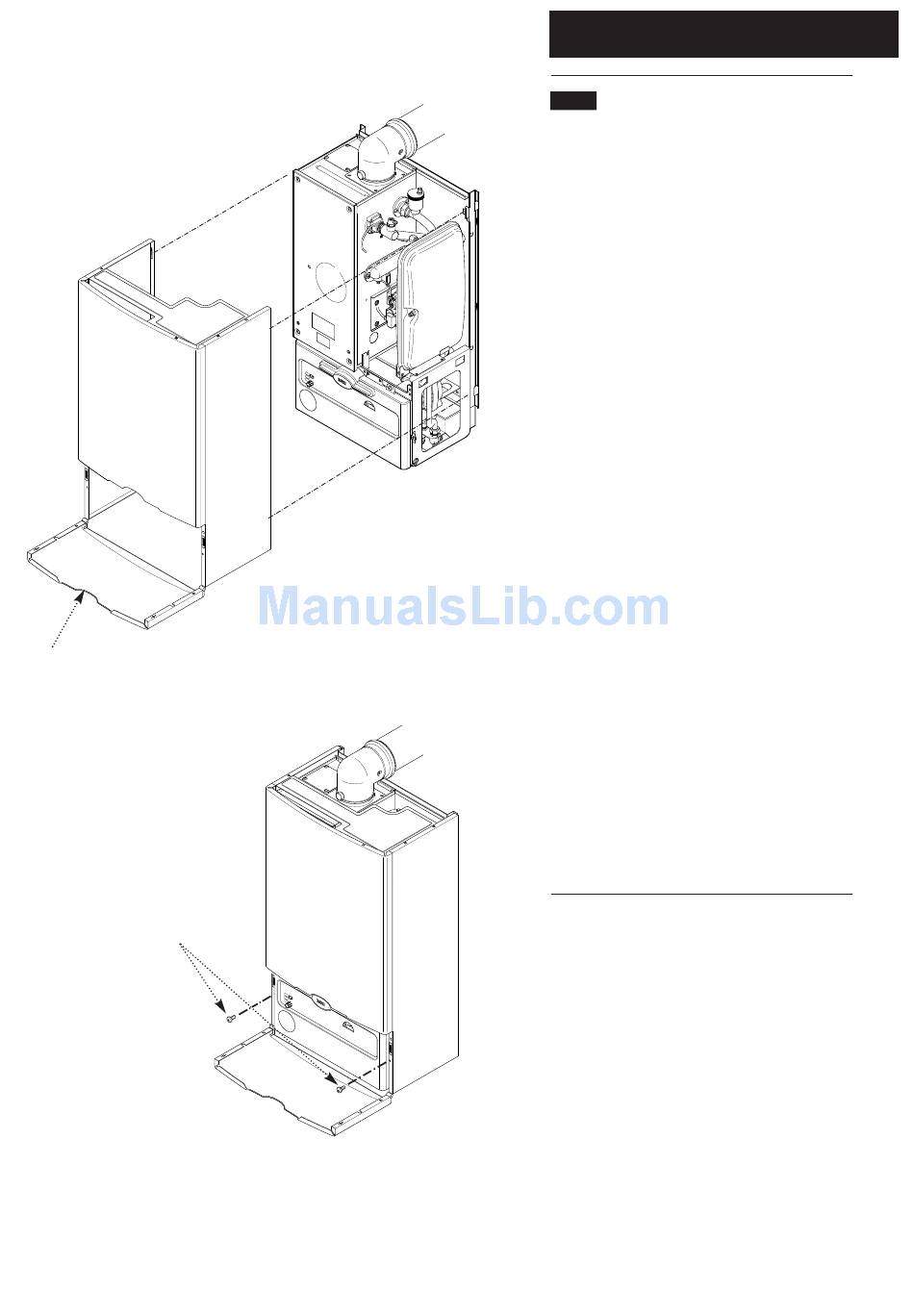

1. Position the outercase on the chassis, ensuring that the
four slots in the side flanges align with the hooks on the
chassis (Fig. 38).
2. Insert the two fixing screws into the sides of the chassis
(Fig. 39).
3. Close the door against the retaining magnets (Fig. 39).
4. Carefully read and complete all sections of the Benchmark
Commissioning Checklist at the rear of this publication that
are relevant to the appliance and installation. These details
will be required in the event of any warranty work. The
publication must be handed to the user for safe keeping and
each subsequent regular service visit recorded.
For IE, it is necessary to complete a "Declaration of
Conformity" to indicate compliance to I.S. 813. An example
of this is given in I.S. 813 "Domestic Gas Installations". This is
in addition to the Benchmark Commissioning Checklist.
5. The "Important Ventilation Information" label can be
removed unless the appliance is installed in an unventilated
compartment.
6. Instruct the user in the operation of the boiler controls.
Hand over the Users Operating, Installation and Servicing
Instructions, giving advice on the necessity of regular
servicing.
7. Advise the user that they may observe a plume of vapour
from the flue terminal, and that it is part of the normal
operation of the boiler.
8. Complete the label supplied with the inhibitor and stick to
the inside of the boiler case. Detail of system treatment
must be recorded in the Benchmark Commissioning
Checklist.
