Summary of Contents for Ubiquiti Air Router HP

  • Page 3: Package Contents

    Package Contents Package Contents airRouter ™ Antenna Ethernet Cable 24V PoE Adapter Power Cord Quick Start Guide System Requirements • Microsoft Windows XP, Windows Vista, Windows 7, Linux, or Mac OS X • Java Runtime Environment 1.6 (or above) for the airView® utility •...

  • Page 4: Hardware Installation

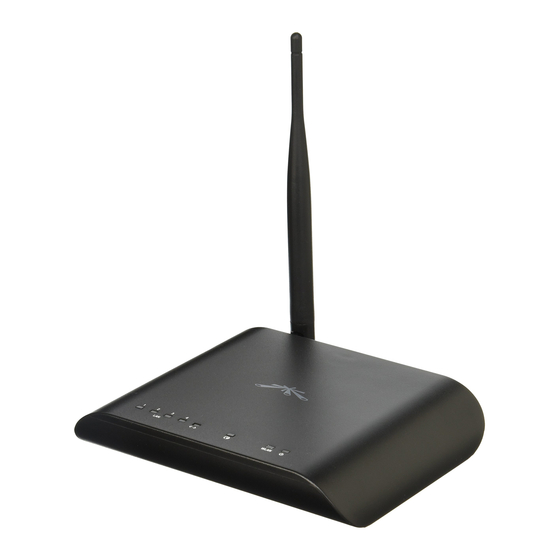

    airRouter HP 802.11n Wireless Router ™ Hardware Installation To install the airRouter HP, perform the following steps: 1. Connect the antenna to the antenna connector on the airRouter HP by rotating it clockwise. 2. Raise the antenna to an upright position.
  • Page 5 Hardware Installation 3. Connect the PoE Adapter to a power outlet 4. Connect an Ethernet cable to the PoE Ethernet port on the PoE Adapter. 5. Connect the other end of the Ethernet cable to the (WAN) port on the airRouter HP. The Power LED will light up on the front of the airRouter HP.
  • Page 6 airRouter HP 802.11n Wireless Router ™ 6. Connect an Ethernet cable to the LAN Ethernet port on the PoE Adapter. Connect the other end of the Ethernet cable to your broadband modem. Broadband Modem 7. To connect to the airRouter HP, use one of two methods: Wired Connect an Ethernet cable from your computer to a LAN port (1, 2, 3, or 4) on the airRouter HP.
  • Page 7 Hardware Installation 8. Launch your Web browser and type http://192.168.1.1 in the address field. Press enter (PC) or return (Mac). Note: Your computer needs to be on the 192.168.1.x subnet. If you have DHCP enabled on your Ethernet adapter, it should receive an address automatically.
  • Page 8 airRouter HP 802.11n Wireless Router ™ 11. Customize your wireless network and secure your network by entering the basic wireless network information: a. Enter a name for your wireless network in the SSID field. b. Select the type of security that you want to use for your wireless network from the Security drop-down.

  • Page 9: Connecting A Wireless Client To The Airrouter Hp

    Connecting a Wireless Client to the airRouter HP Connecting a Wireless Client to the airRouter HP Windows 1. Go to Connect to Network. Windows 7 Right-click the Network icon. Windows Vista Go to Start > Connect To. Windows XP Right-click the Wireless Network icon in the System Tray (lower right corner of the screen) and then click View Available Wireless Networks.

  • Page 10: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...

  • Page 11: Limitation Of Liability

    INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products (including...

  • Page 12: Industry Canada

    HP 802.11n Wireless Router ™ Compliance Changes or modifications not expressly approved by Ubiquiti Networks, Inc. could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 13: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.
  • Page 14 [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 16 © 2011-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, airRouter, and airView are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
