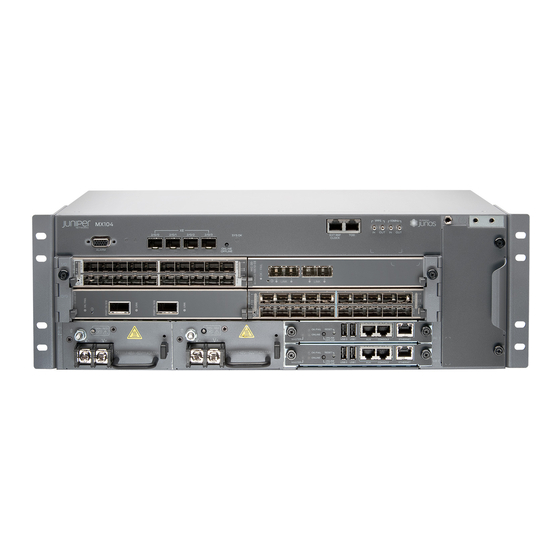

MX104 3D Universal Edge Routers
Quick Start
April 2016
Part Number: 530-062013
Revision 02
Contents
Copyright © 2016, Juniper Networks, Inc.
This document describes how to install the Juniper Networks
Router.
MX104 Quick Start Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Step 1: Prepare the Site for MX104 Router Installation . . . . . . . . . . . . . . . . . . . . . . . 4
Step 2: Install the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tools Required to Install the Router in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Install the MX104 Router in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 3: Ground the MX104 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tools Required to Ground the MX104 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connect the Grounding Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Step 4: Connect External Devices and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect the Router to a Network for Out-of-Band Management . . . . . . . . . 10
Connect the Router to a Management Console Device . . . . . . . . . . . . . . . . . . 10
Connect MIC Cables to the MX104 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Step 5: Connect Power to the MX104 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connect AC Power to an AC-Powered MX104 Router . . . . . . . . . . . . . . . . . . . 13
Connect DC Power to a DC-Powered MX104 Router . . . . . . . . . . . . . . . . . . . . 14
Step 6: Perform Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Enter Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Configure User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Configure System Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Commit the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Compliance Statements for NEBS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Compliance Statements for EMC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Israel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
United States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
®
MX104 3D Universal Edge
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Juniper MX104 3D
Summary of Contents for Juniper MX104 3D
-
Page 1: Table Of Contents
April 2016 Part Number: 530-062013 Revision 02 ® This document describes how to install the Juniper Networks MX104 3D Universal Edge Router. Contents MX104 Quick Start Description ......... 3 Step 1: Prepare the Site for MX104 Router Installation . - Page 2 MX104 3D Universal Edge Routers Quick Start Junos OS Documentation and Release Notes ......24 Requesting Technical Support .
-
Page 3: Mx104 Quick Start Description
MX104 Quick Start Description MX104 Quick Start Description This Quick Start contains information you need to install and configure the router quickly. For complete installation instructions, see the MX104 3D Universal Edge Router Hardware Guide at http://www.juniper.net/techpubs/ WARNING: This Quick Start contains a summary of safety warnings in “Safety... -
Page 4: Step 1: Prepare The Site For Mx104 Router Installation
MX104 3D Universal Edge Routers Quick Start Step 1: Prepare the Site for MX104 Router Installation Prepare your site for MX104 installation by observing the following guidelines: You can install the router in a four-post rack or cabinet or an open-frame rack. - Page 5 Step 1: Prepare the Site for MX104 Router Installation Figure 2: MX104 Rack Clearance and Chassis Dimensions Copyright © 2016, Juniper Networks, Inc.
-
Page 6: Step 2: Install The Router
MX104 3D Universal Edge Routers Quick Start Step 2: Install the Router Tools Required to Install the Router in a Rack on page 6 Install the MX104 Router in the Rack on page 6 Tools Required to Install the Router in a Rack... - Page 7 Install the MX104 Router in the Rack Figure 3: Installing the Front-Mounted Router in the Rack 1— Rack 3— Mounting screws 2—MX104 router Copyright © 2016, Juniper Networks, Inc.
-
Page 8: Step 3: Ground The Mx104 Router
MX104 3D Universal Edge Routers Quick Start Step 3: Ground the MX104 Router Tools Required to Ground the MX104 Router on page 8 Connect the Grounding Cable on page 8 Tools Required to Ground the MX104 Router To ground the router, you need the following tools:... - Page 9 Dress the grounding cable, and verify that it does not touch or block access to router components, and that it does not drape where people could trip on it. Figure 4: Grounding Points on the MX104 Router 1— Grounding cable lug 2— Screws Copyright © 2016, Juniper Networks, Inc.
-
Page 10: Step 4: Connect External Devices And Cables
MX104 3D Universal Edge Routers Quick Start Step 4: Connect External Devices and Cables Connect the Router to a Network for Out-of-Band Management on page 10 Connect the Router to a Management Console Device on page 10 Connect MIC Cables to the MX104 Router on page 11 Connect the Router to a Network for Out-of-Band Management Turn off the power to the management device. -
Page 11: Connect Mic Cables To The Mx104 Router
Place excess cable out of the way in the cable routing channel. CAUTION: Avoid bending fiber-optic cable beyond its minimum bend radius. An arc smaller than a few inches in diameter can damage the cable and cause problems that are difficult to diagnose. Copyright © 2016, Juniper Networks, Inc. - Page 12 MX104 3D Universal Edge Routers Quick Start CAUTION: Do not let fiber-optic cable hang free from the connector. Do not allow fastened loops of cable to dangle, which stresses the cable at the fastening point. Copyright © 2016, Juniper Networks, Inc.
-
Page 13: Step 5: Connect Power To The Mx104 Router
Locate power cords that have a plug appropriate for your geographical location. For more information, see the MX104 3D Universal Edge Router Hardware Guide. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on the chassis. -
Page 14: Connect Dc Power To A Dc-Powered Mx104 Router
MX104 3D Universal Edge Routers Quick Start Figure 9: Connecting an AC Power Cord to an MX104 AC Power Supply Connect DC Power to a DC-Powered MX104 Router To connect power to the DC-powered router, you need the following tools:... - Page 15 Secure each power cable lug to the terminal with the washers and screw (see Figure 11 on page 17). Apply 27.4 lb-in. (3.1 Nm) of torque to each screw. Do not overtighten the screw. (Use a number 2 Phillips screwdriver.) Copyright © 2016, Juniper Networks, Inc.
- Page 16 MX104 3D Universal Edge Routers Quick Start a. Secure the positive DC source power cable lug to the return ( ) terminal. b. Secure the negative DC source power cable lug to the input ( ) terminal. – CAUTION: Ensure that each power cable lug seats flush against the surface of the terminal block as you are tightening the screws.
- Page 17 Connect DC Power to a DC-Powered MX104 Router Figure 11: Connecting a DC Power Cable to an MX104 DC Power Supply Copyright © 2016, Juniper Networks, Inc.
-
Page 18: Step 6: Perform Initial Software Configuration
MX104 3D Universal Edge Routers Quick Start Step 6: Perform Initial Software Configuration This procedure connects the router to the network but does not enable it to forward traffic. For complete information about configuring the router to forward traffic, including examples, see the Junos OS configuration guides. -
Page 19: Configure System Attributes
Commit the Configuration (Optional) Display the configuration to verify that it is correct. [edit] root@# show system { host-name host-name; domain-name domain-name; backup-router address; root-authentication { authentication-method (password | public-key); name-server { address; Copyright © 2016, Juniper Networks, Inc. - Page 20 MX104 3D Universal Edge Routers Quick Start interfaces { fxp0 { unit 0 { family inet { address address/prefix-length; Commit the configuration to activate it on the router. [edit] root@# commit (Optional) Configure additional properties by adding the necessary configuration statements.
-
Page 21: Safety Warnings
Only trained and qualified personnel should install or replace the router. Perform only the procedures described in this Quick Start or the MX104 3D Universal Edge Router Hardware Guide. Other services should be performed by authorized service personnel only. -
Page 22: Compliance Statements For Nebs
The battery return connection is to be treated as an isolated DC return (i.e. DC-I), as defined in GR-1089-CORE. For Juniper Networks systems with AC power supplies, an external surge protective device (SPD) must be used at the AC power source. -
Page 23: Canada
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Copyright © 2016, Juniper Networks, Inc. -
Page 24: Junos Os Documentation And Release Notes
7 days a week, 365 days a year. Self-Help Online Tools and Resources For quick and easy problem resolution, Juniper Networks has designed an online self-service portal called the Customer Support Center (CSC) that provides you with the following features: Find CSC offerings: http://www.juniper.net/customers/support/... - Page 25 Juniper Networks, Junos, Steel-Belted Radius, NetScreen, and ScreenOS are registered trademarks of Juniper Networks, Inc. in the United States and other countries. The Juniper Networks Logo, the Junos logo, and JunosE are trademarks of Juniper Networks, Inc. All other trademarks, service marks, registered trademarks, or registered service marks are the property of their respective owners.
