Summary of Contents for Porter-Cable FLEX BBT 9.6

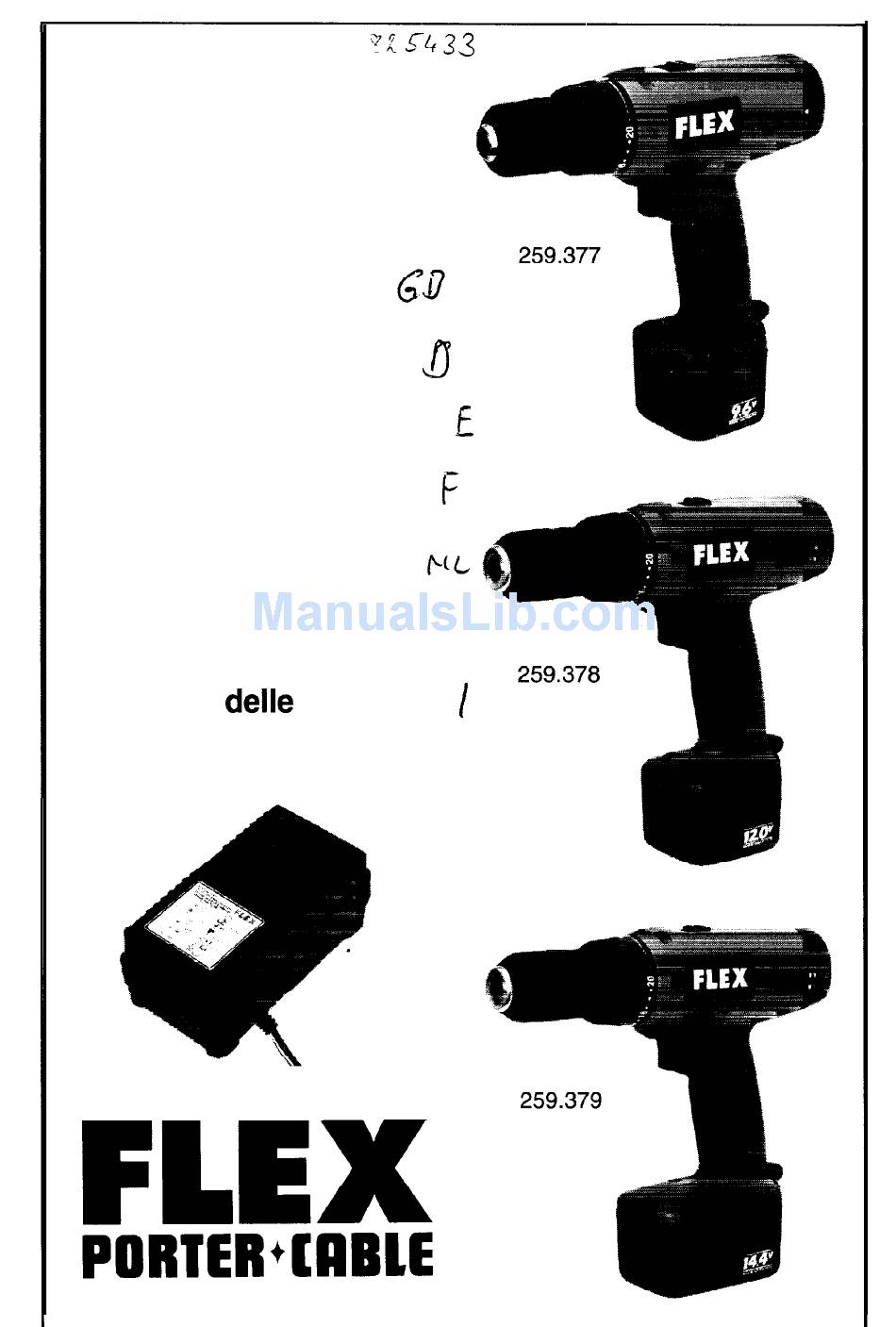

- Page 1 BBT 14.4 Instruction manual Bedienungsanleitung 8 Manual de instrucciones E Manuel d’ utilisation F Gebruikshandleiding PC Bruksanvisning Manuale delle istruzioni /...
- Page 2 BBT 9.6 BBT 12 BBT 14.4 Part number 259.377 259.378 259.379 Rated speed (no load) First gear Second gear O-l 250 min-’ O-l 250 min.’ O-l 450 min.1 Motor voltage Torque adjustment range I-20Nm I-35Nm Max. drill 0 in steel Max.
-
Page 3: General Safety Rules
GENERALSAFETYRULES WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. TOOL USE AND CARE 1. Disconnect battery pack from tool or place the switch in the locked or OFF position before making any adjustments, changing accessories, or storing the tool. - Page 4 8. Do not use drill as a router or try to elongate or enlarge holes by twisting the drill. Drill bits may break and injury. cause 9. Keep hands away from rotating parts. INSTALLING AND REMOVING BITS). 11. Some wood contains preservatives which can be toxic. Take extra care to prevent inhalation and skin contact when working with these materials.
-
Page 5: Functional Description
13. Do not charge battery pack when the temperature is BELOW 0°C or ABOVE 40°C. This is very important for proper operation. 14. Do not incinerate battery pack. It can explode in a fire. 15. Do not charge battery in damp or wet locations. 16. -
Page 6: Operation
5. Tighten chuck by holding chuck ring (B) Fig. 2, with one hand while turning outer sleeve (A) clockwise with other hand. Tighten securely. WARNING: Do not operate drill motor while installing or removing bits. Operating drill motor can cause bit to thrown from chuck causing personal injury. -
Page 7: Maintenance
Position the battery pack to the charger, aligning the tongue on the battery pack with the slot in the charger. Insert battery pack into charger (see Fig. 5). DO NOT FORCE. If battery pack does not slide in easily, it is being inserted incorrectly: Realign battery pack tongue with charger slot and try again. The green light (A) Fig. -
Page 8: Chuck Replacement
BATTERY The battery pack will discharge by itself without damage if stored for long periods of time, and may require recharging before use. LUBRICATION For your continued safety and electrical protection, lubrication and service on this tool should ONLY be performed by an Authorized FLEX Service Station. At approximately 100 hours of use, take or send your tool to your nearest Authorized FLEX Service Station to be thoroughly cleaned and inspected;... - Page 9 FLEX D-71 711 Steinheim/Murr - Tel. (0 71 44) 8 28-O - Fax (0 71 44) 2 58 99 887237-793...
