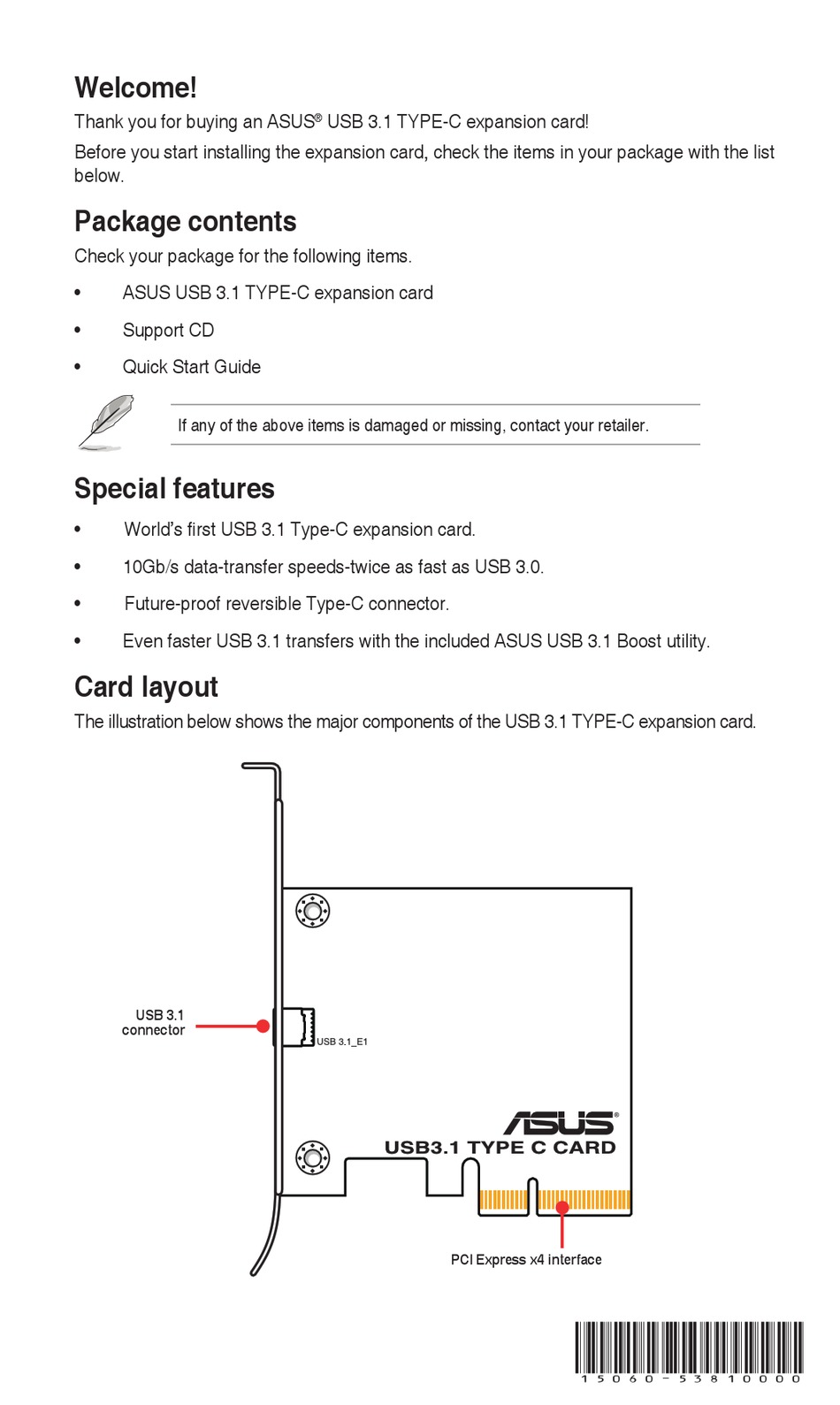

Welcome!
Thank you for buying an ASUS
Before you start installing the expansion card, check the items in your package with the list
below.

Package contents

Check your package for the following items.
• ASUS USB 3.1 TYPE-C expansion card
• Support CD
• Quick Start Guide
If any of the above items is damaged or missing, contact your retailer.

Special features

• World's first USB 3.1 Type-C expansion card.
• 10Gb/s data-transfer speeds-twice as fast as USB 3.0.
• Future-proof reversible Type-C connector.
• Even faster USB 3.1 transfers with the included ASUS USB 3.1 Boost utility.

Card layout

The illustration below shows the major components of the USB 3.1 TYPE-C expansion card.
USB 3.1
connector
USB 3.1 TYPE-C expansion card!
®
PCI Express x4 interface
15060-53810000
