I. Informações sobre o produto I-1. Conteúdo da embalagem APC500 Cabo Ethernet Guia de instalação rápida Cabo da consola Kit de montagem em prateleira Transformador Kit de montagem na parede...
Page 3

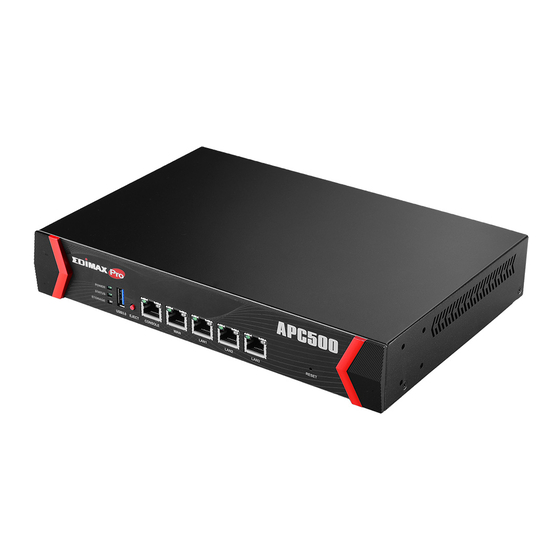

I-2. Requisitos do sistema - Router e modem por cabo/DSL existente - Computador com Web browser para configuração do controlador I-3. Descrição geral do hardware A. LED C. Ejectar E. Porta WAN/rede local F. Portas de G. Repor B. USB 3.0 D.
Page 4
I-4. Estado do LED Cor do LED Estado do LED Descrição Potência Azul Ligado O controlador está ligado. O controlador está a efectuar Intermitente o arranque. Desligado O controlador está desligado. Estado Azul O controlador está a Ligado funcionar correctamente. Intermitente A transferir/receber dados.
Page 5
II. Configurar o Controlador PA Edimax Pro O APC500 permite uma gestão central de até 32 pontos de acesso Edimax Pro, reduzindo os custos e facilita uma gestão eficiente de PA remota. O APC500 é fácil de instalar. É apresentada abaixo uma descrição geral de...
Page 6
O Controlador APC500 permite ligar uma rede através de um comutador ou directamente para um router e outros pontos de acesso Edimax Pro ligados são designados automaticamente como PA (pontos de acesso) geridos. Utilizar o APC500 permite-lhe configurar, monitorizar e gerir todos os PA geridos (até...
Page 7
Ligue o APC500 ao comutador PoE (porta de rede local) ou ao gateway/router (porta WAN) e ligue a fonte de alimentação. Ligue um computador ao APC500 utilizando um cabo Ethernet.
Page 8
Terá acesso ao Dashboard APC500. O APC500 inclui um assistente que configura rapidamente o endereço IP da rede local, as definições de iní cio de sessão de administrador e hora/data do APC500, assim como o SSID e a segurança dos PA geridos. Clique em “Wizard” (Assistente) no canto...
Page 9
Consulte o manual do utilizador do PA para obter ajuda. O Controlador APC500 e os PA geridos devem estar totalmente funcionais com todas as definições básicas configuradas. Utilize o menu principal para navegar nas definições do Edimax Pro NMS (Network Management Suite).
APC500 puxando-os com cuidado. Identifique e assinale as posições correctas dos parafusos na parede escolhida. Monte o APC500 na parede com os parafusos incluí dos, como indicado no diagrama. Certifique-se de que o APC500 é fixado com firmeza na parede e orientado correctamente, com o logótipo da...
Page 11
III-2. Montagem em prateleira O controlador pode ser montado numa prateleira, que, por sua vez, pode ser colocado num armário de cablagem, com outro equipamento. Para instalar o comutador, efectue os seguintes passos: Monte os suportes de montagem nos painéis laterais do controlador (um de cada lado) e fixe-os com os parafusos fornecidos.
Page 12
