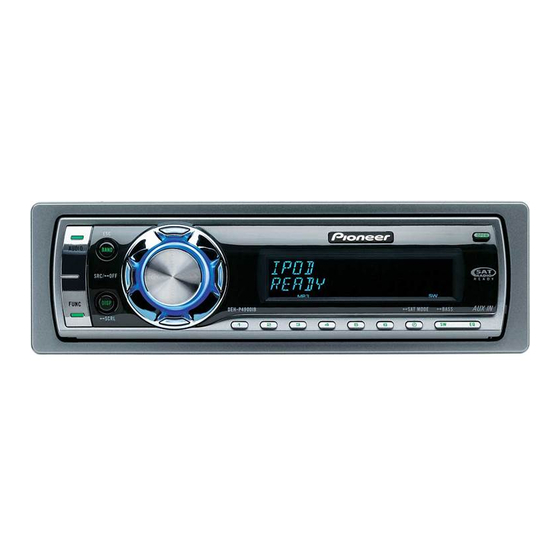

Pioneer DEH-P4900IB Installation Manual

DEH-P4900IB
This product conforms to new cord colors.
Los colores de los cables de este producto se confor-
man con un nuevo código de colores.
Dieses Produkt entspricht den neuen Kabelfarben.
Le code de couleur des câbles utilisé pour ce produit
est nouveau.
Questo prodotto è conforme ai nuovi codici colori.
De kleuren van de snoeren van dit toestel zijn gewijzigd.
чÌÌÓ ÛÒÚÓÈÒÚ‚Ó ÒÓÓÚ‚ÂÚÒÚ‚ÛÂÚ ÌÓ‚˚Ï
Ú·ӂ‡ÌËflÏ Í ˆ‚ÂÚÛ ÔÓ‚Ó‰Ó‚.
Printed in Thailand
Imprimé en Thaïlande
<XRD7126-A/N> EW <KMINX> <06J00000>
Installation
Note: 1. Insert the mounting sleeve into the dashboard.
• Check all connections and systems before final • When installing in a shallow space, use a sup-
installation. plied mounting sleeve. If there is enough
space behind the unit, use factory supplied
• Do not use unauthorized parts. The use of
mounting sleeve.
unauthorized parts may cause malfunctions.
2. Secure the mounting sleeve by using a screwdriv-
• Consult with your dealer if installation requires
er to bend the metal tabs (90°) into place.
drilling of holes or other modifications of the
vehicle. 3. Install the unit as illustrated.
• Do not install this unit where:
Removing the Unit
— it may interfere with operation of the vehicle.
1. Extend top and bottom of the trim ring outwards
— it may cause injury to a passenger as a result
to remove the trim ring. When reattaching the
of a sudden stop.
trim ring, push the trim ring onto the unit until it
• The semiconductor laser will be damaged if it
clicks. (If the trim ring is attached upside down,
overheats. Install this unit away from hot places
the trim ring will not fit properly.)
such as near the heater outlet.
• It becomes easy to remove the trim ring if the
• Optimum performance is obtained when the unit
front panel is released.
is installed at an angle of less than 60°.
Trim ring
60°
DIN Front/Rear-mount
2. Insert the supplied extraction keys into both sides
of the unit until they click into place.
This unit can be properly installed either from
3. Pull the unit out of the dashboard.
"Front" (conventional DIN Front-mount) or
"Rear" (DIN Rear-mount installation, utilizing
threaded screw holes at the sides of unit chassis).
For details, refer to the following installation
methods.
DIN Front-mount
Installation with the rubber bush
Mounting sleeve
Dashboard
182 1 1 1 82
Rubber bush
53 53
Screw
ENGLISH
DIN Rear-mount Fastening the front panel
1. Extend top and bottom of the trim ring outwards If you do not plan to detach the front panel, the
to remove the trim ring. When reattaching the
front panel can be fastened with supplied screws
trim ring, push the trim ring onto the unit until it
and holders.
clicks. (If the trim ring is attached upside down,
the trim ring will not fit properly.)
1. Attach the holders to both sides of the front
• It becomes easy to remove the trim ring if the
panel.
front panel is released.
Trim ring
Holder
2. Replace the front panel to the unit.
2. Determine the appropriate position where the
holes on the bracket and the side of the unit
match.
3. Flip the holders into upright positions.
3. Tighten two screws on each side.
Use either truss screws (5 mm × 8 mm) or
•
flush surface screws (5 mm × 9 mm), depend-
ing on the shape of screw holes in the
bracket.
Screw
4. Fix the front panel to the unit using screws.
Screw
Dashboard or Console
Factory radio mounting bracket
