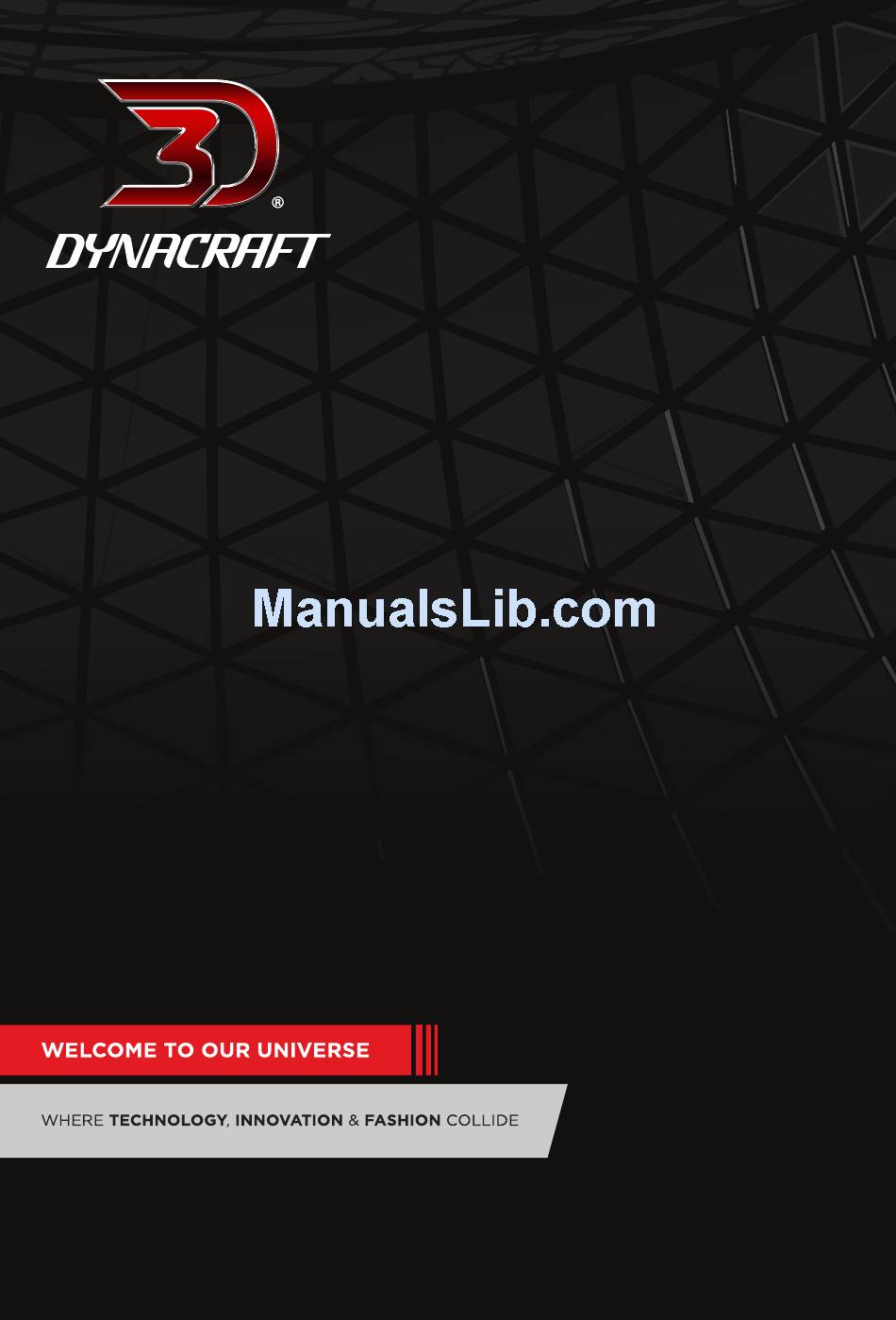

OWNER'S MANUAL
FOR ELECTRIC RIDE-ON VEHICLES
This manual contains important safety, performance and maintenance
information. Read the manual before taking your first ride on your new
ride-on vehicle, and keep the manual handy for future reference.
REGISTER
your bike online at www.dynacraftwheels.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MY LITTLE PONY 4x4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynacraft MY LITTLE PONY 4x4

Summary of Contents for Dynacraft MY LITTLE PONY 4x4

  • Page 1 OWNER’S MANUAL FOR ELECTRIC RIDE-ON VEHICLES This manual contains important safety, performance and maintenance information. Read the manual before taking your first ride on your new ride-on vehicle, and keep the manual handy for future reference. REGISTER your bike online at www.dynacraftwheels.com...
  • Page 2 OWNER’S MANUAL MY LITTLE PONY 4x4 THIS MANUAL CONTAINS IMPORTANT SAFETY PERFORMANCE MAINTENANCE INFORM ATION READ THE MANUAL BEFORE TAKING YOUR FIRST RIDE OR ALLOWING YOUR CHILD TO RIDE YOUR NEW ELECTRIC RIDE ON TOY KEEP THE MANUAL HANDY FOR FUTURE REFERENCE...
  • Page 3 TABLE OF CONTENTS A Introduction, Safety and Warnings B Before You Begin Assembly C Parts Diagram D Assembly E How to Use Your Vehicle F Detailed Maintenance and Repair G Troubleshooting Guide H Warranty ELECTRIC CAR SPECIFICATIONS SUITABLE AGE CAPACITY up to 65lbs (29.5kgs) SPEED 2.5 mph...
  • Page 4 INTRODUCTION, SAFETY, AND WARNINGS ABOUT THIS MANUAL: This Manual was written to help you and your child get the most performance, comfort, enjoyment and safety when riding your new electric ride- on toy. It is important for you to understand your new electric ride-on toy. By reading this manual before you let your child go out on his/her first ride, you will know how to get the most from your new electric ride-on toy.
  • Page 5 Always wear appropriate clothing and shoes, including long sleeved shirts and long pants and lace-up or similar shoes with rubber soles. Never ride barefoot or in sandals and make sure that shoelaces or other fasteners are tied and kept away from the wheels and drive system of the ride-on toy.
  • Page 6 SAFE RIDING PRACTICES AND WARNINGS • Check and obey all local laws or regulations which may be in effect in the locations where the electric ride-on toy may be used. • Always wear a helmet and other safety equipment and appropriate clothing and shoes.
  • Page 7 • Do not to allow hands, feet, hair, body parts, clothing, or similar articles to come in contact with wheels or other moving parts. • Before each cycle of operation, you must perform the preoperation checks specified in this manual or by the manufacturer, including: •...
  • Page 8 BEFORE YOU BEGIN ASSEMBLY WARNING Remove all packing and items from the display box. Make sure that the power switch is turned “OFF” before assembling the electric ride-on toy. ESTIMATED ASSEMBLY TIME You should allow approximately 40 minutes for assembly, not including initial charging time.

  • Page 9: Table Of Contents

    Parts Diagram Note: Some parts shown are assembled on both sides of vehicle. 16. Ø12 bushing * 3 1. Plastic body assembly * 1 17. Front wheel & rear left wheel * 3 2. Rear axle *1 18. M10 locknut * 4 3.

  • Page 10: Rear

    ASSEMBLY Yo u r n ew v eh icle req u ires ad u lt assem b ly. P lease set asid e aro u n d 0 4 m in u t es for assembly. Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

  • Page 11: Front Axle

    2. Driving Wheel Assembly . Turn the vehicle body upside down. . Slide the gear box through the axle into the vehicle body, make sure the motor and motor power wire are inserted into the vehicle body. Note: The gear box shall be installed onto the Right side of vehicle (riding position).

  • Page 12: Steering

    IMPORTANT! CHECK GAP AFTER ASSEMBLING WHEELS After assembling any wheel onto the axles, make sure to check the gap between the screw thread and the outside of the wheel (refer to the adjacent diagram). If the gap is too big, add two or three washers on the axle to the inside of the wheel.
  • Page 13 7. Install Steering Wheel Batteries (Note: Batteries not included) Loosen the screw in the steering wheel and remove the cover. Insert 2 x 1.5V size AA AM-3 or LR6 batteries as shown. Replace the cover and tighten the screw to secure it in place. Battery Safety Information: Batteries may leak fluids that can cause chemical burn injury or ruin your product.

  • Page 14: View

    9. Windshiel d Assembly . Fit the tabs on the windshield into slots located at front of the vehicle as shown. Inset two 4 x12 round head screws and tighten with a screwdriver. 10. View Mirror Assembly . Insert the view mirror into the hole in the vehicle body as shown and push until you hear this click into place.

  • Page 15: Led Light Up

    14. Rear Rack Assembly . Take out the rear rack (assembled with one support already) from the bottom of the vehicle body, then fit the unassembled support in the slots of the rear rack as shown, insert two 4x12 round head screws and tighten them securely with a screwdriver.

  • Page 16: Battery Charging

    BATTERY CHARGING IMPORTANT! Before first time use, charge the battery for at least 18 hours. Charge the battery for at least 12 hours after each use of the vehicle. Never charge the battery longer than 30 hours. Over charging or undercharging the battery may shorten battery life and decrease vehicle running time.
  • Page 17 · Do not charge the battery on a surface (such as a kitchen counter top) which could be damaged by the acid contained inside the battery. Take precautions to protect the surface on which you charge your battery. · Use only an original charger (120VAC 60Hz) with an output of 6 VDC (1A) to charge your vehicle battery.

  • Page 18: Steering

    HOW TO USE YOUR VEHICLE FORWARD 1. Move the “Forward-Backward switch” into the “Forward” position. 2. Press the “Foot pedal”, and the vehicle will move forward. STOP The vehicle will stop automatically, when your child’s foot is removed from the “Foot pedal”.

  • Page 19: Safety Precautions

    IMPORTANT Always stop vehicle when changing the direction to avoid damage to the gears and motor. · This vehicle has an adjustable seat belt; please instruct children on how to fasten the seat belt before using. · Do not let any child touch the wheels or be near them when the car is moving.

  • Page 20: Front Wheel & Rear Left

    DETAILED MAINTENANCE AND REPAIR Turn power “OFF” before conducting any maintenance procedures. Tools Required: Flat head Screwdriver 17mm Socket Wrench (not included) (included) HOW TO REPLACE FRONT WHEELS & REAR LEFT WHEEL Remove the Axle Cap with a flat head screwdriver. Remove the M10 locknut with a 17mm socket wrench.

  • Page 21: Driving

    HOW TO REPLACE DRIVING WHEEL AND GEAR BOX Remove the Axle Cap with a flat head screwdriver. Remove the M10 locknut with a 17mm socket wrench. Remove the Ø12 washer. Remove the driving wheel, and replace with new wheel. If you do not need to replace the gear box, please proceed to step 9. Unscrew the screws on the seat with a screwdriver and remove the seat.
  • Page 22 HOW TO REPLACE THE POWER SWITCH Remove the power switch with a flat head screwdriver (not included). Unplug the main connector from the power switch socket as shown. Plug in the new power switch for replacement. HOW TO REPLACE THE FOOT PEDAL Turn the vehicle body on its side.

  • Page 23: Battery Care And Disposal

    BATTERY CARE AND DISPOSAL Do not store the battery in temperatures above 75° F (23.5° C) or below 32° F (0°C). THIS PRODUCT CONTAINS SEALED LEAD ACID BATTERIES WHICH MUST BE RECYCLED IN ACCORDANCE TO YOUR LOCAL AND STATE LAWS. PLEASE CAREFULLY READ AND UNDERSTAND THE FOLLOWING DISPOSAL INSTRUCTIONS: Disposal: This product contains sealed lead acid batteries which must be disposed of...
  • Page 24 MAINTAINING YOUR VEHICLE Occasionally use a lightweight oil to lubricate moving parts such as wheels and the steering linkages. Park the vehicle indoors or cover it with a tarp to protect it from wet weather. Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.

  • Page 25: Troubleshooting Guide

    “Replace only with an original 6 Volt (7.0 Amp/Hr.) battery with built-in thermal fuse. Do not use non- original substitute parts. Visit the Dynacraft website and replace with Motor damage a new motor. Check all wires and connectors. Make sure...
  • Page 26 Problem Possible Cause Solution Tripped thermal fuse The built-in thermal fuse may “trip” and shut down operation of the vehicle if the vehicle is overloaded or the driving conditions too severe. Once a fuse has “tripped” ,set the power switch to the "OFF" position, release the foot pedal, and wait approximately 2 minutes before operating the vehicle again.
  • Page 27 Problem Possible Cause Solution Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the first time. After first- time use, recharge the battery for at least 12 hours after each use.

  • Page 28: Limited Warranty

    Parents that allow their children to ride taking such actions will assume their own risk and the risk of injury to their children, and Dynacraft will not be responsible. THE PURCHASE OF THIS ELECTRIC RIDE-ON TOY WILL CONFIRM THE BUYER’S AGREEMENT THAT DYNACRAFT’S LIABILITY UNDER THIS WARRANTY SHALL BE NO...
  • Page 29 Having this information is required and helps us handle your call more effectively. DO NOT return this item to the store. STOP Please call Dynacraft for assistance. Dynacraft BSC, Inc. 2015 Printed in China 89 S. Kelly Rd., American Canyon, CA 94503 Call Toll Free 1.800.288-1560...
  • Page 30 Please visit dynacraftwheels.com for more information. Or call Customer Service at 1-800-288-1560, 7AM to 4PM PST. Please have the following information available when you call: Model Number: (example: 8XXX-XX) Production Date: (example: 2014.XX.XX) Serial Number: (example: XXXXXXXXXXX) 2015 Printed in China...
