Product Manual V2.0
COSMIQ Dive Companion
Firmware Version 0.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COSMIQ DIVE COMPANION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DEEPBLU COSMIQ DIVE COMPANION

Summary of Contents for DEEPBLU COSMIQ DIVE COMPANION

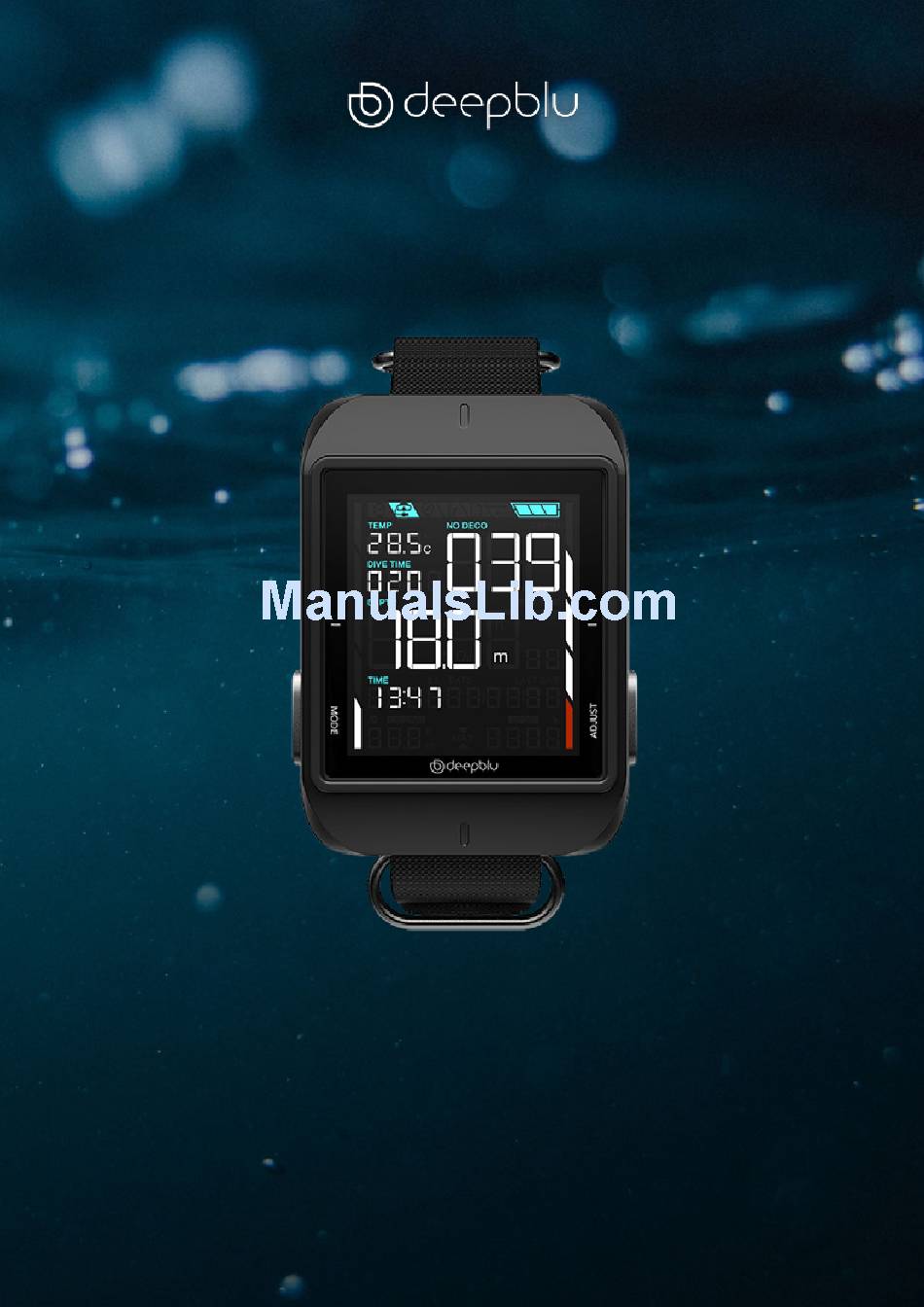

  • Page 1 Product Manual V2.0 COSMIQ Dive Companion Firmware Version 0.7...

  • Page 2: Table Of Contents

    4.1 Operating Modes ..........................10 4.2 Battery and Charging ........................10 4.3 Buttons and Navigation ........................11 4.4 Standby..............................12 4.5 Setting Up COSMIQ Using the Deepblu App ................12 4.6 Adjustable Settings Using COSMIQ ....................15 4.7 Non-Adjustable Settings .........................15 5. Instructions for Use ............................17 5.1 Watch Mode ............................17...

  • Page 3: Introduction

    • Sound and visual alarm warnings. • Dive logbook - saves dive data for up to 25 dives. • Bluetooth 4.0 for uploading and saving dive data to the Deepblu mobile app to create digital dive logs. • 2.2 inch high contrast LCD screen with pixel-less EBTN technology.

  • Page 4: Product Manual

    Be mindful that you are responsible for your own safety. When used correctly, in accordance with your dive training and the instructions provided in this manual, the COSMIQ Dive Companion is a powerful instrument for supporting recreational/sport diving.

  • Page 5: Firmware Update History

    SECTION 1 - INTRODUCTION To update COSMIQ’s firmware: 1. Ensure that you have the latest version of the Deepblu app installed on your smartphone. 2. Log in to your personal Deepblu account. 3. Pair COSMIQ with the Deepblu app. 4. For the iOS app, access the Settings page in the main menu. On the Android app, access the Settings page in the COSMIQ Options menu.

  • Page 6: Warnings And Safety Measures

    Commercial or professional diving may subject the diver to depths and conditions that result in an increased risk of decompression illness and/or other pressure-related complications. Therefore, Deepblu strongly advises that the device not be used for any activities other than recreational/sport diving.

  • Page 7: Back To Index

    8. DO NOT USE COSMIQ FOR DIVES DEEPER THAN 40 METERS/130 FEET. Deepblu strongly recommends that divers do not dive below 40 meters/130 feet, the limits for recreational diving.

  • Page 8: Cosmiq Display Reference Guide

    SECTION 3 - COSMIQ DISPLAY REFERENCE GUIDE SECTION 3 - COSMIQ DISPLAY REFRENCE GUIDE Watch Mode Battery Power Indicator Scuba Mode Water Temperature Gauge Mode Dive Time Freedive Mode Ascent Rate Bar No Decompression Limit (Scuba/Gauge Mode) Log Mode Current Depth (Freedive Mode) Sync Mode NDL Graphic Bar BACK TO INDEX...

  • Page 9: Back To Index

    SECTION 3 - COSMIQ DISPLAY REFERENCE GUIDE No Dive Time (Watch Mode) Time (Watch Mode) Max Depth or Ceiling Depth (Scuba Mode) Current Depth (Scuba Mode) Max Depth (Freedive Mode) Nitrox % (Scuba Mode) Depth (Dive Plan) Dive Time (Freedive Mode) Sync Time (Sync Mode) Ascend / Descend icon Surface Interval (Watch Mode)

  • Page 10: Overview

    • Sync Mode: Use this mode to upload dive data from COSMIQ to the Deepblu app via Bluetooth. The firmware version that your COSMIQ is running is indicated in the bottom right corner of the screen.

  • Page 11: Buttons And Navigation

    SECTION 4 - OVERVIEW COSMIQ’s battery has an estimated continuous run time of 6 to 7 hours, but given the various factors that affect battery usage, it is best to exercise caution and charge COSMIQ as often as possible. The battery will last for 500 full-cycle charges of use before gradually diminishing in capacity.

  • Page 12: Standby

    Download and install the Deepblu iOS app from the Apple App Store or the Deepblu Android app from the Google Play Store. Register for a Deepblu account or sign in using Facebook or with your email and create a personal profile.
  • Page 13 30 seconds will begin on the screen. For the Deepblu iOS app: At the same time, access the Deepblu app and press Pair COSMIQ in the main menu. When you’re ready to pair, press Scan. Select your COSMIQ. A running rectangle will appear on COSMIQ to show that the devices are pairing.
  • Page 14 After pairing COSMIQ with your phone, you must choose your preferred settings. Navigate to Sync Mode on COSMIQ using the MODE button. For the Deepblu iOS app: Access the main menu of the Deepblu app and choose Settings. Press Next. For the Deepblu Android app: Choose Settings from the COSMIQ Options menu.

  • Page 15: Adjustable Settings Using Cosmiq

    SECTION 4 - OVERVIEW 4.6 ADJUSTABLE SETTINGS USING COSMIQ Most settings for COSMIQ can only be adjusted using the Deepblu mobile app. Only a limited number of settings can be adjusted directly from COSMIQ. The following settings can be changed...
  • Page 16 SECTION 4 - OVERVIEW effects of diving in salt water. If you are planning to dive in fresh water, please note that the depth readings and decompression calculations will not be 100% accurate. Therefore, we recommend that you do not use COSMIQ as your primary device if you are diving in freshwater. WARNING: DO NOT USE COSMIQ AS YOUR PRIMARY DEVICE IF YOU PLAN TO DIVE AT AN ALTITUDE ABOVE 300M.

  • Page 17: Instructions For Use

    Watch Mode is pre-programmed to display the current time and the current date. You can change the settings so that COSMIQ will show the date of your last dive instead of the current date by accessing Settings in the Deepblu app. 5.1.1 Dive Plan Function...

  • Page 18: Scuba Mode

    There are two ways to adjust the oxygen settings for COSMIQ: 1. Using COSMIQ (see below) 2. Using the Deepblu mobile app (see above section 4.5) Using COSMIQ to adjust the oxygen settings: You can change the oxygen settings on COSMIQ based on the air mixture in your cylinder before a dive begins.

  • Page 19: Safety Factor

    There are three levels to choose from: Conservative, Normal and Progressive. The Safety Factor can only be changed through the Deepblu mobile app. Access Settings in the main menu of the Deepblu app to adjust the Safety Factor.

  • Page 20: Central Nervous System (Cns) Oxygen Toxicity

    SECTION 5 - INSTRUCTIONS FOR USE • Current depth (Depth in meters/feet) • Deepest depth reached (Max in meters/feet) • Dive time (Dive Time in hours:minutes) • No decompression limit (No Deco in minutes) • No decompression limit bar (graphic bar on right hand side) •...

  • Page 21: Ascent Rate

    SECTION 5 - INSTRUCTIONS FOR USE WARNING: ONLY DIVERS WHO HAVE RECEIVED SPECIALIZED TRAINING FROM A RECOGNIZED AGENCY SHOULD DIVE WITH NITROX. Diving with Nitrox poses risks that are different from those associated with using Standard Air, and therefore require specialized training in order to understand and avoid.

  • Page 22: Safety Stop

    SECTION 5 - INSTRUCTIONS FOR USE 5.2.9 Safety Stop COSMIQ is programmed to automatically count a safety stop at the end of each dive. A 3 minute (180 seconds) safety stop should be conducted between 3 to 7 meters/10 to 23 feet at the end of every dive.
  • Page 23 (if required) or to the surface if it is safe. WARNING: STAY WITHIN THE NO DECOMPRESSION LIMIT AND AVOID DIVES THAT REQUIRE DECOMPRESSION STOPS. Deepblu advises against exceeding no decompression time limits and dives that require decompression stops. In the event that you exceed the no decompression time limit and a decompression stop is required, you should begin your decompression stop immediately.

  • Page 24: After Diving

    SECTION 5 - INSTRUCTIONS FOR USE 5.2.11 After Diving Upon surfacing from a dive, COSMIQ will remain in Scuba Mode for 2 minutes. If you surface for less than 2 minutes and then descend again, COSMIQ will consider this a continuation of the previous dive and the calculations and measurements will continue from where they left off.

  • Page 25: Preparing To Dive

    SECTION 5 - INSTRUCTIONS FOR USE 5.3.1- Gauge Mode - Preparing to Dive There are two ways to prepare for a dive using Gauge Mode: water activation and manual activation. Water activation: If Gauge Mode is your default underwater mode, then simply enter in the water when COSMIQ is in Standby or Watch Mode.

  • Page 26: Freedive Mode

    Max Depth and Max Time in Freedive Mode: 1. Using COSMIQ (see below) 2. Using the Deepblu mobile app (see above section 4.5) Using COSMIQ to set Max Depth and/or Max Time alarms: To set the Max Depth and Max Time alarms using COSMIQ, navigate to Freedive Mode using the MODE button.

  • Page 27: During The Dive

    SECTION 5 - INSTRUCTIONS FOR USE ADJUST button repeatedly to achieve the desired depth. Each time you press ADJUST, the depth will increase by 5 meters/16 feet. When you reach the desired depth, press the MODE button to save your changes. Next, press the ADJUST button to set the maximum time.

  • Page 28: After Diving

    Once 25 dives are logged, the newest log will overwrite the oldest log. Deepblu suggests that you upload dive data to the Deepblu app as often as possible so you don’t lose any of your log data. If you have over 25 logs and you haven’t performed a sync to upload your previous logs to the...

  • Page 29: Sync Mode

    SECTION 5 - INSTRUCTIONS FOR USE Deepblu app, the letters ‘MAX’ will appear on the bottom of the screen and the Sync Mode icon will appear in Watch Mode. The purpose of this is to remind you to perform a sync to upload your logs.
  • Page 30 SECTION 5 - INSTRUCTIONS FOR USE Dive Alarms Table Situation Visual/ Sound Alarm Action Safe Ascent Rate -Continuous beeping Slow ascent until alarm stops. Exceeded -Ascent rate bar full CNS=80% -5 beeps per minute End the dive. Conduct a safety stop -‘CNS’...

  • Page 31: Care And Maintenance

    Dispose of the COSMIQ Dive Companion as electronic waste. Do not throw it in the garbage with regular trash. Please locate the nearest recycling facility that accepts electronic waste or send the device back to us for disposal.

  • Page 32: Technical Specifications

    Gases 1 Gas - Oxygen (21%-40%) Partial Oxygen Pressure (PO2) Adjustable between 1.2 bar and 1.6 bar Algorithm Deepblu Decompression Algorithm based on the Bühlmann ZH-L16 model Safety Factor Conservative, Normal, Progressive Altitude 0 meters / 0 feet to 300 meters / 985 feet...

  • Page 33: Warranty

    The COSMIQ Dive Companion comes with a two-year global warranty covering all manufacturing defects, faults in design and workmanship. Deepblu will, during the warranty period, replace any damaged or defective COSMIQ Dive Companion with a new or refurbished unit, subject to the terms and conditions of this Limited Warranty.

  • Page 34: Glossary

    SECTION 9 - GLOSSARY SECTION 9 – GLOSSARY Ascent rate The speed (measured in meters/feet per minute) at which a diver ascends towards the surface. Ceiling Depth The shallowest depth to which a diver can ascend in order to complete a mandatory decompression stop.
  • Page 35 SECTION 9 - GLOSSARY Partial pressure of The total pressure exerted by oxygen in a breathing mix. It is a measure- oxygen (PPO ment of the concentration of oxygen in a gas mixture. PPO levels are de- termined by the percentage of oxygen in a gas mixture and the depth at which a diver breathes the gas.
