Chapter 2: Camera Configuration

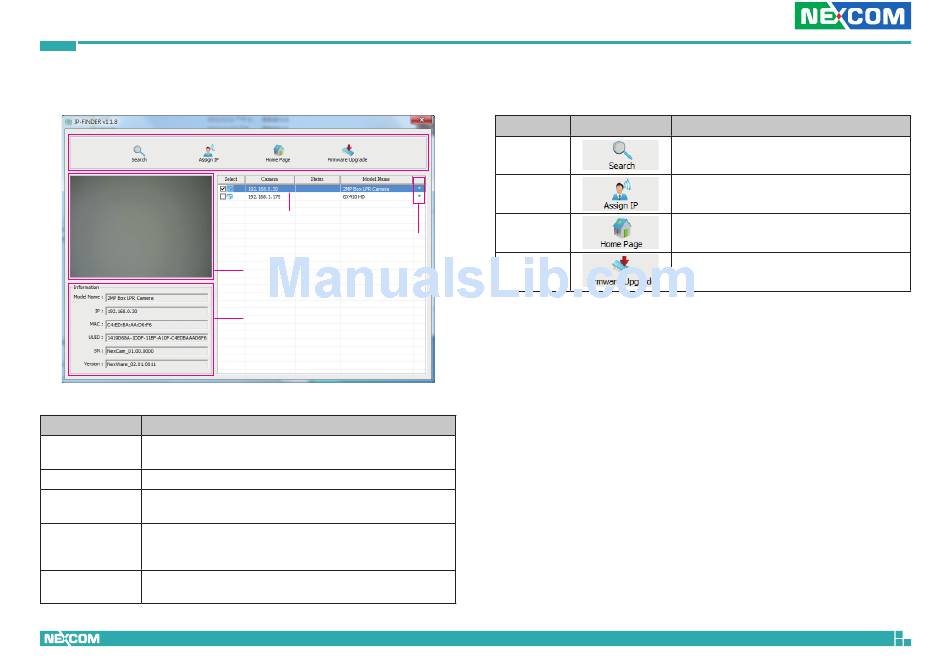

Introduction to the IP-FINDER User Interface

Control Bar
UI Block
Contains [Search], [Assign IP], [Home Page] and [Firmware
Control Bar
Upgrade] buttons.
Preview Displays the selected camera image.
Displays the selected camera information such as Model Name,
Information
IP, MAC, UUID, SN and Version.
Lists the cameras discovered by the search function. Each camera
shows the "IP", "Status", "Model Name" and "Device
Camera List
Mark". Users can also click the column headers to sort the list.
Asterisk sign indicates that this device has "Preview", "Assign
Device Mark
IP" and "Firmware Upgrade" functions.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Camera List
Device Mark
Preview
Information
Description

Button Functions

Function Button
Search
Assign IP
Home Page
Firmware
Upgrade
Search
When the [Search] button is clicked, the application will start searching
cameras on the network. To stop searching, click the [Done] button.
Assign IP
When the [Assign IP] button is clicked, a pop-up window "IP Address
Configuration" will appear, providing options to use DHCP or static IP address.
Home Page
To view the home page of a particular camera, double click on the camera in
the list, the web browser will open and redirect to the home page. To access
the home page of two or more cameras, tick the box of the cameras you
wish to view and click on the [Home Page] button.
Firmware Upgrade
To update the camera firmware, tick the box of the cameras you wish to
update and click on the [Firmware Upgrade] button. Follow the on-screen
prompts to complete the upgrade. If the camera does not support firmware
upgrade, a pop-up window will be displayed.
NOTE: Different IP camera models use different firmwares, please do NOT
update the firmware of different models using the same firmware.
12
Description
Discovers IP cameras available on the network.
Changes the IP address of the camera.
Opens the web browser to the home page of
the camera.
Upgrades the camera firmware.
