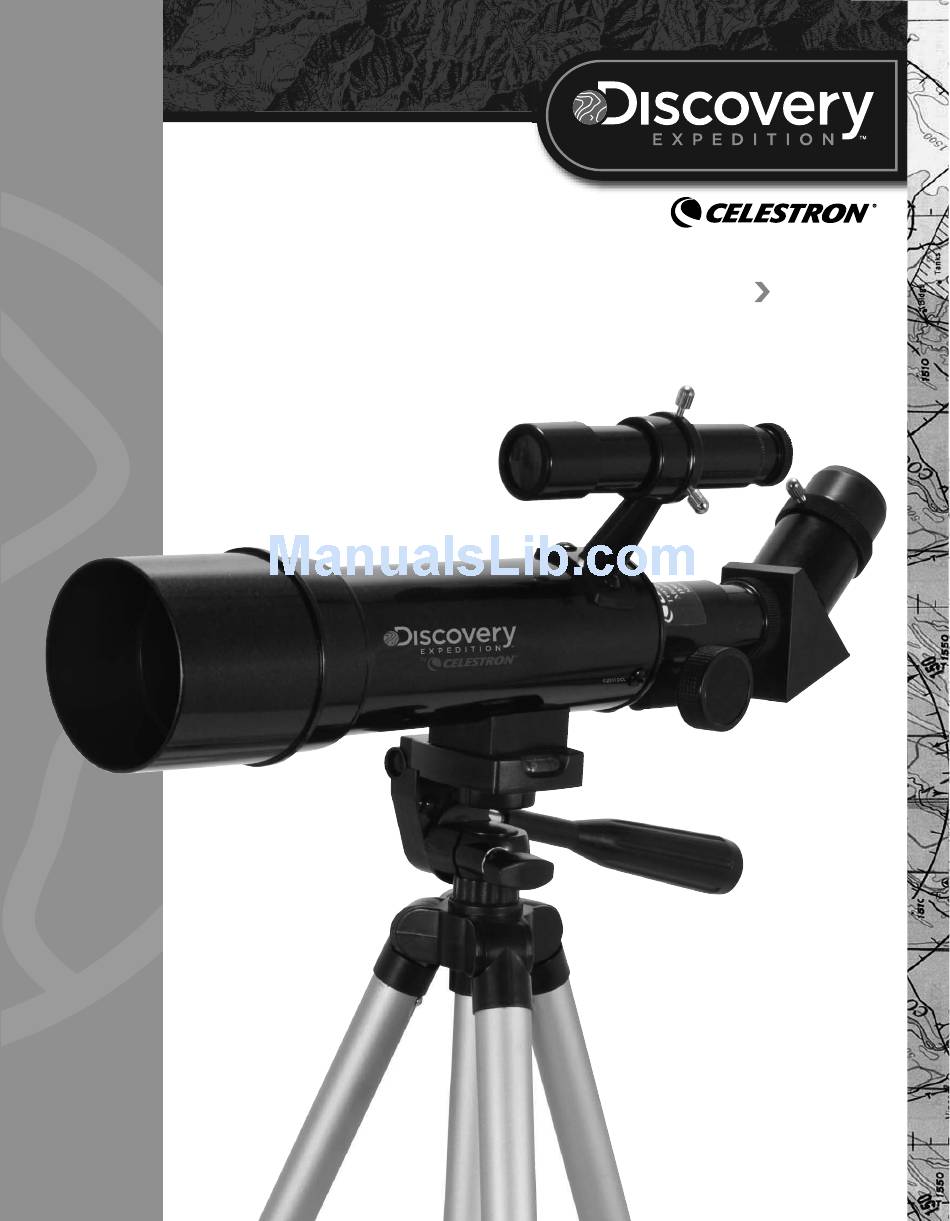

- Page 1 travel telescope 60 InstructIon Manual Model #22002...
-
Page 2: Setting Up The Tripod
Warning Never look directly at the Sun with the naked eye or with a telescope (unless you have • the proper solar filter). Permanent and irreversible eye damage may result. 1. Objective Lens (under lens shade) 2. Telescope Optical Tube 3. Finderscope 4. Erect Image Diagonal 5. Eyepiece 6. Focus Knob 7. Pan Handle 8. Tripod... -
Page 3: Aligning The Finderscope
attaching the telescope optical tube thumbscrew is not protruding into the diagonal before inserting the eyepiece. to the tripod 3. The eyepieces can be changed to other focal lengths by reversing the The telescope optical tube attaches to the tripod by using the mounting procedure in step 2 above. bracket on the bottom of the optical tube and the mounting platform of the tripod. Before starting, make sure all of the knobs on the tripod are locked. aligning the Finderscope Use the following steps to align the Finderscope: 1. Locate a distant daytime object and center it in the low power (20 mm) eyepiece in the main telescope. 2. Look through the eyepiece end of the Finderscope and take notice of the position of the same object. 3. Without moving the main telescope, turn the adjustment thumbscrews 1. Remove the protective paper covering the optical tube. located around the Finderscope bracket until the crosshairs of the 2. Loosen the top right knob by turning it counterclockwise. This allows Finderscope are centered on the object chosen with the main telescope. you to tilt the tripod platform up 90°. After tilting the platform up, 4. If the image through the Finderscope is out of focus, rotate the eyepiece tighten the knob to secure it in place. of the Finderscope for a clear view. 3. The images below center shows the bottom of the optical tube, the tripod platform, and where they will attach Note: Objects viewed through a Finderscope are upside down and to each other. - Page 4 ©2011 Discovery Communications, LLC. Discovery Expedition and related logos are trademarks of Discovery Communications, LLC, used under license. All rights reserved. ©2011 Celestron • 2835 Columbia Street • Torrance, CA 90503 U.S.A. Telephone: 310.328.9560 • Fax: 310.212.5835 • All rights reserved.
