Celestron 99902 Quick Setup Manual

Travel Scope 60 Travel Scope 60

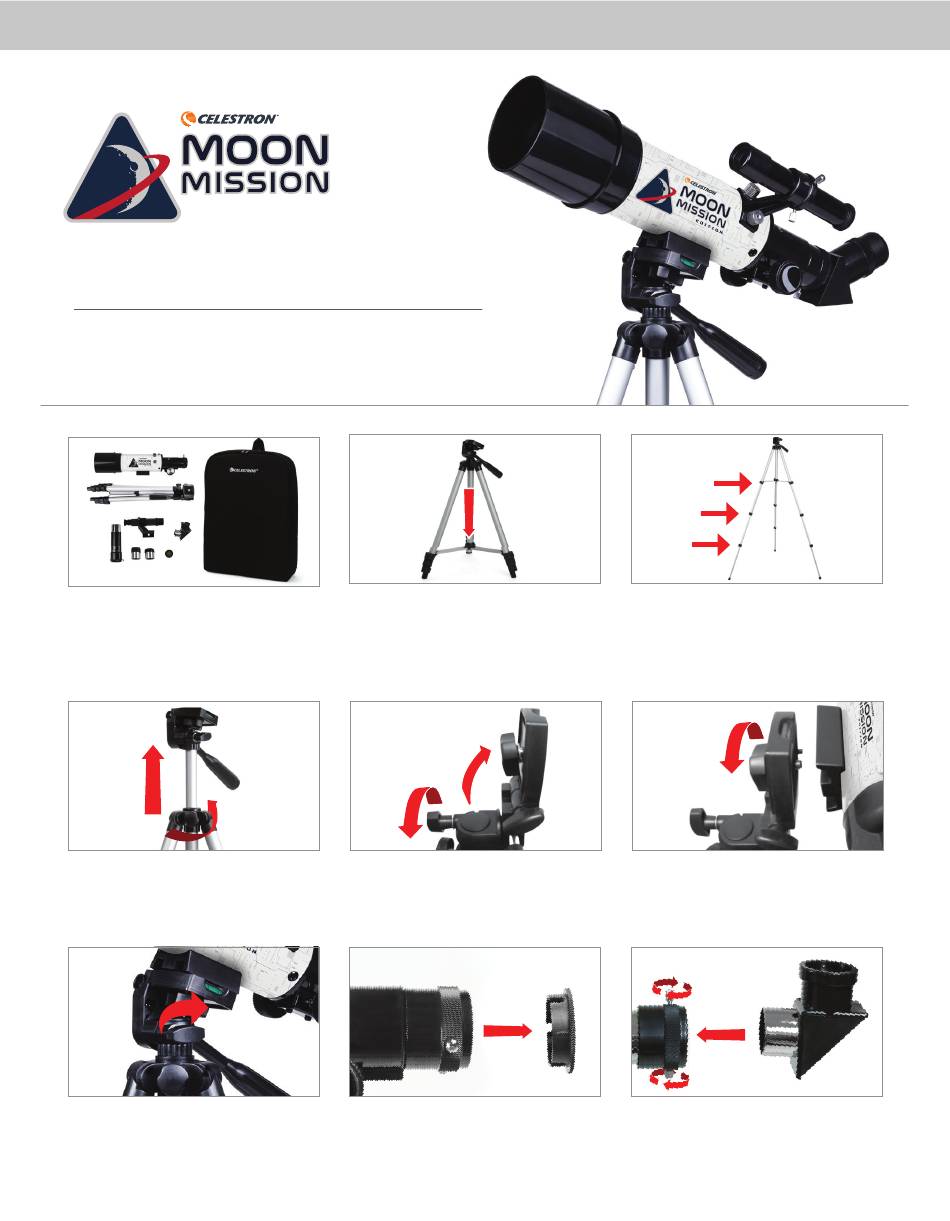

Quick Setup Guide
ENGLISH
1 1
Unpack your telescope and verify that all parts are present. Your Moon
Mission Travel Scope 60 includes: a 60mm telescope tube, a tripod
and mount head, two eyepieces, a 3x Barlow lens, a finderscope, an
erect image diagonal, a Moon filter, and a Moon map.
4
To extend the tripod's central column, loosen the collar on the mount
by turning the locking knob counterclockwise, lift up the tripod head
until it is at the desired height, and turn the locking knob clockwise
to secure.
7 7
Rotate the mounting platform so it is horizontal and tighten the knob
to secure it.
E D I T I O N
ITEM #99902
2
To set up the tripod, spread the legs outward until they are fully ex-
tended and push down on the center leg brace.
5
Loosen the knob on the side of the tripod head mounting platform and
rotate the platform 90 degrees so it is standing vertically.
8
Remove the cap from the focuser end of the telescope tube and make
sure the two thumbscrews do not protrude into the opening.
3
Extend the legs of the tripod by unlocking the three tripod lock levers
on each leg. Pull each leg section all the way out and push the lever
on each lock downward to secure it in place.
6
Match the 1/4"-20 threaded bolt in the mounting platform to the
threaded 1/4"-20 hole on the bottom of the telescope tube and thread
the two together by turning the upper mount knob clockwise. This
should be tight, but be sure to not over-tighten.
9
Locate the erect image diagonal and remove the plastic covers. Insert
the barrel of the diagonal into the focuser and secure it in place by
tightening the thumbscrews.
E N G L I S H | 1
