Celestron Travel Scope 60 Quick Setup Manual

60
TRAVEL
SCOPE
QUICK SETUP GUIDE
3
Extend the legs of the tripod by unlocking the three tripod lock levers
on each leg. Pull each leg section all the way out and push the lever on
each lock downward to secure it in place.
6
Match the threaded bolt in the mounting platform to the threaded hole
on the bottom of the telescope tube and thread the two together. Do
not overtighten. This should be snug, but not tight.
9
Locate the erect image diagonal and remove the plastic covers. Insert
the barrel of the diagonal into the focuser and secure in place by
tightening the setscrews.
1 1

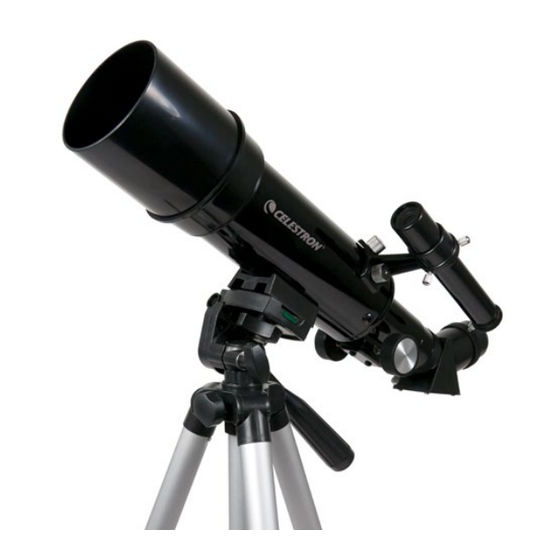

Unpack your telescope and verify that all parts are present. Your
Travel Scope 60 includes: a telescope tube, a tripod and mount
head, two eyepieces, a 3x Barlow lens, a finderscope, an erect image
diagonal, and a Moon filter.
#22002-DS
4
To extend the tripod's central column, turn the locking knob
counterclockwise, lift up the tripod head until it is at the desired
height and turn the locking knob clockwise to secure.
7
Rotate the mounting platform so it is horizontal and tighten the knob
to secure it.
10
Insert the barrel of the 20mm eyepiece into the diagonal and tighten
the setscrew.
2
To set up the tripod, spread the legs outward until they are fully
extended and push down on the center leg brace.
5
Loosen the knob on the side of the tripod head mounting platform and
rotate the platform 90 degrees so it is standing vertically.
8
Remove the cap from the focuser end of the telescope tube and make
sure the two thumbscrews do not protrude into the opening.
11
Remove the knurled nuts on the threaded posts at the focuser end of
the telescope tube.
