INSTALLATION*

I n s t a l l i n g t h e S D C a r d
1. Detach the camera's cover dome from the camera's
module by unscrewing the cover dome screws.
2. Using the camera or mounting template, mark and
drill the necessary holes in the mounting surface.
3. Secure the two long mounting screws to the
camera's base.
4. Pull wires through and make connections.
5. Mount the camera to the mounting surface using the
2 mounting nuts.
6. Secure the camera's cover dome onto the camera
base to complete the installation.
7. See page 9 for water-proof cabling installation.
Ad j u s t i n g t h e C a m e r a 's An g l e
The camera's stitching and lens adjustment is done
automatically from the camera's web viewer.

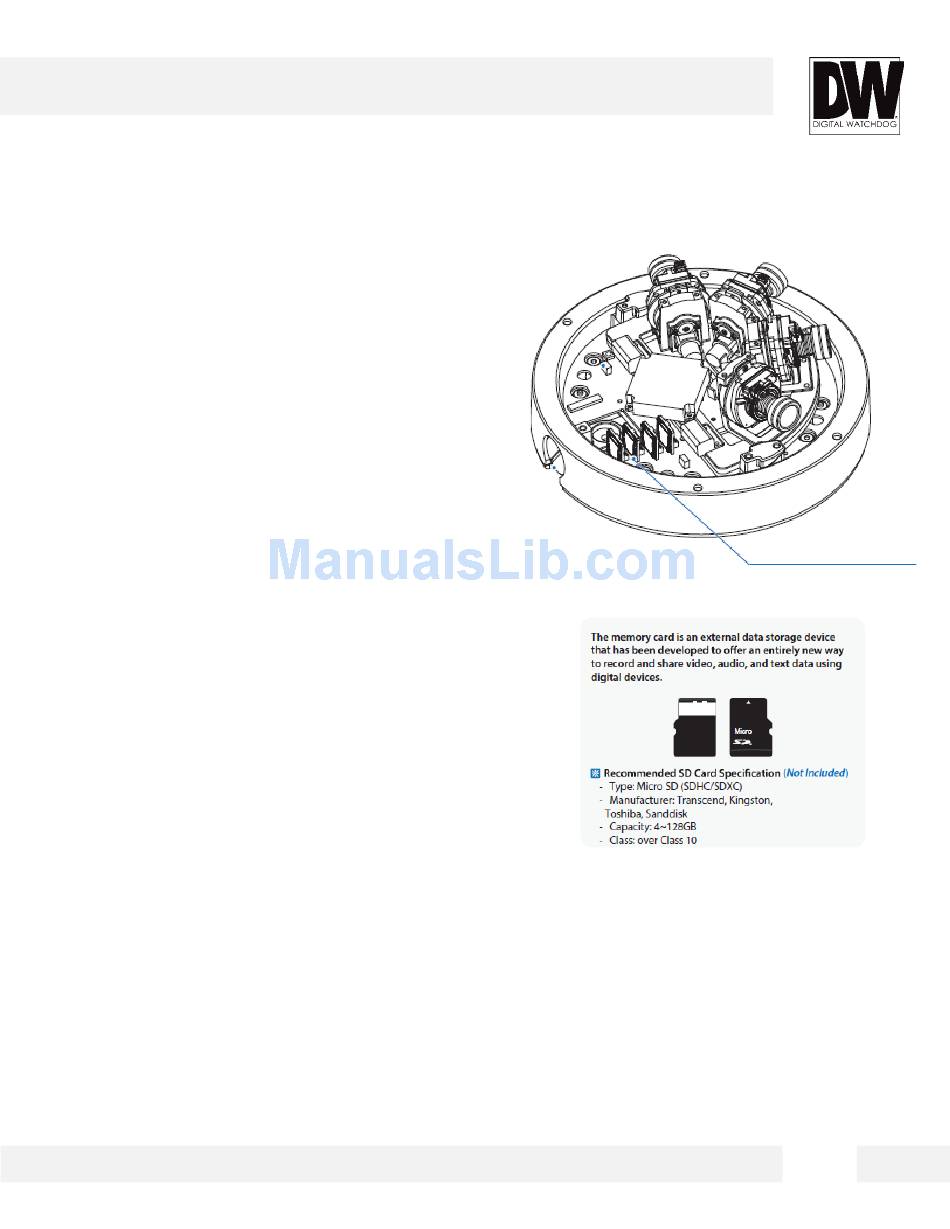

4 SD Card Slots
