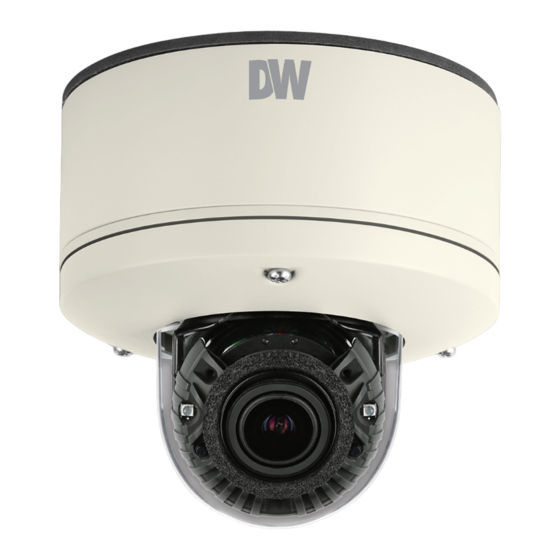

Megapix DWC-MV421D DWC-MV421TIR Reset Button DWC-MV421DB Quick Start Manual

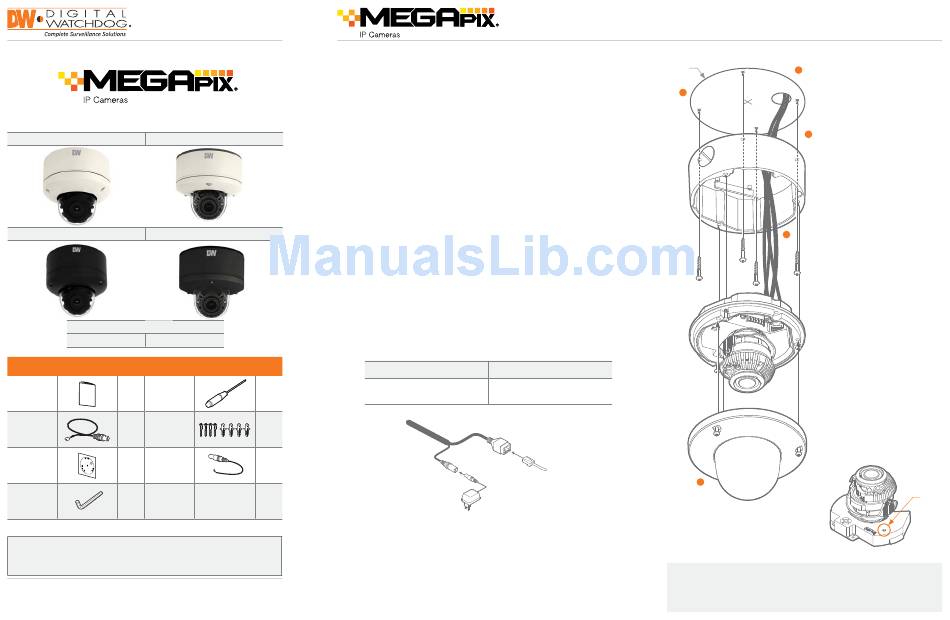

Quick Start Guide
DWC-MV421D DWC-MV421D
DWC-MV421DB
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
QSG Manual 1 Set Star Driver
Test Video Screw & Plastic
1 Set
Cable Anchor – 4pcs
Template Sheet 1 Set DC Plug Cable
Hexagonal
1 Set
Wrench
Attention: This document is intended to serve as a quick reference page for initial set-up.
It is recommended that the user read the entire instruction manual for complete and proper
camera usage.
Tel: +1 (866) 446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
Step 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to
be damaged. This may cause a breakdown or fire.
3. For the installation process, remove the junction box and dome cover from the
DWC-MV421TIR DWC-MV421TIR
camera module. To remove the camera dome, loosen the three (3) screws on
the dome using the wrench provided with the camera. To remove the junction
box, loosen the three (3) screws on the camera module using the driver
provided with the camera.
4. Using the mounting template sheet or the camera's junction box, mark and drill
the necessary holes in the wall or ceiling.
5. Secure the junction box to the mounting surface.
DWC-MV421TIRB
Step 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
6. Pass the wires through the mount bracket and make all necessary connections.
a. NETWORK CONNECTIONS – If you are using a PoE Switch, connect the
camera using an Ethernet cable for both data and power.
b. NETWORK CONNECTIONS – If you are using a non-PoE switch, connect
the camera to the switch using an Ethernet cable for data transmission and
use a power adapter to power the camera.
1 Set
1 Set
1 Set
Step 3 – INSTALLING THE CAMERA
7. Secure the camera module to the junction box using three (3) screws.
8. Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle. The
camera's maximum tilting angle is 75° (90° for non-IR models).
digital-watchdog.com
9. Assemble the dome cover over the camera body and detach the protecting film
from the dome bubble.
Power Requirements Power Consumption
DC 12V LED Off: 7.2W, 600mA
PoE IEEE 802.3af / PoE Class 3 LED On: 8.64W, 720mA (IR models)
NETWORK
CONNECTION
POWER
Quick Start Guide
Template
Sheet 1
4
5
2
3
Resetting the camera: To reset the camera, use the tip of a paper clip or
a pencil and press the reset button. Pressing the button for five (5) seconds
will initiate a camera-wide reset of all the settings, including network settings.
Reset
Button
