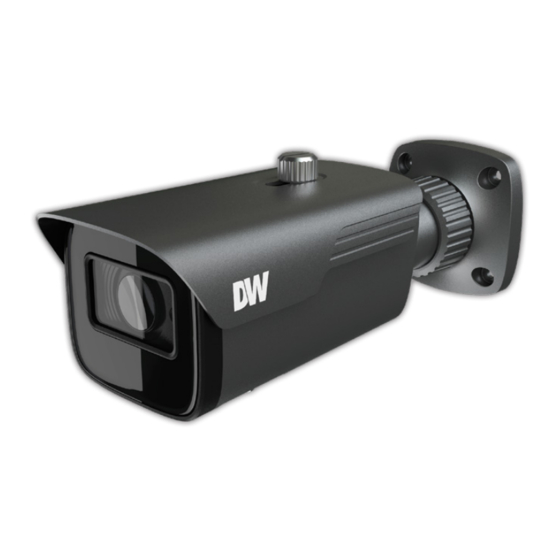

Megapix DWC-MB94Wi28T Quick Start Manual

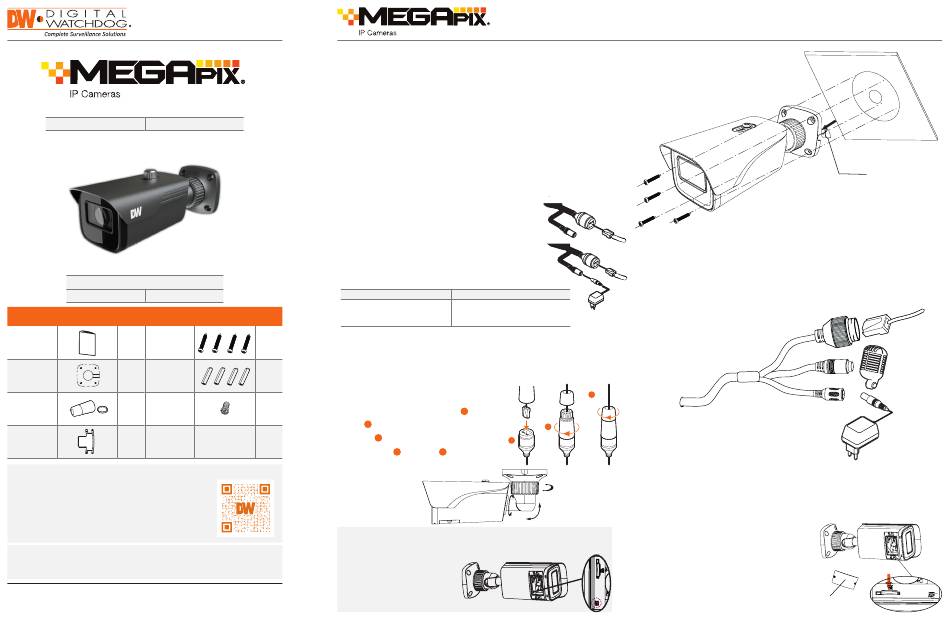

Quick Start Guide
DWC-MB94Wi28T DWC-MB94Wi36T
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
Quick setup
Tapping
and
1 set screws –
installation
4pcs
guides
Mounting Plastic plugs
1
template – 4pcs
Waterproof Machine
1 set
cap screw – 1pc
Rubber plug 1 Set
NOTE: Download all your support materials and tools in one place
1. Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in the
'Search by Product' search bar. Results for applicable
part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick start guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00 AM – 8:00 PM EST, Monday through Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line
cover to be damaged. This may cause a breakdown or fire.
3. Using the mounting template sheet or the camera itself, mark and
drill the necessary holes in the wall or ceiling.
STEP 2 – POWERING THE CAMERA
Pass the wires through and make all the necessary connections.
1. NETWORK CONNECTIONS – Using a PoE Switch
or PoE Injector, connect the camera using an
Ethernet cable for both data and power.
2. NETWORK CONNECTIONS – Not using PoE Switch
or PoE Injector, connect the camera to the switch
using an Ethernet cable for data transmission and
use a power adapter to power the camera.
Power requirements
DC12V, PoE
(IEEE 802.3af class 3).
Adapter not Included.
1 set
STEP 3 – INSTALLING THE CAMERA
1. Attach the main body to the mount bracket by tightening the
1 set
lock screw.
2. To use the camera's waterproof wiring:
1 a. Install the LAN cable into
b. will be assembled
b
to with a 1/4 turn.
a
c. Thread
3. Adjust the camera's tilt and angle using
its bracket.
a. Pan: 360°
b. Tilt: 90°
c. Rotation: 360°
Resetting the camera: To reset the camera,
use the tip of a paper clip or a pencil and
press the reset button. Pressing the
button for five (5) seconds
will initiate a camera-wide
reset of all the settings,
digital-watchdog.com
including network settings.
Power consumption
<9.5W
.
a
b
a
tightly to .
c b
STEP 4 – CABLING
Use the diagram below to properly connect power, network and audio to
the camera.
c
STEP 5 – MANAGING THE SD CARD
1. To install the camera's SD Card, locate the SD card slot at the base of
the camera module by removing the cover dome.
2. Insert class 10 SD/SDHC/SDXC card
into the SD card slot by pressing the
SD card until clicks.
3. To remove the SD card, press the
card inward until it clicks to release
from the card slot then pull out
from the slot.
Quick Start Guide
Rubber Plug
Network
Audio Input
Power
Cover
