Acquiring Satellites - Garmin AERA 660 Pilot's Manual

• 2D GNSS Location—At least three satellites have been acquired and a two-
dimensional location fix has been calculated. "2D Differential" appears when
you are receiving DGPS corrections in 2D mode
• 3D GNSS Location—At least four satellites have been acquired and a three-
dimensional fix has been calculated. "3D Differential" appears when you are
receiving DGPS corrections in 3D mode
• Lost Satellite Reception—the receiver is no longer tracking enough satellites for a
2D or 3D fix
Constellation
Diagram
PRN Number
45° Above
Horizon
Horizon

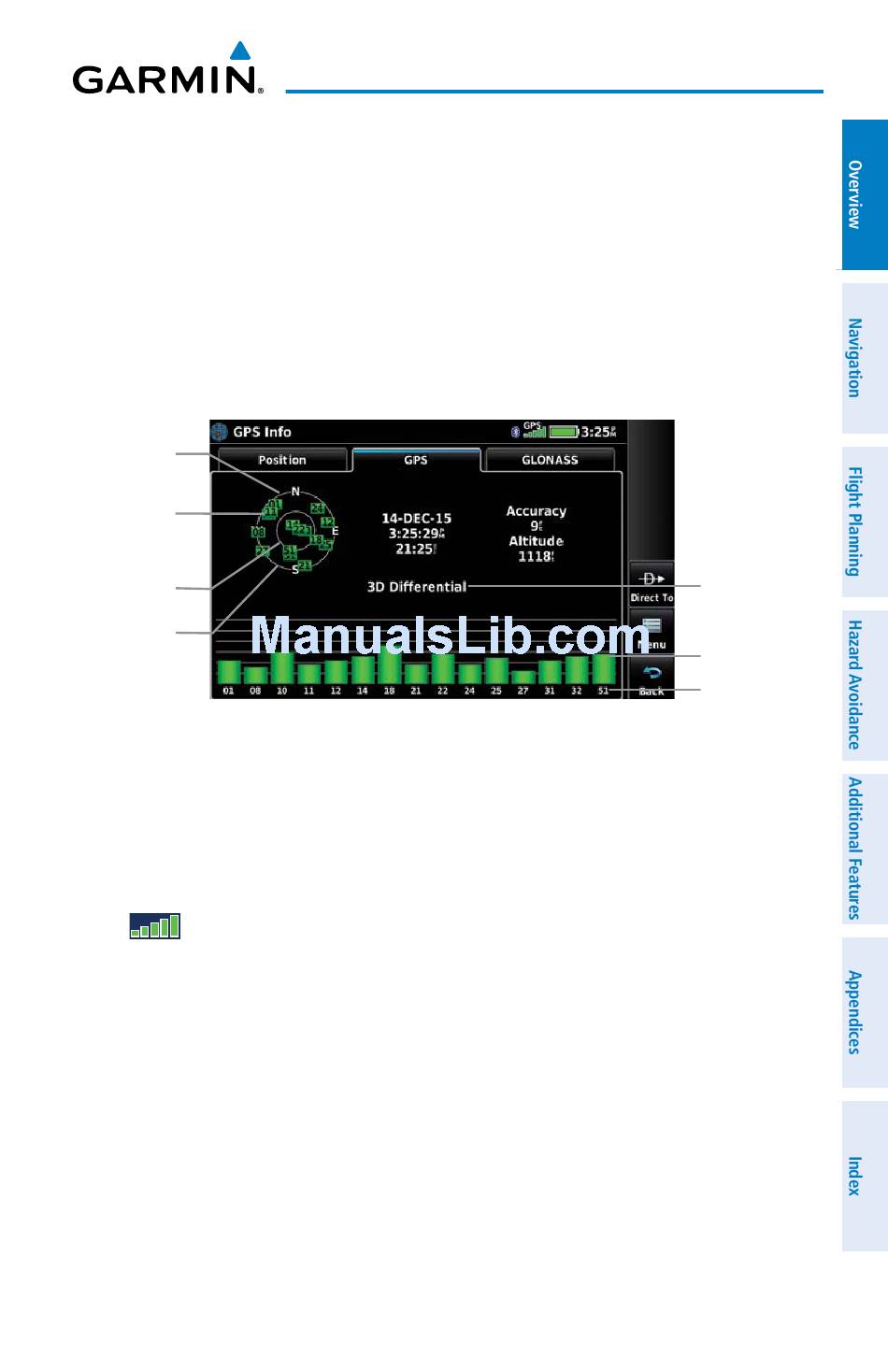

Viewing the GNSS status:
From the Main Menu, touch GPS Info > GPS Tab.

ACQUIRING SATELLITES

bars on the Main Menu indicate the GNSS signal strength.
The
When the receiver is in the process of acquiring enough satellite signals for
navigation, the receiver uses satellite orbital data (collected continuously from the
satellites) and last known position to determine the satellites that should be in view.
'Acquiring Satellites' is indicated as the solution until a sufficient number of satellites
have been acquired for computing a solution.
When the receiver is in the process of acquiring a 3D differential GNSS solution, '3D
GNSS Location' is indicated as the solution until the 3D differential fix has finished
acquisition.
