FILLER PANELS.
WINDOW
1. Measure center of window opening. Mark
center position on both the window sill and the
window sash.
Raise the window sash.
2.

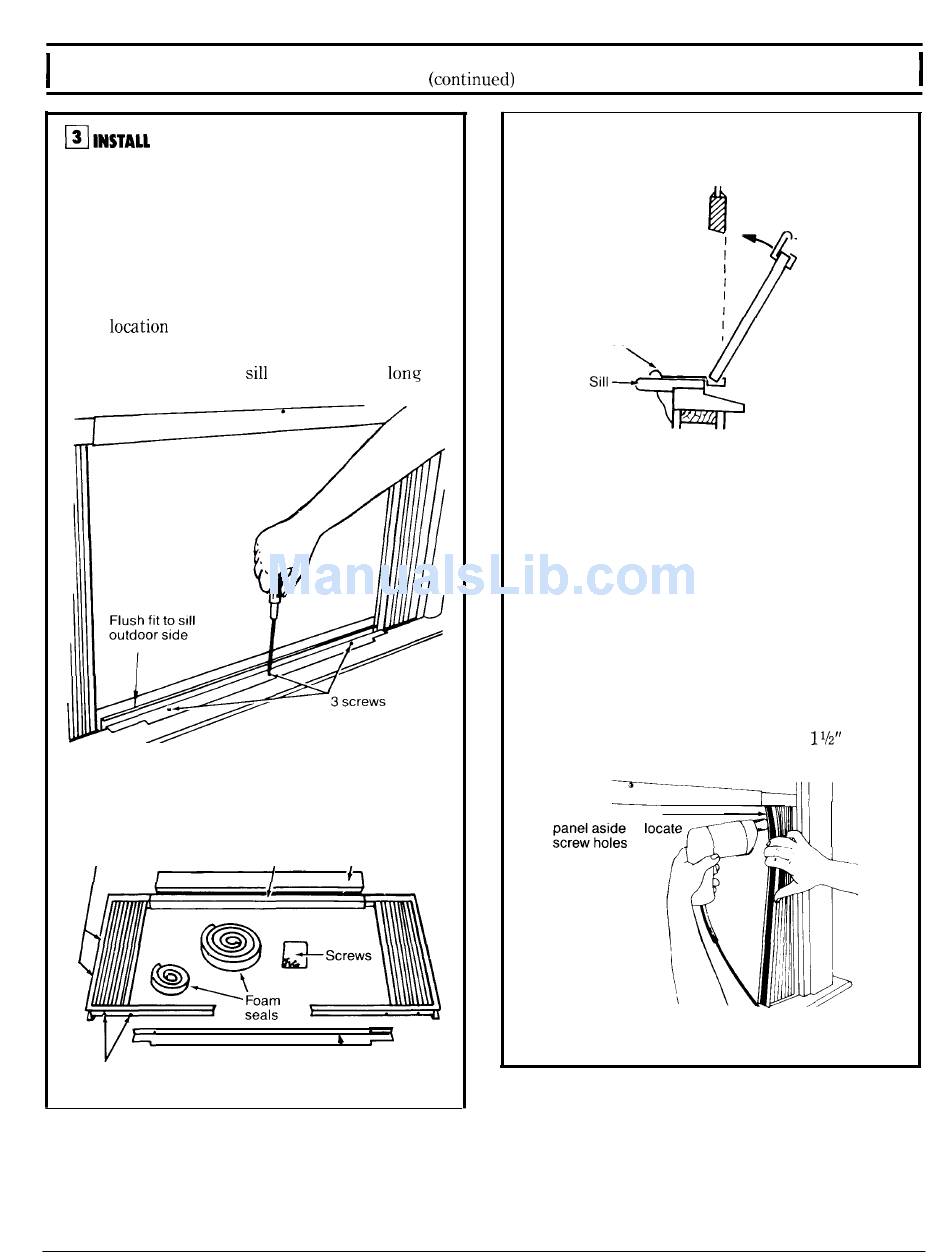

3. Position bottom track over sill.
Using track as a template, position center hole of
track over center mark made on window sill.
Mark loation of all track holes on window sill.
Drill three 1/8" diameter holes in window sill.
Attach track to window sill with three 1/2" long
screws provided.
Fit left and right U-shaped sliders into upper
4.
guide. Be sure drain holes at bottom of sliders are
at the rear (facing out of doors).
Slider mounting holes
on frame behind
window filler panels
I
.
Drain holes in rear
10
Top
Upper
channel
guide
1
.
.
\
Bottom track
5. Fit lower halves of U-shaped sliders into bottom
track. Pivot assembly forward toward sash.
INDOOR SIDE
Bottom
track
Holding upper guide at approximate sash
6.
center, slide left and right-hand sliders into window
sash tracks.
Lower window sash behind upper guide.
7.
Center upper guide at sash centerline. Be sure
sash is lowered flush to upper guide.
Drill 1/8" diameter hole in sash to meet center
hole in upper guide.
Install 1/2" long screw through upper guide hole
into sash center hole just drilled.
completely tighten screw yet.
8. Drill four 1/8" diameter holes in sash tracks
using sliders as templates. Pull window filler panel
slightly forward if necessary to locate screw holes.
Secure sliders in sash tracks with four 11/2"
diameter screws.
Pull window filler
to
'Sash
'Upper
guide
Do not
