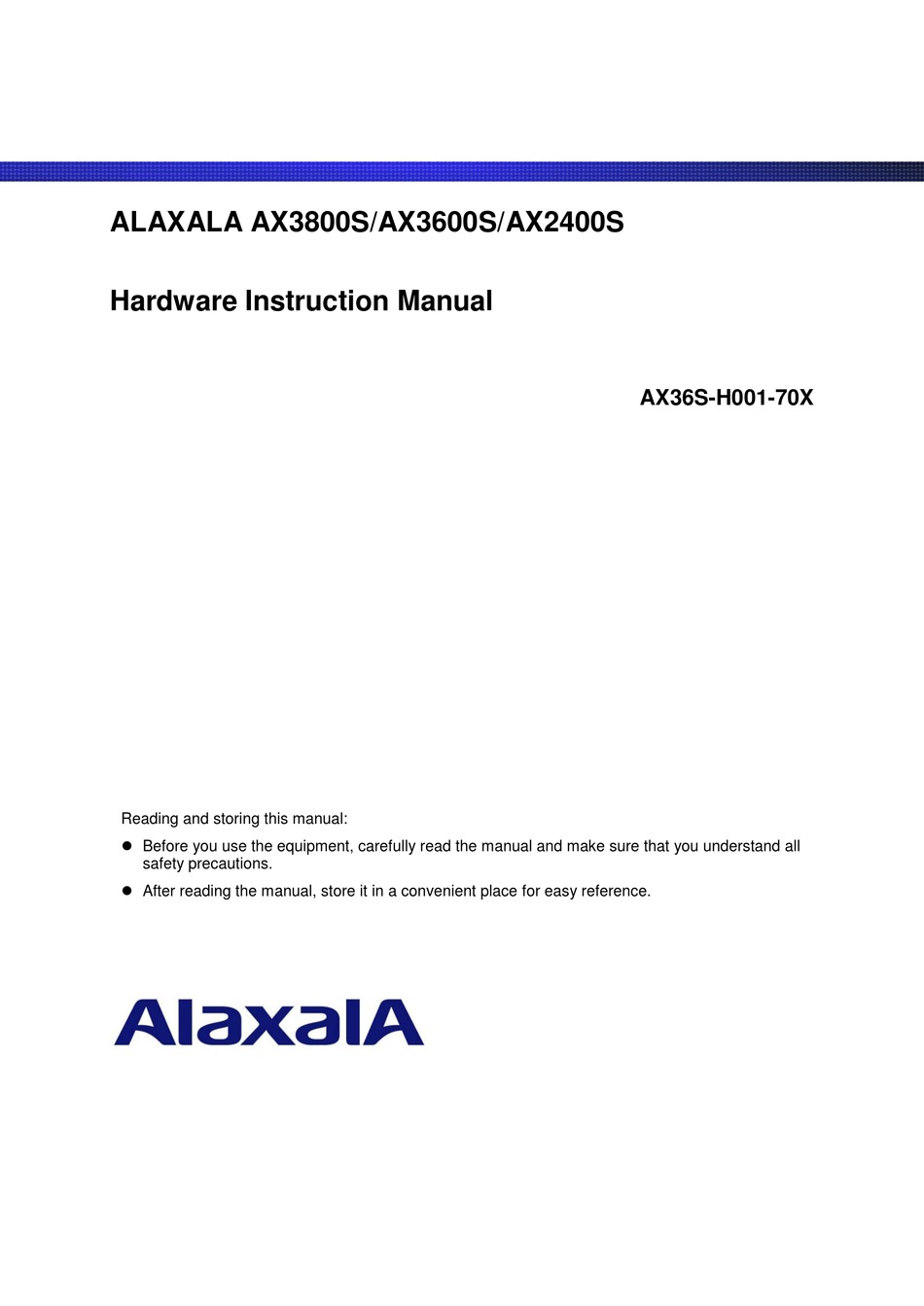

Page 1 ALAXALA AX3800S/AX3600S/AX2400S Hardware Instruction Manual AX36S-H001-70X Reading and storing this manual:  Before you use the equipment, carefully read the manual and make sure that you understand all safety precautions.  After reading the manual, store it in a convenient place for easy reference.
Page 2 AX3630S-24T2XD, AX3630S-24S2XW, AX3630S-48TW, AX3630S-48T2XW, AX3640S-24T, AX3640S-24TW, AX3640S-24T2XW, AX3640S-24SW, AX3640S-24S2XW, AX3640S-48TW, AX3640S-48T2XW, AX3650S-24T6XW, AX3650S-48T4XW, AX3650S-20S6XW, and AX3830S-44XW of the AX3800S series. Export Restrictions If you export this product, please check all restrictions, such as Japan's Foreign Exchange and Foreign Trade Law and USA export control laws and regulations, and carry out all required procedures.
Page 5 After reading the manual, keep it in a convenient place for easy reference. Intended readers This manual is intended for engineers who install and handle AX3800S, AX3600S, and AX2400S series switches. It is therefore assumed that they are familiar with electrical circuits, wiring and networks.
Page 6 Preface Find description from the AX2400S series manuals...
Page 7 Preface Find description from the AX3640S and AX3630S series manuals...
Page 8 Preface Find description from the AX3800S and AX3650S series manuals How to obtain this manual For the manuals of AX3800S, AX3600S, and AX2400S series switches, see the following...
Page 9 AX2400S series switch  AX3600S series switch  AX3800S series switch The term switch (lower-case "s") might refer to a Switch, another type of switch from the current vendor, or a switch from another vendor. The context decides the meaning.
Page 10 Preface...
Page 11: Table Of Contents
Contents Preface ..............................I Safety Information ......................... Safety-1 1. Components Overview ......................... 1 1.1 Main device ......................... 2 1.1.1 AX2430S-24T/AX2430S-24TD/AX3630S-24T/AX3630S-24TD/AX3640S-24T models ........................3 1.1.2 AX3640S-24TW ..................... 6 1.1.3 AX2430S-24T2X, AX2430S-24T2XD, AX3630S-24T2X, AX3630S-24T2XD models ..........................10 1.1.4 AX3640S-24T2XW ....................13 1.1.5 AX3630S-24P ...................... 18 1.1.6 AX2430S-48T/AX2430S-48TD models ..............
Page 12 Contents 2.3 Electrical power equipment ..................... 103 2.3.1 Electrical power equipment for 100 V AC ............103 2.3.2 Electrical power equipment for 200 V AC ............105 2.3.3 Electrical power equipment for −48 V DC (DC models) ........106 2.3.4 Electrical power equipment for −48 V DC (redundant power models (AX3630S and AX3640S)) ......................
Page 13 Contents 4.12.2 DC model ......................176 4.12.3 Redundant power model (AX3630S, AX3640S) ..........176 4.12.4 Redundant power model (AX3650S, AX3830S) ..........178 4.13 Powering the external power unit (EPU) on or off ............179 4.13.1 EPU-A ......................179 4.13.2 EPU-B ......................180 4.14 Miscellaneous operations ....................
Page 14 Contents...
Page 15: Safety Information
Safety Information Using AX3800S, AX3600S, and AX2400S series switches safely  This guide provides important information for ensuring safe use of AX3800S, AX3600S, and AX2400S series switches. Please read this manual completely before using the Switches  Keep this manual handy after reading it, so that it is available for later reference.
Page 16 Safety Information If anything seems wrong, immediately turn off the power.  If smoke or an unusual smell is emanating from the Switch, or if liquid is spilled into the Switch or a foreign object falls into the Switch, immediately turn off Switch power as described below.
Page 17 Safety Information with a liquid, such as a vase or a flower pot, on the Switch. Liquid or metallic objects falling into the Switch could result in a fire or electric shock. Safety-3...
Page 18 Safety Information Use the Switch only with the indicated power source.  Use the Switch only with the indicated voltage of power. A fire or an electric shock might be caused. Ensure that the capacity for incoming current to the distribution board is greater than the operating current of the circuit breaker.
Page 19 Safety Information Cut the DC power cable jackets to the specified length.  To use the DC power cable on the redundant power model, cut the cable jackets (on the Switch side) to 8 to 10 mm. Too short a sheath length might result in poor contact or a disconnected cable. On the contrary, too long a sheath length might expose the core wire and cause an electric shock.
Page 20 Safety Information Do not use an air duster near a flame.  When cleaning the optical connectors, do not use an air duster that contains flammable gas near a flame. Doing so could result in a fire. Safety-6...
Page 21 Safety Information Do not place the Switch in a place where it is unstable.  If placing the Switch on a desk, lay it on its side on a workbench capable of withstanding the weight of the Switch. If, for example, you place the Switch on a shaky table or a tilted surface, the Switch might fall and possibly injure someone.
Page 22 Safety Information When moving a Switch  Before moving a Switch, you must turn it off and unplug all cables. Failure to do so might cause the Switch or cable to become deformed, or might damage the Switch, resulting in fire or electric shock. ...
Page 23 Safety Information When turning off the power, stop the supply of all power to the Switch.  As for the AC power and AC (PoE) models with backup power supplied from the EPU, turning off the power switch of the switch does not shut off the power to the switch. Turn off the switches of the switch and the power supply modules to shut off the power supplies.
Page 24 Safety Information Do not install the Switch in a dusty or humid location.  Do not install the Switch in a dusty or humid location. Doing so could result in fire or electric shock.  Condensation might form on the surfaces and the inside of the Switch if it is moved from a cold location to a warm location.
Page 25 Safety Information Attach a blank panel to a slot in which a power supply module for an EPU is not installed.  Be sure to attach a blank panel to any slots for which a power supply module for an EPU is not installed.
Page 26 Safety Information Do not place a Switch in a high-temperature location.  Do not place a Switch in direct sunlight or near a heater or other heat-generating apparatus. Doing so could adversely affect parts of the Switch. Do not use a TV or a radio near a Switch. ...
Page 27 Safety Information When the power supply unit or the fan unit is replaced with the Switch turned on, keep the time limit.  When performing any of the following replacements with the switch turned on, do not leave the switch for more than three minutes without a power supply unit or a fan unit. Otherwise, a failure might occur due to increasing temperatures inside the Switch.
Page 28  A label attached to the transceiver or direct attach cable connector indicates that the transceiver or direct attach cable connector is a standard product from ALAXALA Networks Corporation or another manufacturer. However, such labels are attached where they do not interfere with heat dissipation from the transceiver or from the direct attach cable connector or interfere with the mechanism that prevents the transceiver or the direct attach cable connector from coming loose from the cage.
Page 29 Safety Information Make sure that you use an appropriate combination of transceivers and switches.  The switches below support SFP-FX and SFP-FX (T). Use them only with the indicated switches. Otherwise, the switch might fail. - AX3640S-24SW (target ports 5 to 24) - AX3640S-24S2XW (target ports 5 to 24) - AX3650S-20S6XW (target ports 1 to 20) ...
Page 30 Safety Information Use care when handling an optical connector cleaner.  Always use a dedicated optical connector cleaner. If you use another type of cleaner, the ferrule tip might become dirty.  Before cleaning, make sure that the tip of the optical connector cleaner is clean and free of defects, such as lint, dirt, or other foreign substances.
Page 31: Components Overview
1. Components Overview Components Overview This chapter provides an overview of the various parts of the Switch. 1.1 Main device 1.2 Power supply (PS) 1.3 Fan unit (FAN) 1.4 External power unit (EPU) 1.5 Power supply module 1.6 Memory card 1.7 Transceiver 1.8 Direct attach cable 1.9 Blank panel...
Page 32: Main Device
1. Components Overview 1.1 Main device AX3800S series switches provide Layer 3 switching that is capable of 10-gigabit communication. These switches can be used as core switches for small- and middle-scale LANs, user aggregation switches for providers, and server aggregation switches that take advantage of the high switching capacity and 10-gigabit interfaces.
Page 33: Ax2430S-24T/Ax2430S-24Td/Ax3630S-24T/Ax3630S-24Td/Ax3640S-24T
AX3640S-24S2XW (redundant power model) 4 ports 6 slots AX3600S AX3650-20S6XW (redundant power model) slots 4 ports AX3800S AX3830S-44XW (redundant power model) slots 1.1.1 AX2430S-24T/AX2430S-24TD/AX3630S-24T/AX3630S-24TD/AX3640S-24T models The AX2430S-24T, AX2430S-24TD, AX3630S-24T, AX3630S-24TD and AX3640S-24T models have the following hardware specifications:  Ethernet 10/100/1000BASE-T ports: 24 ...
Page 34 1. Components Overview (1) External appearance Figure 1-1 Front view (1) Memory card slot (2) CONSOLE port (3) SFP slot (4) 10/100/1000BASE-T Ethernet port (5) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed.
Page 35 1. Components Overview (1) Standby power connector (with protective cap) (2) DC power connector 2 (3) DC power connector 1 (4) Power switch (5) Ground terminal (2) Front panel The front panel layout is shown in Figure 1-4 Front panel layout. The numbers in the figure correspond to those in Table 1-2 LED Indications, switches and connectors.
Page 36: Ax3640S-24Tw
1. Components Overview Name Type Description Details 1-24 Green/Orang Indicates the operating Lit in green: A link is established. e LED status of a Blinking green: A link is established and 10/100/1000BASE-T frames are being sent or received. Ethernet port. Lit in orange: Detecting line disturbances.
Page 37 1. Components Overview (1) CONSOLE port (2) Memory card slot (3) SFP slot (4) 10/100/1000BASE-T Ethernet port (5) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed.
Page 38 1. Components Overview Table 1-3 LED indications, switches and connectors Name Type Description Details Green LED Indicates the power supply Lit in green: Powered-on. status. Off: Powered-off or a failure with a power supply unit. Green/Red Indicates the device Lit in green: Standing by or operating. status.
Page 39 1. Components Overview #2: Not supported. When attempting to push the RESET button, do not use a tool with a fragile tip, a pin or a paper clip, which can be caught or dropped inside the switch and will not be taken out.
Page 40: Ax2430S-24T2X, Ax2430S-24T2Xd, Ax3630S-24T2X, Ax3630S-24T2Xd Models
1. Components Overview Table 1-6 Operating status in the specific LED indication mode (DUPLEX mode) Name Type Description Details LINK Green/Orang Indicates the operating Lit in green: Full duplex e LED status of an SFP slot Lit in orange: Detecting line disturbances. Ethernet port.
Page 41 1. Components Overview (1) Memory card slot (2) CONSOLE port (3) XFP slot (4) SFP slot (5) 10/100/1000BASE-T Ethernet port (6) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed.
Page 42 1. Components Overview figure correspond to those in Table 1-7 LED indications, switches and connectors. Figure 1-11 Front panel layout Table 1-7 LED indications, switches and connectors Name Type Description Details Green LED Indicates the power supply Lit in green: Powered-on. status.
Page 43: Ax3640S-24T2Xw
1. Components Overview Name Type Description Details (11) 1-24 Green/Orang Indicates the operating Lit in green: A link is established. e LED status of a Blinking green: A link is established and 10/100/1000BASE-T frames are being sent or received. Ethernet port. Lit in orange: Detecting line disturbances.
Page 44 1. Components Overview (1) External appearance Figure 1-12 Front view (1) CONSOLE port (2) Memory card slot (3) XFP slot (4) SFP slot (5) 10/100/1000BASE-T Ethernet port (6) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed.
Page 45 1. Components Overview status is shown. Figure 1-14 Front panel layout Table 1-8 LED indications, switches and connectors Name Type Description Details Green LED Indicates the power supply Lit in green: Powered-on. status. Off: Powered-off or a failure with a power supply unit.
Page 46 1. Components Overview Name Type Description Details (13) MODE Button Mode button Changing the LED indication modes from (14) to (17) by pressing this button. (momentary) (The order is as follows: LINK > SPEED > FDX > EX > LINK...) (14) LINK Green LED...
Page 47 1. Components Overview Name Type Description Details (11) 1-24 Green/Orang Indicates the operating Lit in green: A link is established. e LED status of a Blinking green: A link is established and 10/100/1000BASE-T frames are being sent or received. Ethernet port. Lit in orange: Detecting line disturbances.
Page 48: Ax3630S-24P
1. Components Overview 1.1.5 AX3630S-24P The AX3630S-24P model has the following hardware specifications:  Ethernet 10/100/1000BASE-T ports (PoE supported): 24  SFP slots: 4  Memory card slot: 1  CONSOLE port: 1 NOTE Since Switch ports 1 to 4 are shared by the SFP slots and 10/100/1000BASE-T, the ports cannot be assigned to both SFP and 10/100/1000BASE-T at the same time.
Page 49 1. Components Overview Figure 1-16 Back view (1) Standby power connector (with protective cap) (2) Cable clamp (3) AC power connector (4) Power switch (2) Front panel The front panel layout is shown in Figure 1-17 Front panel layout. The numbers in the figure correspond to those in Table 1-12 LED indications, switches and connectors.
Page 50: Ax2430S-48T/Ax2430S-48Td Models
1. Components Overview Name Type Description Details Green LED Indicates the memory card Lit: Accessing the memory card. (Do not status. remove the memory card.) Off: Memory card is in idle mode. (The memory card can be removed.) CONS Connector CONSOLE port RS-232C port to connect a console terminal.
Page 51 1. Components Overview (1) External appearance Figure 1-18 Front view (1) Memory card slot (2) CONSOLE port (3) SFP slot (4) 10/100/1000BASE-T Ethernet port (5) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed.
Page 52 1. Components Overview (1) Standby power connector (with protective cap) (2) DC power connector 2 (3) DC power connector 1 (4) Power switch (5) Ground terminal (2) Front panel The front panel layout is shown in Figure 1-21 Front panel layout. The numbers in the figure correspond to those in Table 1-13 LED indications, switches and connectors.
Page 53: Ax3630S-48Tw/Ax3640S-48Tw Models
1. Components Overview Name Type Description Details 1-48 Green/Orang Indicates the operating Lit in green: A link is established. e LED status of a Blinking green: A link is established and 10/100/1000BASE-T frames are being sent or received. Ethernet port. Lit in orange: Detecting line disturbances.
Page 54 1. Components Overview (1) Memory card slot (2) CONSOLE port (3) SFP slot (4) 10/100/1000BASE-T Ethernet port (5) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed.
Page 55: Ax2430S-48T2X
1. Components Overview Name Type Description Details Green/Red Indicates the device status. Lit in green: Standing by or operating. Blinking green: Getting ready (starting up). Blinking red: Partial failure with the switch Lit in red: Fatal failure in the device (operation cannot continue) Off: Powered-off or a failure with a power supply unit.
Page 56 1. Components Overview For information about the XFPs supported by the Switch, see 1.7.3 XFP. NOTE (1) External appearance Figure 1-25 Front view (1) Memory card slot (2) CONSOLE port (3) XFP slot (4) 10/100/1000BASE-T Ethernet port (5) Security tape NOTE Do not peel away the security tape.
Page 57 1. Components Overview Figure 1-27 Front panel layout Table 1-15 LED indications, switches and connectors Name Type Description Details Green LED Indicates the power supply Lit in green: Powered-on. status. Off: Powered-off or a failure with a power supply unit. Green/Red Indicates the device status.
Page 58: Ax3630S-48T2Xw/Ax3640S-48T2Xw Models
1. Components Overview When attempting to push the RESET button, do not use a tool with a fragile tip, a pin or a paper clip, which can be caught or dropped inside the switch and will not be taken out. A fire or an electric shock might be caused. 1.1.9 AX3630S-48T2XW/AX3640S-48T2XW models The AX3630S-48T2XW and AX3640S-48T2XW models have the following hardware specifications:...
Page 59 1. Components Overview Figure 1-29 Back view (1) Power supply unit slot 2 (2) Power supply unit slot 1 (3) Ground terminal To build a redundant power supply system, insert power supplies into both power NOTE supply unit slots 1 and 2. Otherwise, insert a power supply unit into power supply unit slot 1 and a fan unit into power supply unit slot 2.
Page 60: Ax3640S-24Sw
1. Components Overview Name Type Description Details Connector Memory card slot Memory card slot Green LED Indicates the memory card Lit: Accessing the memory card. (Do not status. remove the memory card.) Off: Memory card is in idle mode. (The memory card can be removed.) CONS Connector...
Page 61 1. Components Overview (1) External appearance Figure 1-31 Front view (1) Memory card slot (2) CONSOLE port (3) 10/100/1000BASE-T Ethernet port (4) SFP slot (5) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed.
Page 62 1. Components Overview Figure 1-33 Front panel layout Table 1-17 LED indications, switches and connectors Name Type Description Details Green LED Indicates the power supply Lit in green: Powered-on. status. Off: Powered-off or a failure with a power supply unit. Green/Red Indicates the device Lit in green: Standing by or operating.
Page 63: Ax3630S-24S2Xw/Ax3640S-24S2Xw Models
1. Components Overview When attempting to push the RESET button, do not use a tool with a fragile tip, a pin or a paper clip, which can be caught or dropped inside the switch and will not be taken out. A fire or an electric shock might be caused. 1.1.11 AX3630S-24S2XW/AX3640S-24S2XW models The AX3630S-24S2XW and AX3640S-24S2XW models have the following hardware specifications:...
Page 64 1. Components Overview NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed. Figure 1-35 Back view (1) Power supply unit slot 2 (2) Power supply unit slot 1 (3) Ground terminal To build a redundant power supply system, insert power supplies into both power NOTE...
Page 65 1. Components Overview Name Type Description Details Green/Red Indicates the device Lit in green: Standing by or operating. status. Blinking green: Getting ready (starting up). Blinking red: Partial failure with the switch Lit in red: Fatal failure in the device (operation cannot continue) Off: Powered-off or a failure with a power supply unit.
Page 66: Ax3650S-24T6Xw
1. Components Overview 1.1.12 AX3650S-24T6XW The AX3650S-24T6XW model has the following hardware specifications:  Ethernet 10/100/1000BASE-T ports: 24  SFP+ slots: 6  Memory card slot: 1  CONSOLE port: 1  Power supply unit slots: 2  Fan unit slot: 1 For information about the SFPs and SFP+s supported by the Switch, see 1.7.1 SFP NOTE and 1.7.2 SFP+.
Page 67 1. Components Overview Figure 1-38 Back view (1) Fan unit slot (2) Ground terminal (3) Power supply unit slot 2 (4) Power supply unit slot 1 (2) Front panel The front panel layout is shown in Figure 1-39 Front panel layout. The numbers in the figure correspond to those in Table 1-19 LED indications, switches and connectors.
Page 68 1. Components Overview Table 1-19 LED indications, switches and connectors Name Type Description Details brightness Green Indicates the power Lit in green Normal Powered-on. supply status. Blinking Normal Asleep. green Powered-off or a failure with a power supply unit. Green/ Indicates the device Lit in green Normal...
Page 69: Ax3650S-48T4Xw
1. Components Overview Name Type Description Details brightness Green Blinking Normal Sending or receiving green frames. 1-24 Green/ Indicates the Lit in green Normal A link is established. Orange operating status of 10/100/1000BASE- T Ethernet port. Blinking Normal A link is established and green frames are being sent or received.
Page 70 1. Components Overview  Power supply unit slots: 2  Fan unit slot: 1 For information about the SFPs and SFP+s supported by the Switch, see 1.7.1 SFP NOTE and 1.7.2 SFP+. (1) External appearance Figure 1-40 Front view (1) Memory card slot (2) 10/100/1000BASE-T Ethernet port (3) SFP+ slot (4) CONSOLE port...
Page 71 1. Components Overview (3) Power supply unit slot 2 (4) Power supply unit slot 1 (2) Front panel The front panel layout is shown in Figure 1-42 Front panel layout. The numbers in the figure correspond to those in Table 1-20 LED indications, switches and connectors. AX3650S-48T4XW switches support the device sleep function and LED brightness control function (power control (brightness) mode and off mode) in order to save power.
Page 72 1. Components Overview Table 1-20 LED indications, switches and connectors Name Type Description Details bright ness Green Indicates the Lit in green Normal Powered-on. power supply status. Blinking Normal Asleep. green Powered-off or a failure with a power supply unit. Green/Red Indicates the Lit in green...
Page 73: Ax3650S-20S6Xw
1. Components Overview Name Type Description Details bright ness Green Blinking green Normal Sending or receiving frames. 1-48 Green/Ora Indicates the Lit in green Normal A link is established. nge LED operating status of a 10/100/1000BA SE-T Ethernet Blinking green Normal A link is established and port.
Page 74 1. Components Overview  Memory card slot: 1  CONSOLE port: 1  Power supply unit slots: 2  Fan unit slot: 1 For information about the SFPs and SFP+s supported by the Switch, see 1.7.1 SFP NOTE and 1.7.2 SFP+. (1) External appearance Figure 1-43 Front view (1) SFP slot...
Page 75 1. Components Overview Figure 1-44 Back view (1) Fan unit slot (2) Ground terminal (3) Power supply unit slot 2 (4) Power supply unit slot 1 (2) Front panel The front panel layout is shown in Figure 1-45 Front panel layout. The numbers in the figure correspond to those in Table 1-21 LED indications, switches and connectors.
Page 76 1. Components Overview Table 1-21 LED indications, switches and connectors Name Type Description Details brightn Green LED Indicates the power Lit in Normal Powered-on. supply status. green Blinking Normal Asleep. green Powered-off or a failure with a power supply unit. Green/Red Indicates the device Lit in...
Page 77 1. Components Overview Name Type Description Details brightn A link failure or block when the green ST1 LED is lit. Green LED Blinking Normal Sending or receiving green frames. LINK Green/Ora Indicates the operating Lit in Normal A link is established. nge LED status of an SFP+ slot green...
Page 78: Ax3830S-44Xw
1. Components Overview #2: Operating in power control (brightness) mode or off mode #3: Operating in power control (brightness) mode #4: In off mode, a link might be established, frames might be sent or received, or line disturbances might be detected. #5: The switch is behind the front panel.
Page 79 1. Components Overview NOTE Do not peel away the security tape. If you do so, will be displayed. The device is no longer under warranty if is displayed. Figure 1-47 Back view (1) Power supply unit slot 2 (2) Fan unit slot (3) Ground terminal (4) Power supply unit slot 1 (2) Front panel...
Page 80 1. Components Overview Table 1-22 LED indications, switches and connectors Name Type Description Details brightne Green LED Indicates the power Lit in Normal Powered-on. supply status. green Blinking Normal Asleep. green Powered-off or a failure with a power supply unit. Green/Red Indicates the device Lit in...
Page 81 1. Components Overview Name Type Description Details brightne A link failure or block when the green ST1 LED is lit. Green LED Blinking Normal Sending or receiving green frames. LINK Green/Oran Indicates the operating Lit in Normal A link is established. ge LED status of a green...
Page 82: Accessories
1. Components Overview 1.1.16 Accessories The items listed in Table 1-23 Switch accessories are included as accessories with shipment of the switch. Table 1-23 Switch accessories Applicable model AC power Power Power Item Notes ntity power redundancy redundancy model model model model AC power...
Page 83 Switch. Otherwise, a fire and/or an electric shock may be the result. Make sure to use a power cable specified by ALAXALA Networks Corporation when any AC model is connected to 200 V AC. Otherwise, a fire or an electric shock might result.
Page 84 1. Components Overview (5) DC power cable The cable (3 m long) is for a −48 V DC power supply unit. This item is bundled with DC models. Figure 1-50 DC power cable Make sure to use the accessory power cable for any DC model. Other cable except the bundled one may cause a fire and/or an electric shock.
Page 85 1. Components Overview Figure 1-53 Rack mounting brackets for AC and DC models (1) Rack mounting bracket (L) (2) Rack mounting bracket (R) Figure 1-54 Rack mounting brackets for AC (PoE) and redundant power models (AX3630S and AX3640S) (1) Rack mounting bracket (L) (2) Rack mounting bracket (R) Figure 1-55 Rack mounting brackets for redundant power model (AX3650S) (1) Rack mounting bracket (L)
Page 86 1. Components Overview Figure 1-56 Rack mounting brackets (for redundant power models in the AX3830S series) There are four types of rack mounting brackets: NOTE  For AC and DC models: 12 screw holes  For AC power (PoE) and redundant power models (AX3630S and AX3640S), and EPU: 12 screw holes with label information "24P/EPU"...
Page 87: Power Supply (Ps)
1. Components Overview 1.2 Power supply (PS) The power supply is a system to supply electrical power to a redundant power model, which is mounted into a power supply unit slot in the switch. There are different types of power supplies: those that support redundant power models, AX3630S and AX3640S series switches, and those that support AX3650S and AX3830S series switches.
Page 88: Ps-D01
1. Components Overview (1) POWER LED (2) ALM1 LED (3) ALM2 LED (4) Cable clamp (5) AC power connector (6) Power switch (7) Handle (8) Screws Table 1-25 LED indication Name Type Description Details POWER Green LED Indicates the status of the power Lit in green: Powered-on.
Page 89: Ps-A03
1. Components Overview (6) Power switch (7) Handle (8) Screws Table 1-26 LED indications Name Type Description Details POWER Green LED Indicates the status of the power Lit in green: Powered-on. supply unit. Off: Powered-off. ALM1 Red LED Indicates an internal power Lit in red: Fault detection supply unit failure.
Page 90: Power Supply Accessories
1. Components Overview (9) Handle Table 1-27 LED indications Name Type Description Details POWER Green LED Indicates the status of the power Lit in green: Powered-on. supply unit. Off: Powered-off. ALM1 Red LED Indicates an internal power Lit in red: Fault detection supply unit failure.
Page 91 Otherwise, a fire and/or an electric shock may be the result. Make sure to use a power cable specified by ALAXALA Networks Corporation when a PS-A01 or PS-A03 is connected to 200 V AC. Otherwise, a fire or an electric shock might result.
Page 92: Fan Unit (Fan)
1. Components Overview 1.3 Fan unit (FAN) The fan unit cools the inside of the redundant power model. There are different types of fan units: those that support redundant power models, AX3630S and AX3640S series switches, and those that support AX3650S and AX3830S series switches.
Page 93: Fan-03
1. Components Overview Table 1-30 LED indication Name Type Description Details Red LED Indicates fan failure. Lit in red: Fault detection Off: Normal. Two fan components are installed in the fan unit and the other two fan components are installed in the power supply unit (PS-A01/D01). This enables uninterrupted NOTE operation and cooling performance, even if one of the four fan components fails.
Page 94: Fan Unit Accessories
1. Components Overview 1.3.3 FAN-04 FAN-04 is a fan unit for the redundant power models in the AX3830S series. It is inserted into the fan unit slot on the chassis regardless of the number of power supply units. Figure 1-67 External appearance shows its appearance. For the LEDs in the figure, see Table 1-32 LED indication.
Page 95 1. Components Overview (1) Check list for bundled items List of the bundled items with shipment of the fan unit (2) For Safe Operation Cautionary notes for safe use of the Switch are described. Be sure to read through this document before using the switch.
Page 96: External Power Unit (Epu)
1. Components Overview 1.4 External power unit (EPU) Connected via the special accessory cable, the external power unit (EPU) supplies stand-by power to the main device of AX2400S and AX3600S series switches to configure power redundancy, which allows continuous operation of the device without interruptions, even if a failure occurs within the internal power unit.
Page 97 1. Components Overview (1) External appearance Figure 1-68 Front view (1) Power supply module EPU-AM (mounted in slot 1 when shipped) (2) Blank panel (3) Power supply module slots (4) (4) Security tape NOTE Do not peel away the security tape. If you do so, will be displayed.
Page 98 1. Components Overview Figure 1-70 Front layout Figure 1-71 Back layout Table 1-35 LED indications, switches and connectors Name Type Description Details POWER Green LED Indicates the power supply Lit in green: Powered-on. Electrical power is status. output to the mounted power supply modules.
Page 99: Epu-B
1. Components Overview 1.4.2 EPU-B External power unit for the AC (PoE) models. EPU-B has the following hardware specifications:  Power supply module slots: 2  Power supply module (EPU-BM): 1 NOTE The EPU has one power supply module in slot 1. Blank panels over the other slots when shipped.
Page 100 1. Components Overview (3) AC power connector (4) Main power switch (2) Panel layout The front layout and back layout are shown in Figure 1-74 Front layout and Figure 1-75 Back layout, respectively. The numbers in the figure correspond to those in Table 1-36 LED indications, switches and connectors.
Page 101: Epu Accessories
1. Components Overview Name Type Description Details EPU 2 Connector Standby power connector 2 To output electrical power from the power supply module mounted in slot 2. Connect the standby power cable bundled with the power supply module to the standby power connector on the back face of the switch.
Page 102 1. Components Overview Figure 1-76 AC power cable Make sure to use the accessory power cable. Other cable except the bundled one may cause a fire and/or an electric shock. In addition, use the accessory cable only for the Switch. Otherwise, a fire and/or an electric shock may be the result. (4) Standby power cable Standby power cable (1.5 meter long).
Page 103 1. Components Overview Figure 1-79 Rack mounting bracket (1) Rack mounting bracket (L) (2) Rack mounting bracket (R) There are four types of rack mounting brackets: NOTE  For AC and DC models: 12 screw holes  For AC power (PoE) and redundant power models (AX3630S and AX3640S), and EPU: 12 screw holes with label information "24P/EPU"...
Page 104: Power Supply Module
1. Components Overview 1.5 Power supply module This section describes the power supply modules used in external power units (EPU) for AX2400S and AX3600S series switches. Add power supply modules to the EPU to use the EPU for more than one switch. There are two types of power supply modules: EPU-AM for EPU-A and EPU-BM for EPU-B.
Page 105: Power Supply Module Accessories
1. Components Overview Figure 1-82 External appearance shows its appearance. For descriptions about (1) to (3) in the figure, see Table 1-39 LED indication. Figure 1-82 External appearance (1) DC-OK LED (2) DC-FAIL LED (3) AC-OK LED (4) Handle (5) Latch Table 1-39 LED indications Name Type...
Page 106 1. Components Overview Item Quantity Notes Standby power cable 1.5m (1) Check list for bundled items List of the bundled items with shipment of the power supply module (2) For Safe Operation Cautionary notes for safe use of the Switch are described. Be sure to read through this document before using the switch.
Page 107: Memory Card
(1) SD128 and SD128 (T) Below is an SD memory card with a 128-MB capacity. Figure 1-84 External appearance Label information: AlaxalA SD128 or AlaxalA SD128 (T) (2) SD1G Below is an SD memory card with a 1-GB capacity. Figure 1-85 External appearance...
Page 108: Transceiver
1. Components Overview 1.7 Transceiver 1.7.1 SFP To use an SFP, insert it into an SFP or SFP+ slot on the chassis. The SFP type can be identified by one of the following items:  SFP shape and handle color (except for SFP-FX, SFP-FX (T), SFP-SX, and SFP-SX (T)) ...
Page 109 CAUTION The transceivers have labels to certify that they are standard products of the manufacturer or ALAXALA Networks Corporation. These labels are attached so as not to disturb heat radiation from the transceiver or the mechanism to avoid dropping from the cage.
Page 110 PoE is not supported. (2) SFP-FX and SFP-FX (T) Figure 1-87 External appearance (1) Label information: AlaxalA SFP-FX or AlaxalA SFP-FX (T) Label color: White (2) Handle color: Black SFP-FX and SFP-FX (T) are supported by the switches below. Use them only with CAUTION the indicated switches.
Page 111 1. Components Overview (4) SFP-SX2 and SFP-SX2 (T) Figure 1-89 External appearance (1) Label information: AlaxalA SFP-SX2 or AlaxalA SFP-SX2 (T) Label color: White (2) Handle color: Silver SFP-SX2 and SFP-SX2 (T) are supported by the switches below. Use them only CAUTION with the indicated switches.
Page 112 Label color: White (2) Handle color: Yellow-green (8) SFP-BX1U and SFP-BX1U (T) Figure 1-93 External appearance (1) SFP back label information: AlaxalA SFP-BX1U or AlaxalA SFP-BX1U (T) Label color: White (2) Handle color: Blue (9) SFP-BX1D and SFP-BX1D (T) Figure 1-94 External appearance...
Page 113: Sfp
1. Components Overview (10) SFP-BX4U and SFP-BX4U (T) Figure 1-95 External appearance (1) SFP back label information: AlaxalA SFP-BX4U or AlaxalA SFP-BX4U (T) Label color: White (2) Handle color: Yellow (11) SFP-BX4D and SFP-BX4D (T) Figure 1-96 External appearance (1) SFP back label information: AlaxalA SFP-BX4D or AlaxalA SFP-BX4D (T)
Page 114 CAUTION The transceivers have labels to certify that they are standard products of the manufacturer or ALAXALA Networks Corporation. These labels are attached so as not to disturb heat radiation from the transceiver or the mechanism to avoid dropping from the cage.
Page 115: Xfp
CAUTION The transceivers have labels to certify that they are standard products of the manufacturer or ALAXALA Networks Corporation. These labels are attached so as not to disturb heat radiation from the transceiver or the mechanism to avoid dropping from the cage.
Page 116 Make sure to use our standard products with the label shown in the figure. Otherwise, correct operation is not guaranteed. (1) XFP-SR and XFP-SR (T) Figure 1-100 External appearance (1) Label information: AlaxalA XFP-SR or AlaxalA XFP-SR (T) (2) Handle color: Ivory (2) XFP-LR and XFP-LR (T) Figure 1-101 External appearance...
Page 117: Transceiver Accessories
1. Components Overview (1) Label information: AlaxalA XFP-ER or AlaxalA XFP-ER (T) (2) Handle color: Red (4) XFP-ZR and XFP-ZR (T) Figure 1-103 External appearance (1) Label information: AlaxalA XFP-ZR or AlaxalA XFP-ZR (T) (2) Handle color: White 1.7.4 Transceiver accessories The items listed in Table 1-44 Transceiver accessories are included as accessories with shipment of the transceiver.
Page 118: Direct Attach Cable
CAUTION The connectors have labels to certify that they are standard products of the manufacturer or ALAXALA Networks Corporation. These labels are attached so as not to disturb heat radiation from the connector or the mechanism to avoid dropping from the cage.
Page 119 1. Components Overview NOTE Make sure to use our standard products with the label shown in the table. Otherwise, correct operation is not guaranteed.
Page 120: Blank Panel
1. Components Overview 1.9 Blank panel Blank panels are attached instead of power supplies when only one power supply unit is installed in AX3830S or AX3650S series switches. (1) BPNL-01 Figure 1-105 (1) Handle (2) Screws...
Page 121: Preparation For Installation
Preparation for Installation This chapter describes environmental conditions and the required preparation for installation of the Switch. Before preparing for an installation, read this chapter carefully and make sure that you understand all instructions and cautionary notes in this chapter. 2.1 Preparation workflow 2.2 Installation conditions 2.3 Electrical power equipment...
Page 122: Preparation Workflow
2. Preparation for Installation 2.1 Preparation workflow The workflow to prepare for installation is shown in Figure 2-1 Flowchart of the installation preparation. The workflow for supplying power, communication functions and LAN cable installation should be completed prior to carrying in the components. Make sure to schedule them in good time.
Page 123: Installation Conditions
2. Preparation for Installation 2.2 Installation conditions This section provides the conditions for installing the main device and an external power unit (EPU). The installation environment must meet these conditions. 2.2.1 General installation conditions The General Installation Conditions for the Switch are listed below. Table 2-1 General installation conditions for AX2400S series switches (AC or DC models) Model name Item...
Page 124 2. Preparation for Installation Table 2-2 General installation conditions for AX3630S series switches (AC, AC (PoE) or DC models) Model name Item AX3630S AX3630S AX3630S AX3630S AX3630S -24T -24T2X -24P -24TD -24T2XD Dimensions (W x D x 445 x 380 x 43 mm 445 x 490 x 445 x 380 x 43 mm 43 mm...
Page 125 2. Preparation for Installation Model name AX3630S-24S2XW AX3630S-48TW AX3630S-48T2XW Item PS-A01 PS-D01 PS-A01 PS-D01 PS-A01 PS-D01 mounted mounted mounted mounted mounted mounted −48 V DC −48 V DC −48 V DC Input Rating Single Single Single voltage phase AC phase AC phase AC 100 to 120 100 to 120...
Page 126 2. Preparation for Installation Model name Item AX3640S-24T Maximum input current 0.8A@AC100V 0.4A@AC200V Maximum power 75 W consumption Maximum heat emission 270kJ/h #1: Excluding the dimensions of connectors. #2: Weight of the main device only. The weight of cables, rack mounting brackets, memory cards and transceivers are excluded.
Page 127 2. Preparation for Installation Model name AX3640S-24TW AX3640S-24T2XW AX3640S-48TW Item PS-A01 PS-D01 PS-A01 PS-D01 PS-A01 PS-D01 mounted mounted mounted mounted mounted mounted 0.5A 0.5A 0.7A @ 200 V AC @ 200 V AC @ 200 V AC Maximum power 85 W 75 W 100 W 90 W...
Page 128 2. Preparation for Installation Model name AX3640S-48T2XW AX3640S-24SW AX3640S-24S2XW Item PS-A01 PS-D01 PS-A01 PS-D01 PS-A01 PS-D01 mounted mounted mounted mounted mounted mounted 0.8A 0.5A 0.5A @ 200 V AC @ 200 V AC @ 200 V AC Maximum power 145 W 135 W 85 W 75 W...
Page 129 2. Preparation for Installation Table 2-8 General installation conditions for AX3830S series switches Model name AX3830S-44XW Item PS-A03 mounted Dimensions (W x D x H) 445 x 580 x 43 mm Weight 11kg or less Input voltage Rating Single phase 100 to 120 V AC, 200 to 240 V AC Variation range 90 to 127.2 V AC, 180 to 254.4 V AC 50/60 ...
Page 130: Environmental Conditions
2. Preparation for Installation Model name Item EPU-A EPU-B Maximum heat 1,534 kJ/h 1,008 kJ/h emission #1: Excluding the dimensions of connectors and handles. #2: Weight of the unit with maximum number of power supply modules. The weight of cables and rack mounting brackets are excluded. #3: Heat emission of the Switch only.
Page 131 2. Preparation for Installation #3: According to JIS Z 8813 Measuring Methods for Suspended Particulate Matter Concentration in Air - General Requirements. #4: If the temperature sensor for the intake air temperature exceeds 50 deg. C, the Switch stops. #5: No condensation Table 2-11 Environmental conditions (redundant power models) Requirement AX3830S...
Page 132 2. Preparation for Installation #3: Fan speed is controlled according to the intake air temperature, which causes the noise level to vary. #4: According to JIS Z 8813 Measuring Methods for Suspended Particulate Matter Concentration in Air - General Requirements. #5: If the temperature sensor for the intake air temperature exceeds 50 deg.
Page 133: Electrical Power Equipment
2. Preparation for Installation 2.3 Electrical power equipment 2.3.1 Electrical power equipment for 100 V AC (1) Standards for electrical outlets Use the electrical outlets conforming to the following JIS or NEMA standard. These electrical outlets are available at general electrical contractors. Table 2-12 Standards for electrical outlets Standard Specifications...
Page 134 2. Preparation for Installation Series model Current (peak Time value) AC (PoE) model 50 ms or less Redundant power model 10 ms or less AX3640S AC model 10 ms or less Redundant power model 10 ms or less AX3650S Redundant power model 10 ms or less AX3830S Redundant power model...
Page 135: Electrical Power Equipment For 200 V Ac
2. Preparation for Installation 2.3.2 Electrical power equipment for 200 V AC (1) AC power cable Use the power cable described below. Table 2-14 Specifications of AC power cable connector Plug Item Cable on the Switch for the outlet Rating 10 A, 250 V 10 A, 250 V 10 A, 250 V...
Page 136: Electrical Power Equipment For −48 V Dc (Dc Models)
2. Preparation for Installation Series model Current (peak Time value) Redundant power model 10 ms or less AX3650S Redundant power model 10 ms or less AX3830S Redundant power model 10 ms or less #1: Excluding AC (PoE) models. NOTE For easy operation, it is recommended that the distribution board should be installed in the same room as the Switch or the adjacent room.
Page 137 2. Preparation for Installation Figure 2-3 Specifications of the DC power cable (for electrical power equipment) (1) −48 V (white) (2) 0V (red) (3) Ground (green/yellow) Table 2-16 Specifications of −48 V DC power cable Cable specifications Cable Type Number of core AWG No.
Page 138 2. Preparation for Installation When selecting circuit breakers, make sure that they meet the following rating, considering the input current and inrush current/time.  Breaker rating: 15 AT (for a 15 A circuit) or less For details about input current of the Switch, see 2.2.1 General installation conditions, and for details about inrush current and time of the Switch, see Table 2-17 Inrush current.
Page 139: Electrical Power Equipment For −48 V Dc (Redundant Power Models (Ax3630S And Ax3640S))
2. Preparation for Installation 2.3.4 Electrical power equipment for −48 V DC (redundant power models (AX3630S and AX3640S)) (1) DC power cable The redundant power models contain no accessory power cables. Use the power cable specified below to connect the Switch to −48 V DC. Table 2-18 DC power cable specifications Cable specifications Cable type...
Page 140 2. Preparation for Installation (1) Ground (green/yellow) Table 2-19 Ground cable specifications Cable specifications Cable type Number of core AWG No. wires Ground cable Make sure to connect the ground cable. Not connecting the grounded outlet to the switch can cause electric shocks, as well as cause failures due to electrical noise. (3) Distribution board The branch circuit to supply power to the Switch requires circuit breakers or other devices.
Page 141 2. Preparation for Installation In addition, if you power on the Switch, it has inrush current listed in Table 2-20 Inrush current. Consider measures to prevent voltage reduction of the power supply due to inrush current. If you power on the Switch, it has inrush current. Consider measures to prevent CAUTION voltage reduction of the power supply due to inrush current.
Page 142: Notes On Electrical Noise
2. Preparation for Installation 2.4 Notes on electrical noise Electrical noise emitted by other instruments can cause failures. Note the following points when designing an electrical power equipment plan:  The branch circuit of a power supply to the Switch should not be accompanied with devices or instruments that have a relay or micro switches to turn it on and off repeatedly, such as air conditioners.
Page 143: Leakage Current
2. Preparation for Installation 2.5 Leakage current The Switch is equipped with a noise filter to prevent failures due to electrical noise and leakage current through the protective ground line (Type D grounding). Each device has at most 1 mA of leakage current. Be sure to take other factors into consideration, such as compliance with the Fire Service Act or other legislation.
Page 144: Environmental Conditions
2. Preparation for Installation 2.6 Environmental conditions (1) Dust Cooling fans are embedded in the Switch. Do not install the Switch in a humid or dusty place. The dust conditions of the Switch are as follows:  Airborne dust concentration: 0.15 mg/m or less (according to JIS Z 8813 Measuring Methods for Suspended Particulate Matter Concentration in Air - General Requirements)
Page 145 2. Preparation for Installation cover the device to prevent exposure to chemicals. (9) Earthquake countermeasures An earthquake can cause a switch to be moved, fall, or knocked out of a window, possibly resulting in death or injury. Take sufficient measures to prevent the switch from moving or falling.
Page 146: Where To Install
Ensure 100 mm of free space in front and rear of the Switch to deal with the cables. Table 2-23 Required items for mounting the device on a rack Item Requirements Screws supplied with the rack M5 screws x 4 (AX2400S and AX3600S) Screws supplied with the rack M5 screws x 8 (AX3800S)
Page 147 2. Preparation for Installation NOTE The accessory rack mounting brackets are compatible with M5 screws. Use a rack compatible with M5 screws.
Page 148: Maintenance Area
2. Preparation for Installation 2.8 Maintenance area Ensure the proper amount of space for maintenance of the Switch as described below. (1) Maintenance area for a Switch on a table The required space for maintenance varies depending on the models. For the required maintenance area in front and rear of the switch, see Table 2-24 Front and rear maintenance space.
Page 149 2. Preparation for Installation (2) Maintenance area for a rack-mounted Switch Figure 2-6 Maintenance area for a rack-mounted Switch AX3830S and AX3650S series switches require space to insert or take out devices NOTE above the memory card slot. When installing the Switch under another component, ensure an appropriate amount of space, taking into consideration the component's options and cables that stick out the front.
Page 150: Cooling Conditions
The air flow into and out of AX3800 series switches is shown in Figure 2-8 Air flow into and out of AX3800S series switches (when fans and PSs that intake air in front and exhaust air in rear are implemented).
Page 151: Cooling Conditions For The Switch On A Table
2. Preparation for Installation 2.9.2 Cooling conditions for the Switch on a table Ensure more than 50 mm of space for air flow from the sides of the device. Do not block the air vents of the device. Otherwise, the internal heat is not discharged, which may cause a fire.
Page 152: Noise Of The Switch
2. Preparation for Installation 2.10 Noise of the Switch The Switch generates noise due to internal cooling fans. Take noise into account when planning the switch installation layout. For details about the noise from the switch, see 2.2 Installation conditions. The following tips are for a layout design that takes noise into account: NOTE ...
Page 153: Preparation Of Interface Cables And Terminals
Preparation of Interface Cables and Terminals This chapter describes the interface cables and the terminals used for the Switch. 3.1 Connecting interface cables and terminals 3.2 Network interface specifications...
Page 154: Connecting Interface Cables And Terminals
3. Preparation of Interface Cables and Terminals 3.1 Connecting interface cables and terminals The applicable interfaces for the Switch and the cables to connect to the interfaces are listed in Table 3-1 Interface cables and terminal connection cables. The user should provide these cables. Table 3-1 Interface cables and terminal connection cables Transceive Conne...
Page 155 3. Preparation of Interface Cables and Terminals Transceive Conne Port/Slot Interface Cable ctor Multiple-terminal mode optical fiber (core/cladding diameter = 62.5 m/125 m) SFP slot SFP-LX 1000BASE-LX Multiple-terminal mode optical fiber (core/cladding diameter = 50 m/125 SFP+ slot SFP-LX (T) m) Multiple-terminal mode optical fiber (core/cladding diameter = 62.5 m/125...
Page 156 3. Preparation of Interface Cables and Terminals Transceive Conne Port/Slot Interface Cable ctor m) SFPP-LR 10GBASE-LR Single-terminal mode optical fiber (core/cladding diameter = 10 m/125 m) SFPP-ER 10GBASE-ER SFPP-CU1 SFPP-CU3 SFPP-CU5 XFP slot XFP-SR 10GBASE-SR Multiple-terminal mode optical fiber (core/cladding diameter = 50 m/125 duplex XFP-SR (T) m)
Page 157: Network Interface Specifications
3. Preparation of Interface Cables and Terminals 3.2 Network interface specifications 3.2.1 Ethernet 10/100/1000BASE-T (1) Mode setting on the port Any of the following modes can be specified for the Ethernet 10/100/1000BASE-T port. The factory default setting is auto-negotiation.  Auto negotiation (default) ...
Page 158: 100Base-Fx
3. Preparation of Interface Cables and Terminals Table 3-2 Power supply pin assignment RJ-45 pin Signal name number Positive Vport Positive Vport Negative Vport Negative Vport 3.2.2 100BASE-FX (1) Mode setting on the port Either of the following modes can be specified for the Ethernet 100BASE-FX port. The factory default setting is full-duplex (fixed).
Page 159: Ethernet 10Gbase-R
3. Preparation of Interface Cables and Terminals NOTE This function is not supported in AX3830S series switches. 3.2.4 Ethernet 10GBASE-R (1) Mode setting on the port Available mode setting for the Ethernet 10GBASE-R port is only full duplex (fixed). NOTE Auto-negotiation and half-duplex (fixed) communication are not supported.
Page 160 3. Preparation of Interface Cables and Terminals...
Page 161: Installation Of The Components
Installation of the Components This chapter provides the procedures for installing components. 4.1 Necessary tools 4.2 Precautions before starting an installation 4.3 Installation of the main device 4.4 Mounting external power units (EPUs) and power supply modules 4.5 Connecting and disconnecting a power cable to and from the main device 4.6 Attaching and detaching a power cable to and from a external power unit (EPU) 4.7 Inserting and removing memory cards and the dummy memory card 4.8 Inserting and removing SFPs...
Page 162: Necessary Tools
4. Installation of the Components 4.1 Necessary tools The following tools are necessary for installing the components: Phillips screwdriver no. 1: Use this screwdriver to attach the rack mounting brackets to the device. Phillips screwdriver no. 2: Use this screwdriver to mount the device to the rack. Also, use this screwdriver to attach the ground cable to the DC model and the redundant power model (AX3630S and AX3640).
Page 163: Precautions Before Starting An Installation
4. Installation of the Components 4.2 Precautions before starting an installation For switches on tables, avoid an unstable places including wobbly tables and tilted surfaces. Install the switch horizontally on a solid table. Otherwise, the switch might fall and cause injury. Do not block the air vents of the device.
Page 164: Installation Of The Main Device
4. Installation of the Components 4.3 Installation of the main device This section describes the way to install the device on a table or a rack. Follow the procedures below. When moving the redundant power model, do not hold the handle of the power supply unit or the fan unit.
Page 165 4. Installation of the Components AX3830S and AX3650S series switches require space to insert or take out devices NOTE above the memory card slot. When installing the Switch under another component, ensure an appropriate amount of space, taking into consideration the component's options and cables that stick out the front.
Page 166 The shapes of the right and left rack mounting brackets for attaching to the rear surface are the same, and they are not identified by any markings. AX3800S series switches support the spacing of the front and rear of a rack pillar in NOTE...
Page 167 4. Installation of the Components Figure 4-4 Attaching the rack mounting brackets (50 mm adjustment) (Example for AX2400S and AX3600S series switches) (1) Rack mounting bracket (L) (2) Rack mounting bracket (R) (3) M3 x 6 screws (12) NOTE Use the accessory screws to attach the rack mounting brackets to the device. There are four types of rack mounting brackets: NOTE ...
Page 168 Figure 4-5 Mounting into the rack (AX2400S and AX3600S) (1) M5 screws (4) (2) 19-inch cabinet rack Figure 4-6 Mounting into the rack (AX3800S) (1) M5 screws (8) (2) 19-inch cabinet rack When mounting the device on a rack, check thoroughly that the device is in a stable condition.
Page 169 NOTE When mounting the device into a rack, use the M5 screws supplied with the rack. AX3800S series switches support the spacing of the front and rear of a rack pillar in NOTE the range from 620 to 655, from 670 to 705, from 720 to 755, and from 820 to 855, by enabling to adjust the positions to which front and rear mounted brackets are attached.
Page 170: Mounting External Power Units (Epus) And Power Supply Modules
4. Installation of the Components 4.4 Mounting external power units (EPUs) and power supply modules This section describes how to install the external power units (EPU) on a table or in a rack. Follow the procedures below to use the EPU. When an EPU is connected to more than one main device, add power supply modules to the EPU.
Page 171: Rack Mount
4. Installation of the Components NOTE Confirm that the position to attach the rubber pad has no dirt. Wipe any dirt off with a dry cloth before attaching the rubber pad. [Step 3] Flip the EPU back over and mount it on the table. 4.4.2 Rack mount The EPU can be installed on a 19-inch cabinet rack conforming to the EIA standard.
Page 172 4. Installation of the Components Figure 4-9 Attaching the rack mounting brackets (50 mm adjustment) (1) Rack mounting bracket (L) (2) Rack mounting bracket (R) (3) M3 x 6 screws (12) NOTE Use the accessory screws to attach the rack mounting brackets to the EPU. There are four types of rack mounting brackets: NOTE ...
Page 173: Inserting And Removing Power Supply Modules
4. Installation of the Components [Step 2] Mount the EPU into the rack. Figure 4-10 Mounting into the rack (1) M5 screws (4) (2) 19-inch cabinet rack When mounting the device on a rack, check thoroughly that the device is in a stable condition.
Page 174 4. Installation of the Components Figure 4-11 Inserting the power supply module (1) Power supply module (2) Power supply module slot (2) Removing Tilt and keep the latch in the direction of the arrow. Hold the handle of the power supply module and pull it a little.
Page 175 4. Installation of the Components Figure 4-12 Removing the power supply module (1) Power supply module (2) Handle (3) Latch...
Page 176: Connecting And Disconnecting A Power Cable To And From The Main Device
4. Installation of the Components 4.5 Connecting and disconnecting a power cable to and from the main device This section describes how to connect and disconnect a power cable to and from the main device. For the AC power and AC (PoE) models and the redundant power model with the AC power supplies, use an AC power cable.
Page 177 In addition, use the accessory cable only for the Switch. Otherwise, a fire and/or an electric shock may be the result. Make sure to use a power cable specified by ALAXALA Networks Corporation when any AC model is connected to 200 V AC. Otherwise, a fire or an electric shock might result.
Page 178: Ac Power Cable (Redundant Power Models (Ax3630S And Ax3640S))
In addition, use the accessory cable only for the Switch. Otherwise, a fire and/or an electric shock may be the result. Make sure to use a power cable specified by ALAXALA Networks Corporation when the Switch is connected to 200 V AC. Otherwise, a fire or an electric shock might result.
Page 179: Ac Power Cable (Redundant Power Models (Ax3650S And Ax3830S))
4. Installation of the Components NOTE For required specifications of power cables, see 2.3.2 Electrical power equipment for 200 V AC. [Step 2] Hold the power cable connector with the cable clamp. Figure 4-16 Clamping the power cable Figure 4-17 Clamped power cable (2) Removing Unfasten the cable clamp to detach the power cable.
Page 180 In addition, use the accessory cable only for the Switch. Otherwise, a fire and/or an electric shock may be the result. Make sure to use a power cable specified by ALAXALA Networks Corporation when the Switch is connected to 200 V AC. Otherwise, a fire or an electric shock might result.
Page 181: Dc Power Cable (Dc Models)
4. Installation of the Components Figure 4-19 Clamping the power cable Figure 4-20 Clamped power cable (2) Removing Unfasten the cable clamp to detach the power cable. CAUTION Prior to attaching or detaching the power cable, turn off the switch of relevant power unit.
Page 182 4. Installation of the Components (1) Installing [Step 1] Attach the ground cable to the device. Figure 4-21 Attaching the ground cable (1) M4 x 8 screw (2) Ground cable (3) Ground terminal Make sure to connect the ground cable to the ground terminal. Not connecting the grounded outlet to the switch can cause electric shocks, as well as cause failures due to electrical noise.
Page 183: Dc Power Cable (Redundant Power Models (Ax3630S, Ax3640S))
4.5.5 DC power cable (redundant power models (AX3630S, AX3640S)) Be sure to use a DC power cable specified by ALAXALA Networks Corporation. Otherwise, a fire or an electric shock might result. A trained engineer or maintenance staff should attach and detach the DC power cable.
Page 184 4. Installation of the Components NOTE When the device is mounted in a rack, fasten the power cable with the cable holder of the rack in order to avoid stress on the cable connection part. (1) Installing [Step 1] Attach the ground cable to the device. Figure 4-23 Attaching the ground cable (1) M4 x 8 screw (2) Ground cable...
Page 185 4. Installation of the Components [Step 3] Attach the DC power cable to the cable connector. 1. Push the buttons using a screwdriver head. The buttons are locked when pushed to the end. Figure 4-25 Attaching the power cable 1 (1) Button (white) (2) −48 V (3) 0V...
Page 186 4. Installation of the Components Figure 4-27 Attaching the cable connector (1) Cable connector (2) DC power connector (3) Power supply unit CAUTION Prior to attaching or detaching the cable connector, turn off the power. (2) Removing [Step 1] Remove the cable connector from the power unit. Push the tabs on the both sides and pull it out.
Page 187: Attaching And Detaching A Power Cable To And From A External Power Unit (Epu)
4. Installation of the Components 4.6 Attaching and detaching a power cable to and from a external power unit (EPU) This section describes how to attach and detach a power cable to and from an EPU. As for the EPU, connect the AC power cable as well as the standby power cable to output backup power to the main device.
Page 188: Standby Power Cable
4. Installation of the Components Make sure to use the accessory power cable. Other cable except the bundled one may cause a fire and/or an electric shock. In addition, use the accessory cable only for the Switch. Otherwise, a fire and/or an electric shock may be the result. Keep the protective cap in place, except when attaching the cable.
Page 189 4. Installation of the Components Figure 4-30 Connection schematic of the standby power cable Make sure to use the accessory power cable. Other cable except the bundled one may cause a fire and/or an electric shock. In addition, use the accessory cable only for the Switch.
Page 190 4. Installation of the Components Figure 4-31 Attaching the standby power cable to the EPU (1) Standby power connector (with protective cap) (2) Standby power connector (3) Standby power cable Keep the protective cap in place, except when attaching the cable. Otherwise, a fire or an electric shock might be caused.
Page 191 4. Installation of the Components Keep the protective cap in place, except when attaching the cable. Otherwise, a fire or an electric shock might be caused. NOTE The standby power connectors have protective caps. Remove each protective cap to connect the standby power cable. Store the removed cap securely. (2) Removing Push the tabs on the both sides and pull the cable out.
Page 192: Inserting And Removing Memory Cards And The Dummy Memory Card
4. Installation of the Components 4.7 Inserting and removing memory cards and the dummy memory card 4.7.1 Inserting and removing memory cards CAUTION Be sure to remove the memory card before moving the main device. Excessive stress applied on the memory card during transfer might damage the connector part of the memory card slot.
Page 193 4. Installation of the Components (2) Removing [Step 1] Push the memory card once until you hear a click. The lock is released and the memory card is ejected a little. Figure 4-34 Removing the memory card (1) Memory card [Step 2] Remove the memory card.
Page 194: Inserting And Removing The Dummy Memory Card
4. Installation of the Components 4.7.2 Inserting and removing the dummy memory card When no memory card is used, insert the dummy memory card (hereinafter dummy card) into the memory card slot of the device as a substitute. The dummy card is supplied together with the main device. After the device is installed, follow the procedures below to use the dummy card.
Page 195 4. Installation of the Components [Step 2] Remove the dummy card. Figure 4-38 Removing the dummy card CAUTION Do not forcibly pull a locked dummy card to remove it. Otherwise, the connector part of the memory card slot might be damaged. NOTE Store the removed dummy card securely.
Page 196: Inserting And Removing Sfps
4. Installation of the Components 4.8 Inserting and removing SFPs SFPs can be inserted and removed without turning off the switch. 4.8.1 Inserting and removing SFPs (SFP-T and SFP-T (T)) The temperature of operating an SFP-T or SFP-T (T) can rise up to 65C after a link is established.
Page 197: Inserting And Removing Sfp (Excluding Sfp-T And Sfp-T (T) Transceivers) And Sfp+ Transceivers
4. Installation of the Components Figure 4-40 Installing an SFP into a lower port (1) SFP (2) SFP slot (2) Removing Move down the handle in the direction of the arrow. Hold the handle to pull out the SFP. Figure 4-41 Removing the SFP (1) Handle 4.8.2 Inserting and removing SFP (excluding SFP-T and SFP-T (T) transceivers) and SFP+ transceivers...
Page 198 4. Installation of the Components Figure 4-42 Inserting the SFP into an upper port (1) SFP (2) SFP slot The figure above shows how to install an SFP into an upper SFP slot of a model NOTE that has two tiers of slots. As for the models that have one tier of SFP slots, install the SFP in the same way as shown in the figure above.
Page 199 4. Installation of the Components Figure 4-44 Removing the SFP (1) Handle NOTE The same procedures are applicable to SFP+.
Page 200: Inserting And Removing Xfps
4. Installation of the Components 4.9 Inserting and removing XFPs XFPs can be inserted and removed without turning off the switch. The figures below show how to insert and remove an XFP to and from the module A NOTE type. The same procedures are applicable to the module B type.
Page 201: Connecting A Setup Terminal
4. Installation of the Components 4.10 Connecting a setup terminal Connect a setup terminal to the CONSOLE port of the Switch. For this connection, use an RS-232C crossover cable of the inch screw (#4-40) type with D-sub 9-pin female connectors on both ends. Figure 4-47 Connection schematic of the setup terminal (1) Setup terminal (2) RS-232C cable...
Page 202: Connecting Interface Cables
4. Installation of the Components 4.11 Connecting interface cables 4.11.1 UTP and optical fiber cables (1) UTP cable Insert the connector until you hear a click. Figure 4-49 Attaching the UTP cable (1) UTP cable NOTE The figure above shows a connection to an Ethernet 10/100/1000BASE-T port of the main device.
Page 203: Direct Attach Cables
4. Installation of the Components NOTE To clean the optical connector, see A Cleaning Optical Connectors. NOTE For detaching the cable, pull out the connector with the tab held down. NOTE The figure above shows a connection to an SFP. Connect XFPs in the same way. (3) Optical fiber cable (LC simplex connector) Insert the connector until you hear a click.
Page 204 4. Installation of the Components Figure 4-52 Connecting a direct attach cable (upper port) (1) SFP+ slot (2) Connector (3) Plug portion of the cable The figure above shows how to connect the cable to an upper SFP+ slot of the NOTE AX3650S-48T4XW model.
Page 205: Powering The Main Device On And Off
4. Installation of the Components 4.12 Powering the main device on and off 4.12.1 AC power and AC (PoE) models NOTE The description below is about powering the AC model on and off. The same procedures are applicable to the AC (PoE) models. (1) Power on Turn on the power switch on the back face of the device.
Page 206: Dc Model
4. Installation of the Components In the following situations, do not switch off the device until the blinking ST1 LED in CAUTION green turns to lighting continuously in green. Otherwise, the device might break down:  Updating software 4.12.2 DC model (1) Power on Turn on the power switch on the back face of the device.
Page 207 4. Installation of the Components (1) Power on Turn on all the power switches on the back face of the device. Figure 4-57 Power on (redundant power model (AX3630S, AX3640S)) (1) Power switch NOTE For devices with redundant power supplies, if one of the power switches is turned off, a power failure might be detected and the ST1 LED might blink red.
Page 208: Redundant Power Model (Ax3650S, Ax3830S)
4. Installation of the Components 4.12.4 Redundant power model (AX3650S, AX3830S) (1) Power on Turn on all the power switches on the back face of the device. Figure 4-58 Power on (redundant power model (AX3650S, AX3830S)) (1) Power switch NOTE For devices with redundant power supplies, if one of the power switches is turned off, a power failure might be detected and the ST1 LED might blink red.
Page 209: Powering The External Power Unit (Epu) On Or Off
4. Installation of the Components 4.13 Powering the external power unit (EPU) on or off 4.13.1 EPU-A (1) Power on [Step 1] Turn on the main power switch on the back face of the EPU. Figure 4-59 Power on (main body of the EPU) (1) Main power switch CAUTION Prior to turn on the main switch of the EPU, make sure all power switches of the...
Page 210: Epu-B
4. Installation of the Components NOTE Check the cable connection on the back face of the EPU and switch off the power supply module to stop. [Step 2] When all power supply modules are switched off, turn off the main switch on the back face of the EPU.
Page 211 4. Installation of the Components Figure 4-62 Power on (power supply module) (1) Power switch (2) Power off [Step 1] Turn off the power supply modules. NOTE Check the cable connection on the back face of the EPU and switch off the power supply module to stop.
Page 212: Miscellaneous Operations
AX3640S/AX3630 AX3640S/AX3630S Software Manual Configuration Guide Vol. 1 S series AX3800S/AX3650 AX3800S/AX3650S Software Manual Configuration Guide Vol. 1 S series The time setting of the Switch is retained for about ten days after being shut down. NOTE After more than ten days, the clock is reset when the device is turned on the next time.
Page 213 AX3640S/AX3630 AX3640S/AX3630S Software Manual Operation Command Reference Vol. 1 S series AX3640S/AX3630S Software Manual Operation Command Reference Vol. 2 AX3800S/AX3650S Software Manual Operation Command Reference Vol. 1 AX3800S/AX3650 S series AX3800S/AX3650S Software Manual Operation Command Reference Vol. 2 Table 4-4 Manuals for detailed configuration commands...
Page 214 4. Installation of the Components...
Page 215: Expansion, Replacement And Removal
Expansion, Replacement and Removal This chapter describes the procedures to expand, replace and remove the main devices, external power units (EPUs) and power supply modules. 5.1 Necessary tools 5.2 Precautions before starting an installation 5.3 Expansion, replacement and removal of main devices 5.4 Expansion, replacement and removal of power supplies 5.5 Replacement of a fan unit 5.6 Expansion, replacement and removal of external power units (EPUs)
Page 216: Necessary Tools
5. Expansion, Replacement and Removal 5.1 Necessary tools The following tools are necessary to expand, replace or remove the components: Phillips screwdriver no. 1: Use this screwdriver to attach the rack mounting brackets to the device. Also, use this screwdriver to installing or removing a power supply unit and a fan unit to or from the redundant power model.
Page 217: Precautions Before Starting An Installation
5. Expansion, Replacement and Removal 5.2 Precautions before starting an installation Do not put your hands inside the device carelessly. The components might cause an injury. For the EPU, use blank panels to cover the slots that do not contain power supply modules.
Page 218: Expansion, Replacement And Removal Of Main Devices
5. Expansion, Replacement and Removal 5.3 Expansion, replacement and removal of main devices This section describes the procedures for installing or uninstalling the main device. Follow the steps shown in Figure 5-1 Steps to uninstall the device to uninstall the device. For installations, perform the steps in reverse.
Page 219 5. Expansion, Replacement and Removal When moving the redundant power model, do not hold the handle of the power supply unit or the fan unit. The handle can come off and the device can fall, which might cause injury. Or the EPU might be distorted to cause a fire or an electric shock.
Page 220 5. Expansion, Replacement and Removal [Step 2] Mount the power supply module to the EPU. [Step 3] Connect the AC power cable to the switch. [Step 4] Connect the standby power cable to the main device and the EPU. [Step 5] Turn on the switch.
Page 221: Expansion, Replacement And Removal Of Power Supplies
5. Expansion, Replacement and Removal 5.4 Expansion, replacement and removal of power supplies This section describes the procedures to expand, replace and remove the power supplies in the redundant power models. Power supplies can be added, replaced, and removed while the switch is on. 5.4.1 Redundant power model (AX3630S, AX3640S) After a power supply unit is removed, mount a fan unit.
Page 222 5. Expansion, Replacement and Removal [Step 3] Loosen the screws of the power supply unit. Figure 5-2 Removing the power supply unit 1 (1) Screws [Step 4] Hold the handle of the power supply unit and pull it a little. Supporting the bottom, pull out the power supply unit.
Page 223: Redundant Power Model (Ax3650S, Ax3830S)
5. Expansion, Replacement and Removal Figure 5-4 Connecting the power supply unit 1 (1) Power supply unit slot (2) Power supply unit [Step 2] Tighten the screws of the power supply unit. Figure 5-5 Connecting the power supply unit 2 (1) Screws [Step 3] Connect the power cable to the power supply unit.
Page 224 5. Expansion, Replacement and Removal NOTE Remove the blank panel to extend the power supply module. Store the removed blank panel securely. (1) Removing [Step 1] Turn off the power supply unit to be replaced. [Step 2] Disconnect the power cable from the power supply unit to be replaced. For the extension or replacement of a power supply unit, disconnect the power cable from the power supply unit to be replaced.
Page 225 5. Expansion, Replacement and Removal Figure 5-7 Removing the power supply unit 2 (1) Power supply unit slot (2) Power supply unit (2) Installing [Step 1] Loosen the screws of the power supply unit, and move down the handle. Figure 5-8 Connecting the power supply unit 2 (1) Screw (2) Handle [Step 2]...
Page 226 5. Expansion, Replacement and Removal Figure 5-9 Connecting the power supply unit 2 (1) Power supply unit slot (2) Power supply unit [Step 3] Move the handle back in the direction of the arrow, and tighten the screws. Figure 5-10 Connecting the power supply unit 2 (1) Screw (2) Handle [Step 4]...
Page 227: Replacement Of A Fan Unit
5. Expansion, Replacement and Removal 5.5 Replacement of a fan unit This section describes the procedures to replace the fan unit in the redundant power model. The fan unit can be removed while the switch is on. 5.5.1 Redundant power model (AX3630S, AX3640S) CAUTION When the fan unit is replaced while the switch is still on, do not leave the device for more than three minutes without a replacement fan unit.
Page 228: Redundant Power Model (Ax3650S)
5. Expansion, Replacement and Removal (1) Power supply unit slot 2 (2) Fan unit (2) Installing [Step 1] Insert the fan unit into power supply unit slot 2. Figure 5-13 Inserting the fan unit 1 (1) Power supply unit slot 2 (2) Fan unit [Step 2] Tighten the screws of the fan unit.
Page 229 5. Expansion, Replacement and Removal Figure 5-15 Removing the fan unit (1) Fan unit (2) Handle (3) Latch (2) Installing Insert the fan unit until you hear a click. Figure 5-16 Inserting the fan unit (1) Fan unit slot (2) Fan unit...
Page 230: Redundant Power Model (Ax3830S)
5. Expansion, Replacement and Removal 5.5.3 Redundant power model (AX3830S) CAUTION When the fan unit is replaced while the switch is still on, do not leave the switch for more than one minute without a replacement fan unit. Otherwise, a failure might occur due to increasing temperatures inside the switch.
Page 231 5. Expansion, Replacement and Removal Figure 5-18 Inserting the fan unit (1) Fan unit slot (2) Fan unit...
Page 232: Expansion, Replacement And Removal Of External Power Units (Epus)
5. Expansion, Replacement and Removal 5.6 Expansion, replacement and removal of external power units (EPUs) This section describes the procedures for installing or uninstalling the EPUs. Follow the steps shown in Figure 5-19 Steps to replace an EPU to uninstall the EPU. For installations, perform the steps in reverse.
Page 233 5. Expansion, Replacement and Removal When moving the EPU, do not hold the handle of the power supply modules. The handle can come off and the device can fall, which might cause injury. Or the EPU might be distorted to cause a fire or an electric shock. CAUTION Prior to mounting/dismounting the power supply module, turn off the switch of it.
Page 234 5. Expansion, Replacement and Removal [Step 4] Connect the standby power cables to the switches and the EPU. [Step 5] Turn on the main power switch of the EPU. [Step 6] Turn on the power supply modules.
Page 235: Expansion, Replacement And Removal Of Power Supply Modules
5. Expansion, Replacement and Removal 5.7 Expansion, replacement and removal of power supply modules This section describes the procedures to install and remove the power supply modules while the EPU is on. Follow the steps shown in Figure 5-20 Replacement of the power supply modules to remove the power supply module.
Page 236 5. Expansion, Replacement and Removal CAUTION Prior to mounting/dismounting the power supply module, turn off the switch of it. CAUTION Do not touch the parts or the soldered surfaces on the power supply module. For storage, put the module in an antistatic bag. (1) Removing [Step 1] Turn off the power supply module to replace.
Page 237: Appendixes
Appendixes A Cleaning Optical Connectors B Physical Specifications of Network Interfaces C Specifications of Setup Terminal...
Page 238: Cleaning Optical Connectors
A. Cleaning Optical Connectors A. Cleaning Optical Connectors A.1 Cleaning optical connectors of transceivers Follow the procedures below to clean the optical connector of the transceiver. A laser beam, which is colorless and invisible, is used. Do not directly look into the optical transmitter/receiver part.
Page 239 A. Cleaning Optical Connectors [Step 2] Check the tip of the stick-type optical connector cleaner for torn surface fabric, stains and foreign substances. Figure A-2 Check of the Optical Connector Cleaner (1) Stick-type optical connector cleaner (2) Part to check Check the tip of the optical connector cleaner for torn surface fabric, stains and CAUTION foreign substances before cleaning the connector.
Page 240: Cleaning Optical Fiber Cables
A. Cleaning Optical Connectors NOTE See the instructions of the optical connector cleaner before use. A.2 Cleaning optical fiber cables Follow the procedures below to clean the connector of the optical fiber cable. A laser beam, which is colorless and invisible, is used. Do not directly look into the optical transmitter/receiver part.
Page 241 A. Cleaning Optical Connectors [Step 2] Use a reel-type optical connector cleaner to clear any adhered dirt from the ferrule end. Figure A-5 Cleaning the Ferrule End CAUTION Make sure to use the dedicated optical connector cleaner. Otherwise, the ferrule end might be damaged.
Page 242: Physical Specifications Of Network Interfaces
B. Physical Specifications of Network Interfaces B. Physical Specifications of Network Interfaces B.1 Ethernet 10BASE-T/100BASE-TX/1000BASE-T Table B-1 Physical specifications of 10BASE-T/100BASE-TX/1000BASE-T (Ethernet port on the main device) Physical specifications Item 10BASE-T 100BASE-TX 1000BASE-T Non-PoE Category 3 or higher Enhanced Category 5 UTP cable Category 5 or higher or higher...
Page 243: Ethernet 100Base-Fx
B. Physical Specifications of Network Interfaces Physical specifications RJ45 pin number 10BASE-T 100BASE-TX 1000BASE-T Not used Not used Send/Receive D (+) Not used Not used Send/Receive D (-) (d) #1: Connect them when a 4-pair 8-core cable is used. #2: The cable is of twisted pair configuration. For a 4-pair 8-core cable, (A) and (a), (B) and (b), (C) and (c) and (D) and (d) should be paired.
Page 244 B. Physical Specifications of Network Interfaces Physical specifications Item Laser center wavelength 0.770 to 0.860m Optical transmission power -9.5 to 0 dBm (mean) Optical reception power (mean) -17.0 to 0 dBm Optical transmission loss (max.) 7.5 dB Transmission distance 2 to 500m 2 to 550m 2 to 220m 2 to 275m...
Page 245 B. Physical Specifications of Network Interfaces Physical specifications Item (mean) Optical reception power (mean) -19.0 to -3.0 dBm Optical transmission loss (max.) 7.5 dB 8.0 dB Transmission distance 2 to 550m 2 m to 5 km #1: Regarding 1000BASE-LX, some kinds of multiple-terminal mode optical fiber may increase the BER (bit error rate).
Page 246: Ethernet 10Gbase-R Interface
B. Physical Specifications of Network Interfaces Physical specifications Item Transmission distance 2m to 100km 2 m to 100 km #1: When optical transmission loss is 16.0 dB or less, use an optical attenuator to adjust the loss. #2: For transmissions at 100-km distances, you must use optical fiber cables whose dispersion characteristics are 20 ps/nm/km or less.
Page 247 B. Physical Specifications of Network Interfaces Physical specifications Item Optical transmission power -7.3 to -1.0 dBm (mean) Optical reception power (mean) -9.9 to -1.0 dBm Optical transmission loss (max.) 2.6 dB Transmission distance 2 m to 66m 2 m to 82m 2 m to 300m 2 m to 26m 2 m to 33m...
Page 248 B. Physical Specifications of Network Interfaces Table B-14 Physical specifications of 10GBASE-ZR Physical specifications Item Cable Type Single-terminal mode Core/cladding diameter 10 / 125m Laser center wavelength 1.530 to 1.565m Optical transmission power +0.5 to +4.0 dBm (mean) Optical reception power (mean) -24.0 to -7.0 dBm Optical transmission loss (max.) 24.5dB...
Page 249: Specifications Of Setup Terminal
C. Specifications of Setup Terminal C. Specifications of Setup Terminal C.1 Specifications of setup terminal Be sure to use a personal computer or a workstation that meets the requirements listed in Table C-1 Specifications of the terminal. Table C-1 Specifications of the terminal Item Requirement Communication port...

This manual is also suitable for:

Ax3600s Ax2400s

Alaxala AX3800S Hardware Instruction Manual

Safety Information

1 Components Overview

2 Preparation for Installation

3 Preparation of Interface Cables and Terminals

4 Installation of the Components

5 Expansion, Replacement and Removal

Appendixes

Cleaning Optical Connectors

Physical Specifications of Network Interfaces

Specifications of Setup Terminal

Quick Links

Related Manuals for Alaxala AX3800S

Summary of Contents for Alaxala AX3800S

This manual is also suitable for:

Table of Contents
