BA6600
BRINKMANN Immersion Pumps
BRINKMANN PUMPS, Inc.
47060 Cartier Drive
Wixom, MI 48393
USA
Phone: +1 248 926 9400
Fax.:
+1 248 926 9405
Subject to change without prior notice.
Brinkmann Pumps, Inc.
Operating Instructions
04/2015
Edition
TS12...24
www.brinkmannpumps.com
sales@brinkmannpumps.com
Order - No.: BA6600 ENGLISH
Page 1 of 9
Advertisement
Table of Contents
Related Manuals for Brinkmann TS12S
Summary of Contents for Brinkmann TS12S
-
Page 1: Operating Instructions

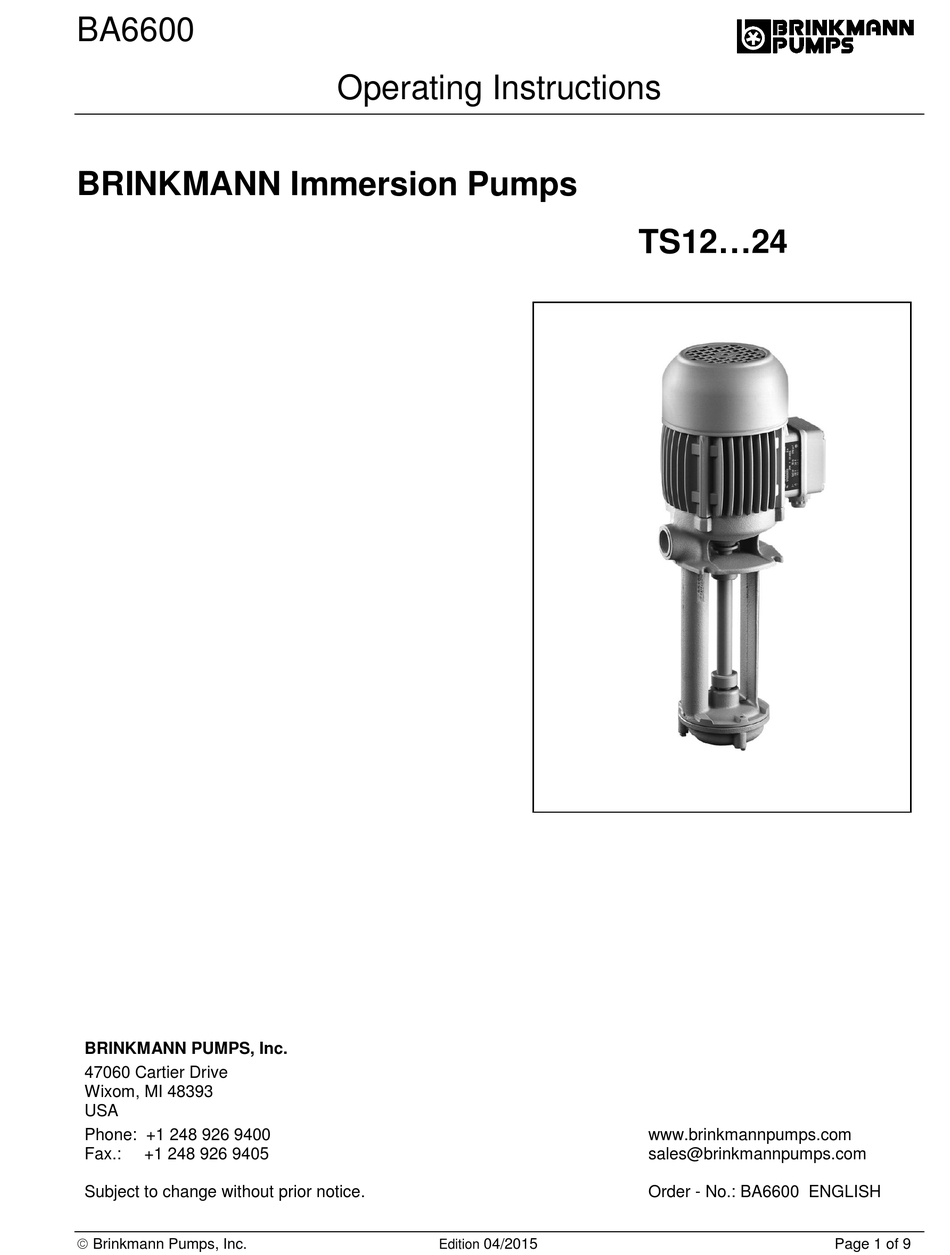

BRINKMANN PUMPS, Inc. 47060 Cartier Drive Wixom, MI 48393 Phone: +1 248 926 9400 www.brinkmannpumps.com Fax.: +1 248 926 9405 sales@brinkmannpumps.com Subject to change without prior notice. Order - No.: BA6600 ENGLISH Brinkmann Pumps, Inc. 04/2015 Page 1 of 9 Edition... -
Page 2: Table Of Contents
Brinkmann Immersions Pumps of the Series TS12 ... 24 Contents Indication to the manual ........2 7 Operation ............6 Description of the Product ......2-3 8 Servicing and Maintenance ....... 6 Safety instructions ..........4 9 Troubleshooting Guide ........7 Transportation and Storage ....... - Page 3 Max. del. Height Depth of Weight Power Noise pressure volume immersion level spec. weight 1 Inches Type l/min Inches dBA / 60 Hz TS12S 110 4.33 11.9 0.36 5.90 12.3 0.27 7.48 12.8 9.84 13.4 11.81 14.3 12.5 TS13S 110 4.33 13.9...
-
Page 4: Safety Instructions
3 Safety instructions Safety instructions relevant for operation When operating the pump, the safety instructions If hot or cold machine components involve haz- contained in this manual, the relevant national acci- ards, they must be guarded against accidental dent prevention regulations and any other service and contact. -
Page 5: Installation And Connection
5 Installation and Connection Mechanical installation During any assembly or disassembly process the The pump must be mounted in that way that pumps must be secured against tipping trough ropes rotating parts under the cover of the coolant tank for example at all times. can not be touched! Pumps must be mounted securely. -
Page 6: Start-Up / Shut-Down
6 Start-up / Shut-down 8 Servicing and Maintenance Start-up ATTENTION ATTENTION The surface of the motor must be kept free of dirt. Switch off at the mains. After connection the electrical wires, close the termi- The motor shaft is spinning in permanently greased nal box. -
Page 7: Troubleshooting Guide
9 Troubleshooting Guide Fault Cause Remedy Motor does not start, no motor At least two of the power supply Check fuses, terminals and supply noise leads have failed leads . Overload has tripped Inspect overload Motor does not start, humming noise One of the supply leads has failed See above Impeller faulty... -
Page 8: Spare Parts
10 Spare Parts 10.1 Spare Part List for the Immersion umps of the Series TS12 ... 24 Item Description Stator with terminal board Pump body Shaft with rotor Inlet cover Impeller Pump plate TS15, TS24 End shield TS13…TS24 Fan cover 10 Terminal box 11 Ball bearing DIN 625... -
Page 9: Warranty
Brinkmann Pumps, Inc. warrants that the product contained herein conforms to the descrip- tion in Brinkmann's catalog and that if this product shall fail to conform to the description thereof or to any express or implied warranty, Brinkmann shall, upon written notice of such nonconformity within one year of the date of its shipment from BRINKMANN'S plant, repair or replace such non-conforming material at the original point of delivery.
