2.2.5 Remote Control Wiring (option)

NOTE
WARNING
NOTE
!
The following settings are available only for the model with remote options (R1).
(1) Turn the power switch off.
(2) Remove the transparent cover of the optional terminals.
(3) Connect the wires for remote control to the optional terminals. The "C" is the
terminal common to other 1 to 5.
(4) Cover the terminals with the transparent cover and secure the screws.

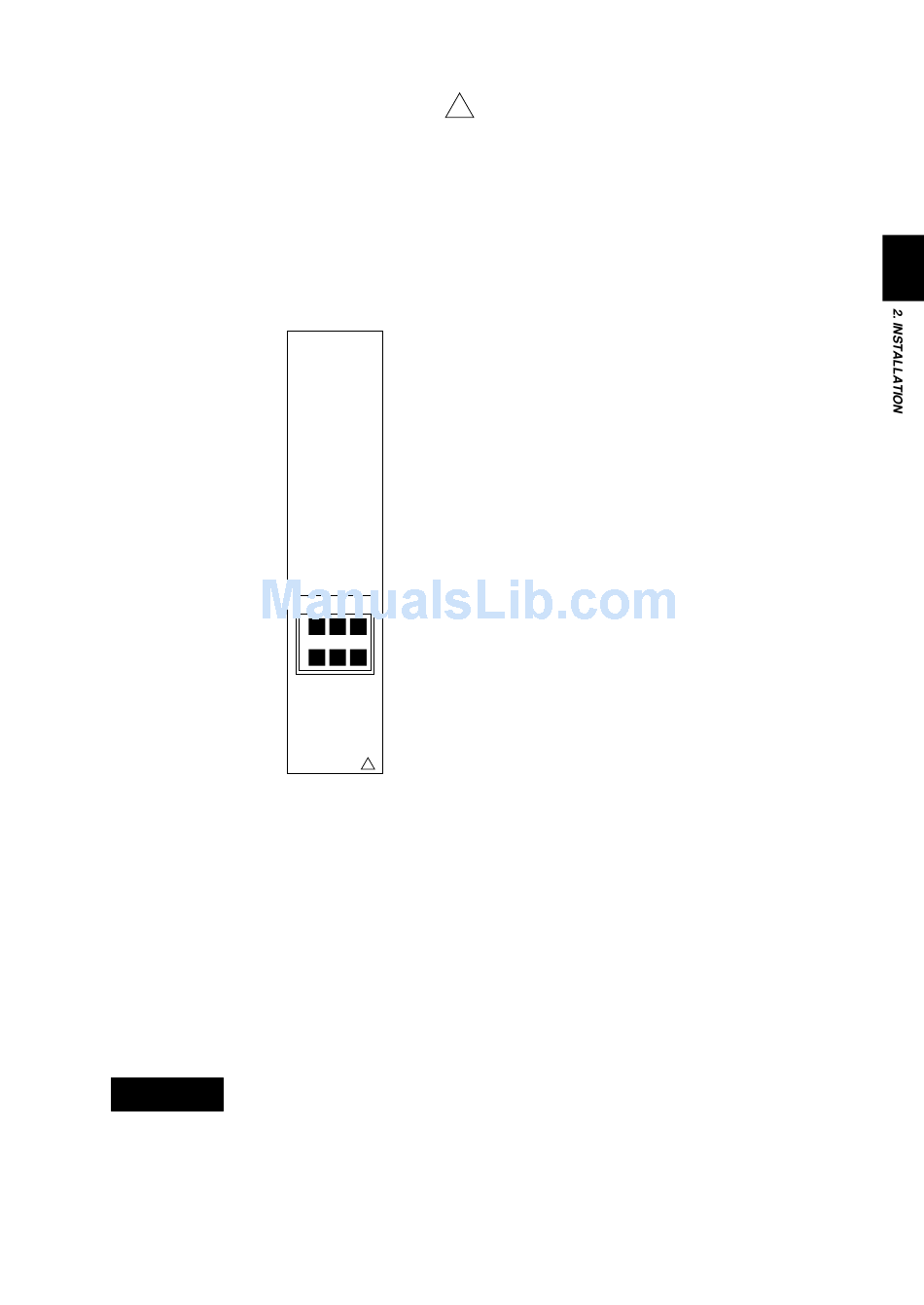

Remote control terminals are arranged as follows:
REMOTE
1 2 3
4 5 C
!
Remote Control Terminal Arrangements
Input characteristics:
Input signal :
Control functions and signal types:
Signal characteristics :
Input types :
Dielectric strength :
To prevent an electric shock, ensure the main power switch is turned off before
wiring.
• Use shielded cables for remote control signals to prevent noise pickup. The
shield should be grounded at the recorder's terminal.
• To prevent an emission of electromagnetic disturbances, separate the remote
control wires from the power supply and input wires at least 0.1 m. Over 0.5
m is recommended.
Dry contact, open-collector (TTL or transistor) signal
• Recording start/stop
• Chart speed change
• Printout messages
ON voltage
Leakage current in OFF state
Signal duration
Photocoupler isolation (one line common)
Internal isolated power source (5 V±5%)
500 V DC for one minute between input terminals and
grounding terminal.
level
level
trigger more than 250 msec
0.5 V or less (30 mA DC)
0.25 mA or less
250 msec or more
