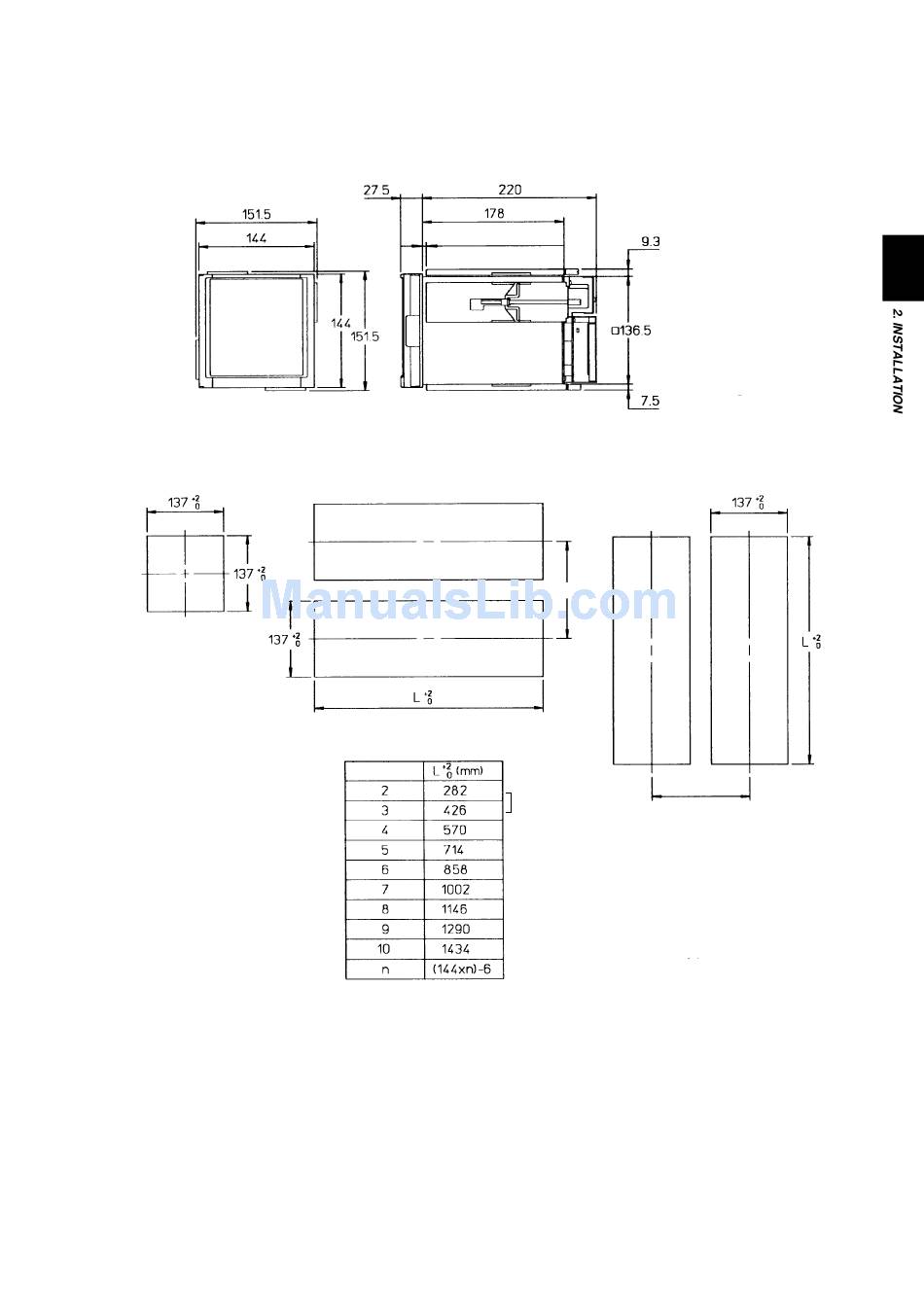

2.1.3 External Dimensions

Panel cutout
Panel cutout for single installation
NOTE
Panel thickness 2 to 26 mm
Multi-mounting(horizontal)
Number of unit
Panel Cutout and External Dimensions (Including Mounting Brackets)
A pair of mounting brackets should be used on the top and bottom, or on both
sides of the recorder.
2.1 Installation Site and Mounting Methods
Unless otherwise specified, dimensional tolerance is ±3%;
however, for less than 10 mm, it is ±0.3 mm.
(Dimension before mounting)
(Dimension after mounting)
Multi-mounting, maximum 3 units(vertical)
175 minimum
175 minimum
Multi-mounting(vertical)
Unit: mm
2 - 3
