SGM P-6 POI User Manual

SGM P-6 POI User Manual

Hide thumbs Also See for P-6 POI:

Advertisement

Quick Links

Download this manual

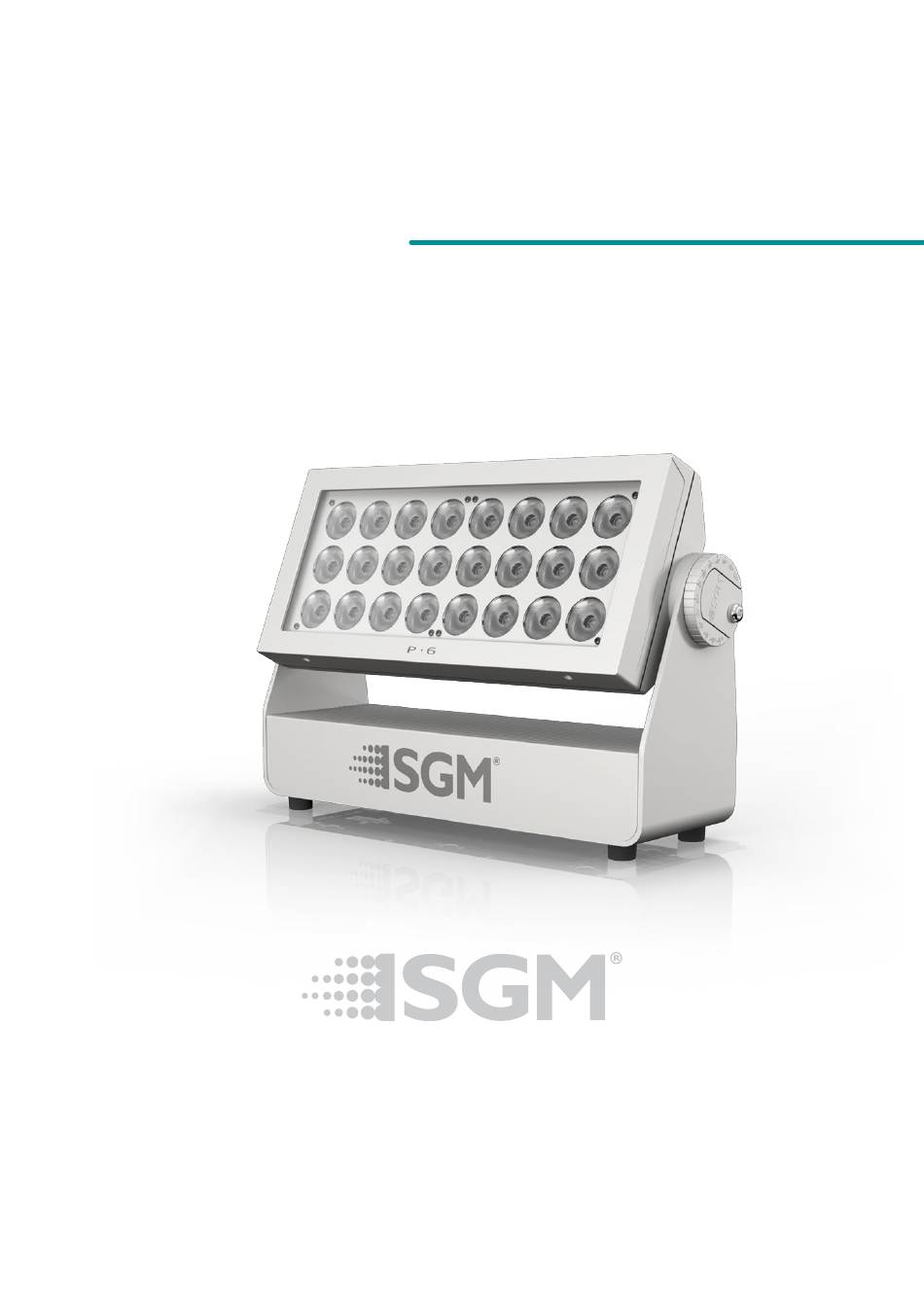

USER
MANUAL
P-6
POI
Document Revision G | Released 2024-12-02

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-6 POI and is the answer not in the manual?

Questions and answers

Related Manuals for SGM P-6 POI

Summary of Contents for SGM P-6 POI

  • Page 1 USER MANUAL Document Revision G | Released 2024-12-02...
  • Page 2 The SGM logo, the SGM name, and all other trademarks in this document perwtaining to SGM services or SGM products are trademarks owned or li- censed by SGM, its affiliates, and subsidiaries.
  • Page 3 16  Permanently Connecting Power & Data 17 RDM 17  Sensors 17  PID Commands 18 ACCESSORIES 18  Barndoors  19  Filter frames 20 MAINTENANCE 20  Firmware Updates 21  SGM Vacuum Test kit 21  USB - POI Uploader cable  21  Cleaning 22 TROUBLESHOOTING 22 FIXTURES AND ACCESSORIES 22  Ordering information 22  Accessories 23 APPROVALS AND CERTIFICATIONS 24 USER NOTES P·6 POI...
  • Page 4 WARNING! READ THE FOLLOWING SAFETY PRECAUTIONS CAREFULLY BE- FORE UNPACKING, INSTALLING, POWERING OR OPERATING THE DEVICE. SGM fixtures are intended for professional use only. They are not suitable for household use. Les fixtures SGM sont impropre à l’usage domestique. Uniquement à usage professionnel.
  • Page 5 EXTERNAL CLEANING AND VISUAL INSPECTION OF THE FIXTURE All users of SGM fixtures should regularly clean those parts of the fixture directly exposed to the elements, such as the external housing and front lenses. Additionally, all owners of SGM fixtures must periodically check the external housing of the fixture for structural breaks, components in bad shape, cracked lenses, or loose screws.
  • Page 6 INSTALLATION POI FIXTURE IDENTIFICATION AND TERMINOLOGY A: 24 x RGBW LEDs B: POI Tilt lock C: Cooling fans D: LED indicator E: GORE-TEX membrane F: DMX in and out G: Power in and out H: Handle I: Barndoors attachment points J: Safety wire attachment point K: Holes for Omega bracket / M-10 screws (x6) Illustrations might vary from received products.
  • Page 7 PLEASE NOTE! POI FIXTURES SHOULD BE PRE-SET WITH ANY CUSTOM PROGRAMMING BEFORE INSTALLATION. ALTHOUGH MOST FUNCTIONS ARE POSSIBLE TO BE SET VIA RDM ONCE MOUNTED IN POSITION, IT IS EASIER TO DO CONFIGURATION AND ANY TROUBLESHOOTING BEFORE MOUNTING IS COMPLETE. UNPACKING Unpack the device and inspect it to ensure that it has not been damaged during transport.
  • Page 8 CONNECTING TEMPORARY SIGNAL The fixture is compatible with DMX512 (ANSI E1.11 – 2008) only. It can be connected using either the SGM POI up-load- er cable, or via the fixture’s built-in CRMX wireless receiver system. STEP 1: Download and install the SGM RDM Addressing tool.
  • Page 9 RDM protocol. Figure 4: SGM Addressing tool STEP 1: Launch SGM RDM Addressing Tool. Click Full Discovery and look for the green light to illuminate on the fixture. If the green light does not appear, cycle power or refer to troubleshooting.
  • Page 10 In order to do so, make sure the fixture is powered on before taking the following steps: STEP 1: Using a SGM magnetic spanner tool, place the magnet close to the LED indicator, and wait for 3 sec- onds. The LED remains red as long as the hall sensor is activated.
  • Page 11 MOUNTING All SGM POI fixtures have M10 size attachment points to mount the supplied brackets or directly to a structure. The POI wash fixture may be installed in any orientation and it might take up to two brackets per fixture. Depending on the structure, please use appropriate and secure methods for mounting the Omega brackets.
  • Page 12 FLAT BRACKET ATTACHMENT M10 Countersunk Bolts Flat Bracket 8mm or smaller screw or bolt to structure 8mm or smaller screw or bolt to structure Fixture OMEGA BRACKET ATTACHMENT M10 Stainless Steel Bolts 13mm / 0.5in hole diameter for attachment point POI Omega Bracket Fixture P·6 POI...
  • Page 13 UNIVERSAL BRACKET ATTACHMENT M10 Countersunk Bolts Using a bolt through this slot, the fixture will rotate around its center point, always use 2 bolts Using a bolt through this slot, with washers. the fixture will rotate around its center point, always use 2 bolts POI Universal Bracket with washers.
  • Page 14 WALL BRACKET ATTACHMENT Medium 6/8 Series Attach and align the bracket to a surface. The shorter side of the bracket is the side that attaches to a wall surface. There are two slots provided to align the bracket. Using appropriate fas- teners, align and level the bracket.
  • Page 15 • Lock the position by tightening the tilt lock knobs clockwise with the same pig-nose key. Figure 7: P-6 POI Tilt lock The POI fixture includes a spanner with a magnet, which function is to establish connection between the fixture and the wireless transmitter.
  • Page 16 Figure 9: Connecting DMX and AC Power in POI DMX in and DMX out are in the same cable. See more in figure above about the SGM POI DMX cable. For permanent installations, have a qualified electrician wire the mains cable directly to a suitable branch circuit.
  • Page 17 The P-6 features are supported via various RDM functions. RDM (Remote Device Management) is a protocol enhancement to USITT DMX512 that allows bi-directional commu- nication between the fixtures and the controller over a standard DMX line. This protocol will allow configuration, sta- tus monitoring and management.
  • Page 18 ACCESSORIES BARNDOORS The P-6 features 4-way and 8-way barndoors. The barndoors are designed and intended to be mounted on the fixture with- out the use of any tools. To install the barndoors: 1. Attach the lower plug-in pins to the bottom part of the P-6 front.
  • Page 19 FILTER FRAMES The P-6 features various optional, magnetic holographic filter frames: • Medium angle (19°). • Wide angle (45°). • Elliptical wide angle horizontal (63°x12°). • Elliptical wide angle vertical (12°x63°). • Empty filter frame for custom filters. The filter frames are easily mounted due to their magnetic properties.
  • Page 20 To identify the current firmware version refer to: "Settings and Fixture Defaults" on page 9 To update a fixture with the latest firmware, use an SGM USB POI uploader cable, and a Windows-based computer with the SGM Firmware Tool software installed (available for download at www.
  • Page 21 Figure 16: SGM Uploader cable POI CLEANING SGM fixtures with IP65 or IP66-rating do not need any cleaning procedures inside the fixture. However, cleaning the front lens may be needed to achieve the maximum light output after exposure to dust, sand, or dirt. The exterior housing can also be cleaned to get a better look.
  • Page 22 Color is uneven. The minimum values are out of calibration. Contact your local SGM dealer or support@sgmlighting.com The SGM Calibration Data set has been lost. Contact your local SGM dealer or support@sgmlighting.com FIXTURES AND ACCESSORIES PLEASE NOTE! THE LIST BELOW IS SUBJECT TO CHANGE WITHOUT NOTICE.
  • Page 23 APPROVALS AND CERTIFICATIONS Conforms to ..............2014/35/EU: Low Voltage Directive Conforms to .
  • Page 24 USER NOTES P·6 POI | Revision G | Released 2024-12-02...
  • Page 25 SGM LIGHTING APS Sommervej 23 8210 Aarhus V Denmark Tel: +45 70 20 74 00 info@sgmlighting.com www.sgmlighting.com...
