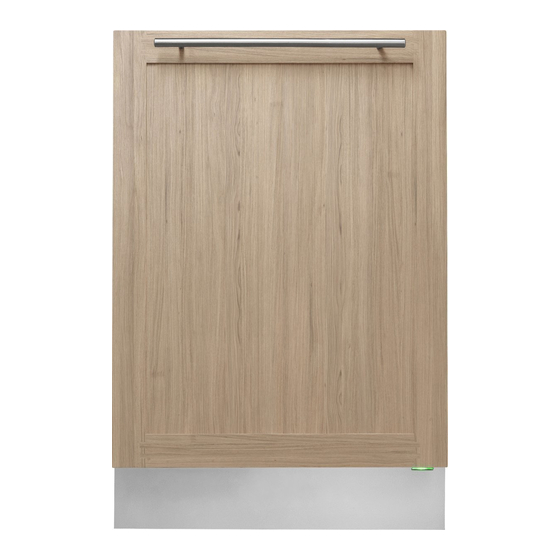

Asko D5896 XXL Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years to
come. Scandinavian design combines clean lines, everyday functionality and
high quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most from your new dishwasher, we recommend that you read the
operating instructions before using the dishwasher. The operating instructions
also include information on how you can help protect the environment.

Operating Instructions

Dishwasher
ASKO D5896 XXL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D5896 XXL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asko D5896 XXL

Summary of Contents for Asko D5896 XXL

  • Page 1: Operating Instructions

    Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfil your needs for many years to come. Scandinavian design combines clean lines, everyday functionality and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.

  • Page 2: Table Of Contents

    Contents Front panel Troubleshooting Safety instructions Technical information Before washing for the first time Installation Loading the dishwasher Service Using the dishwasher Program chart Settings Your notes Care and cleaning Front panel To start the machine, press and hold the main power switch until the display lights up. 0:25 Navigation button <...

  • Page 3: Safety Instructions

    Safety instructions Activate the child safety lock (Kid Lock ) General (only certain models) Read the operating instructions and keep them in a safe place! A child safety lock is fitted to prevent children from opening the Never use the dishwasher for any purpose other than that dishwasher door.

  • Page 4: Before Washing For The First Time

    Before washing for the first time Loading the dishwasher Program key Economic dishwashing Some dishwashers include program keys in different languages. Run programs only with a full load Attach the program key in the desired language to the top of the Wait to run a program until the dishwasher is full.

  • Page 5: Upper Basket

    Your machine is equipped with a turbo drying function (Turbo Upper basket Drying Express+™), which improves the drying of plastic objects Place glasses, cups, bowls, side plates and saucers in the upper and other items. basket. All dirty surfaces should face inwards and downwards! NOTE! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right (if fitted).

  • Page 6: Cutlery Basket

    Foldable tines Lower the foldable tines (plate supports) when washing pots and pans. Release the foldable tines by pressing the catch inwards before adjusting their position. In the right-hand rear part of the lower basket, half the foldable tines can be lowered for washing stoneware or a deep pan, for example.

  • Page 7: Using The Dishwasher

    Using the dishwasher Cutlery basket with lid Add detergent Positioning of cutlery basket lid (in upper basket) The cutlery basket lid can be removed and used, for example, as an extra cutlery basket in the upper basket (see below). 1 Prewash detergent compartment 2 Main wash detergent compartment Detergent is added according to water hardness.
  • Page 8 Crockery warming Program selection Used to warm plates. See below for how to place the plates. Press the navigation button < or > until the desired program ap- pears on the display. Auto wash The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature accordingly.

  • Page 9: Selecting Options

    Selecting Options Status light™ Press Option/Set and then the navigation button < or > to select The status light at the bottom on the dishwasher provides infor- an option. Confirm your selection by pressing Option/Set. mation by means of 3 different colours. The available options depend on the selected program.

  • Page 10: Once The Program Has Finished

    Once the program has finished Once the program has finished and the door is opened "END" appears on the display. At the end of the program, you will hear a short beep. Chapter Settings describes how to change this function. A status light also indicates the end of the program.

  • Page 11: Settings

    Settings 1. Function Menu Open the Function Menu: Button press Description Turn off the machine. Open the door. Press and hold the main power switch until the display lights up. Within 20 seconds; - press the navigation button > (right), 5 times. - press the button Option/Set, 5 times.
  • Page 12 You can change the following settings in the Function Menu: Settings Options 1. Language English/Svenska/Dansk/Norsk/ You can choose the language used for the display. Suomi/Français/Deutsch/Italiano/ Español/Nederlands/Русский 2. Child lock On/Off You can activate the child lock (button lock) to prevent chil- dren from starting the dishwasher.

  • Page 13: Care And Cleaning

    Care and cleaning Coarse filter NOTE! The coarse filter traps larger food particles, which cannot get The dishwasher must not be used without the filter in place! past the drainage pump. Empty the coarse filter as necessary. Diswashing efficiency can be affected if the course filter is in- 1 Lift the coarse filter by the handle.
  • Page 14 Door When cleaning the edge around the door, use only a slightly damp cloth (with a little cleaner if necessary). WARNING! Do not use a spray bottle or the like around the door lock. This is to ensure that water does not penetrate the door catch and come into contact with the electrical components.

  • Page 15: Troubleshooting

    Troubleshooting Front display Type of fault on the Action display Overfilling 1 Clear the drainage pump. See the section Care and cleaning. If the problem persists, call the service department. Water outlet fault See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department.
  • Page 16 Problem Possible causes Action Spots or films on the dishes. Incorrect rinse aid dosage setting. See the sections Before washing for the first time and Settings. Too high temperature and/or too much deter- Wash crystal at a low temperature and with gent can cause etching on crystal.
  • Page 17 Problem Possible causes Action Bad odour in dishwasher. Dirt around the seals and in corners. Clean with washing-up brush and low foam- ing cleaner. Low temperature programs have been select- Run a program with a higher temperature ed for a prolonged period. about once a month.

  • Page 18: Technical Information

    Technical information Information for test institute Energy labelling Australian standard: AS/NZS 2007 Number of place settings: Dishwashing programs: Normal, Drying: Short The door should be opened upon completion of the drying cycle a distance of 35 mm at V. Program time: 2:40 hours:minutes Connection: Cold water 20 °C...

  • Page 19: Technical Data

    1 Teaspoons 2 Dessertspoons 3 Soupspoons 4 Forks 5 Knives Remove the top cutlery tray. Technical data Height: 857-912 mm Width: 596 mm Depth: 559 mm Weight: 50 kg Capacity: 16 Place settings Water pressure: 0.03–1.0 MPa 0.3–10 kp/cm 3–100 N/cm Electrical connection: See type plate.

  • Page 20: Installation

    Installation 1238 [mm] 30 - 94 *Remove locking nuts for an installed height of 860-861 mm. Safety instructions Transport protection for the door Connections to electricity, water and drainage must be per- Do not forget to remove the transport protection for the door when formed by a qualified professional.

  • Page 21: Suggested Machine Installations

    Suggested machine installations Attach the door seal The dishwasher can be installed built-in, completely freestanding or partially built-in. A. Built-in The dishwasher is intended for installation under a worktop. The recess dimensions are illustrated. Holes for wires/cables need not be larger than 38 mm in diameter. Make sure the edges of such holes are even to prevent damage to the drainage and inlet hoses and the power cable.

  • Page 22: Connection To Water Supply

    Pull through the drainage and supply hoses when the ma- Figure 2 Max. 3 m chine is slid into place. Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage the hoses. Max.

  • Page 23: Screwing The Dishwasher Into Place

    Screwing the dishwasher into place Set the correct plinth depth as follows After fastening the machine, check that the front feet still touch (Not applicable to all models) the floor. Alt. 1 Alt. 2 Adjusting the plinth (only when using toe kick accessory) The dishwasher is supplied with one or two toe kicks depending on the model.

  • Page 24: Service

    Service Read chapter Troubleshooting before contacting the service department. Note down the details on the rating plate positioned on the right inside the dishwasher. Note down the item number (1) and serial number (2). ART. NO. SERIAL NO.

  • Page 25: Program Chart

    Program chart...

  • Page 26: Your Notes

    Your notes...
  • Page 27 Your notes...

  • Page 28: Quick Guide

    Use rinse aid to achieve good washing and drying results. (See page 4.) Refill rinse aid indicator. Select a program and any options (See page 8.) Press Start/Stop, close the door en (08-15) ASKO APPLIANCES AB SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN WWW.ASKO.COM...
